• Model NO.：GDS4*10*83 GDS2*10*83 GDS1*10*83
• Product Name：Full Closed Starch Sifter
• Line：Wheat Starch Production Line
• Useful Life：20 Years
• Condition：New
• Power：2.2 Kw
• Capacity：15 T,H
• Service：Overseas Installation
• Training：Yes
• Warranty：1 Year
• Voltage：220V or 380V
• Advantage：Large Capacity
• Machine：Wheat Starch Milk Water Filter
• Dimension：2310*2200*2400 mm
• Weight：1520 Kg
• Maintain：Yes
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. GDS4*10*83 GDS2*10*83 GDS1*10*83 Product Name Full Closed Starch Sifter Line Wheat Starch Production Line Useful Life 20 Years Condition New Power 2.2 Kw Capacity 15 T/H Service Overseas Installation Training Yes Warranty 1 Year Voltage 220V or 380V Advantage Large Capacity Machine Wheat Starch Milk Water Filter Dimension 2310*2200*2400 mm Weight 1520 Kg Maintain Yes Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/Month

Product Description

wheat starch equipment mono bin full closed dried starch grading fiber filter machine

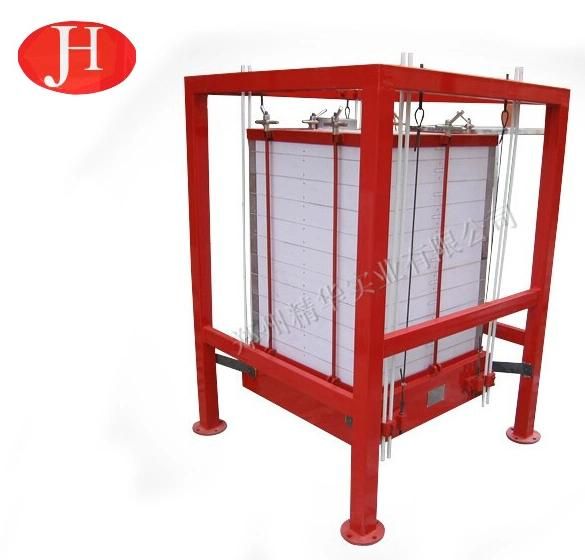

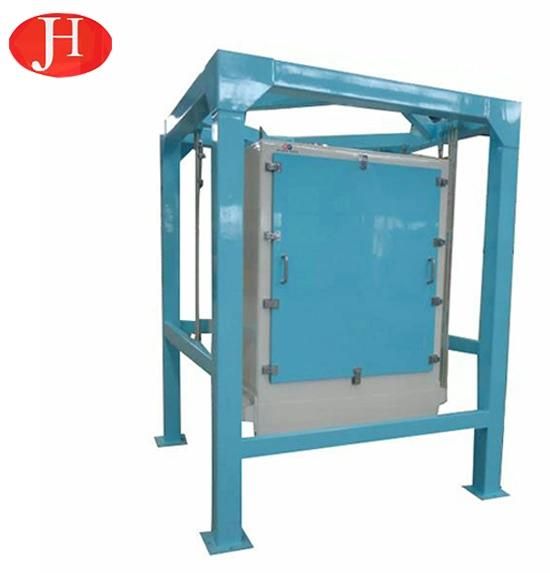

1.Description of wheat starch fiber filter machine
MFDC check sifter utilized as a final check (security) sifter before flour is sent to flour storage or packing machine to ensure bran particles or particles bigger that flour particles are removed. Machine can also be used for corn, feed and rice industries.

Main technical parameters

Model	Bin (piece)	Sifter area (m2)	Capacity (t/h)	Power (kw)	Weight (kg)	Dimension (mm)
GDS4*10*83	4	18	10~11	2.2	1520	2310×2200×2400
GDS2*10*100	2	10	6~8	1.5	900	2600×1650×2220
GDS2*10*83	2	8.5	5~6	1.5	850	2120×1400×2220
GDS1*10*100	1	6.6	3~4	1.1	750	1610×1610×1800
GDS1*10*83	1	4.2	2.5~3	0.75	600	1400×1400×1800

Working principle
The machine is composed of two main parts: the mild steel frame mounted with clamps for the flexible suspension rods, floor plates for mounting and the mild steel box section for the sieve frames with upper clamping by means of a metal frame and clamping pressure micrometric screws.
The drive unit with counter balance weight, with motor, pulleys, v-belt is mounted under the cabinet box section, adjustable to suit different applications. Material is fed into the top and by the machines circular motion, the fine material moves through the sieve mesh and is discharged out each sieve side to outlets, while the course material over tails and sent to separate outlets.


Advantages of starch sifter
1. Enclosed mild steel box cabinet for greater flexibility of flow due to additional outer (4) channels.
2. Simple design allows easy maintenance.

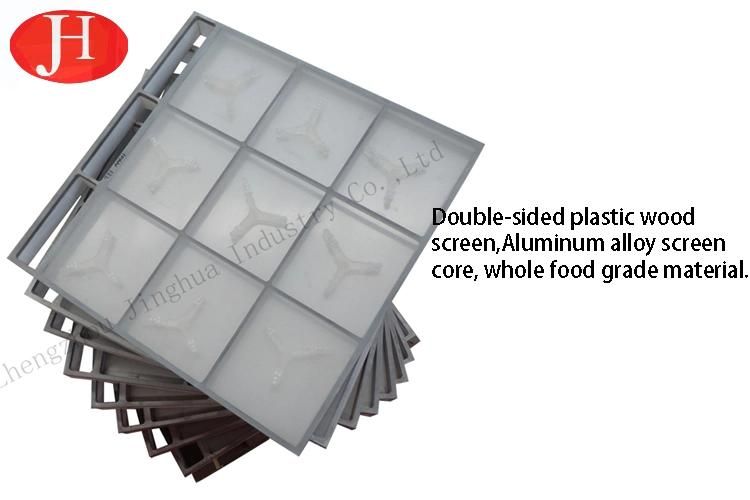

3. Alum (Aluminium) style sieve inner frames, mesh cloth glued with frame fast and activator.
4. Outer sieves coated inside and outside with plastic melamine lamination and supplied with stainless steel trays.
5. Plan sifter doors made of fiberglass with a bright and smooth finish, with insulation to prevent condensation.
6. Supplied with outlets for discharge, including inlet and outlet socks and black plastic caps.
7. Easy and quick changing of sifting scheme if necessary.


2.Why Choose Us
On the afternoon of June 6th, One Belt And One Road Cambodian delegation came to visit zhengzhou jinghua industrial co., LTD. Professor wang yanbo, chairman of zhengzhou jinghua company and other relevant personnel introduced to the delegation the achievements made by jinghua company over the years, the production technology of products and the production process of starch. The delegation visited the company's office building, production workshop and finished product warehouse, showing the delegation the company's production and research capabilities.


Zhengzhou Jinghua Industry Co.,Ltd. is a professional starch engineering corporation in China. Depending on the unique advantage and strong strength of Henan University of Technology, Jinghua combines scientific research, industry and trade as a whole, which mainly engaged in the working of factory layout, technology design,complete equipment manufacturing and commissioning, new product developing etc. to all kinds starch processing. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.

Our Factory

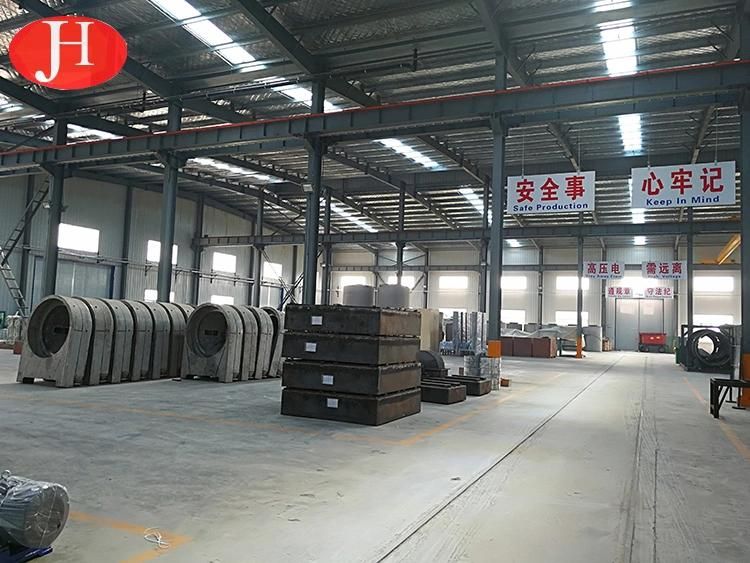

Our Workshop


Awarded the title of Advanced & High Technology Enterprise by Henan Science & Technology Department. Jinghua is the Vice president member of Sweet Potato Starch Professional Committee of China Starch Industry Association Units, the member of Potato Starch Professional Committee and the vice president member of China Food and Packaging Machinery Industry Association and Potato Food Processing Machinery Professional Committee Unit. Awarded the "ten years brilliant" honorary certificate issued by China international potato fair.

Our Certificate


3.Our Service
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .

Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.

After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.

4.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).

5.FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.

Q2.What is your main business?
A: Zhengzhou Jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line

Q3. Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.

Zhengzhou Jinghua Industry Co.,Ltd.
Add:Guanggu Road, Xingyang City,Henan Province,China
