• Model NO.：DG-3.2 DG-4.0 DG-6.0 DG-10.0
• Product Name：Airflow Dryer
• Energy：Electric
• Machine：Arrowroot Starch Dryer
• Condition：New
• Useful Life：20 Years
• Line：Arrowroot Starch Production Line
• Weight：2500 Kg
• Capacity：4-10 T,H
• Service：Overseas Installation
• Warranty：1 Year
• Power：269 Kw
• Training：Yes
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DG-3.2 DG-4.0 DG-6.0 DG-10.0 Product Name Airflow Dryer Energy Electric Machine Arrowroot Starch Dryer Condition New Useful Life 20 Years Line Arrowroot Starch Production Line Weight 2500 Kg Capacity 4-10 T/H Service Overseas Installation Warranty 1 Year Power 269 Kw Training Yes Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/Month

Product Description

starch drying machine continour working airflow dryer arrowroot starch production line
1.Description of arrowroot starch dryer machine
When designed air flow drying system, we fully considered each factor of turbulent flow,cyclone separating and heat exchange etc., so that each collocation and parameter have definite theory basis, such as heat exchange's collocation , temperature control of inlet air and outlet air,diameter change of cyclone pipe etc. Through measuring on feeding material moisture,or temperature difference between inlet and outlet, the feeding quantity and inlet steam volume can be automatic adjusted, thus the water content of product could of product could reach the technology requirement.This kind airflow dryer is not only suitable to all kinds potato kinds starch to be dried,but also adaptable to the drying of corn starch and wheat starch.

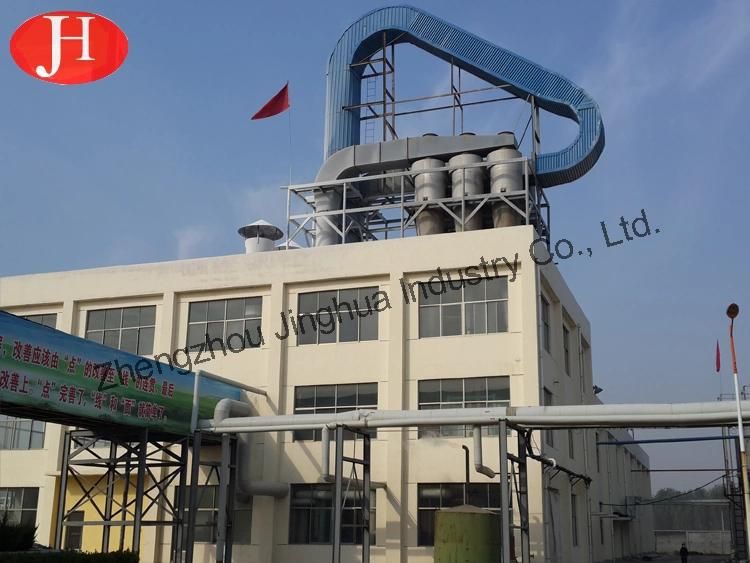

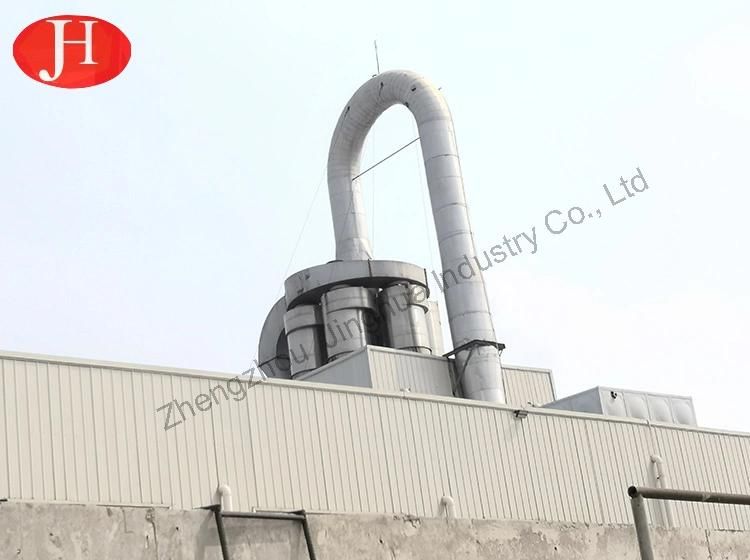

Outdoor part

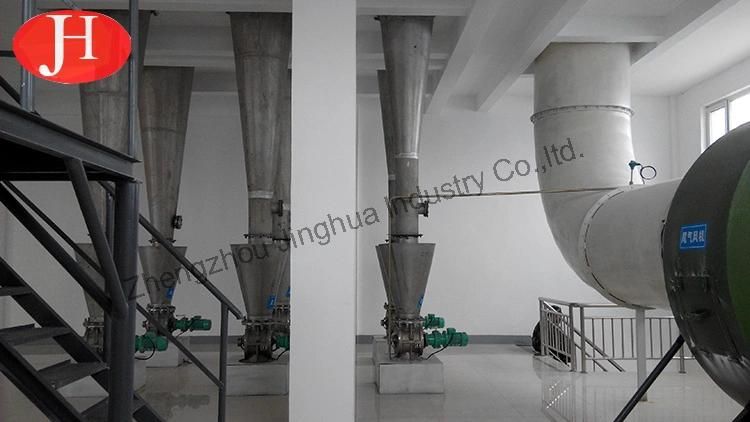

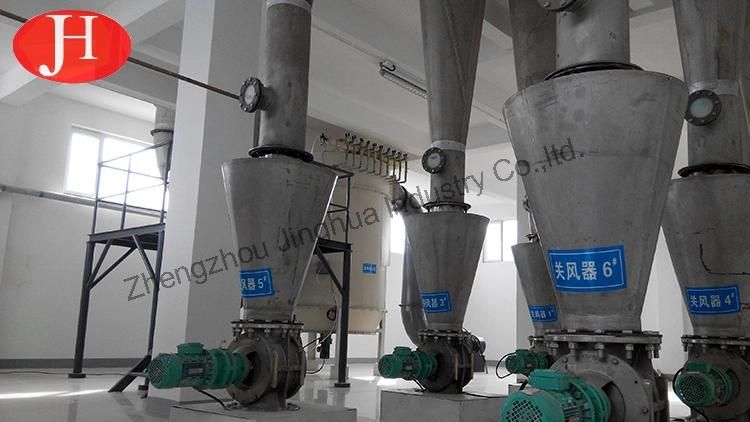

Indoor part




Main technical parameters

Model	DG-3.2	DG-4.0	DG-6.0	DG-10.0
Output(t/h)	3.2	4.0	6.0	10.0
Power capacity(Kw)	97	139	166	269
Moisture of wet starch(%)	≤40	≤40	≤40	≤40
Moisture of dry starch(%)	12-14	12-14	12-14	12-14

The working principle of airflow dryer
The cold air enters the radiator plate through the air filter, and the hot air flow after heating enters the dry air pipe. Meanwhile, the wet material enters the hopper of the feeding unit from the wet starch inlet, and is transported into the hoist by the feeding winch.The hoist rotates at high speed to drop the wet material into the dry duct, so that the wet material is suspended in the high speed hot air stream and heat is exchanged.After the material is dried, it enters the cyclone separator with the airflow, and the separated dry material is discharged by wind winding, and the finished product is screened and packed into the warehouse. And the separated exhaust gas, by the exhaust fan into the exhaust gas duct, into the atmosphere.

2.Packing & Shipping
Packing : Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).


3.Our Service
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .

Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.

After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.

4.Company Information
Zhengzhou jinghua industry co., LTD was invited to participate in 2019 China international potato industry expo. During the exhibition, jinghua company showed its research and development achievements in recent years and met and communicated with new and old customers. Mr. Wang yanbo, chairman of the board of directors, delivered an important speech at the 2019 tuber green processing and comprehensive utilization technology seminar. In this conference, our company won the "ten years brilliant" honorary certificate issued by China international potato fair, which is the recognition of the ten years' work achievements of the jinghua company, and will encourage zhengzhou jinghua industrial co., LTD to forge ahead in the future.


5.Why Choose Us
Jinghua company is an engineering and technical company specializing in starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas .Company for China starch industry association executive director units, executive director of the association of Chinese cassava starch industry unit.
Mr. Wang yanbo, chairman of the board, has published 7 scientific works, 6 national standards and 30 academic papers, across a country: "ten five" to "thirteen, five" national key r&d projects and provincial major research project over 10, with more than 10 national patents, won awards at all levels more than 20. Has participated in more than 80 domestic and foreign starch engineering design work, its advanced processing technology and technology has reached the world's leading level.

Our Factory

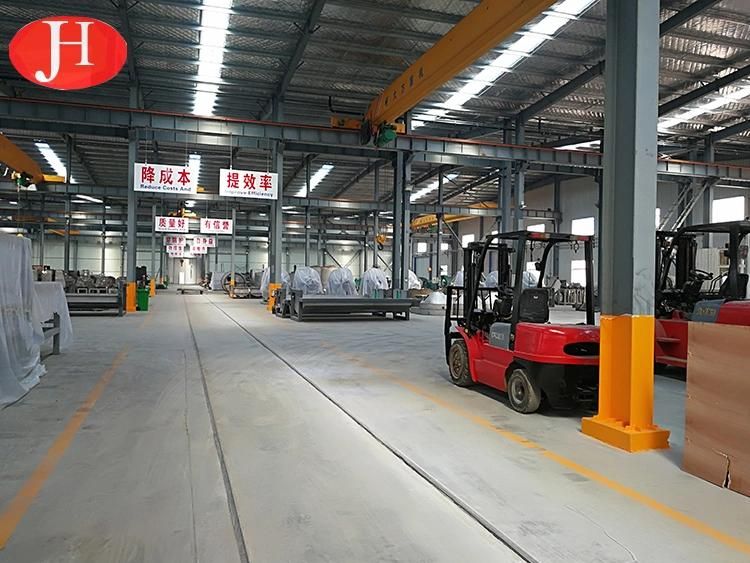

Our Workshop


Our Workers


Our Certificate


6.FAQ
Q1: Can you provide detailed parameters and drawings of the equipment?
A: Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.

Q2:How long is the warranty period of the eq uipment?
A:After the successful installation and commissioning of the equipment, there is a one-year warranty period.

Q3:What kind of after-sales service do you provide?
A:Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
