• Model NO.：DPS5050 DPS5076 DPS50100
• Product Name：Cassava Grinder Machine
• Machine：Cassava Flour Grinder Machine
• Condition：New
• Useful Life：20 Years
• Service：Overseas Installation
• Advantage：Large Capacity
• Voltage：220V or 380V
• Training：Yes
• Dimension：1530*1400*765 mm
• Material：Stainless Steel
• Capacity：10-50 T,H
• Price：Negotiable
• Weight：1100 Kg
• Speed of Rotor：1200 R,Min
• Warranty：1 Year
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DPS5050 DPS5076 DPS50100 Product Name Cassava Grinder Machine Machine Cassava Flour Grinder Machine Condition New Useful Life 20 Years Service Overseas Installation Advantage Large Capacity Voltage 220V or 380V Training Yes Dimension 1530*1400*765 mm Material Stainless Steel Capacity 10-50 T/H Price Negotiable Weight 1100 Kg Speed of Rotor 1200 R/Min Warranty 1 Year Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/Month

Product Description

cleaned arrowroot starch grinder machinery large capacity crusher starch milling production line

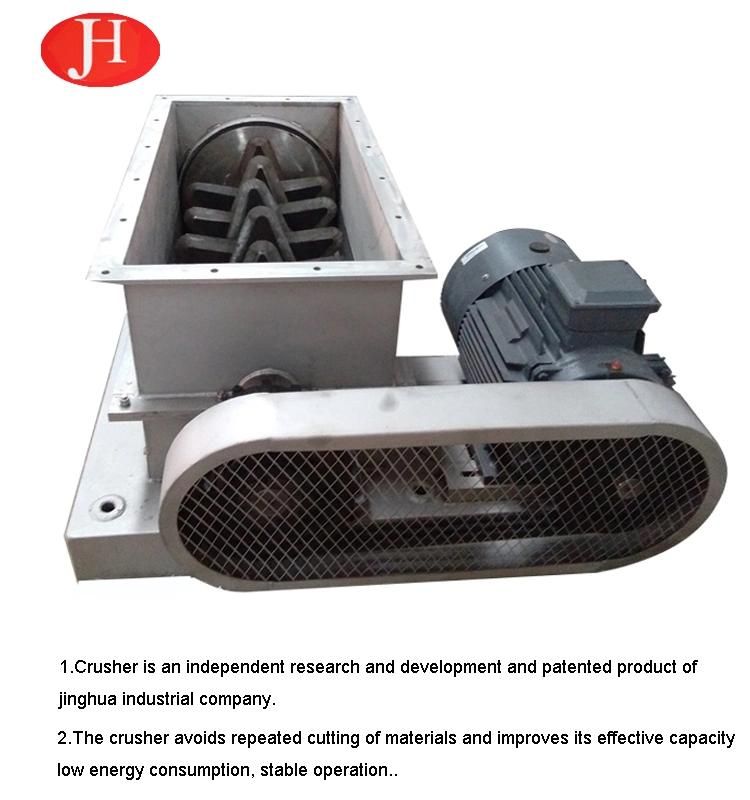

1.Description of arrowroot starch grinder
Zhengzhou Jinghua Industry Crusher is newly designed with compact structure, easy disassembly and low maintenance cost.  The machine is widely used for cracking big materials. The raw material is usually fresh cassava tube, fresh sweet potato and after crushing you can get the finished product with a 20-30mm size. It is a precrushing.

Advantages of crusher
1. Fully stainless steel to be sure there is no corrosion
2. We have as long as 15 years' experience in development and research of starch processing subject.
3. This machine has features of low energy consumption, high capacity, fine particles and easy installation, easy maintenance.
4. It consists of cover, case body, machine seat, main shaft and so on.
5. It is mainly used for crashing cassava, sweet potato etc.


Main technical parameters

Model	Diameter of rotor (mm)	Speed of rotor (r/min)	Blade Number	Rotor length (mm)	Power (Kw)	Dimension (mm)	Weight (Kg)	Capacity (t/h)
DPS5050	Φ480	1200	9	550	7.5/11	1030x1250x665	650	10-15
DPS5076	Φ480	1200	11	760	11/15	1250x1300x600	750	15-30
DPS50100	Φ480	1200	15	1000	18.5/22	1530x1250x665	900	30-50
DPS60100	Φ580	1200	15	1000	30/37	1530x1400x765	1100	60-80

Working principle  of crusher

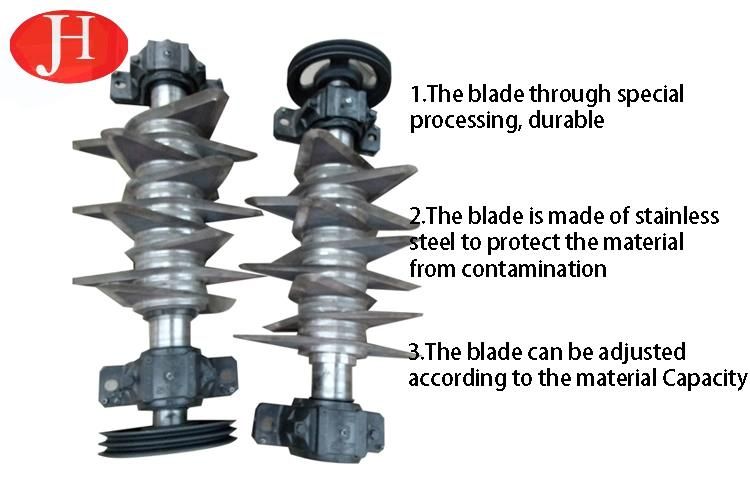

The main working part of the crusher is a rotary table with a blade. The rotary table is composed of a spindle and a rotary table.The motor drives the rotary table to rotate at a medium speed in the slicing chamber, and the material enters from the upper feeding port,the upper part of the rotary knife is sheared by the rotary blade and is discharged at the lower part of the rotary knife.


2.Company Information
Zhengzhou jinghua industrial co., LTD., as a member of China starch industry association, was invited to attend the 2019 Shanghai international starch and starch derivatives exhibition. In this meeting, zhengzhou jinghua industry co., ltd. and the new and old customers in-depth meeting exchanges, for the future further cooperation to create a good beginning, to the whole industry to show the recent new research and development results, harvested from more peers and experts unanimously recognized.

Jinghua company is a specialized engineering technology company specializing in various starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.The chairman of the board is professor wang yanbo, who is mainly engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research and engineering design of starch and its deep processing direction, and research and development of modern equipment. He has published 7 scientific works, 6 national standards and 30 academic papers.

3.Our Service
Pre-sale service
1.Accept customer consultation and customize products according to customer requirements.
2.Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.

Sale service
1.The company sent technical personnel to the scen of the on-the -spot guidance equipment installation,debugging and training operators.
2.If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.

After-sale service
1.Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty and lifelong maintenance service.

4.Packing & Shipping
Packing : Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).


5.FAQ
Q1: Can you provide detailed parameters and drawings of the equipment?
A: Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.

Q2:How long is the warranty period of the eq uipment?
A:After the successful installation and commissioning of the equipment, there is a one-year warranty period.

Q3:What kind of after-sales service do you provide?
A:Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.

Zhengzhou Jinghua Industry Co.,Ltd.
Add:Guanggu Road, Xingyang City,Henan Province,China
