• Model NO.：DPS5050 DPS5076 DPS50100
• Product Name：Customized Crusher
• Condition：New
• Material：Stainless Steel
• Capacity：20-50 T,H
• Useful Life：20 Years
• Service：Overseas Installation
• Dimension：1530*1400*765 mm
• Diameter of Rotor：480 mm
• Power：37 Kw
• Speed of Rotor：1200 R,Min
• Training：Yes
• Advantage：Large Capacity
• Price：Negotiable
• Weight：1100 Kg
• Line：Sweet Potato Starch Production Line
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DPS5050 DPS5076 DPS50100 Product Name Customized Crusher Condition New Material Stainless Steel Capacity 20-50 T/H Useful Life 20 Years Service Overseas Installation Dimension 1530*1400*765 mm Diameter of Rotor 480 mm Power 37 Kw Speed of Rotor 1200 R/Min Training Yes Advantage Large Capacity Price Negotiable Weight 1100 Kg Line Sweet Potato Starch Production Line Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/Month

Product Description

large capacity sweet potato starch grater cutting machine good effect crusher

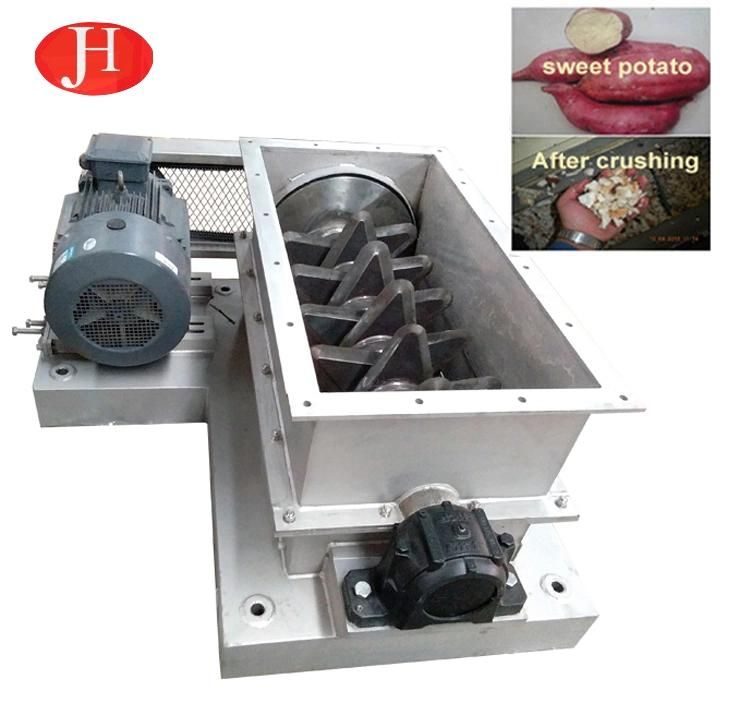

1.Description of crusher
Zhengzhou Jinghua Industry Crusher is newly designed with compact structure, easy disassembly and low maintenance cost.  The machine is widely used for cracking big materials. The raw material is usually fresh cassava tube, fresh sweet potato and after crushing you can get the finished product with a 20-30mm size. It is a precrushing.

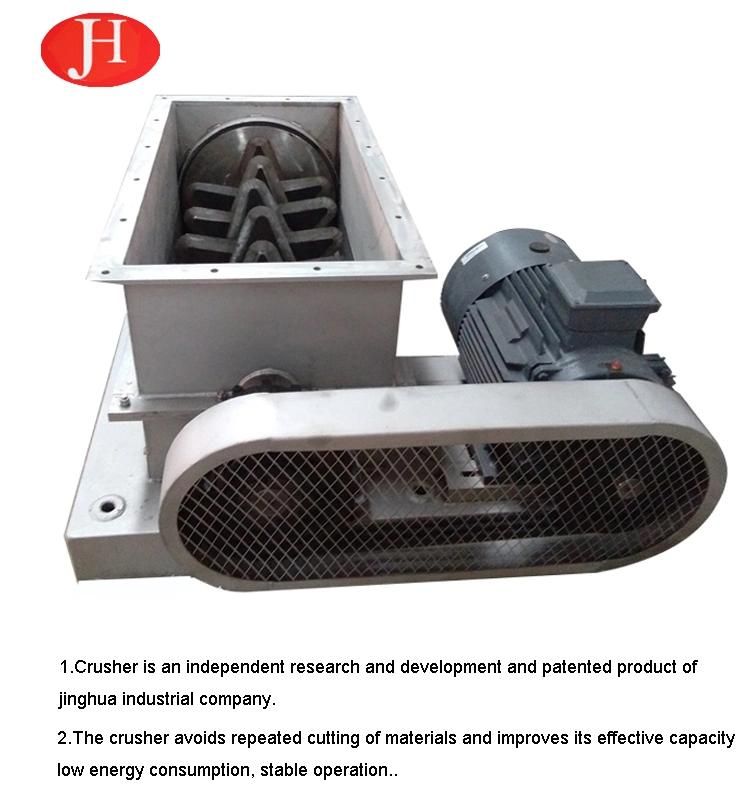

Main features of crusher
1.In dependent research and development,integrate with the same kind so fequipment performance from local and abroad manufactures, and combined with our many years useing esperience.
2.Newly designed with compact structure,easy disassembly and low maintenance cost.
3.Small volumes with large capacity,medium speed,low energy consumption and steady operation.

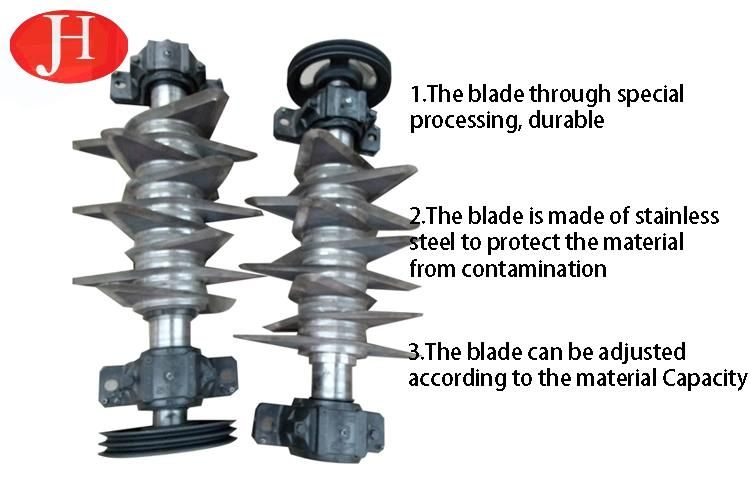

4.To avoid duplication of material cutting and improvge cutting ability.Blade is sepcially made and is durable.
5.Parts contact with material are made of stainless steel,to ensure materials not contaminated.
6.The machines is widely used for cracking of big material.



Main technical parameters

Model	Diameter of rotor (mm)	Speed of rotor (r/min)	Blade Number	Rotor length (mm)	Power (Kw)	Dimension (mm)	Weight (Kg)	Capacity (t/h)
DPS5050	Φ480	1200	9	550	7.5/11	1030x1250x665	650	10-15
DPS5076	Φ480	1200	11	760	11/15	1250x1300x600	750	15-30
DPS50100	Φ480	1200	15	1000	18.5/22	1530x1250x665	900	30-50
DPS60100	Φ580	1200	15	1000	30/37	1530x1400x765	1100	60-80

Working principle  of crusher
The main working part of the crusher is a rotary table with a blade. The rotary table is composed of a spindle and a rotary table.The motor drives the rotary table to rotate at a medium speed in the slicing chamber, and the material enters from the upper feeding port,the upper part of the rotary knife is sheared by the rotary blade and is discharged at the lower part of the rotary knife.

2.Our Customer



3.Our Service
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .

Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.

After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.

4.Why Choose Us
Zhengzhou jinghua industry co., LTD was invited to participate in 2019 China international potato industry expo. During the exhibition, jinghua company showed its research and development achievements in recent years and met and communicated with new and old customers. Mr. Wang yanbo, chairman of the board of directors, delivered an important speech at the 2019 tuber green processing and comprehensive utilization technology seminar. In this conference, our company won the "ten years brilliant" honorary certificate issued by China international potato fair, which is the recognition of the ten years' work achievements of the jinghua company, and will encourage zhengzhou jinghua industrial co., LTD to forge ahead in the future.


Zhengzhou Jinghua Industry Co.,Ltd. is a professional starch engineering corporation in China. Depending on the unique advantage and strong strength of Henan University of Technology, Jinghuacombines scientific research, industry and trade as a whole, which mainly engaged in the working of factory layout, technology design,complete equipment manufacturing and commissioning, new product developing etc. to all kinds starch processing. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.

Our Workshop


Our Workers


Awarded the title of Advanced & High Technology Enterprise by Henan Science & Technology Department. Jinghua is the Vice president member of Sweet Potato Starch Professional Committee of China Starch Industry Association Units, the member of Potato Starch Professional Committee and the vice president member of China Food and Packaging Machinery Industry Association and Potato Food Processing Machinery Professional Committee Unit. Awarded the "ten years brilliant" honorary certificate issued by China international potato fair.

Our Certificate


5.FAQ
Q1: Can you provide detailed parameters and drawings of the equipment?
A: Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.

Q2:How loong is the warranty period of the eq uipment?
A:After the successful installation and commissioning of the equipment, there is a one-year warranty period.

Q3:What kind of after-sales service do you provide?
A:Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
