• Model NO.：DCM8435 DCM8450 DCM1070 DCM8465
• Condition：New
• Customized：Customized
• Machine：Cassava Grinder Machine
• Line：Starch Production Line
• Useful Life：20 Years
• Product Name：Stainless Steel Rasper
• Service：Overseas Installation
• Training：Yes
• Capacity：15-45 T,H
• Material：Stainless Steel
• Drum Diameter：840 mm
• Main Shaft Rotating Speed：2100 R,Min
• Dimension：3000*1590*1500 mm
• Power：250 Kw
• Price：Negotiable
• Advantage：Large Capacity
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. DCM8435 DCM8450 DCM1070 DCM8465 Condition New Customized Customized Machine Cassava Grinder Machine Line Starch Production Line Useful Life 20 Years Product Name Stainless Steel Rasper Service Overseas Installation Training Yes Capacity 15-45 T/H Material Stainless Steel Drum Diameter 840 mm Main Shaft Rotating Speed 2100 R/Min Dimension 3000*1590*1500 mm Power 250 Kw Price Negotiable Advantage Large Capacity Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 10 Sets/Month

Product Description

raw material grinder making machine stainless steel rasper starch processing machine
1.Description of starch making machine

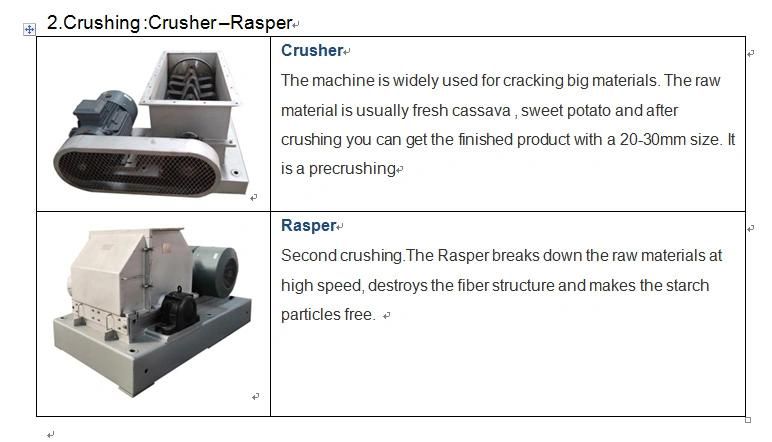

Rasper is our company's high-tech products and patented technology products.The rasper breaks the raw material at a high speed, destroys the fiber structure and makes the starch particles free.Widely used in potato starch and cassava starch processing to crash and rasp raw materials.

Main technical parameters

Model	DCM8435	DCM8450	DCM8465	DCM1070
Main shaft rotating speed(r/min)	2100	2100	2100	1470
Drum diameter (mm)	Φ840	Φ840	Φ840	Φ1100
Drum width (mm)	350	500	650	700
Power (Kw)	110	160	200	250
Capacity (t/h)	20-23	30-33	35-40	40-45
Dimension(mm)	2170x1260x1220	2170x1385x1250	2170x1650x1380	3000x1590x1500

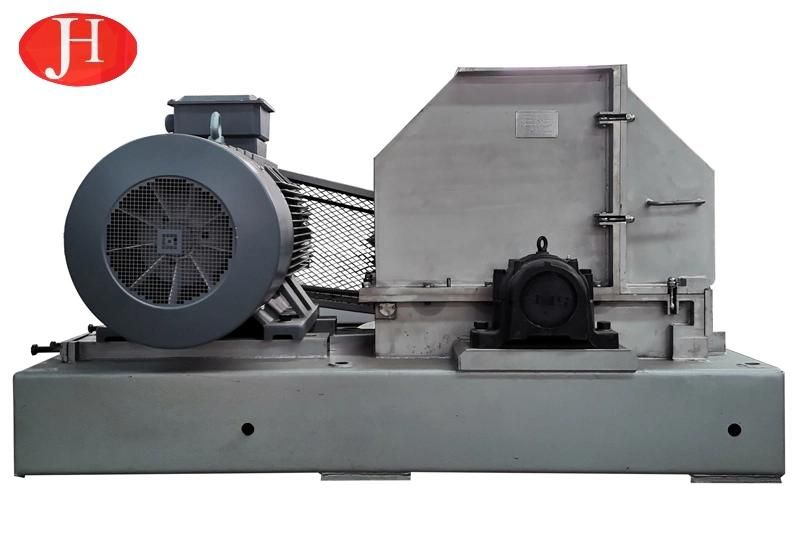

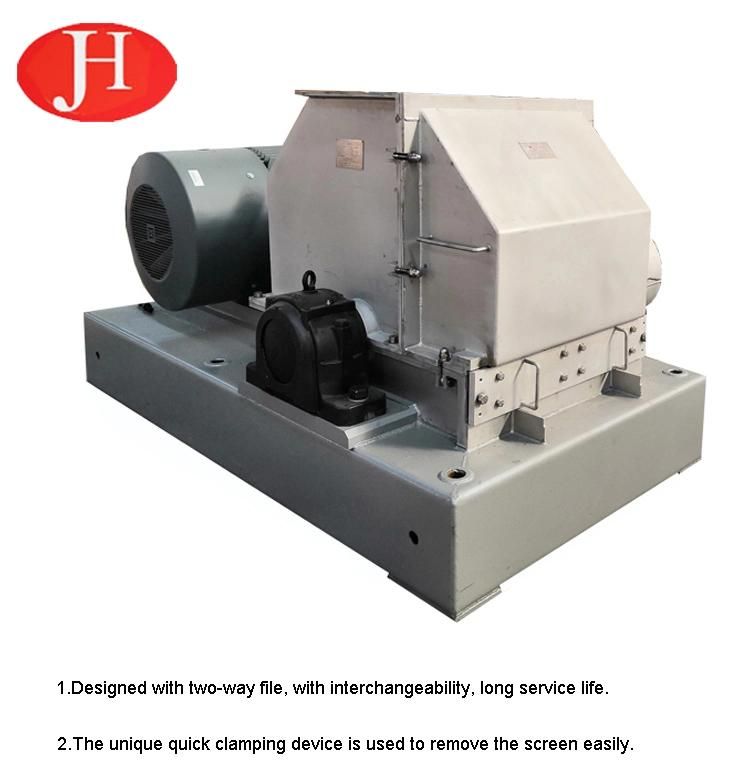

Product show



The working principle of rasper
The material enters into the body of the file mill shell through the upper entrance, and is broken by the impact, shear and grinding effect of the saw blade moving at high speed. The lower part of the rotor is equipped with a screen screen. The material smaller than the size of the screen hole is discharged through the screen plate, and the particles larger than the size of the screen hole are blocked and remain on the screen plate to continue to be hit and grinder by the saw blade.

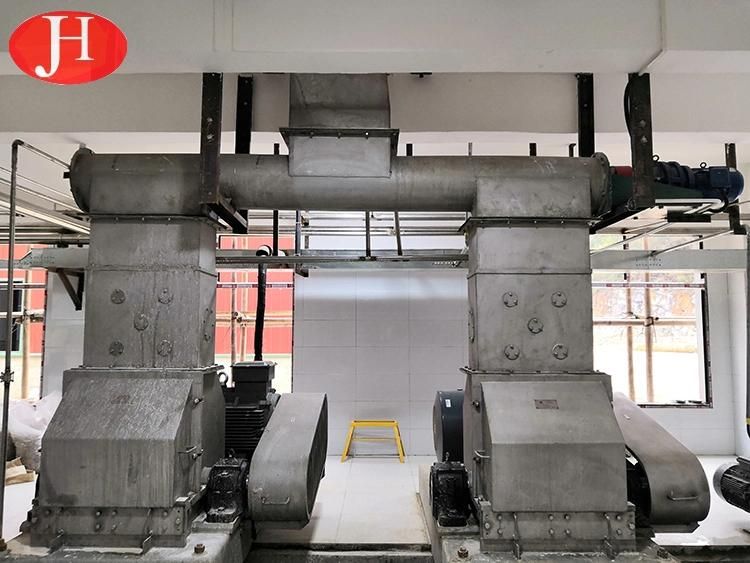

Real application case


Structure introduction
Complete machine consists of rotor, rasping blade, engine base, upper cover, side cover, bearing base, gearing, motor, etc.
1. Engine base props up all components, which rotor and bearings are all fixed on.

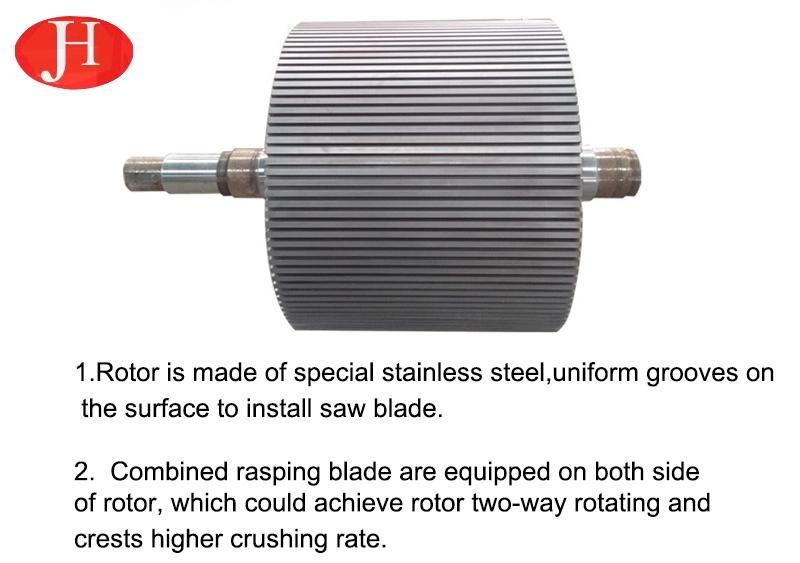

2. Rotor is made of special stainless steel, uniform grooves on the surface to install saw blade.
3. Saw blade is comprised of 2 stainless-steel layer with locating pin and a saw blade.
4. 2 combined rasping blade are equipped on both side of rotor, which could achieve rotor two-way rotating and crests higher crushing rate.
5. A sieve is equipped between rasping blades, which is tensioned by two sets tensioning instruments.
6. For easy operation, upper shell divides into two parts, upper cover and side cover.





2.Our Service
Pre-sale service
1.Accept customer consultation and customize products according to customer requirements.
2.Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.

Sale service
1.The company sent technical personnel to the scen of the on-the -spot guidance equipment installation,debugging and training operators.
2.If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.

After-sale service
1.Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty and lifelong maintenance service.

3.Packing & Shipping

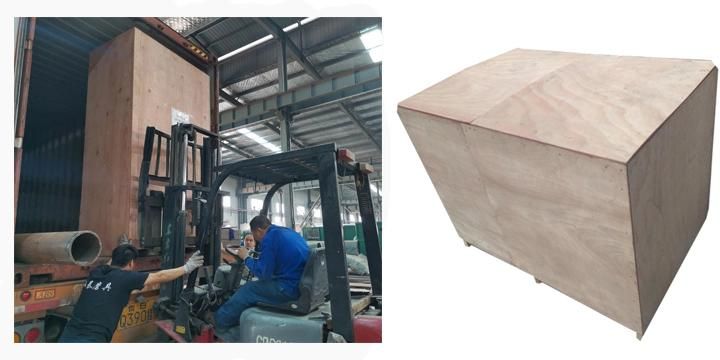

Packing : Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).

4.Company Information

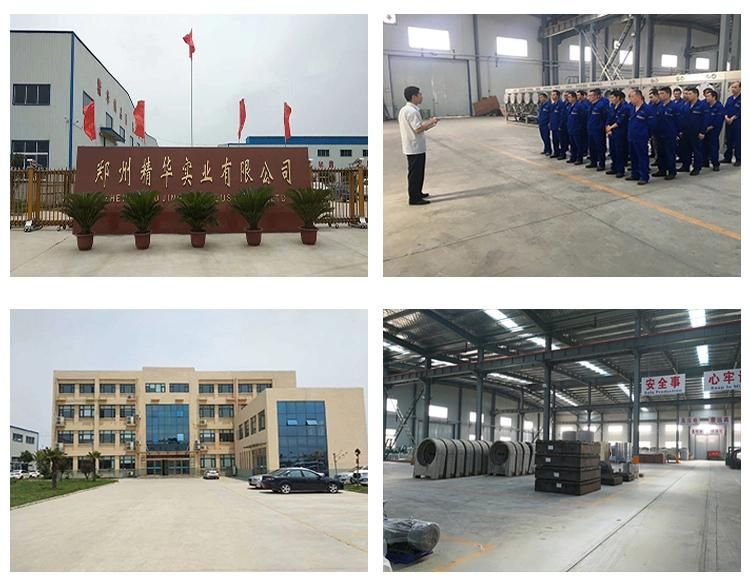

Zhengzhou Jinghua Industry Co.,Ltd. is a professional starch engineering corporation in China. Depending on the unique advantage and strong strength of Henan University of Technology, Jinghua combines scientific research, industry and trade as a whole, which mainly engaged in the working of factory layout, technology design,complete equipment manufacturing and commissioning, new product developing etc. to all kinds starch processing. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.

Zhengzhou jinghua industry co., LTD was invited to participate in 2019 China international potato industry expo. During the exhibition, jinghua company showed its research and development achievements in recent years and met and communicated with new and old customers. Mr. Wang yanbo, chairman of the board of directors, delivered an important speech at the 2019 tuber green processing and comprehensive utilization technology seminar. In this conference, our company won the "ten years brilliant" honorary certificate issued by China international potato fair, which is the recognition of the ten years' work achievements of the jinghua company, and will encourage zhengzhou jinghua industrial co., LTD to forge ahead in the future.


5.FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.

Q2.What is your main business?
A: Zhengzhou Jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line.

Q3.Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements

Q4:Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5:If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installatison of whole process line based on your real situation;

Q6:If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
