• Model NO.：DPS5050 DPS5076 DPS50100
• Condition：New
• Customized：Customized
• Machine：Cassava Cutting Machine
• Line：Starch Production Line
• Useful Life：20 Years
• Product Name：Electric Crusher
• Service：Overseas Installation
• Training：Yes
• Capacity：10-80 T,H
• Material：Stainless Steel
• Diameter of Rotor：480 mm
• Main Shaft Rotating Speed：2100 R,Min
• Dimension：1530*1400*765 mm
• Power：37 Kw
• Price：Negotiable
• Advantage：Large Capacity
• Speed of Rotor：1200 R,Min
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. DPS5050 DPS5076 DPS50100 Condition New Customized Customized Machine Cassava Cutting Machine Line Starch Production Line Useful Life 20 Years Product Name Electric Crusher Service Overseas Installation Training Yes Capacity 10-80 T/H Material Stainless Steel Diameter of Rotor 480 mm Main Shaft Rotating Speed 2100 R/Min Dimension 1530*1400*765 mm Power 37 Kw Price Negotiable Advantage Large Capacity Speed of Rotor 1200 R/Min Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 10 Sets/Month

Product Description

large capacity starch plant 37 kw crusher cassava potato cutting grinder making machine
1.Description of starch making machine

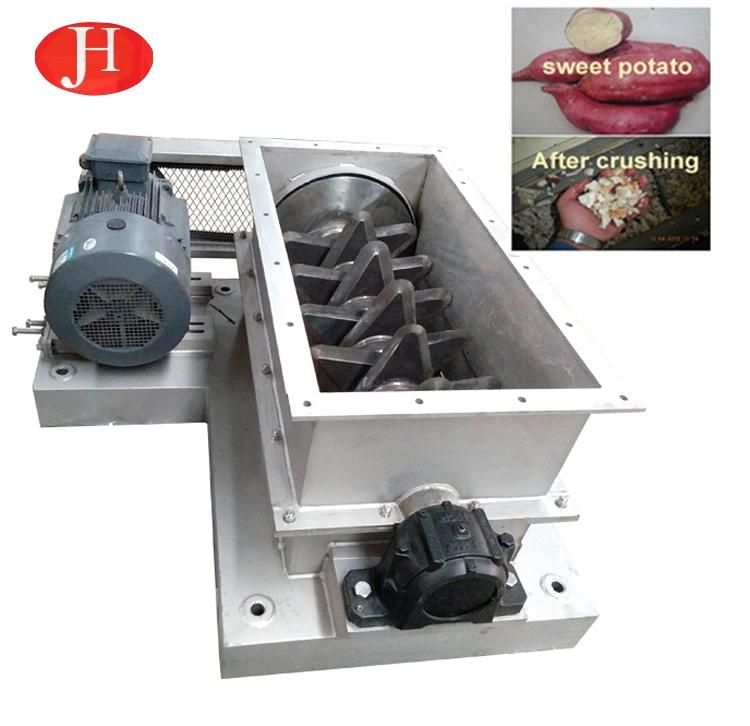

Zhengzhou Jinghua Industry crusher is newly designed with compact structure, easy disassembly and low maintenance cost.  The machine is widely used for cracking big materials. The raw material is usually fresh cassava tube, fresh sweet potato and after crushing you can get the finished product with a 20-30mm size. It is a precrushing.

Main technical parameters

Model	Diameter of rotor (mm)	Speed of rotor (r/min)	Blade Number	Rotor length (mm)	Power (Kw)	Dimension (mm)	Weight (Kg)	Capacity (t/h)
DPS5050	Φ480	1200	9	550	7.5/11	1030x1250x665	650	10-15
DPS5076	Φ480	1200	11	760	11/15	1250x1300x600	750	15-30
DPS50100	Φ480	1200	15	1000	18.5/22	1530x1250x665	900	30-50
DPS60100	Φ580	1200	15	1000	30/37	1530x1400x765	1100	60-80

Working principle  of crusher

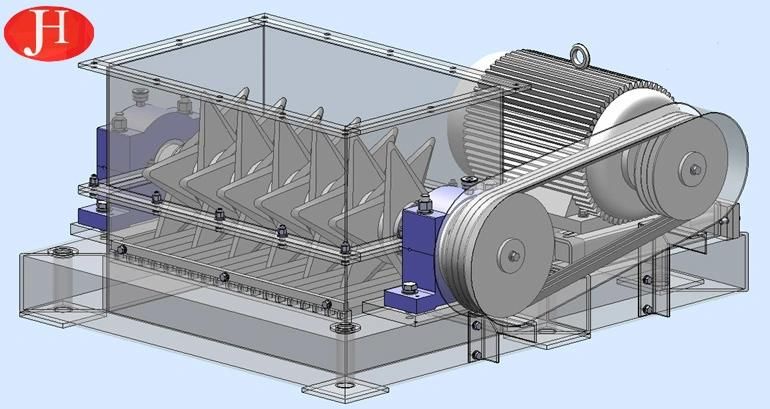

The main working part of the crusher is a rotary table with a blade. The rotary table is composed of a spindle and a rotary table.The motor drives the rotary table to rotate at a medium speed in the slicing chamber, and the material enters from the upper feeding port,the upper part of the rotary knife is sheared by the rotary blade and is discharged at the lower part of the rotary knife.


Main features of crusher

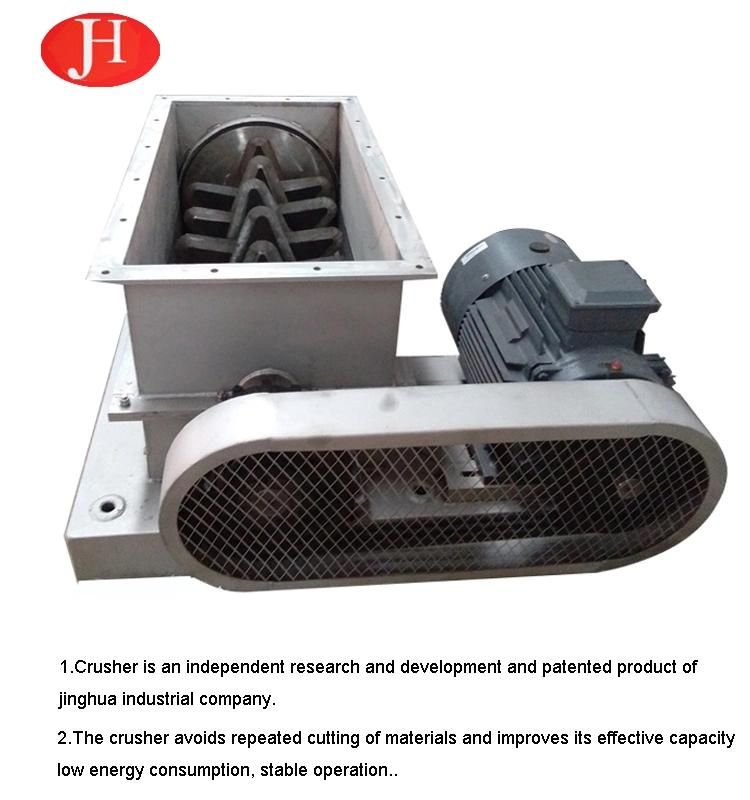

1.In dependent research and development,integrate with the same kind so fequipment performance from local and abroad manufactures, and combined with our many years useing esperience.
2.Newly designed with compact structure,easy disassembly and low maintenance cost.
3.Small volumes with large capacity,medium speed,low energy consumption and steady operation.

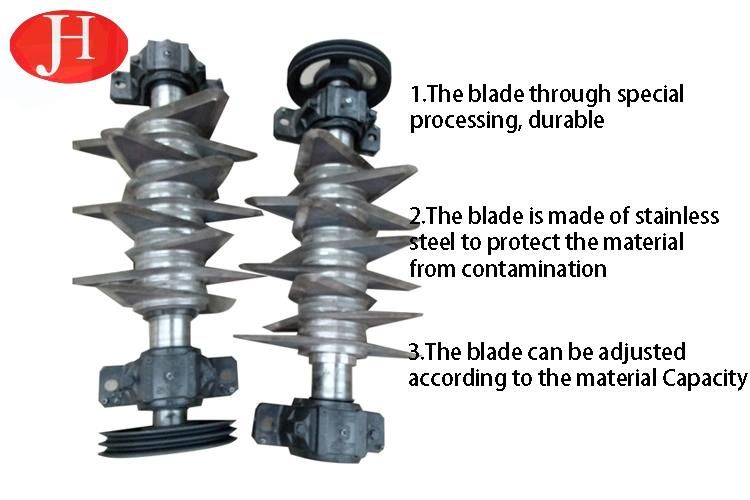

4.To avoid duplication of material cutting and improvge cutting ability.Blade is sepcially made and is durable.
5.Parts contact with material are made of stainless steel,to ensure materials not contaminated.
6.The machines is widely used for cracking of big material.






2.Our Service
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .

Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.

After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.

3.Packing & Shipping
Packing : Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).


4.Company Information

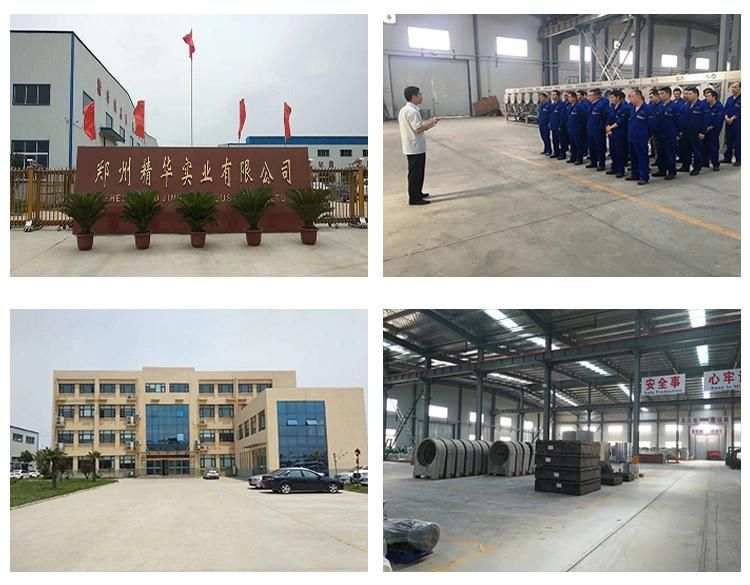

Zhengzhou Jinghua Industry Co.,Ltd. is a professional starch engineering corporation in China. Depending on the unique advantage and strong strength of Henan University of Technology, Jinghua combines scientific research, industry and trade as a whole, which mainly engaged in the working of factory layout, technology design,complete equipment manufacturing and commissioning, new product developing etc. to all kinds starch processing. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.

Zhengzhou jinghua industrial co., LTD., as a member of China starch industry association, was invited to attend the 2019 Shanghai international starch and starch derivatives exhibition. In this meeting, zhengzhou jinghua industry co., ltd. and the new and old customers in-depth meeting exchanges, for the future further cooperation to create a good beginning, to the whole industry to show the recent new research and development results, harvested from more peers and experts unanimously recognized.

5.FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.

Q2.What is your main business?
A: Zhengzhou Jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line.

Q3.Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements

Q4:Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5:If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installatison of whole process line based on your real situation;

Q6:If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
