Cassava Starch Milk Water Filter High Effective Hydro Cyclone Cassava Starch Machine
Zhengzhou Jinghua Industry Co., Ltd.- Processing Material：Special Agricultural Products, Cassava
- Application：Starch
- Customized：Customized
- Certification：CE
- Power Source：Electric
- Automatic Grade：Automatic
Base Info
- Model NO.：XL325 XL438 XL516 XLS426
- Product Name：Hydro Cyclone
- Operation：Automatic
- Condition：New
- Capacity：3-10 T,H
- Power：7.5-45 Kw
- Service：Overseas Installation
- Energy：Electric
- Patent Product：Yes
- Weight：0.3 T,Stage
- Useful Life：15 Years
- Price：Negotiable
- Warranty：1 Year
- Training：Yes
- Company：Zhengzhou Jinghua
- Transport Package：Wooden Case
- Specification：stainless steel
- Trademark：JINGHUA
- Origin：Zhengzhou City, China
- Production Capacity：20 Sets,Month
Description
Group capacity:
3-12t/h
Power:
7.5-45kw/stage
Total weight:
0.3t/stageCylinder diameter(mm) 362 438 516 426 Cylinder norm(mm) 10,15 10,15 10,15 10,15 Feed Pressure(MPa) 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 Inlet Size(mm) 76 89 89 2* 89 Underflow Size(mm) 48 48 57 76 Top flow Size(mm) 57 57 76 2- 57
Main Features of hydrocyclone separator
1. Fully stainless steel to be sure there is no corrosion.
2. Advanced surface treatment craft. Oil and dirty resisting.
3. Widely used for starch extraction in starch processing plants.
4. Multifunction of concentration, recovery, washing and separation for hydrocyclone group.
5. Cyclone pipes are made from material of reinforced nylon with high strength, deter abrasive resistance and excellent separation result.
6. Hydroclone designing is adopted to get better starch separation according to the features of different material.
7. Pipeline of hydrocyclone group passes computer optimization design. Compact and elegant.
8. Special sealing design, friendly operation.
Working principleStarch milk enters the middle cavity of the cylinder body through the starch pump from the feeding port of the cyclone. Starch paste enters the inlet of the cyclone tube and enters the inner part of the cyclone tube along the tangent direction of the cyclone tube. In the swirl tube, the material components rotate according to the spiral line and generate centrifugal force. And relative density of small proteins and water centrifugal force is small, the spiral motion, is reduced to about the lower part of the cone resistance by bottom LiuKou formed in the reverse direction of rotation of the spiral vortex uplink to LiuKou eduction, so as to achieve the purpose of each one.

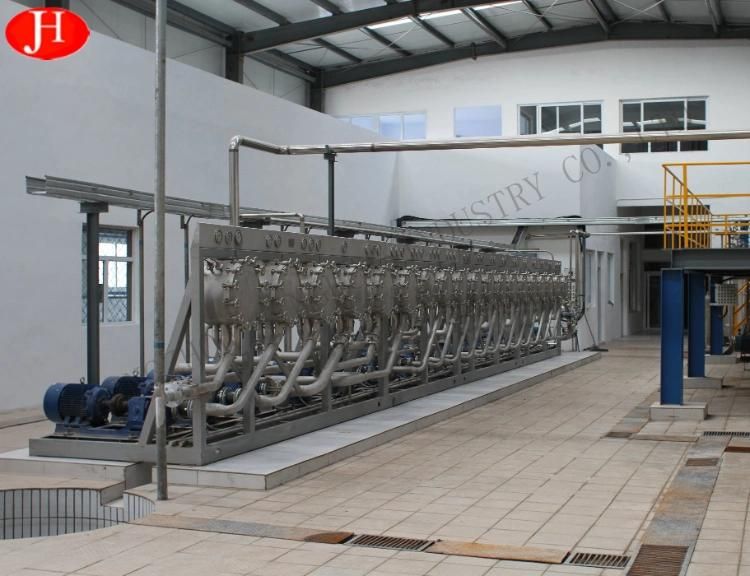

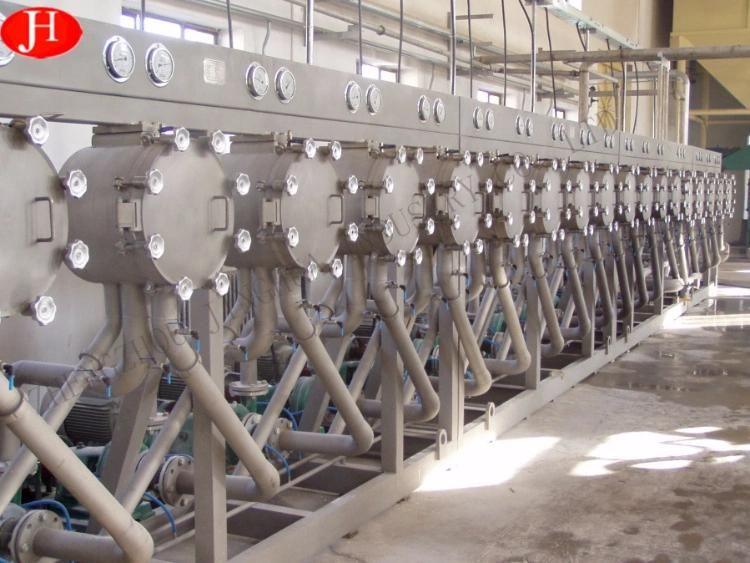

Real application case
2.Our Service
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .
Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.
After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.
3.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).
4.Company Information
Jinghua company is a specialized engineering technology company specializing in various starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.The chairman of the board is professor wang yanbo, who is mainly engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research and engineering design of starch and its deep processing direction, and research and development of modern equipment. He has published 7 scientific works, 6 national standards and 30 academic papers.
Our Factory
Our Workshop
Our Workers
Our Certificate
5.FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.
Q2.What is your main business?
A: Zhengzhou Jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line
Q3. Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements
Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.
Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
Zhengzhou Jinghua Industry Co.,Ltd.
Add:Guanggu Road, Xingyang City,Henan Province,China
