• Model NO.：GDS4*10*83 GDS2*10*83 GDS1*10*83
• Product Name：Vibration Starch Sifter
• Line：Arrowroot Starch Production Line
• Useful Life：20 Years
• Condition：New
• Power：2.2 Kw
• Capacity：15 T,H
• Service：Overseas Installation
• Training：Yes
• Warranty：1 Year
• Voltage：220V or 380V
• Advantage：High Effective
• Machine：Arrowroot Starch Sifter
• Weight：1520 Kg
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. GDS4*10*83 GDS2*10*83 GDS1*10*83 Product Name Vibration Starch Sifter Line Arrowroot Starch Production Line Useful Life 20 Years Condition New Power 2.2 Kw Capacity 15 T/H Service Overseas Installation Training Yes Warranty 1 Year Voltage 220V or 380V Advantage High Effective Machine Arrowroot Starch Sifter Weight 1520 Kg Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/Month

Product Description

half closed starch starch sifter arrowroot starch grading fiber filter making machine

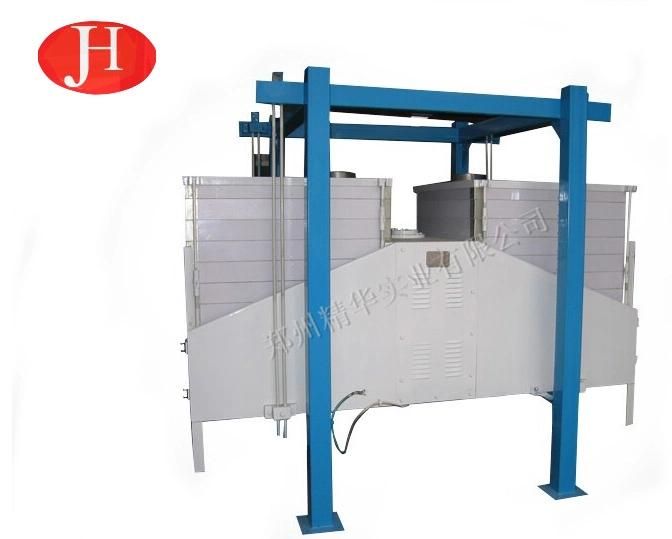

1.Description of arrowroot starch sifter machine
Zhengzhou jinghua starch sifter is widely used in starch industry and it is proved the best sifter in starch sifting. The sieve body is composed of many layer sieve lattices and the sieve cases are made of excellent bass wood. Each layer connects closely as the form of step in the rim to ensure good sealing performance and convenient maintenance. Suspender is made from glass fiber reinforced plastic with durable life.
It is widely used for sieving dry starch before starch packing in corn starch, cassava starch, potato starch and sweet potato starch and wheat starch sago starch processing project.

Main technical parameters

Model	Bin (piece)	Sifter area (m2)	Capacity (t/h)	Power (kw)	Weight (kg)	Dimension (mm)
GDS4*10*83	4	18	10~11	2.2	1520	2310×2200×2400
GDS2*10*100	2	10	6~8	1.5	900	2600×1650×2220
GDS2*10*83	2	8.5	5~6	1.5	850	2120×1400×2220
GDS1*10*100	1	6.6	3~4	1.1	750	1610×1610×1800
GDS1*10*83	1	4.2	2.5~3	0.75	600	1400×1400×1800

Working principle
The machine is composed of two main parts: the mild steel frame mounted with clamps for the flexible suspension rods, floor plates for mounting and the mild steel box section for the sieve frames with upper clamping by means of a metal frame and clamping pressure micrometric screws.
The drive unit with counter balance weight, with motor, pulleys, v-belt is mounted under the cabinet box section, adjustable to suit different applications. Material is fed into the top and by the machines circular motion, the fine material moves through the sieve mesh and is discharged out each sieve side to outlets, while the course material over tails and sent to separate outlets.

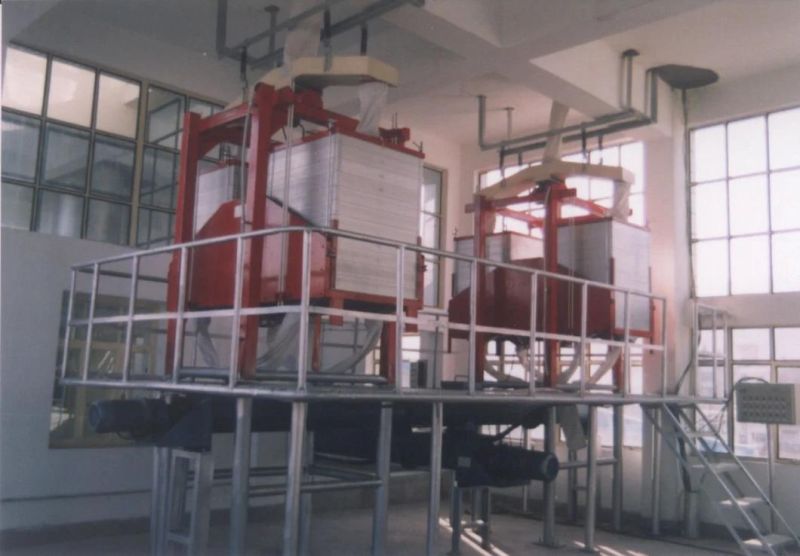

Real application case




Advantages of starch sifter
1. Enclosed mild steel box cabinet for greater flexibility of flow due to additional outer (4) channels.
2. Simple design allows easy maintenance.
3. Alum (Aluminium) style sieve inner frames, mesh cloth glued with frame fast and activator.
4. Outer sieves coated inside and outside with plastic melamine lamination and supplied with stainless steel trays.
5. Plan sifter doors made of fiberglass with a bright and smooth finish, with insulation to prevent condensation.
6. Supplied with outlets for discharge, including inlet and outlet socks and black plastic caps.

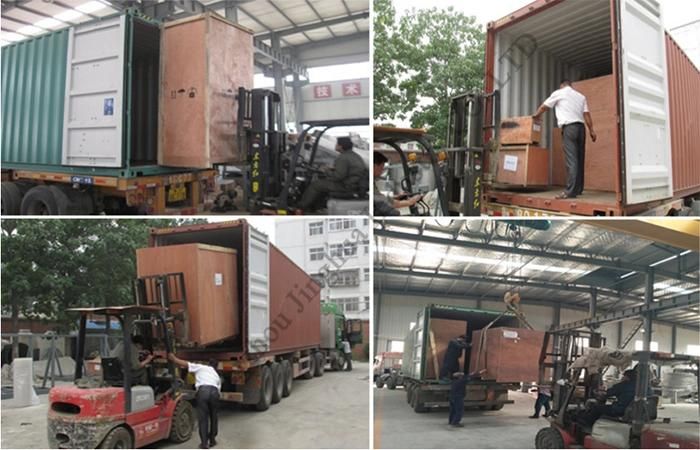

7. Easy and quick changing of sifting scheme if necessary. 2.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).


3.Our Service
Pre-sale service
1.Accept customer consultation and customize products according to customer requirements.
2.Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.

Sale service
1.The company sent technical personnel to the scene of the on-the -spot guidance equipment installation,debugging and training operators.
2.If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.

After-sale service
1.Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty and lifelong maintenance service.

4.Why Choose Us
On the afternoon of June 6th, One Belt And One Road Cambodian delegation came to visit zhengzhou jinghua industrial co., LTD. Professor wang yanbo, chairman of zhengzhou jinghua company and other relevant personnel introduced to the delegation the achievements made by jinghua company over the years, the production technology of products and the production process of starch. The delegation visited the company's office building, production workshop and finished product warehouse, showing the delegation the company's production and research capabilities.

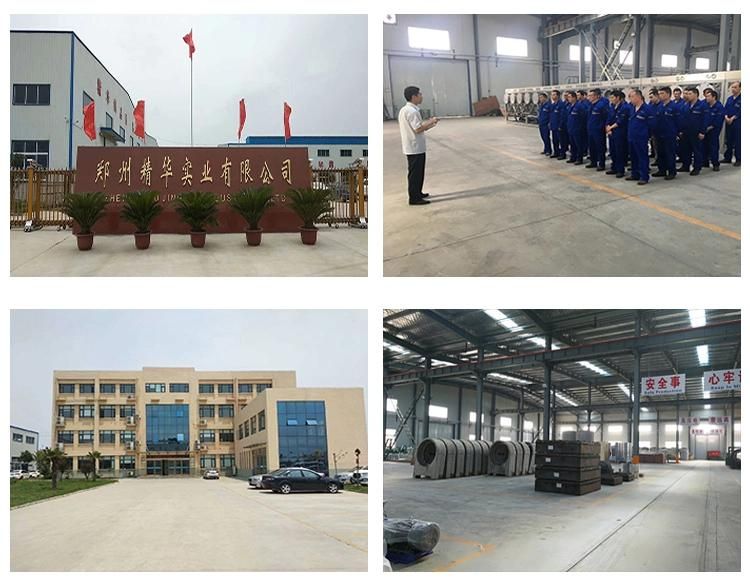

Zhengzhou Jinghua Industry Co.,Ltd. is a professional starch engineering corporation in China. Depending on the unique advantage and strong strength of Henan University of Technology, Jinghua combines scientific research, industry and trade as a whole, which mainly engaged in the working of factory layout, technology design,complete equipment manufacturing and commissioning, new product developing etc. to all kinds starch processing. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.

Awarded the title of Advanced & High Technology Enterprise by Henan Science & Technology Department. Jinghua is the Vice president member of Sweet Potato Starch Professional Committee of China Starch Industry Association Units, the member of Potato Starch Professional Committee and the vice president member of China Food and Packaging Machinery Industry Association and Potato Food Processing Machinery Professional Committee Unit. Awarded the "ten years brilliant" honorary certificate issued by China international potato fair.

Our Certificate


5.FAQ
Q1: Can you provide detailed parameters and drawings of the equipment?
A: Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.

Q2:How long is the warranty period of the equipment?
A:After the successful installation and commissioning of the equipment, there is a one-year warranty period.

Q3:What kind of after-sales service do you provide?
A:Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.

Zhengzhou Jinghua Industry Co.,Ltd.
Add:Guanggu Road, Xingyang City,Henan Province,China
