• Model NO.：DCM8435 DCM8450 DCM1070 DCM8465
• Product Name：Cassava Grinder Machine
• Machine：Cassava Flour Grinder Machine
• Condition：New
• Useful Life：20 Years
• Service：Overseas Installation
• Advantage：Large Capacity
• Voltage：220V or 380V
• Training：Yes
• Dimension：3000*1590*1500 mm
• Material：Stainless Steel
• Capacity：20-45 T,H
• Price：Negotiable
• Weight：1200 Kg
• Drum Diameter：840 mm
• Warranty：1 Year
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DCM8435 DCM8450 DCM1070 DCM8465 Product Name Cassava Grinder Machine Machine Cassava Flour Grinder Machine Condition New Useful Life 20 Years Service Overseas Installation Advantage Large Capacity Voltage 220V or 380V Training Yes Dimension 3000*1590*1500 mm Material Stainless Steel Capacity 20-45 T/H Price Negotiable Weight 1200 Kg Drum Diameter 840 mm Warranty 1 Year Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/Month

Product Description

 cassava flour grinder mill making machine customized large capacity rasper flour production line
1.Description of cassava grinder machine
The rasper high speed crushing raw materials, destroy the fiber structure, starch particles free, for the company's high-tech products and patented technology products. Widely used in canna, cassava, potato and other materials such as secondary grinding.

The working principle of rasper
The material enters into the body of the file mill shell through the upper entrance, and is broken by the impact, shear and grinding effect of the saw blade moving at high speed. The lower part of the rotor is equipped with a screen screen. The material smaller than the size of the screen hole is discharged through the screen plate, and the particles larger than the size of the screen hole are blocked and remain on the screen plate to continue to be hit and grinder by the saw blade.

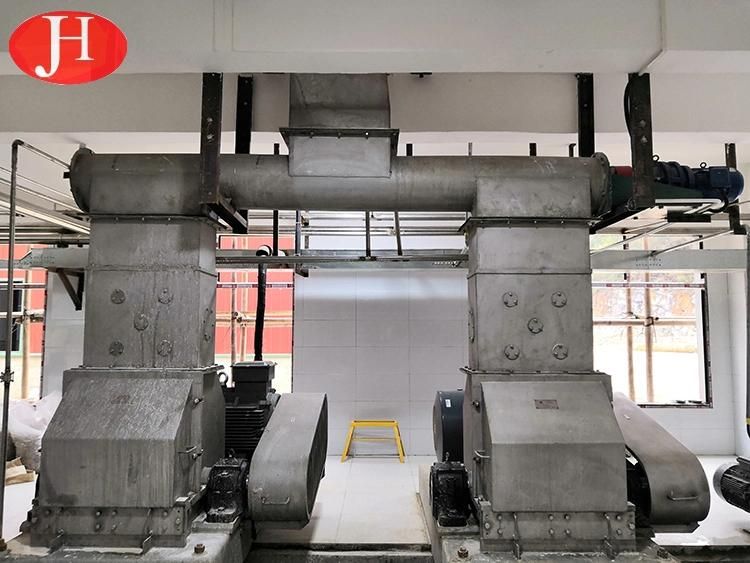

Real application case


Main technical parameters

Model	DCM8435	DCM8450	DCM8465	DCM1070
Main shaft rotating speed(r/min)	2100	2100	2100	1470
Drum diameter (mm)	Φ840	Φ840	Φ840	Φ1100
Drum width (mm)	350	500	650	700
Power (Kw)	110	160	200	250
Capacity (t/h)	20-23	30-33	35-40	40-45
Dimension(mm)	2170x1260x1220	2170x1385x1250	2170x1650x1380	3000x1590x1500

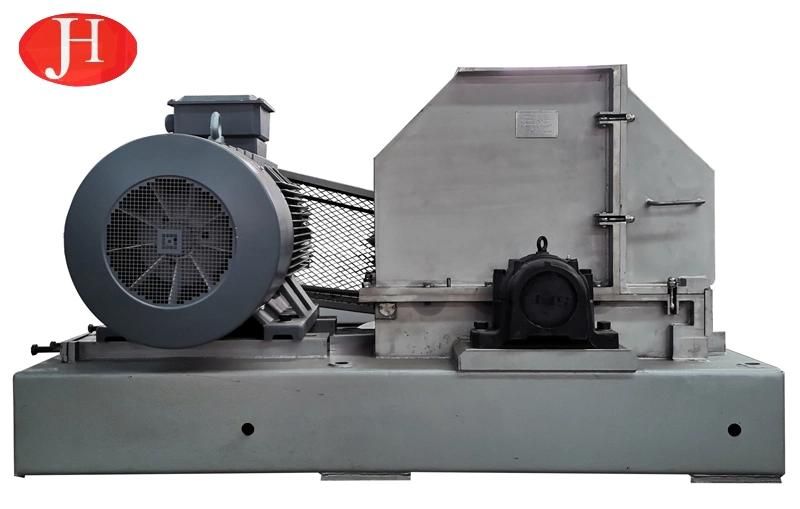

Structure introduction
Complete machine consists of rotor, rasping blade, engine base, upper cover, side cover, bearing base, gearing, motor, etc.
1. Engine base props up all components, which rotor and bearings are all fixed on.

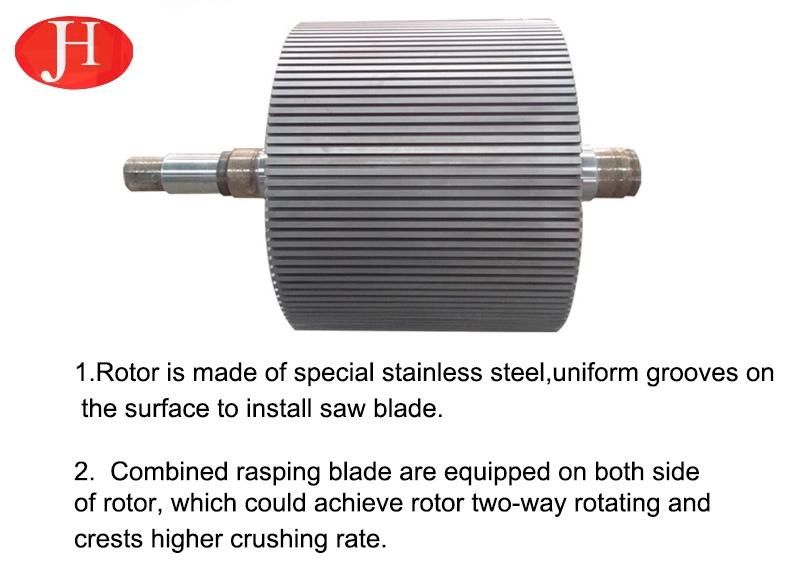

2. Rotor is made of special stainless steel, uniform grooves on the surface to install saw blade.
3. Saw blade is comprised of 2 stainless-steel layer with locating pin and a saw blade.
4. 2 combined rasping blade are equipped on both side of rotor, which could achieve rotor two-way rotating and crests higher crushing rate.
5. A sieve is equipped between rasping blades, which is tensioned by two sets tensioning instruments.
6. For easy operation, upper shell divides into two parts, upper cover and side cover.
7. Use Sweden SKF Bearings and German opittle belt.
8. Motor drives rotor by belt, which is protected by sealed protective cover.

2.Company Information
Zhengzhou jinghua industrial co., LTD., as a member of China starch industry association, was invited to attend the 2019 Shanghai international starch and starch derivatives exhibition. In this meeting, zhengzhou jinghua industry co., ltd. and the new and old customers in-depth meeting exchanges, for the future further cooperation to create a good beginning, to the whole industry to show the recent new research and development results, harvested from more peers and experts unanimously recognized.

Jinghua company is a specialized engineering technology company specializing in various starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.The chairman of the board is professor wang yanbo, who is mainly engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research and engineering design of starch and its deep processing direction, and research and development of modern equipment. He has published 7 scientific works, 6 national standards and 30 academic papers.

3.Our Service
Pre-sale service
1.Accept customer consultation and customize products according to customer requirements.
2.Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.

Sale service
1.The company sent technical personnel to the scen of the on-the -spot guidance equipment installation,debugging and training operators.
2.If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.

After-sale service
1.Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty and lifelong maintenance service.

4.Packing & Shipping
Packing : Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).



5.FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.

Q2.What is your main business?
A: Zhengzhou Jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line

Q3. Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
