• Model NO.：DG-3.2 DG-4.0 DG-6.0 DG-10.0
• Product Name：Potato Flour Drying Machine
• Condition：New
• Service：Overseas Installation
• Energy：Electric
• Useful Life：20 Years
• Capacity：5-30 T,H
• Power：269 Kw
• Material：Stainless Steel
• Warranty：1 Year
• Advantage：High Effective
• Weight：2500 Kg
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DG-3.2 DG-4.0 DG-6.0 DG-10.0 Product Name Potato Flour Drying Machine Condition New Service Overseas Installation Energy Electric Useful Life 20 Years Capacity 5-30 T/H Power 269 Kw Material Stainless Steel Warranty 1 Year Advantage High Effective Weight 2500 Kg Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/Month

Product Description

potato flour dryer machine hot air powder drying plant potato flour production line
1.Introduction of potato flour drying machine
When designed air flow drying system, we fully considered each factor of turbulent flow,cyclone separating and heat exchange etc., so that each collocation and parameter have definite theory basis, such as heat exchange's collocation , temperature control of inlet air and outlet air,diameter change of cyclone pipe etc. Through measuring on feeding material moisture,or temperature difference between inlet and outlet, the feeding quantity and inlet steam volume can be automatic adjusted, thus the water content of product could of product could reach the technology requirement.This kind airflow dryer is not only suitable to all kinds potato kinds starch to be dried,but also adaptable to the drying of corn starch and wheat starch.

Main technical parameters

Model	DG-3.2	DG-4.0	DG-6.0	DG-10.0
Output(t/h)	3.2	4.0	6.0	10.0
Power capacity(Kw)	97	139	166	269
Moisture of wet starch(%)	≤40	≤40	≤40	≤40
Moisture of dry starch(%)	12-14	12-14	12-14	12-14

The working principle of airflow dryer
The cold air enters the radiator plate through the air filter, and the hot air flow after heating enters the dry air pipe. Meanwhile, the wet material enters the hopper of the feeding unit from the wet starch inlet, and is transported into the hoist by the feeding winch.The hoist rotates at high speed to drop the wet material into the dry duct, so that the wet material is suspended in the high speed hot air stream and heat is exchanged.After the material is dried, it enters the cyclone separator with the airflow, and the separated dry material is discharged by wind winding, and the finished product is screened and packed into the warehouse. And the separated exhaust gas, by the exhaust fan into the exhaust gas duct, into the atmosphere.

Real application case

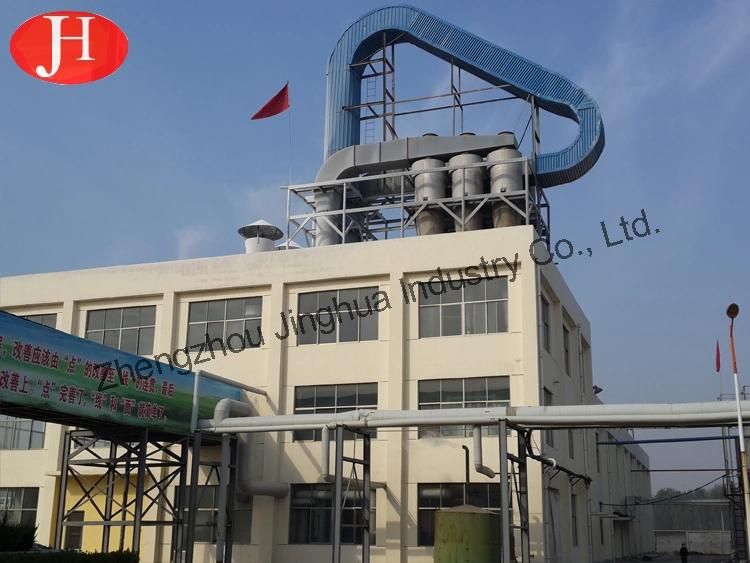

Outdoor part

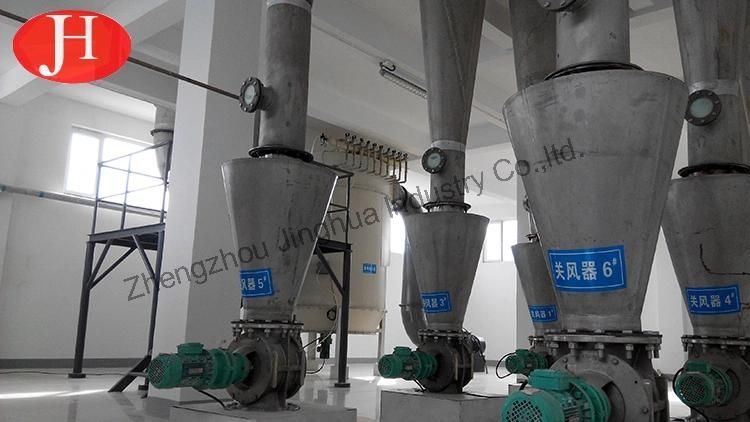

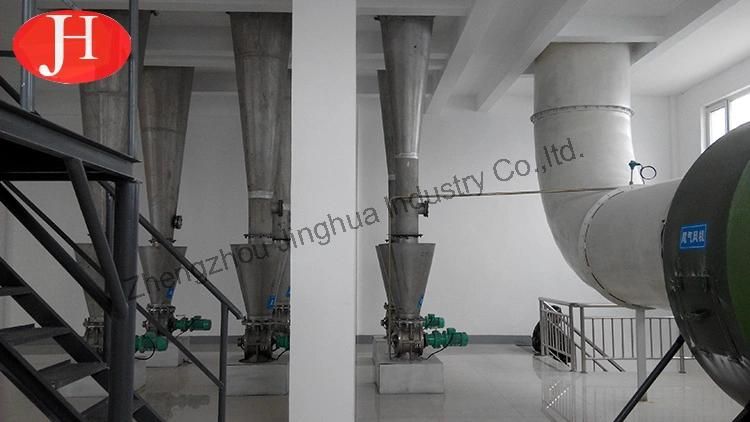

Indoor part




2.Company Information
Zhengzhou Jinghua Industry Co.,Ltd. is a professional starch engineering corporation in China. Depending on the unique advantage and strong strength of Henan University of Technology, Jinghua combines scientific research, industry and trade as a whole, which mainly engaged in the working of factory layout, technology design,complete equipment manufacturing and commissioning, new product developing etc. to all kinds starch processing. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.The chairman of the board is professor wang yanbo, who is mainly engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research and engineering design of starch and its deep processing direction, and research and development of modern equipment. He has published 7 scientific works, 6 national standards and 30 academic papers.

Our Factory


Our Workshop


Our Workers


Our Certificate


3.Our Service
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .

Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.

After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.

4.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).


5.FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.

Q2.What is your main business?
A: Zhengzhou Jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line

Q3. Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
