• Model NO.：GDS4*10*83 GDS2*10*83 GDS1*10*83
• Condition：New
• Customized：Customized
• Product Name：Full Closed Starch Sifter
• Machine：Corn Starch Sifter Machine
• Energy：Electric
• Advantage：Good Effect
• Useful Life：20 Years
• Capacity：3-15 T,H
• Service：Overseas Installation
• Training：Yes
• Weight：1500 Kg
• Warranty：1 Year
• Material：Stainless Steel
• Line：Corn Starch Production Line
• Power：2.2 Kw
• Dimension：2530*1717*2270 mm
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. GDS4*10*83 GDS2*10*83 GDS1*10*83 Condition New Customized Customized Product Name Full Closed Starch Sifter Machine Corn Starch Sifter Machine Energy Electric Advantage Good Effect Useful Life 20 Years Capacity 3-15 T/H Service Overseas Installation Training Yes Weight 1500 Kg Warranty 1 Year Material Stainless Steel Line Corn Starch Production Line Power 2.2 Kw Dimension 2530*1717*2270 mm Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 10 Sets/Month

Product Description

New condition full closed double bin starch sifter dried corn flour grading fiber separator machine
1.Description of corn starch sifter
MFSC and MBSC twin sifter utilized as a final check (security) sifter before flour is sent to flour storage or packing machine to ensure bran particles or particles bigger that flour particles are removed.

Main technical parameters

Model	Bin (Piece)	Number of sieves (piece)	Capacity (t/h)	Diameter (mm)	Power (Kw)	Weight (kg)	Dimension (mm)
GDSF2x10x100	2	10-12	8-10	Φ45-55	2.2	1200-1500	2530x1717x2270
GDSF2x10x83	2	8-12	5-7	Φ45-55	1.5	730-815	2120x1440x2120
GDSF1x10x83	4.5	2-3	3-4	Φ40	0.75	600	1380x1280x1910
GDSF1x10x100	6.4	3-4	4-5	Φ40	1.5	750	1620x1620x1995
GDSF1x10x120	7.6	4-5	5-6	Φ40	1.5	950	1890x1890x2400

Advantages of starch sifter
1. Enclosed mild steel box cabinet for great flexibility of flow due to additional outer (4) channels.
2. Machine can be supplied with a range of sieve stacks from 8-12 frames.
3. Simple design allows easy maintenance.
4. Alum (aluminium) style sieve inner frames, mesh cloth glued with frame fast and activator.
5. Outer sieves coated inside and outside with plastic melamine lamination and supplied with stainless steel trays.
6. Plan sifter doors made of fiberglass with a bright and smooth finish, with insulation to prevent condensation.
7. Supplied with outlets for discharge, including inlet and outlet socks and black plastic caps.



Working principle
The machine is composed of two main parts: the mild steel frame mounted with clamps for the flexible suspension rods, floor plates for mounting and the mild steel box section for the sieve frames with upper clamping by means of a metal frame and clamping pressure micrometric screws.
The drive unit with counter balance weight, with motor, pulleys, v-belt is mounted under the cabinet box section, adjustable to suit different applications. Material is fed into the top and by the machines circular motion, the fine material moves through the sieve mesh and is discharged out each sieve side to outlets, while the course material over tails and sent to separate outlets.

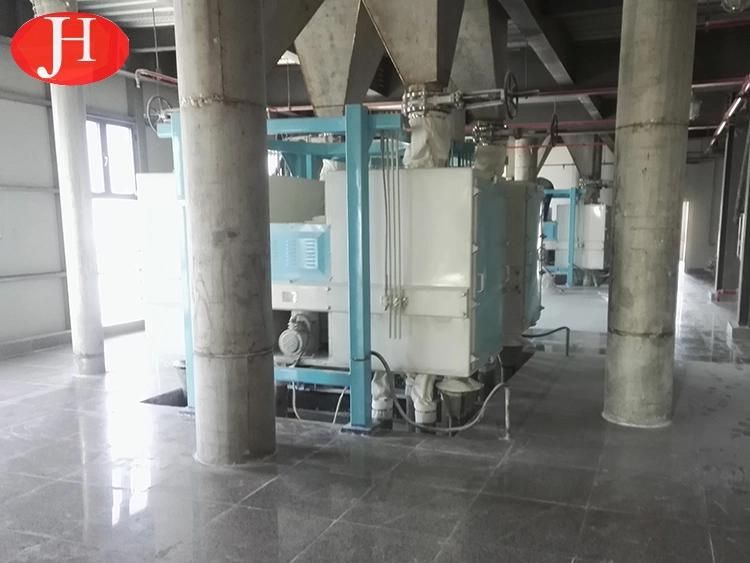

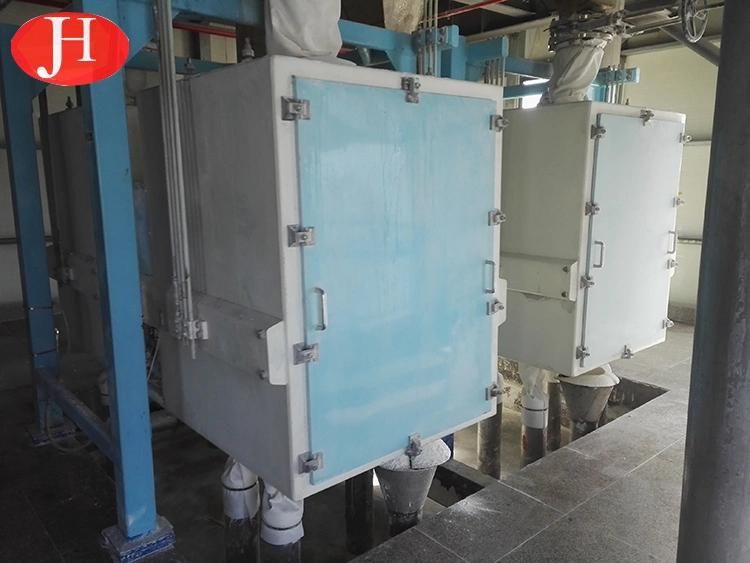

Real application case




2.Company Information
On the afternoon of June 6th, One Belt And One Road Cambodian delegation came to visit zhengzhou jinghua industrial co., LTD. Professor wang yanbo, chairman of zhengzhou jinghua company and other relevant personnel introduced to the delegation the achievements made by jinghua company over the years, the production technology of products and the production process of starch. The delegation visited the company's office building, production workshop and finished product warehouse, showing the delegation the company's production and research capabilities.


Zhengzhou Jinghua Industry Co.,Ltd. is a professional starch engineering corporation in China. Depending on the unique advantage and strong strength of Henan University of Technology, Jinghua combines scientific research, industry and trade as a whole, which mainly engaged in the working of factory layout, technology design,complete equipment manufacturing and commissioning, new product developing etc. to all kinds starch processing. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.

Our Factory


Our Workshop


3.Our Service
Pre-sale service
1.Accept customer consultation and customize products according to customer requirements.
2.Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.

Sale service
1.The company sent technical personnel to the scene of the on-the -spot guidance equipment installation,debugging and training operators.
2.If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.

After-sale service
1.Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty and lifelong maintenance service.

4.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).

5.FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.

Q2.What is your main business?
A: Zhengzhou Jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line

Q3. Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.

Zhengzhou Jinghua Industry Co.,Ltd.
Add:Guanggu Road, Xingyang City,Henan Province,China
