• Model NO.：GDS4*10*83 GDS2*10*83 GDS1*10*83
• Product Name：Potato Flour Sifter Machine
• Condition：New
• Service：Overseas Installation
• Energy：Electric
• Useful Life：20 Years
• Dimension：2530*1717*2270 mm
• Capacity：3-12 T,H
• Power：2.2 Kw
• Material：Stainless Steel
• Warranty：1 Year
• Advantage：High Effective
• Weight：1520 Kg
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. GDS4*10*83 GDS2*10*83 GDS1*10*83 Product Name Potato Flour Sifter Machine Condition New Service Overseas Installation Energy Electric Useful Life 20 Years Dimension 2530*1717*2270 mm Capacity 3-12 T/H Power 2.2 Kw Material Stainless Steel Warranty 1 Year Advantage High Effective Weight 1520 Kg Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/Month

Product Description

potato raw flour sifter four bin half closed dried flour grading sieve making machine

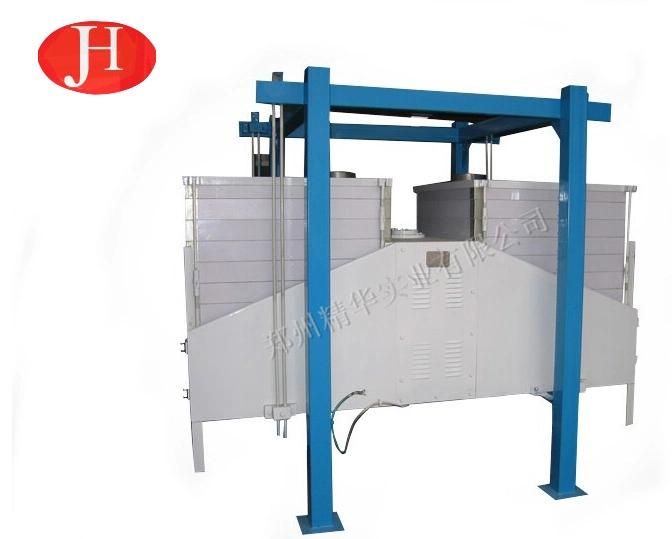

1.Introduction of potato flour sifter machine
Zhengzhou jinghua starch sifter is widely used in starch industry and it is proved the best sifter in starch sifting. The sieve body is composed of many layer sieve lattices and the sieve cases are made of excellent bass wood. Each layer connects closely as the form of step in the rim to ensure good sealing performance and convenient maintenance. Suspender is made from glass fiber reinforced plastic with durable life.
It is widely used for sieving dry starch before starch packing in corn starch, cassava starch, potato starch and sweet potato starch and wheat starch sago starch processing project.

Main technical parameters

Model	Bin (piece)	Sifter area (m2)	Capacity (t/h)	Power (kw)	Weight (kg)	Dimension (mm)
GDS4*10*83	4	18	10~11	2.2	1520	2310×2200×2400
GDS2*10*100	2	10	6~8	1.5	900	2600×1650×2220
GDS2*10*83	2	8.5	5~6	1.5	850	2120×1400×2220
GDS1*10*100	1	6.6	3~4	1.1	750	1610×1610×1800
GDS1*10*83	1	4.2	2.5~3	0.75	600	1400×1400×1800

Working principle
The machine is composed of two main parts: the mild steel frame mounted with clamps for the flexible suspension rods, floor plates for mounting and the mild steel box section for the sieve frames with upper clamping by means of a metal frame and clamping pressure micrometric screws.
The drive unit with counter balance weight, with motor, pulleys, v-belt is mounted under the cabinet box section, adjustable to suit different applications. Material is fed into the top and by the machines circular motion, the fine material moves through the sieve mesh and is discharged out each sieve side to outlets, while the course material over tails and sent to separate outlets.

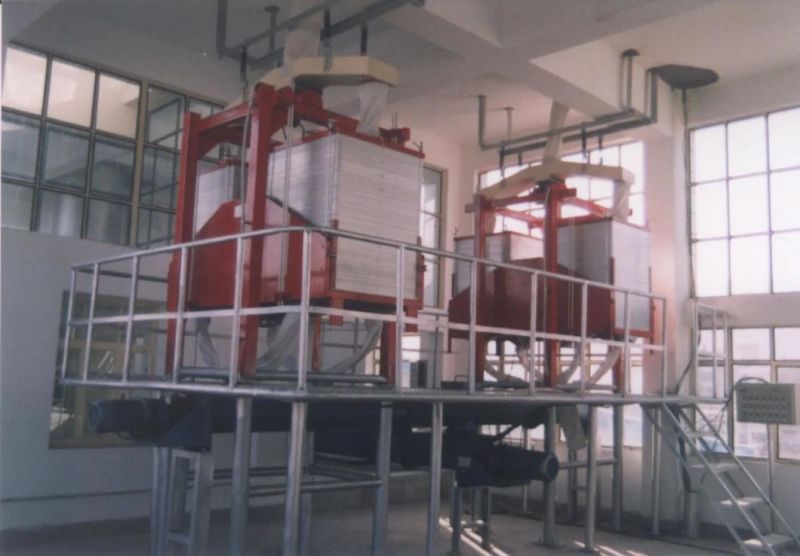

Real application case




2.Our Service
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .

Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.

After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.

3.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).


4.Company Information
Zhengzhou Jinghua Industry Co.,Ltd. is a professional starch engineering corporation in China. Depending on the unique advantage and strong strength of Henan University of Technology, Jinghua combines scientific research, industry and trade as a whole, which mainly engaged in the working of factory layout, technology design,complete equipment manufacturing and commissioning, new product developing etc. to all kinds starch processing. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.The chairman of the board is professor wang yanbo, who is mainly engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research and engineering design of starch and its deep processing direction, and research and development of modern equipment. He has published 7 scientific works, 6 national standards and 30 academic papers.

Our Factory

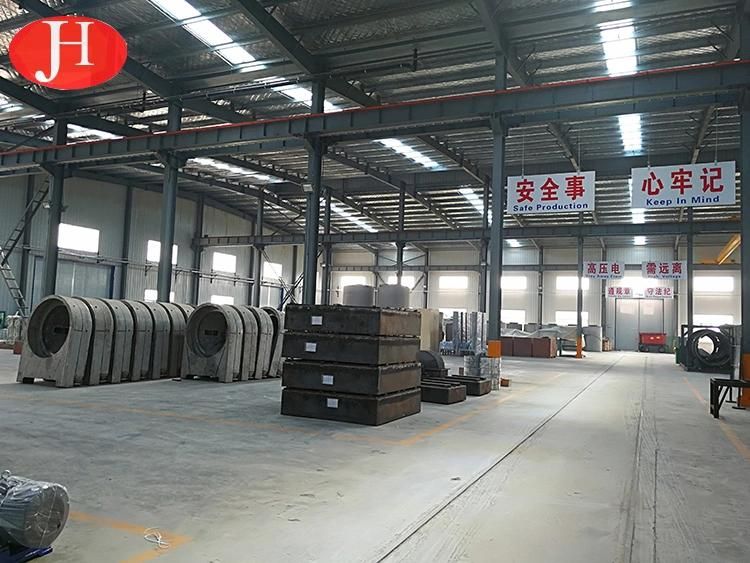

Our Workshop


Our Workers


Our Certificate


5.FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.

Q2.What is your main business?
A: Zhengzhou Jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line

Q3. Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.

Zhengzhou Jinghua Industry Co.,Ltd.
Add:Guanggu Road, Xingyang City,Henan Province,China
