• Model NO.：QS-585 QS-710
• Condition：New
• Customized：Customized
• Product Name：Pressure Arc Sieve
• Machine：Corn Starch Slurry Fiber Separator
• Energy：Electric
• Advantage：Long Working Time
• Useful Life：20 Years
• Capacity：15 T,H
• Service：Overseas Installation
• Training：Yes
• Weight：800 Kg
• Warranty：1 Year
• Material：Stainless Steel
• Line：Corn Starch Production Line
• Feed Pressure：0.4 MPa
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. QS-585 QS-710 Condition New Customized Customized Product Name Pressure Arc Sieve Machine Corn Starch Slurry Fiber Separator Energy Electric Advantage Long Working Time Useful Life 20 Years Capacity 15 T/H Service Overseas Installation Training Yes Weight 800 Kg Warranty 1 Year Material Stainless Steel Line Corn Starch Production Line Feed Pressure 0.4 MPa Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 10 Sets/Month

Product Description

high quality corn starch slurry fiber separator machine pressure arc sieve maize flour plant

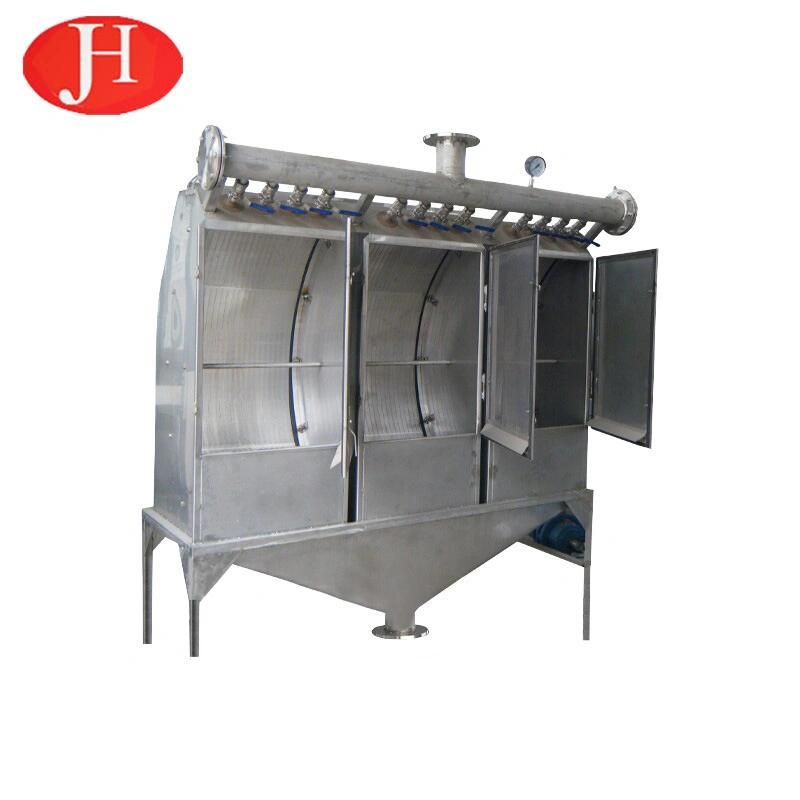

1.Description of corn starch slurry fiber sieve
It is widely used in corn starch processing plant.The equipment enables high rate of starch yield and improvement of starch quality and is an ideal new high quantity treating sieving and separating equipment for wet materials.

Features of corn starch sieve
Pressure arc sieve is highly efficient fine sieve under certain pressure, applied in starch processing for multi-stage counter-current rinse, sieving and separation, dehydration and abstraction as well as elimination of solid-form substances and impurities.

 Main technical parameters

Model	Sieve radian	Width of sieve seam(micron)	Capacity(m2/h)	Feed pressure(Mpa)	Sieve width(mm)
QS-585	1200	50,75,100,120	34-46	0.2-0.4	585
QS-585×2	1200	50,75,100,120	70-100	0.2-0.4	585×2
QS-585×3	1200	50,75,100,120	110-140	0.2-0.4	585×2
QS-710	1200	50,75,100,120	60-80	0.2-0.4	710
QS-710×2	1200	50,75,100,120	120-150	0.2-0.4	710×2
QS-710×3	1200	50,75,100,120	180-220	0.2-0.4	710×2

Working principle
The slurry enters the concave screen surface from the nozzle at a certain speed (15-25M/S) from the tangential direction of the screen surface. The higher feeding speed makes the material on the screen surface subject to centrifugal force, gravity and the resistance of the screen bar to the material The role of the material. When the material flows from one sieve bar to another, the sharp edge of the sieve bar has a cutting effect on the material. At this time, the starch and a large amount of water in the material pass through the sieve and become the under-sieve. , While the fine fiber residue flows out from the end of the screen surface and becomes the sieve

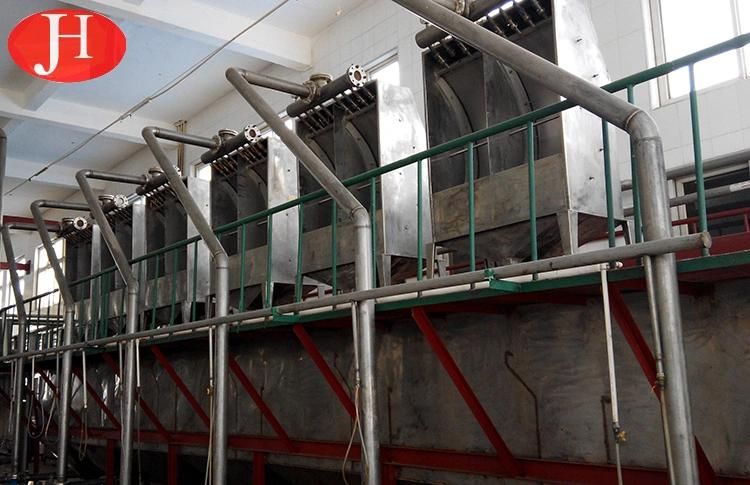

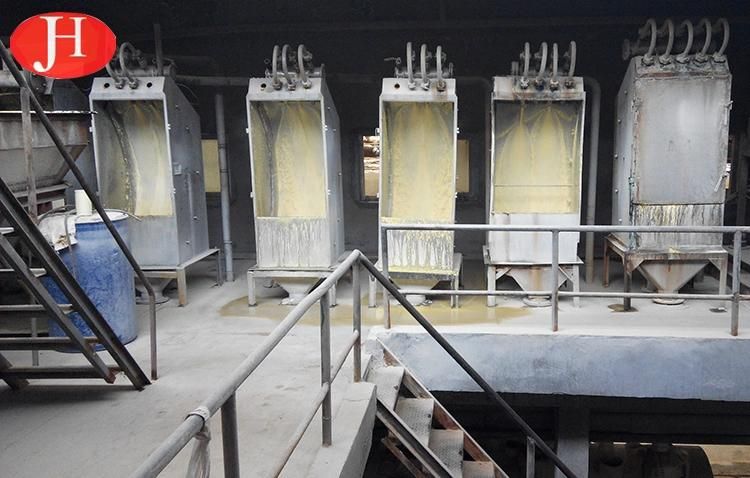

Real application case



 2.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).

3.Our Service
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .

Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.

After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.

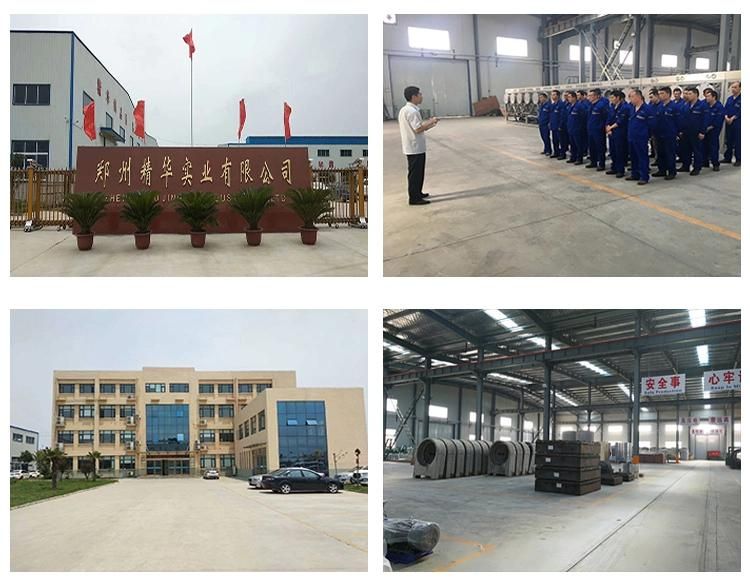

 4.Company Information
On the afternoon of June 6th, One Belt And One Road Cambodian delegation came to visit zhengzhou jinghua industrial co., LTD. Professor wang yanbo, chairman of zhengzhou jinghua company and other relevant personnel introduced to the delegation the achievements made by jinghua company over the years, the production technology of products and the production process of starch. The delegation visited the company's office building, production workshop and finished product warehouse, showing the delegation the company's production and research capabilities.


Zhengzhou Jinghua Industry Co.,Ltd. is a professional starch engineering corporation in China. Depending on the unique advantage and strong strength of Henan University of Technology, Jinghua combines scientific research, industry and trade as a whole, which mainly engaged in the working of factory layout, technology design,complete equipment manufacturing and commissioning, new product developing etc. to all kinds starch processing. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.

Awarded the title of Advanced & High Technology Enterprise by Henan Science & Technology Department. Jinghua is the Vice president member of Sweet Potato Starch Professional Committee of China Starch Industry Association Units, the member of Potato Starch Professional Committee and the vice president member of China Food and Packaging Machinery Industry Association and Potato Food Processing Machinery Professional Committee Unit. Awarded the "ten years brilliant" honorary certificate issued by China international potato fair.



5.FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.

Q2.What is your main business?
A: Zhengzhou Jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line

Q3. Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
