• Model NO.：QX130-2 QX140-2 QX140-3
• Condition：New
• Customized：Customized
• Product Name：Garri Production Machine
• Advantage：Good Effect
• Service：Overseas Installation
• Useful Life：20 Years
• Keywords：Cassava Washer
• Capacity：10-20 T,H
• Energy：Electric
• Dimension：7050*2300*2000 mm
• Power：5.5*2 Kw
• Weight：3850 Kg
• Material：Stainless Steel
• Warranty：1 Year
• Diameter of Paddle：1000 mm
• Speed of Rotor：21 R,Min
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. QX130-2 QX140-2 QX140-3 Condition New Customized Customized Product Name Garri Production Machine Advantage Good Effect Service Overseas Installation Useful Life 20 Years Keywords Cassava Washer Capacity 10-20 T/H Energy Electric Dimension 7050*2300*2000 mm Power 5.5*2 Kw Weight 3850 Kg Material Stainless Steel Warranty 1 Year Diameter of Paddle 1000 mm Speed of Rotor 21 R/Min Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 10 Sets/Month

Product Description

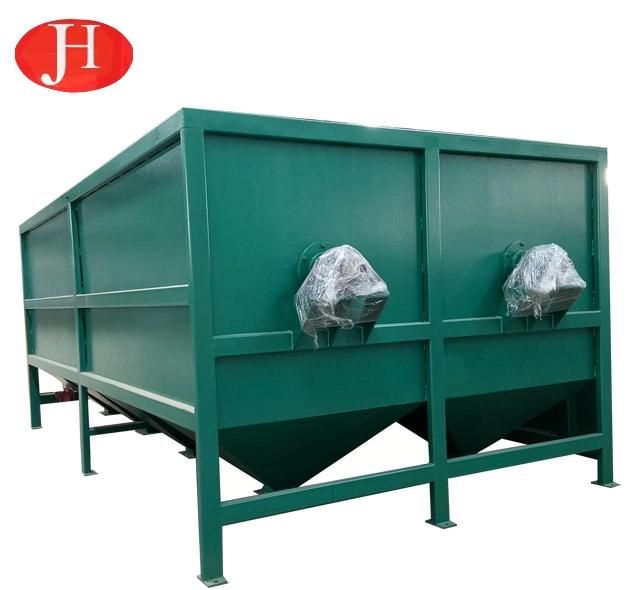

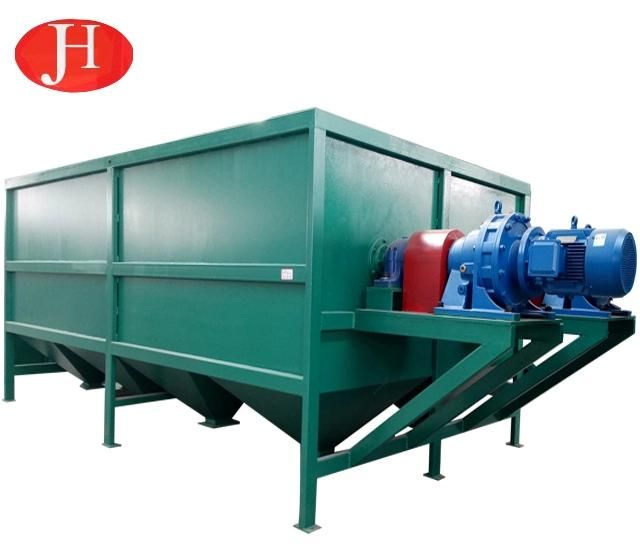

garri processing machine paddle cleaner fresh cassava washing production plant
As known to us, Garri is made from cassaca flour. Cassava flour is made of whole cassava root, which keep the natural cassava flavor and nutrition and contains more nutrient content than cassava starch.Cassava roots contain cyanide, which is poisonous. Different varieties of cassava contain different amounts of cyanide. Roots that contain more amounts of cyanide normally taste bitter and should not be eaten raw, while the roots of "sweet" varieties contain low level of cyanide and can be eaten raw.

1.Introduction of garri processing machine
Our machine adopts principles of countercurrent washing to cleaning out the mud. Sand and small stones effectively. Rational method of feeding, it is very useful in cleaning cassava, sweet potato, potato and etc. Also our paddle cleaning machine is the important equipment widely used in starch processing machinery.

Main Features of Paddle Washing Machine
1.The machine adopts principle of counter current washing to effectively clean out mud and sand.
2.Rational method of feeding, it' s good in distributing equipment in workshop.
3.Steady operation with low material damage rate is profitable for extracting starch.
4.The machine structure is simple with large capacity, effective cleaning, energy and water saving.
5.The machine is widely used in cassava starch processing industry.

Main technical parameters

Model	QX130-2	QX140-2	QX140-3
Diameter of paddle(mm)	Φ1000	Φ1280	Φ1400
Speed of rotor(r/min)	21	21	21
Working length(mm)	6000	6000	6000
Power(Kw)	5.5x2	7.5x2	7.5x3
Capacity(t/h)	10-20	20-35	35-50

2.Our ServicePre-sale service
1.Accept customer consultation and customize products according to customer requirements.
2.Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.
Sale service
1.The company sent technical personnel to the scene of the on-the -spot guidance equipment installation,debugging and training operators.
2.If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.
After-sale service
1.Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty and lifelong maintenance service.

3.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).

 4.Company InformationZhengzhou Jinghua Industry Co.,Ltd. is a professional starch engineering corporation in China. Depending on the unique advantage and strong strength of Henan University of Technology, Jinghua combines scientific research, industry and trade as a whole, which mainly engaged in the working of factory layout, technology design,complete equipment manufacturing and commissioning, new product developing etc. to all kinds starch processing. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.

Our Factory


Our Workshop


Our Workshop


Our Certificate

5.FAQQ1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.

Q2.What is your main business?
A: Zhengzhou Jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line

Q3. Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
