• Model NO.：DQXJ190x450 DQXJ190x490
• Product Name：Rotary Cleaning Machine
• Line：Arrowroot Starch Production Line
• Machine：Aroowroot Starch Making Machine
• Useful Life：20 Years
• Warranty：1 Year
• Weight：6000 Kg
• Dimension：6110*2340*2170
• Capacity：20-50 T,H
• Drum Diameter：1905 mm
• Drum Length：4900 mm
• Power：30 Kw
• Service：Overseas Installation
• Training：Yes
• Advantage：High Quality
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DQXJ190x450 DQXJ190x490 Product Name Rotary Cleaning Machine Line Arrowroot Starch Production Line Machine Aroowroot Starch Making Machine Useful Life 20 Years Warranty 1 Year Weight 6000 Kg Dimension 6110*2340*2170 Capacity 20-50 T/H Drum Diameter 1905 mm Drum Length 4900 mm Power 30 Kw Service Overseas Installation Training Yes Advantage High Quality Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/Month

Product Description

arrowroot starch washer rotary washing machine arrowroot cleaner equipment

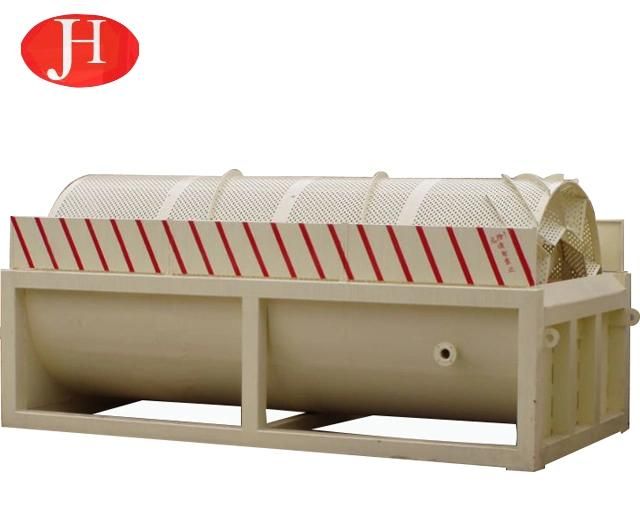

1.Description of arrowroot starch cleaning machine
Rotary drum washer is applied to wash potatoes, cassavas, sweet potatoes and etc. Rotary washer is the washing section machine in starch processing line and it adopts the principle of countercurrent to clean out mud, sand and small stones effectively.

Advantages of rotary cleaning machine
1. Combining the latest technology and years' experience into a whole.
2. Adopting method of countercurrent washing, excellent washing result, mud and sand removing.
3. Reasonable feeding structure. The damage rate of raw material is under 1% and this can ensure high starch extraction yield.
4. Compact design, big capacity, energy and water saving.
5. Stable operation and rational motor equipped.
6. The rotating drum is made of high quality shell perforated with numerical control punch for long time.
7. Easy to installation and maintenance.

Main technical parameters

Model	Drum diameter (mm)	Drum length (mm)	Capacity (t/h)	Power (Kw)	Dimension (mm)	Weight (Kg)
DQXJ190x450	Φ1905	4520	20-25	18.5	5400x2290x2170	5200
DQXJ190x490	Φ1905	4920	30-35	22	5930x2290x2170	5730
DQXJ190x490	Φ1905	4955	35-50	30	6110x2340x2170	6000

Working principle
The washing machine is designed with counter-current washing, that is, the washing water enters the washing machine from the material outlet. The material enters into the rotating drum and is cleaned in the tumbling collision. Meanwhile, the material's skin is effectively removed. The cleaned sediment skin falls between the drum and the inner wall of the water tank through the mesh, moves forward under the push of the blades, and is discharged through the overflow tank.

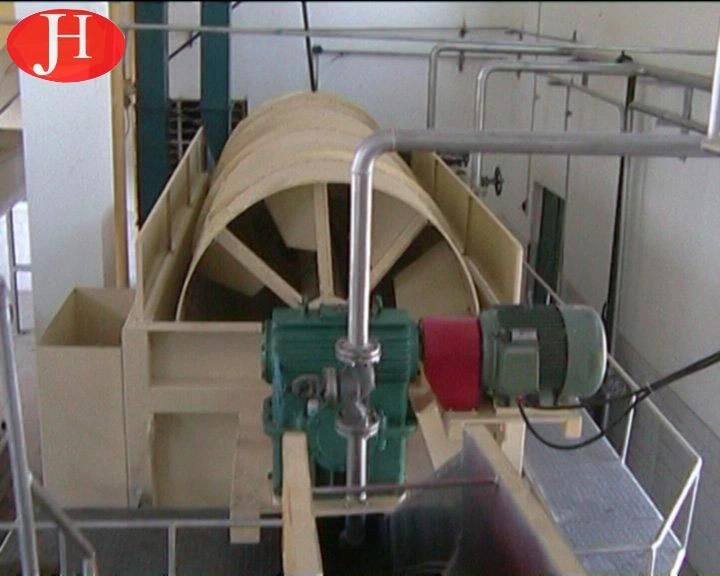

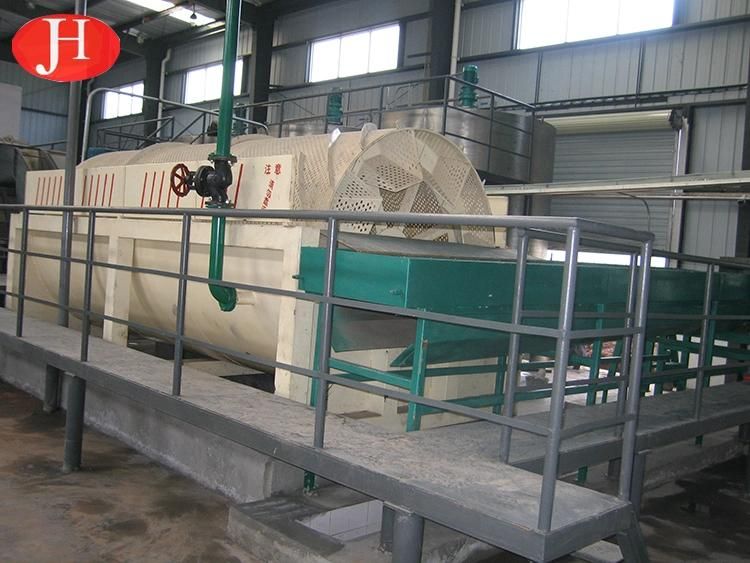

Real application case





 2.Company Information
On the afternoon of June 6th, One Belt And One Road Cambodian delegation came to visit zhengzhou jinghua industrial co., LTD. Professor wang yanbo, chairman of zhengzhou jinghua company and other relevant personnel introduced to the delegation the achievements made by jinghua company over the years, the production technology of products and the production process of starch. The delegation visited the company's office building, production workshop and finished product warehouse, showing the delegation the company's production and research capabilities.


3.Our Service
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .

Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.

After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.

4.Packing & Shipping
Packing : wooden cases/ customized
Delivery :25days after receiving pre-payment (on time according to contract strictly)



5.Why Choose Us
Jinghua company is an engineering and technical company specializing in starch engineering design, equipment manufacturing, engineering installation and debugging, techncal personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas .Company for China starch industry association executive director units, executive director of the association of Chinese cassava starch industry unit.
Mr. Wang yanbo, chairman of the board, has published 7 scientific works, 6 national standards and 30 academic papers, across a country: "ten five" to "thirteen, five" national key r&d projects and provincial major research project over 10, with more than 10 national patents, won awards at all levels more than 20. Has participated in more than 80 domestic and foreign starch engineering design work, its advanced processing technology and technology has reached the world's leading level.

Our Factory


Our Workshop


Our Workshop


Our Workshop


6.FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.

Q2.What is your main business?
A: Zhengzhou Jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line.

Q3.Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements

Q4:Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5:If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installatison of whole process line based on your real situation;

Q6:If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
