• Model NO.：DLS85 DLS100 DLS120
• Product Name：Customized Centrifuge Sieve
• Line：Arrowroot Starch Production Line
• Machine：Aroowroot Starch Slurry Separator
• Useful Life：20 Years
• Warranty：1 Year
• Weight：2200 Kg
• Dimension：1640*2490*2222 mm
• Capacity：30 T,H
• Power：45 Kw
• Service：Overseas Installation
• Training：Yes
• Advantage：High Efficiency
• Voltage：220V or 380V
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DLS85 DLS100 DLS120 Product Name Customized Centrifuge Sieve Line Arrowroot Starch Production Line Machine Aroowroot Starch Slurry Separator Useful Life 20 Years Warranty 1 Year Weight 2200 Kg Dimension 1640*2490*2222 mm Capacity 30 T/H Power 45 Kw Service Overseas Installation Training Yes Advantage High Efficiency Voltage 220V or 380V Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/Month

Product Description

arrowroot starch making machine centrifuge sieve starch slurry fiber separator equipment
1.Description of centrifuge sieve
Centrifugal Sieve is used to separate the fine fiber from the starch slurry, which is widely used in the processing of potato, cassava, sweet potato, wheat, rice, sago and other grain starch extraction.

Features of centrifuge sieve
1. Combining the latest technology and years' experience into a whole.
2. Key components introduced abroad, lone service life, low maintenance cost.
3. All parts contact with material are stainless steel, no material contamination.
4. Sieve basket is calibrated through dynamic equilibrium by domestic authority body.
5. Sieve made from laser perforating on titanium alloy plate.
6. To facilitate the automatic design for centrifugal sieve group, CIP system and chain automatic control can be easily realized.
7. Advanced surface treatment technology ensuring the good appearance and resistance of oil and dirt.

Main technical parameters

Model	Basket diameter(mm)	Main shaft speed(r/min)	Working model	Power (Kw)	Dimension (mm)	Weight (t)
DLS85	850	1050	continuous	18.5/22/30	1200x2111x1763	1.5
DLS100	1000	1050	continuous	22/30/37	1440x2260x1983	1.8
DLS120	1200	960	continuous	30/37/45	1640x2490x2222	2.2

The working principle of centrifuge sieve
First, run the machine, let the starch slurry enters the bottom of the sieve basket.  Then, under the effect of centrifugal force and gravity, the slurry goes a complex curve movement toward the bigger size direction, even rolling. In the process, the bigger impurities arrive the outer edge of the sieve basket, collecting in the slag collection chamber, whist the starch particle which size is smaller than the mesh fall into the starch powder collection chamber.

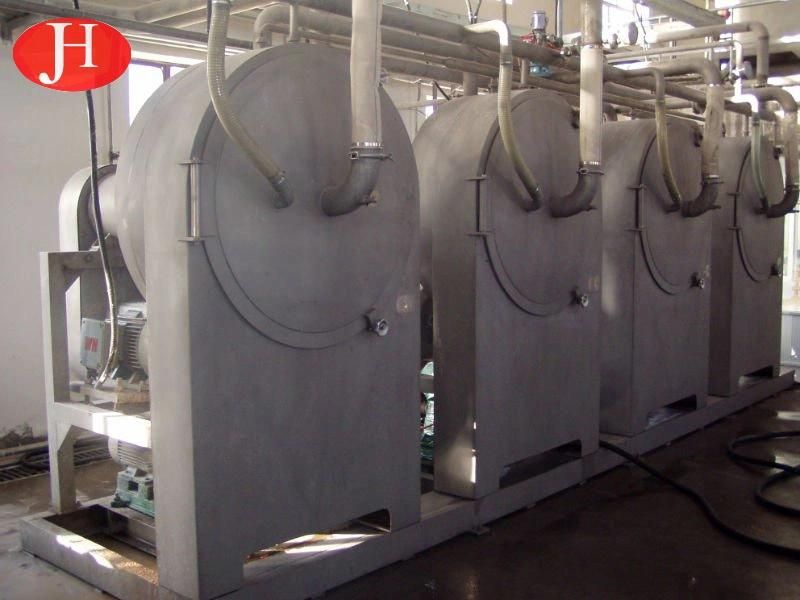

Product show

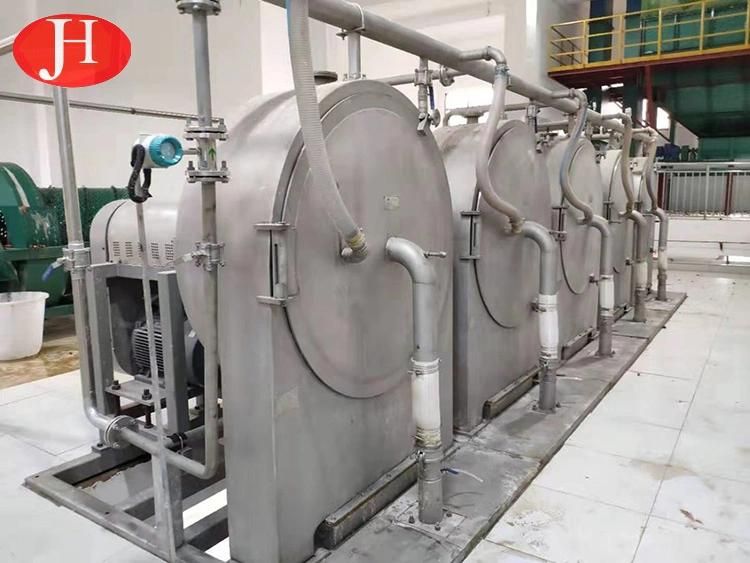

Real application case




 2.Company Information
Zhengzhou jinghua industry co., LTD was invited to participate in 2019 China international potato industry expo. During the exhibition, jinghua company showed its research and development achievements in recent years and met and communicated with new and old customers. Mr. Wang yanbo, chairman of the board of directors, delivered an important speech at the 2019 tuber green processing and comprehensive utilization technology seminar. In this conference, our company won the "ten years brilliant" honorary certificate issued by China international potato fair, which is the recognition of the ten years' work achievements of the jinghua company, and will encourage zhengzhou jinghua industrial co., LTD to forge ahead in the future.


3.Our Service
Pre-sale service
1.Accept customer consultation and customize products according to customer requirements.
2.Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.

Sale service
1.The company sent technical personnel to the scen of the on-the -spot guidance equipment installation,debugging and training operators.
2.If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.

After-sale service
1.Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty and lifelong maintenance service.

4.Packing & Shipping
Packing : wooden cases/ customized
Delivery :25days after receiving pre-payment (on time according to contract strictly)

5.Why Choose Us
Jinghua company is an engineering and technical company specializing in starch engineering design, equipment manufacturing, engineering installation and debugging, techncal personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas .Company for China starch industry association executive director units, executive director of the association of Chinese cassava starch industry unit.
Mr. Wang yanbo, chairman of the board, has published 7 scientific works, 6 national standards and 30 academic papers, across a country: "ten five" to "thirteen, five" national key r&d projects and provincial major research project over 10, with more than 10 national patents, won awards at all levels more than 20. Has participated in more than 80 domestic and foreign starch engineering design work, its advanced processing technology and technology has reached the world's leading level.

6.FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.

Q2.What is your main business?
A: Zhengzhou Jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line.

Q3.Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements

Q4:Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5:If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installatison of whole process line based on your real situation;

Q6:If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.

Zhengzhou Jinghua Industry Co.,Ltd.
Add:Guanggu Road, Xingyang City,Henan Province,China
