• Model NO.：DG-3.2 DG-4.0 DG-6.0
• Line：Cassava Flour Processing Line
• Machine：Cassava Flour Dryer Machine
• Useful Life：20 Years
• Voltage：220V or 380V
• Material：Stainless Steel
• Quality：Top Level
• Service：Overseas Installation
• Training：Yes
• Dimension：3400-5600*1500*1400 mm
• Power：269 Kw
• Product Name：Airflow Dryer
• Capacity：10 T,H
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. DG-3.2 DG-4.0 DG-6.0 Line Cassava Flour Processing Line Machine Cassava Flour Dryer Machine Useful Life 20 Years Voltage 220V or 380V Material Stainless Steel Quality Top Level Service Overseas Installation Training Yes Dimension 3400-5600*1500*1400 mm Power 269 Kw Product Name Airflow Dryer Capacity 10 T/H Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 10 Sets/Month

Product Description

cassava flour drying making machine airfow dryer cassava flour processing line
1.Application of airflow dryer
Airflow dryer is widely used for powdery drying, and the humidity is controlled between 14% and 20%.

Advantages of airflow dryer
1.Fully considered each factor of turbulent flow, cyclone separating and heat exchange.
2.Parts contact with starch is made of stainless steel 304.
3.Energy saving, moisture of product stable.
4.The moisture of starch is very stable, and varied 12.5%-13.5% by automatic control which can control the moisture of starch by controlling feeding quantity of steam and wet starch.
5.Less starch loss from wind exhausted.
6.The complete solved plan for a whole flash dryer system .

Main technical parameters

Model	DG-3.2	DG-4.0	DG-6.0	DG-10.0
Output(t/h)	3.2	4.0	6.0	10.0
Power capacity(Kw)	97	139	166	269
Moisture of wet starch(%)	≤40	≤40	≤40	≤40
Moisture of dry starch(%)	12-14	12-14	12-14	12-14

The working principle of airflow dryer
The cold air enters the radiator plate through the air filter, and the hot air flow after heating enters the dry air pipe. Meanwhile, the wet material enters the hopper of the feeding unit from the wet starch inlet, and is transported into the hoist by the feeding winch.The hoist rotates at high speed to drop the wet material into the dry duct, so that the wet material is suspended in the high speed hot air stream and heat is exchanged.After the material is dried, it enters the cyclone separator with the airflow, and the separated dry material is discharged by wind winding, and the finished product is screened and packed into the warehouse. And the separated exhaust gas, by the exhaust fan into the exhaust gas duct, into the atmosphere.

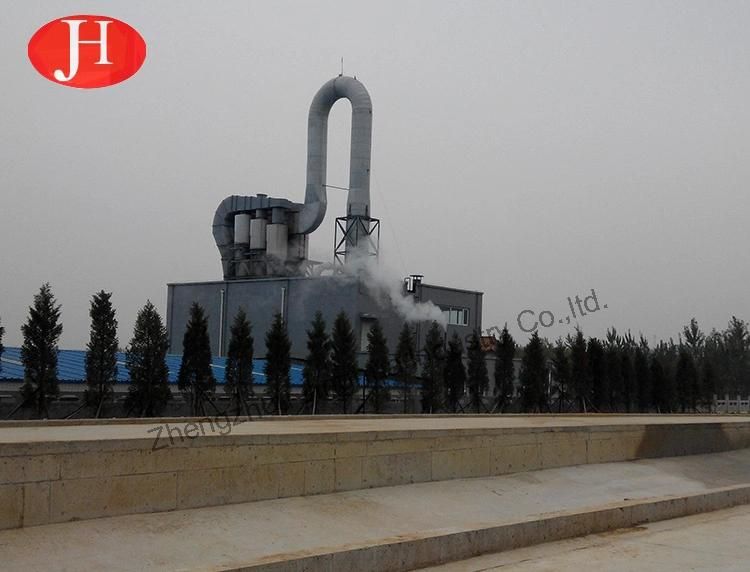

Product Show




2.Company Information
Zhengzhou jinghua industrial co., LTD., as a member of China starch industry association, was invited to attend the 2019 Shanghai international starch and starch derivatives exhibition. In this meeting, zhengzhou jinghua industry co., ltd. and the new and old customers in-depth meeting exchanges, for the future further cooperation to create a good beginning, to the whole industry to show the recent new research and development results, harvested from more peers and experts unanimously recognized.

Jinghua company is a specialized engineering technology company specializing in various starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.The chairman of the board is professor wang yanbo, who is mainly engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research and engineering design of starch and its deep processing direction, and research and development of modern equipment. He has published 7 scientific works, 6 national standards and 30 academic papers.


3.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).

4.Our Service
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .

Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.

After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.

5.FAQ
Q1: Can you provide detailed parameters and drawings of the equipment?
A: Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.

Q2:How long is the warranty period of the eq uipment?
A:After the successful installation and commissioning of the equipment, there is a one-year warranty period.

Q3:What kind of after-sales service do you provide?
A:Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.

Zhengzhou Jinghua Industry Co.,Ltd.
Add:Guanggu Road, Xingyang City,Henan Province,China
