• Model NO.：KLG12 KLG20 KLG24
• Line：Potato Starch Processing Line
• Useful Life：20 Years
• Conditon：New
• Warranty：1 Year
• Dimension：5060*3150*3010 mm
• Drum Rotary Speed：0-7.9 R,Min
• Capacity：4-10 T,H
• Power：4 Kw
• Condition：New
• Machine：Potato Starch Milk Dehydrator Machine
• Service：Overseas Installation
• Training：Yes
• Weight：6000 Kg
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. KLG12 KLG20 KLG24 Line Potato Starch Processing Line Useful Life 20 Years Conditon New Warranty 1 Year Dimension 5060*3150*3010 mm Drum Rotary Speed 0-7.9 R/Min Capacity 4-10 T/H Power 4 Kw Condition New Machine Potato Starch Milk Dehydrator Machine Service Overseas Installation Training Yes Weight 6000 Kg Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 10 Sets/Month

Product Description

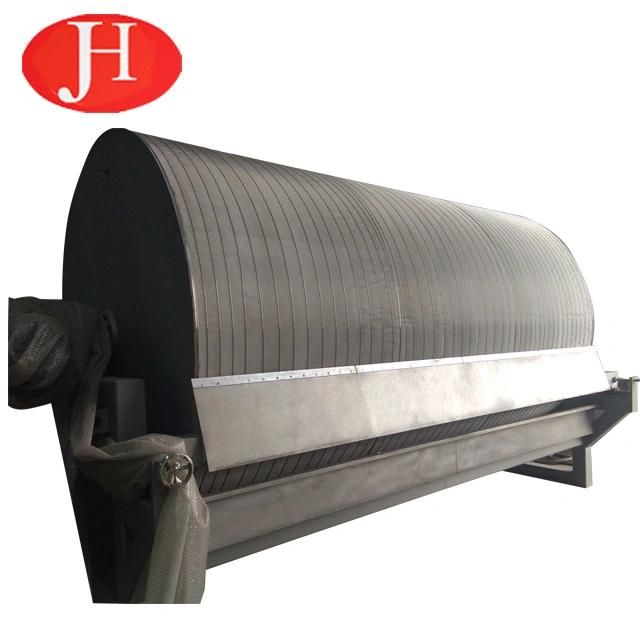

4 Kw potato starch milk dehydrator making machine high quality vacuum filter
1.Description of vacuum filter
Zhengzhou Jinghua Industry Vacuum filter combines the latest technology and years experience into a whole, which is widely used for starch milk dewatering in .potato starch,wheat starch,cassava starch and sweet potato sago starch project.

Advantages of vacuum filter
1.Combining the latest technologoy and years experience into a whole.
2.Fully stainless steel for parts contacting with material,compact structure and nice design
3.Speed ofrotating dum can be adjusted acordig to actual site.
4.Material umloaded through blade, which is made of high rigid aly and can be adjusted.
5.Stimer's rumning frequency can be adjusted.
6.Continuous adjusting for fhuid-level control.
7.Low energy consumption,small areafindly operation and stable running.
8.Widely used for dewatering of suspension in starch processing.

Main technical parameters

Model	KLG12	KLG20	KLG24	KLG34
Vacuum degree(Mpa)	0.04~0.07	0.04~0.07	0.04~0.07	0.04~0.07
Content of solid(%)	≥60	≥60	≥60	≥60
Feeding density(Be°)	16-17	16-17	16-17	16-17
Capacity(t/h)	4	6	8	10
Power	3	4	4	4
Drum rotary speed(r/min)	0-7.9	0-7.9	0-7.9	0-7.9
Weight(kg)	3000	4000	5200	6000
Dimension(mm)	3425x2312x2213	4775x2312x2213	4785x2630x2600	5060x3150x3010

Working principle
Rotary drum vacuum filter machine adopts vacuum suction method to achieve solid particles and liquid separation. Work, driven by speed regulating motor rotating the drum in the slurry tank, vacuum pump to produce vacuum inside the drum, under the action of pressure difference, material suspended solution over the surface of the drum forming uniform coating, when reaching a certain thickness from pneumatic scraper to starch, filtrate into the steam separator, so as to achieve the aim of starch, water, gas separation.

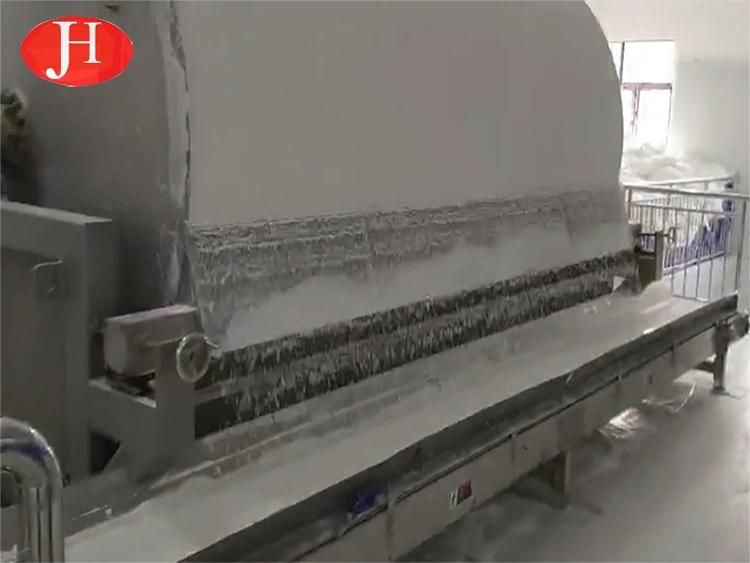

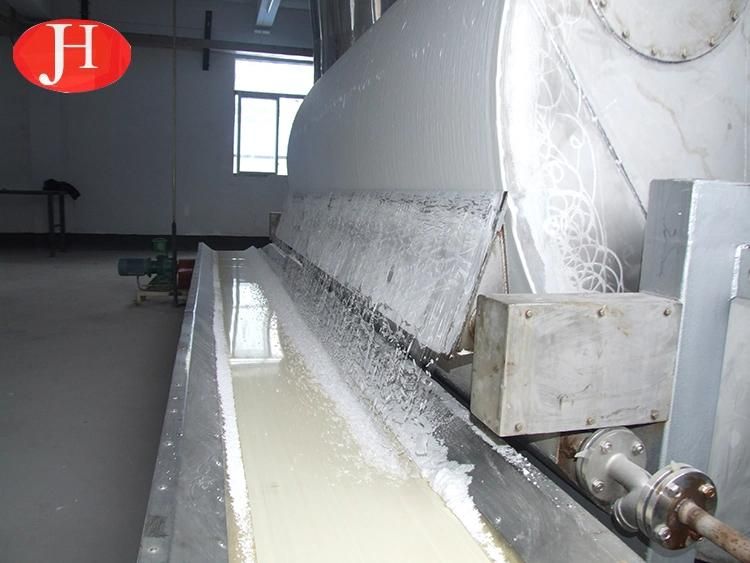

Real application case




2.Why Choose Us
Zhengzhou jinghua industry co., LTD was invited to participate in 2019 China international potato industry expo. During the exhibition, jinghua company showed its research and development achievements in recent years and met and communicated with new and old customers. Mr. Wang yanbo, chairman of the board of directors, delivered an important speech at the 2019 tuber green processing and comprehensive utilization technology seminar. In this conference, our company won the "ten years brilliant" honorary certificate issued by China international potato fair, which is the recognition of the ten years' work achievements of the jinghua company, and will encourage zhengzhou jinghua industrial co., LTD to forge ahead in the future.


Jinghua company is an engineering and technical company specializing in starch engineering design, equipment manufacturing, engineering installation and debugging, techncal personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas .Company for China starch industry association executive director units, executive director of the association of Chinese cassava starch industry unit.
Mr. Wang yanbo, chairman of the board, has published 7 scientific works, 6 national standards and 30 academic papers, across a country: "ten five" to "thirteen, five" national key r&d projects and provincial major research project over 10, with more than 10 national patents, won awards at all levels more than 20. Has participated in more than 80 domestic and foreign starch engineering design work, its advanced processing technology and technology has reached the world's leading level.

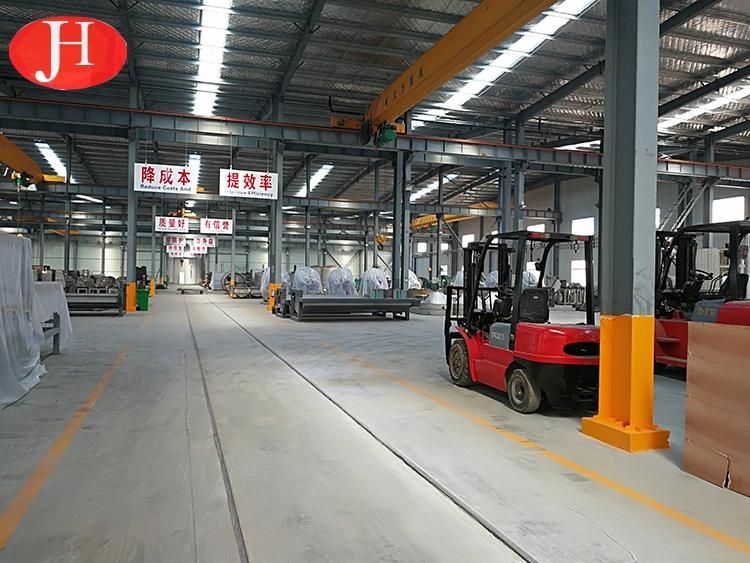

Our Workshop


Our Workshop


3.Our Customer


4.Our Service
Pre-sale service
1.Accept customer consultation and customize products according to customer requirements.
2.Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.

Sale service
1.The company sent technical personnel to the scen of the on-the -spot guidance equipment installation,debugging and training operators.
2.If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.

After-sale service
1.Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty and lifelong maintenance service.

5.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).


6.FAQ
Q1: Can you provide detailed parameters and drawings of the equipment?
A: Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.

Q2:How long is the warranty period of the eq uipment?
A:After the successful installation and commissioning of the equipment, there is a one-year warranty period.

Q3:What kind of after-sales service do you provide?
A:Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
