• Model NO.：GDS4*10*83 GDS2*10*83 GDS1*10*83
• Line：Cassava Flour Processing Line
• Machine：Cassava Flour Fiber Separator Machine
• Product Name：High Efficiency Flour Sifter
• Useful Life：20 Years
• Voltage：220V or 380V
• Material：Stainless Steel
• Quality：Top Level
• Service：Overseas Installation
• Training：Yes
• Dimension：2310*2200*2400 mm
• Power：2.2 Kw
• Capacity：12 T,H
• Weight：1520 Kg
• Warranty：1 Year
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. GDS4*10*83 GDS2*10*83 GDS1*10*83 Line Cassava Flour Processing Line Machine Cassava Flour Fiber Separator Machine Product Name High Efficiency Flour Sifter Useful Life 20 Years Voltage 220V or 380V Material Stainless Steel Quality Top Level Service Overseas Installation Training Yes Dimension 2310*2200*2400 mm Power 2.2 Kw Capacity 12 T/H Weight 1520 Kg Warranty 1 Year Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 10 Sets/Month

Product Description

high efficiency vibration cassava flour sifter machine flour fiber separator production line
1.Description of high efficiency flour sifter
starch sifter mainly used for starch screening, flour, protein powder, feed, screening classification.It is widely used for sieving dry starch before flour packing in corn starch, cassava flour, potato flour and sweet potato flour and wheat flour sago flour processing project.

Main Features of Starch Sifter
1. Enclosed mild steel box cabinet for greater flexibility of flow due to additional outer (4) channels.
2. Simple design allows easy maintenance.
3. Alum (Aluminium) style sieve inner frames, mesh cloth glued with frame fast and activator.
4. Outer sieves coated inside and outside with plastic melamine lamination and supplied with stainless steel trays.
5. Plan sifter doors made of fiberglass with a bright and smooth finish, with insulation to prevent condensation.
6. Supplied with outlets for discharge, including inlet and outlet socks and black plastic caps.
7. Easy and quick changing of sifting scheme if necessary.

Main technical parameters

Model	Bin (piece)	Sifter area (m2)	Capacity (t/h)	Power (kw)	Weight (kg)	Dimension (mm)
GDS4*10*83	4	18	10~11	2.2	1520	2310×2200×2400
GDS2*10*100	2	10	6~8	1.5	900	2600×1650×2220
GDS2*10*83	2	8.5	5~6	1.5	850	2120×1400×2220
GDS1*10*100	1	6.6	3~4	1.1	750	1610×1610×1800
GDS1*10*83	1	4.2	2.5~3	0.75	600	1400×1400×1800

Working principle
The machine is composed of two main parts: the mild frame mounted with clamps for the flexible suspension rods, floor plates for mounting and the mild steel box section for the sieve frames with upper clamping by means of a metals frame and clamping pressure micrometric screws.
The drive unit with counter balance weight, with motor, pulley, v-belt is mounted under the cabinet box section, adjustable to suit different applications. Material is fed into the top section and by the machines circular motion, the fine material moves through the sieve mesh and is discharged out each sieve to outlets, while the course materials over tails and sent to separate outlets.

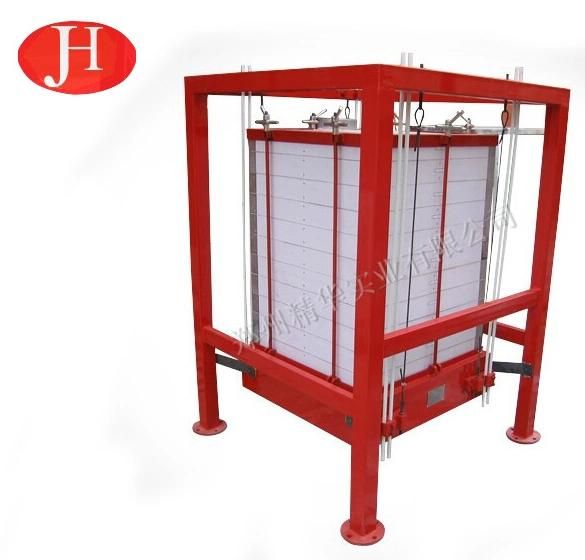

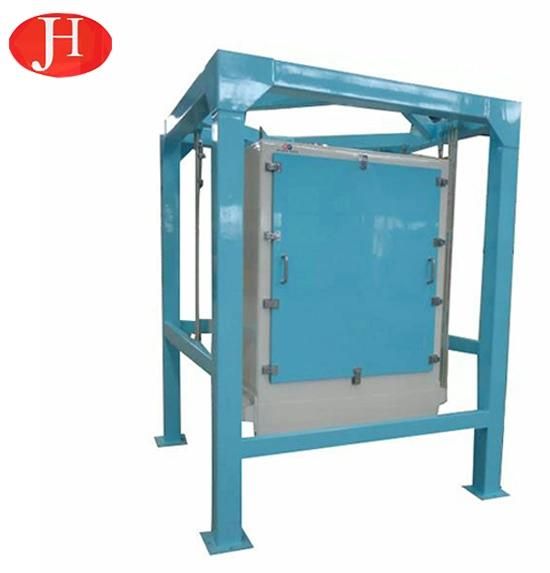

Product show


2.Our Service
Pre-sale service
1.Accept customer consultation and customize products according to customer requirements.
2.Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.

Sale service
1.The company sent technical personnel to the scen of the on-the -spot guidance equipment installation,debugging and training operators.
2.If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.

After-sale service
1.Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty and lifelong maintenance service.

3.Company Information
Zhengzhou jinghua industrial co., LTD., as a member of China starch industry association, was invited to attend the 2019 Shanghai international starch and starch derivatives exhibition. In this meeting, zhengzhou jinghua industry co., ltd. and the new and old customers in-depth meeting exchanges, for the future further cooperation to create a good beginning, to the whole industry to show the recent new research and development results, harvested from more peers and experts unanimously recognized.

Jinghua company is an engineering and technical company specializing in starch engineering design, equipment manufacturing, engineering installation and debugging, techncal personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas .Company for China starch industry association executive director units, executive director of the association of Chinese cassava starch industry unit.
Mr. Wang yanbo, chairman of the board, has published 7 scientific works, 6 national standards and 30 academic papers, across a country: "ten five" to "thirteen, five" national key r&d projects and provincial major research project over 10, with more than 10 national patents, won awards at all levels more than 20. Has participated in more than 80 domestic and foreign starch engineering design work, its advanced processing technology and technology has reached the world's leading level.

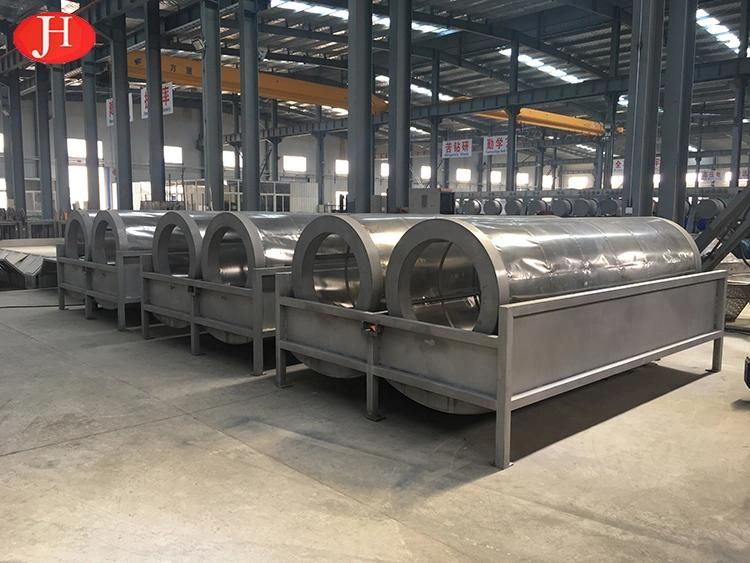

Our Workshop


Our Workshop


Our Certificate


4.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).


5.FAQ
Q1: Can you provide detailed parameters and drawings of the equipment?
A: Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.

Q2:How long is the warranty period of the eq uipment?
A:After the successful installation and commissioning of the equipment, there is a one-year warranty period.

Q3:What kind of after-sales service do you provide?
A:Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
