• Model NO.：DQXJ190x450 DQXJ190x490
• Line：Starch Production Line
• Product Name：Automatic Rotary Washing Machine
• Condition：New
• Useful Life：20 Years
• Service：Overseas Installation
• Training：Yes
• Warranty：1 Years
• Negotiable：Negotiable
• Machine：Starch Making Machine
• Material：Stainless Steel
• Original：China
• Working Type：Continuous Work
• Dimension：6110*2340*2170 mm
• Weight：6000 Kg
• Capacity：20-50 T,H
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. DQXJ190x450 DQXJ190x490 Line Starch Production Line Product Name Automatic Rotary Washing Machine Condition New Useful Life 20 Years Service Overseas Installation Training Yes Warranty 1 Years Negotiable Negotiable Machine Starch Making Machine Material Stainless Steel Original China Working Type Continuous Work Dimension 6110*2340*2170 mm Weight 6000 Kg Capacity 20-50 T/H Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 10 Sets/Month

Product Description

stainless steel arrowroot starch plant making machine raw material cleaning washing machine
1.Description of washing machine
Before the raw material is broken, it needs to be cleaned. Rotary washer is the washing section machine in starch processing line and it adopts the principle of countercurrent to clean out mud, sand and small stones effectively.

Advantages of rotary washing machine
1. Combining the latest technology and years' experience into a whole
2. Adopting method of countercurrent washing, excellent washing result, mud and sand removing.
3. Reasonable feeding structure. The damage rate of raw material is under 1% and this can ensure high starch extraction yield.
4. Compact design, big capacity, energy and water saving
5. Stable operation and rational motor equipped.
6. The rotating drum is made of high quality shell perforated with numerical control punch for long time.
7. Easy to installation and maintenance

Main technical parameters

Model	Drum diameter (mm)	Drum length (mm)	Capacity (t/h)	Power (Kw)	Dimension (mm)	Weight (Kg)
DQXJ190x450	Φ1905	4520	20-25	18.5	5400x2290x2170	5200
DQXJ190x490	Φ1905	4920	30-35	22	5930x2290x2170	5730
DQXJ190x490	Φ1905	4955	35-50	30	6110x2340x2170	6000

Working principle
The washing machine is designed with counter-current washing, that is, the washing water enters the washing machine from the material outlet. The material enters into the rotating drum and is cleaned in the tumbling collision. Meanwhile, the material's skin is effectively removed. The cleaned sediment skin falls between the drum and the inner wall of the water tank through the mesh, moves forward under the push of the blades, and is discharged through the overflow tank.

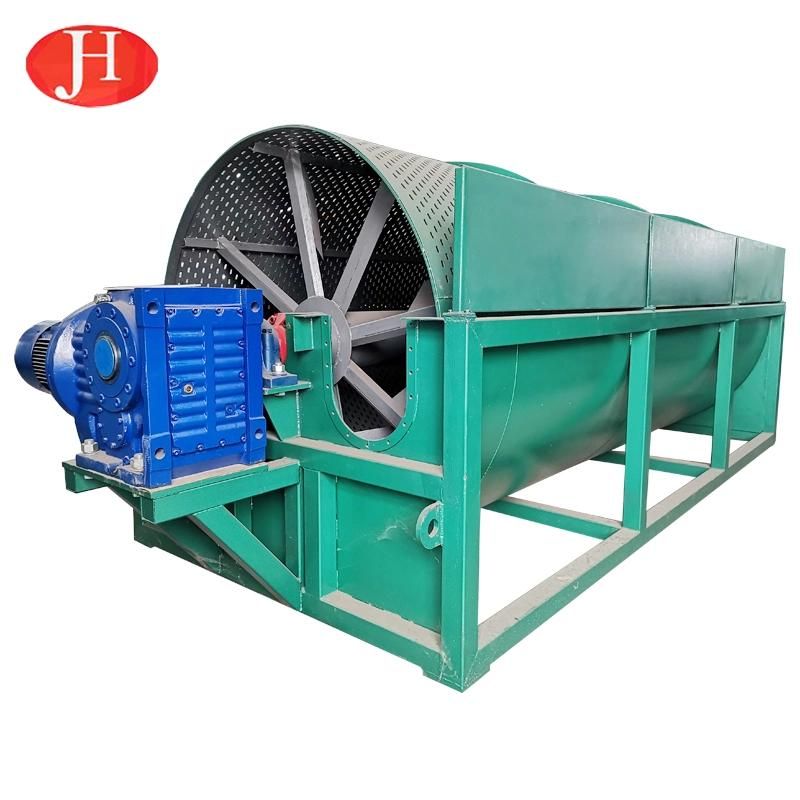

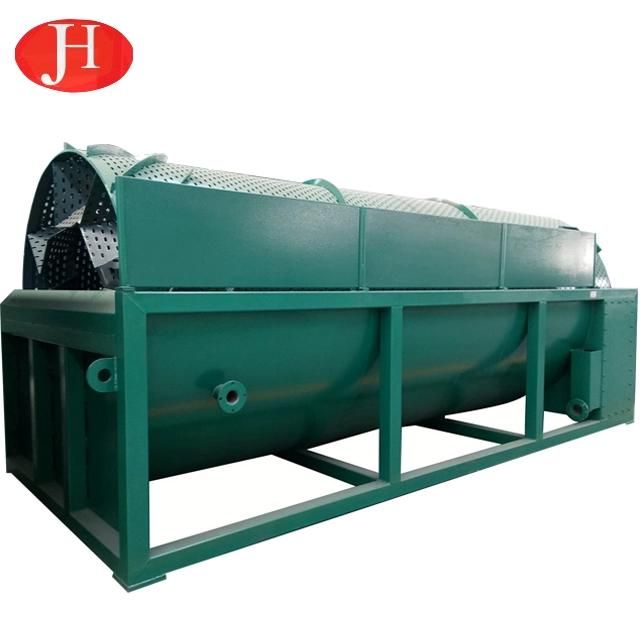

Product show

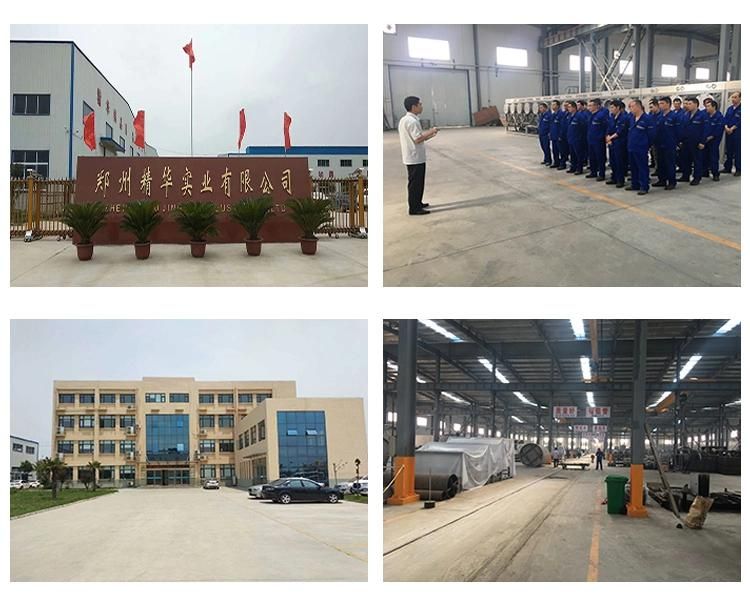

2.Company Information
Jinghua company is an engineering and technical company specializing in starch engineering design, equipment manufacturing, engineering installation and debugging, techncal personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas .Company for China starch industry association executive director units, executive director of the association of Chinese cassava starch industry unit.
Mr. Wang yanbo, chairman of the board, has published 7 scientific works, 6 national standards and 30 academic papers, across a country: "ten five" to "thirteen, five" national key r&d projects and provincial major research project over 10, with more than 10 national patents, won awards at all levels more than 20. Has participated in more than 80 domestic and foreign starch engineering design work, its advanced processing technology and technology has reached the world's leading level.

3.Our Service
Pre-sale service
1.Accept customer consultation and customize products according to customer requirements.
2.Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.

Sale service
1.The company sent technical personnel to the scen of the on-the -spot guidance equipment installation,debugging and training operators.
2.If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.

After-sale service
1.Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty and lifelong maintenance service.

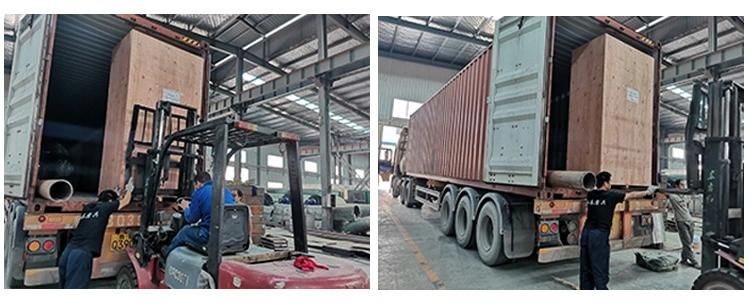

4.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).

5.FAQ
Q1: Can you provide detailed parameters and drawings of the equipment?
A: Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.

Q2:How long is the warranty period of the eq uipment?
A:After the successful installation and commissioning of the equipment, there is a one-year warranty period.

Q3:What kind of after-sales service do you provide?
A:Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.

Zhengzhou Jinghua Industry Co.,Ltd.
Add:Guanggu Road, Xingyang City,Henan Province,China
