• Model NO.：WSHG
• Key Word 2：Drying Machine
• Name：Fruit Drying Machine
• Machine Material：304 Stainless Steel Drying Machine
• Heating Source：Electric Heat; Steam Heat; Gas Heat
• Function：Dewater, Dehydrator, Dryer, Dehydration Equipment
• Working Principle：Hot Air Circulated in The Drying Oven
• Usage：Dehydrating or Removing Water or Moisture
• Transport Package：Wooden Cases
• Specification：10 cubic
• Trademark：GMEC
• Origin：Henan
• Production Capacity：50 Sets Per Month

ModelWSHG-1WSHG-2WSHG-4WSHG-6WSHG-8Capacity(kg/batch)50100200300400Power(kw)912182230Number of trolley(unit)12468Quantity of plate(pcs)244896144192Size(mm)1550*800
*22002100*1100
*23002100*2000
*23002600*2100
*23004200*2300
*2620

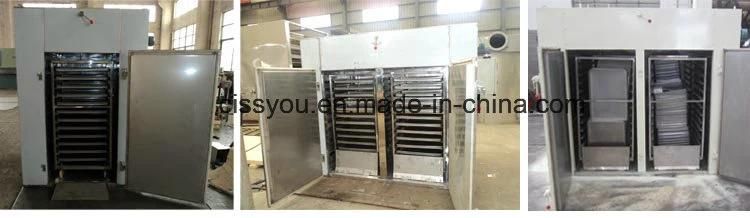

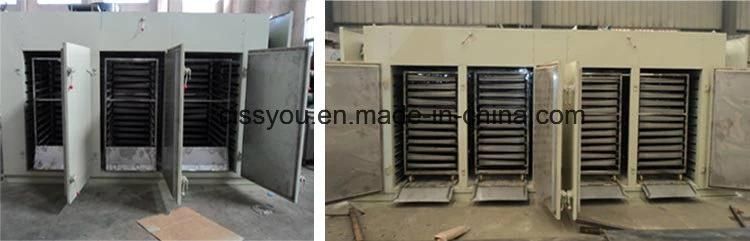

Images of different models of fish drying machine



There are two type of this industrial hot air drying machine
One is made of 304 stainless steel inside, carbon steel outside
One is fully stainless steel both outside and inside
Carbon steel outside and stainless steel inside

Fully stainless steel both outside and inside

Inside of fish drying machine is made of stainless steel, including the mobile trolleys, and trays.


Automatic temperature controller & Axial flow fan
304 Stainless steel mobile trolleys & trays
There are wheels on the bottom of the mobile carts, so customers can move them in and out of the drying oven easily.
Trays can be customized for dehydrating different raw materials.

Dehydrated samples of fish drying machine
The drying time of this drying machine will vary by different materials, moisture content, sugar content, local climate, etc.
1.Fruits can be dried whole, or as slices, such as mango, papaya, and kiwi, etc. Alternatively they can chopped after drying, made into pastes, or concentrated juices.
2. Dried fruit is widely used by the confectionery, baking and sweets industries.
3. Food manufacturing plants use dried fruit in various sauces, soups, marinades, garnishes, puddings, etc.

Packaging & Shipping
1. This fruit and vegetable drying machine will be packaged by standard wooden case.
2. It will be delivered with 15 days after receiving the prepayment.

Company Information
Our machines have been exported to many places around the world, with good feedback and building long-term cooperation relationship with customers.
The feature products:coal or charcoal briquette machine,carbonization machine,straw briquette machine,drying machine ,cleaning equipment,food machine , hammer mills,grain hammer mill,corn/maize flour mill,farm machinery,feed processing machinery,feed pellet mill machine,peanut processing machine,corn sheller and thresher,wood processing machine,etc.

FAQ

 1. What is the heat source available?
Heat source : electricity, steam, gas, steam+ electricity.
2. The temperature range can be set?
Operation temperature: The steam heating temperature is from 50ºC-150ºC; Electricity heating temperature is from 50ºC-350ºC. Customer should have steam boiler if choose steam heating.
3. Can the voltage be customized based on clients' need?
Voltage can be customized. So please kindly tell us _phase, _V, _Hz when send inquiry.
