6.5tpd Combined Soybean Oil Press Machine with Oil Filter
Sichuan Guangxin Machinery of Grain & Oil Processing Co., Ltd.- Type：Spiral Oil Press
- Application：All, Edible Oil
- Voltage：380V
- Appearance：Uniaxial
- Press Materials：All Kinds of Seeds and Nuts
- Press Series：Second
Base Info
- Model NO.：YZLXQ120
- Condition：New
- Customized：Customized
- Power(W)：11kw
- Usage：All Kinds of Oil Seeds
- Automatic Grade：Automatic
- Processing Capacity：6.5ton Per Day
- Factory History：30years Manufactur Experience
- Size：1948*1522*1915
- Weight：1200kgs
- Transport Package：We Use Top Standard Fumigated Wooden Box Packing.
- Specification：ISO, BV, SGS
- Trademark：GUAGNXIN
- Origin：Sichuan, China
- HS Code：84792000
- Production Capacity：400 PCS,Month
Description

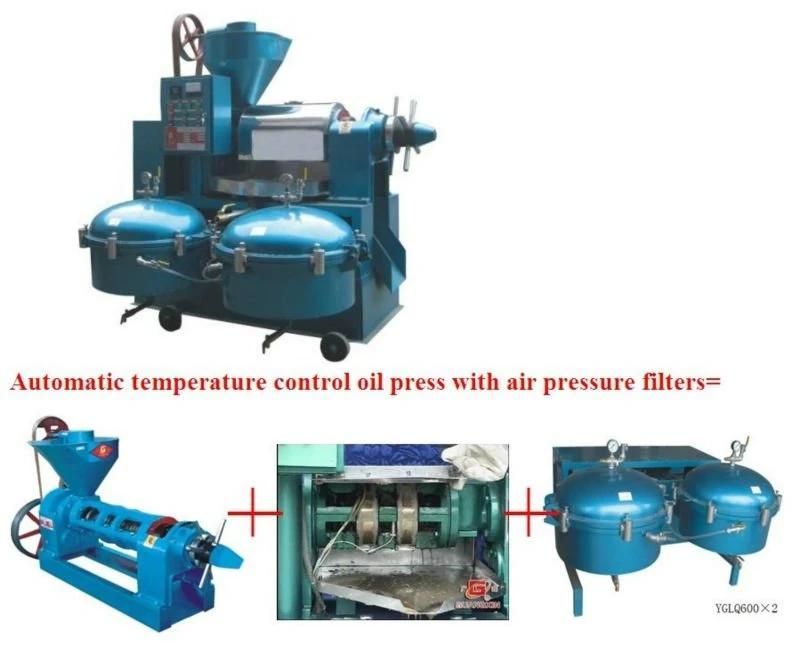

Guangxin Automatic Combined Oil Press with Air pressure Oil filter seriesModel YZLXQ10(95) YZLXQ10-6/8/9 YZLXQ120 YZLXQ130 YZLXQ140 Processing capacity (t/24h ) 3.5~4 4.5 6.5 8 9~11 Oil content of dry cake(%) ≤7.8 ≤7.8 ≤7.6 ≤7.6 ≤7.6 Oil press power(k.w ) 7.5 11 15 15 or 18.5 18.5 or 22 The power for Filtration(k.w) 1.5 1.5 1.5 1.5 1.5 Temperature Control power(k.w) ≥3.0 ≥3.0 ≥3.0 ≥3.0 ≥3.0 Measurement(LxWxH) 1790*1520*1915 1890*1520*1915 1948*1522*1915 1948*15229*1915 2120*1350*1890 Spiral axes rotate speed (r/min) 32-40 32-40 32-44 32-44 32-44 Weight (kg) 1023 1075 1200 1400 1400
1. Technical features of oil extractor machines
1. Its characterized by advanced design, convenient operation, high output, strong compatibility and high efficiency.
2. It has changed the traditional way of increasing the temperature of squeeze chest, therefore can reduce the working time, and also reduce the waste of power and consumption of machine, otherwise it has lengthened the service life of the machine. If working process was interrupted, the squeeze chest could keep on a certain temperature automatically.
3. It has the applicable main motor and complete precision filtration system. After the oil squeezed from the squeeze chest, the oil will be filtered in the air pressure filter, so the users can get clear oil directly.
2. Suitable oil seeds

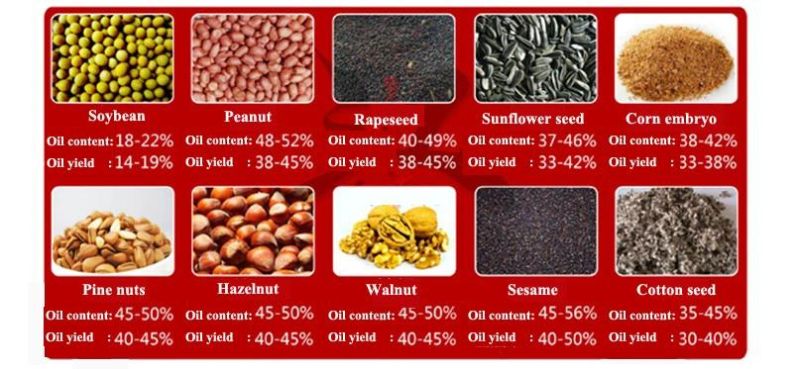

Can press different kinds of oil seeds like rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds, sesame seeds, corn germ, palm kernel, etc.
3. Quality Standard
Conform to JB/T9793· 1-1999 of The People's Republic of China & ISO9001: 2008.
4. Warranty terms
Free replacement of main body in 12 months from the date of purchasing if ther are quality problem.
5. After-sale service
1. We supply spare parts timely all year around at factory cost.
2. We afford technical solutions for buyers at any time.
1. Technical features of oil extractor machines
1. Its characterized by advanced design, convenient operation, high output, strong compatibility and high efficiency.
2. It has changed the traditional way of increasing the temperature of squeeze chest, therefore can reduce the working time, and also reduce the waste of power and consumption of machine, otherwise it has lengthened the service life of the machine. If working process was interrupted, the squeeze chest could keep on a certain temperature automatically.
3. It has the applicable main motor and complete precision filtration system. After the oil squeezed from the squeeze chest, the oil will be filtered in the air pressure filter, so the users can get clear oil directly.
2. Suitable oil seeds
Can press different kinds of oil seeds like rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds, sesame seeds, corn germ, palm kernel, etc.
3. Quality Standard
Conform to JB/T9793· 1-1999 of The People's Republic of China & ISO9001: 2008.
4. Warranty terms
Free replacement of main body in 12 months from the date of purchasing if ther are quality problem.
5. After-sale service
1. We supply spare parts timely all year around at factory cost.
2. We afford technical solutions for buyers at any time.
