• Model NO.：YZLXQ120
• Condition：New
• Customized：Non-Customized
• Power(W)：15kw
• Usage：All Kinds of Oil Seeds
• Automatic Grade：Automatic
• Daily Capacity：>6.5 T,24h
• Oil Content of Dry Cake：<7.6%
• Heating Power：> 3 Kw
• Filtration Power：1.5 Kw
• Measurement：1948*1522*1915mm
• Rotate Speed：32-44 R,Min
• Weight：1200kg
• Transport Package：We Use Top Standard Fumigated Wooden Box Packing.
• Specification：ISO, BV, SGS
• Trademark：GUAGNXIN
• Origin：Sichuan, China
• HS Code：84792000
• Production Capacity：400 PCS,Month

Basic Info.

Model NO. YZLXQ120 Condition New Customized Non-Customized Power(W) 15kw Usage All Kinds of Oil Seeds Automatic Grade Automatic Daily Capacity >6.5 T/24h Oil Content of Dry Cake <7.6% Heating Power > 3 Kw Filtration Power 1.5 Kw Measurement 1948*1522*1915mm Rotate Speed 32-44 R/Min Weight 1200kg Transport Package We Use Top Standard Fumigated Wooden Box Packing. Specification ISO, BV, SGS Trademark GUAGNXIN Origin Sichuan, China HS Code 84792000 Production Capacity 400 PCS/Month

Product Description

 30YEARS FACTORY ----------------  your  honest parter

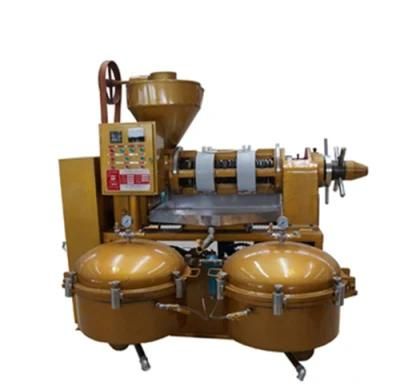

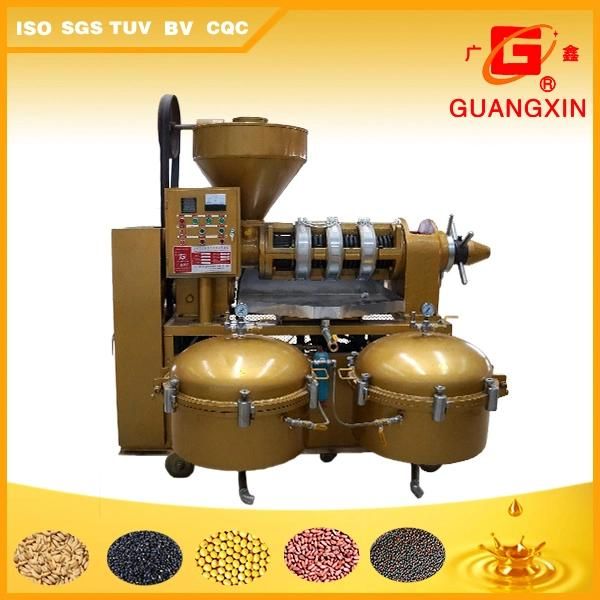

YZLXQ120 Automatic oil press machine  have electric heating, squeezing, filtering three functions together, advanced design and easy operation.

Product Name	Spiral Oil Press
Model	YZLXQ120
Processing Capacity (t/24h)	≥6.5
Oil Content of dry cakes (%)	≤7.6
Power Required (KW)	15
Measurement (mm)	1948×1522×1915
Spiral axes rotate speed (r/min)	32-44
Weight (KG)	1200

Technical features of oil extractor machines

1. Its characterized by advanced design, convenient operation, high output, strong compatibility and high efficiency.
2. It has changed the traditional way of increasing the temperature of squeeze chest, therefore can reduce the working time, and also reduce the waste of power and consumption of machine, otherwise it has lengthened the service life of the machine. If working process was interrupted, the squeeze chest could keep on a certain temperature automatically.
3. It has the applicable main motor and complete precision filtration system. After the oil squeezed from the squeeze chest, the oil will be filtered in the air pressure filter, so the users can get clear oil directly.

Suitable oil seeds

Can press different kinds of oil seeds like rapeseeds, cotton seeds, soybean, shelled peanut, flax seeds, sunflower seeds, sesame seeds, corn germ, palm kernel, etc.


 Quality Standard
Conform to JB/T9793· 1-1999 of The People's Republic of China & ISO9001: 2008.





Warranty terms

Free replacement of main body in 12 months from the date of purchasing if ther are quality problem.
5. After-sale service
1. We supply spare parts timely all year around at factory cost.
2. We afford technical solutions for buyers at any time.
