• Model NO.：YZYX168
• Condition：New
• Customized：Customized
• Size：2670*1100*1830mm
• Name：China The Biggest Screw Oil Expeller
• Color：Can Be Customized
• Daily Capacity：20 Ton, 24h
• Oil Content of Dry Cake：< 7.4%
• Oil Press Power：37 or 45 Kw
• Weight：1820kg
• Rotate Speed：36-44 Rpm
• Oil Content of Dry Cakes：7.4%
• Feeding Power：0.55-1.1kw
• Advantage：Easy Operation, High Oil Yields
• Company Feature：Manufacturer with Export Right
• Transport Package：Solid Wooden Box
• Specification：ISO, SGS, BV
• Trademark：Guangxin
• Origin：Mianyang, Sichuan, China
• HS Code：8479200000
• Production Capacity：400PCS Per Month

Basic Info.

Model NO. YZYX168 Condition New Customized Customized Size 2670*1100*1830mm Name China The Biggest Screw Oil Expeller Color Can Be Customized Daily Capacity 20 Ton/ 24h Oil Content of Dry Cake < 7.4% Oil Press Power 37 or 45 Kw Weight 1820kg Rotate Speed 36-44 Rpm Oil Content of Dry Cakes 7.4% Feeding Power 0.55-1.1kw Advantage Easy Operation, High Oil Yields Company Feature Manufacturer with Export Right Transport Package Solid Wooden Box Specification ISO, SGS, BV Trademark Guangxin Origin Mianyang, Sichuan, China HS Code 8479200000 Production Capacity 400PCS Per Month

Product Description

30YEARS FACTORY ----------------  your  honest parter




YZYX168 the biggest oil expeller advantages

1. The biggest model of our company for now, processing capacity is 16-20 tons/24 hour.
2. Has 2-step, 3-step and 4-step squeezing for choosing.
3. Length of press cage is 127cm, squeezing power is strong.
4. Oil refinery or oil factory use this machine on oil production line.

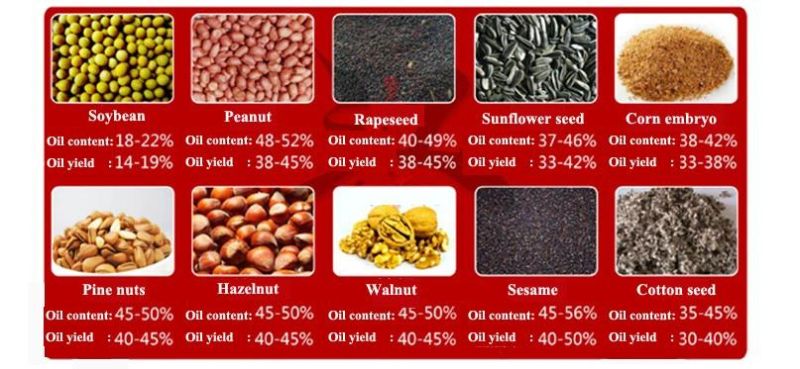

Applicable oil plants seeds

2 step squeezing model, suitable for make oil from sunflower seeds, rapeseeds. Soybean, sesame seeds, flaxseed, palm kernel, coconut, camellia seeds and peanut, etc.


Quality Standard

1. Conform to JB/T9793· 1-1999 of the People's Republic of China.
2. ISO9001: 2008 and BV certified.
After-Sale Service
1. We supply spare all year around.
2. We supply technical solutions and helps for buyers at any time.
3. We have professional team, help uses design and plan the oil refinery's construction.

Technical Characteristics


Model	YZYX168
Processing Capacity (t/24h)	≥20
Oil Content of dry cakes (%)	≤8.0
Power Required (KW)	37-45
Measurement (mm)	2670×1000×1726
Spiral axes rotate speed (r/min)	32-38
Weight (KG)	1710
Land using	30 square meter
Labor using	2 persons

Packing and Delivery

Sea worthy wooden case with fumigation




Our Company




 30YEARS FACTORY ----------------  your  honest parter


Contact Us

Hannah Xiao
Sichuan Guangxin Machinery of Grain & Oil Processing Co.,Ltd
Mianyang Guangxin Import & Export Co., Ltd
Add: Southern Section Of 1st Ring Road, Huagai Industrial District, Anzhou, Mianyang, Sichuan, China
Tel/Fax: +86 816 2688687
Mobile:+86 18881125800
Website :cnguangxin.en.made-in-china.com
