• Model NO.：DPS5050 DPS5076 DPS50100
• Condition：New
• Customized：Customized
• Line：Cassava Flour Production Line
• Useful Life：20 Years
• Capacity：10-60 T,H
• Dimension：1530*1400*765 mm
• Diameter of Rotor：480 mm
• Speed of Rotor：1200 R,Min
• Energy：Electric
• Warranty：1 Years
• Training：Yes
• Maintain：Yes
• Service：Overseas Installation
• Price：Negotiable
• Transport Package：Wooden Case
• Specification：Stainless Steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DPS5050 DPS5076 DPS50100 Condition New Customized Customized Line Cassava Flour Production Line Useful Life 20 Years Capacity 10-60 T/H Dimension 1530*1400*765 mm Diameter of Rotor 480 mm Speed of Rotor 1200 R/Min Energy Electric Warranty 1 Years Training Yes Maintain Yes Service Overseas Installation Price Negotiable Transport Package Wooden Case Specification Stainless Steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/Month

Product Description

1.Product Description
Zhengzhou Jinghua Industry Crusher is newly designed with compact structure, easy disassembly and low maintenance cost.  The machine is widely used for cracking big materials. The raw material is usually fresh cassava tube, fresh sweet potato and after crushing you can get the finished product with a 20-30mm size. It is a precrushing.

Advantages of crusher
1. In dependent research and development,integrate with the same kind so fequipment performance from local and abroad manufactures, and combined with our many years useing esperience.
2. Newly designed with compact structure,easy disassembly and low maintenance cost.
3. Small volumes with large capacity,medium speed,low energy consumption and steady operation.

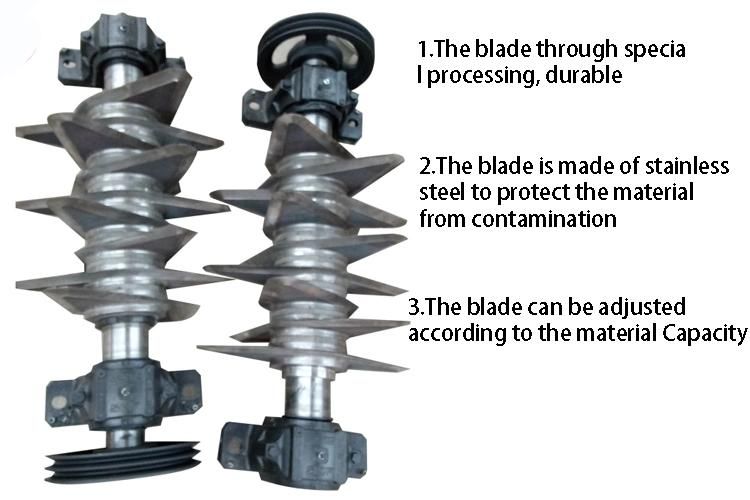

4. To avoid duplication of material cutting and improvge cutting ability.Blade is sepcially made and is durable.
5. Parts contact with material are made of stainless steel,to ensure materials not contaminated.
6. The machines is widely used for cracking of big material.

Working principle of crusher

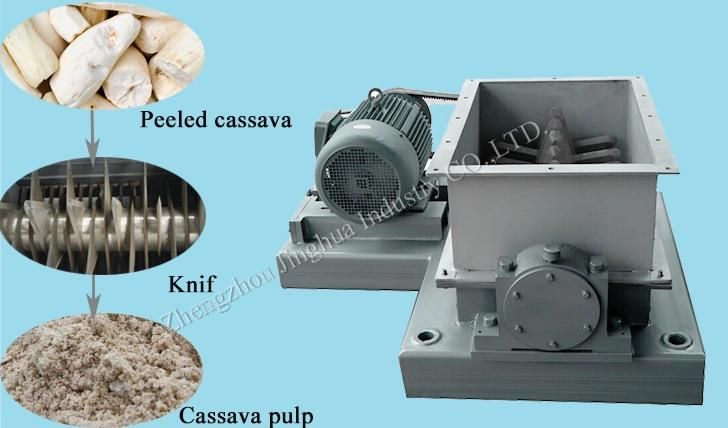

The main working part of the crusher is a rotary table with a blade. The rotary table is composed of a spindle and a rotary table.The motor drives the rotary table to rotate at a medium speed in the slicing chamber, and the material enters from the upper feeding port,the upper part of the rotary knife is sheared by the rotary blade and is discharged at the lower part of the rotary knife.

Main technical parameters

Model	Diameter of rotor (mm)	Speed of rotor (r/min)	Blade Number	Rotor length (mm)	Power (Kw)	Dimension (mm)	Weight (Kg)	Capacity (t/h)
DPS5050	Φ480	1200	9	550	7.5/11	1030x1250x665	650	10-15
DPS5076	Φ480	1200	11	760	11/15	1250x1300x600	750	15-30
DPS50100	Φ480	1200	15	1000	18.5/22	1530x1250x665	900	30-50
DPS60100	Φ580	1200	15	1000	30/37	1530x1400x765	1100	60-80

2.Our Certificate
Awarded the title of Advanced & High Technology Enterprise by Henan Science & Technology Department. Jinghua is the Vice president member of Sweet Potato Starch Professional Committee of China Starch Industry Association Units, the member of Potato Starch Professional Committee and the vice president member of China Food and Packaging Machinery Industry Association and Potato Food Processing Machinery Professional Committee Unit. Awarded the "ten years brilliant" honorary certificate issued by China international potato fair.



3.Our Service
1.After consulting with customers, we can provide customers with detailed product parameters and drawings, listen to customers' needs, and engineers can customize products according to customers' needs;

2.After signing the contract with the customer, actively solve various problems for the customer, communicate with the engineer and the customer in time, design and modify the scheme until the customer is satisfied, check the production progress, manufacture the equipment as soon as possible, find the appropriate transportation mode, and ensure the goods can be delivered safely and on time.

3.After the installation and commissioning of the equipment, we will visit the customers regularly to understand the problems in the production and actively solve the problems for the customers. Therefore, the equipment has a one-year warranty period, and we can solve the after-sales problems through the on-site guidance of telephone and video.


4.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).


5.Company Information
On the afternoon of June 6th, One Belt And One Road Cambodian delegation came to visit zhengzhou jinghua industrial co., LTD. Professor wang yanbo, chairman of zhengzhou jinghua company and other relevant personnel introduced to the delegation the achievements made by jinghua company over the years, the production technology of products and the production process of starch. The delegation visited the company's office building, production workshop and finished product warehouse, showing the delegation the company's production and research capabilities.





Jinghua company is a specialized engineering technology company specializing in various starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.The chairman of the board is professor wang yanbo, who is mainly engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research and engineering design of starch and its deep processing direction, and research and development of modern equipment. He has published 7 scientific works, 6 national standards and 30 academic papers.

Our Workshop


Our Warehouse



6.FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.

Q2.What is your main business?
A: ZZJH is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line

Q3. Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
