• Model NO.：GDSF2x10x100 GDSF2x10x83 GDSF1x10x100 GDSF1x10x83
• Product Name：High Efficiency Starch Sifter
• Energy：Electric
• Condition：New
• Line：Cassava Flour Processing Line
• Voltage：220V or 380V
• Power：2.2 Kw
• Dimension：2530*1717*2270 mm
• Weight：1500 Kg
• Useful Life：20 Years
• Service：Overseas Installation
• Training：Yes
• Material：Stainless Steel
• Transport Package：Wooden Case
• Specification：Stainless Steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. GDSF2x10x100 GDSF2x10x83 GDSF1x10x100 GDSF1x10x83 Product Name High Efficiency Starch Sifter Energy Electric Condition New Line Cassava Flour Processing Line Voltage 220V or 380V Power 2.2 Kw Dimension 2530*1717*2270 mm Weight 1500 Kg Useful Life 20 Years Service Overseas Installation Training Yes Material Stainless Steel Transport Package Wooden Case Specification Stainless Steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/Month

Product Description

cassava flour sifter machine machine high efficiency flour fiber separator machine

1.Introduction of starch sifter
Zhengzhou jinghua starch sifter is widely used in starch industry and it is proved the best sifter in starch sifting. The sieve body is composed of many layer sieve lattices and the sieve cases are made of excellent bass wood. Each layer connects closely as the form of step in the rim to ensure good sealing performance and convenient maintenance. Suspender is made from glass fiber reinforced plastic with durable life.
It is widely used for sieving dry starch before starch packing in corn starch, cassava starch, potato starch and sweet potato starch and wheat starch sago starch processing project.

Features of starch sifter
1. Long sieving road.
2. Small occupying space.
3. High efficiency and large capacity.
4. Energy saving and stable operation.
5. Easy maintenance.
6. Shifter screen is varied 40-120 mesh according to different material.
7. Shifter screen material is stainless steel.
8. Shifter frame can be made of carbon steel or stainless steel.

Main technical parameters

Model	Bin	Number of sieves(piece)	Sifting area(m2)	Speed Rpm	Capacity(t/h)	Diameter(mm)	Power(Kw)	Weight(kg)	Dimension(mm)
GDSF2x10x100	2	10-12	13.5	255	8-10	Φ45-55	2.2	1200-1500	2530x1717x2270
GDSF2x10x83	2	8-12	17	255	5-7	Φ45-55	1.5	730-815	2120x1440x2120
GDSF1x10x83	4.5	2-3	7.1	255	3-4	Φ40	0.75	600	1380x1280x1910
GDSF1x10x100	6.4	3-4	8.5	255	4-5	Φ40	1.5	750	1620x1620x1995
GDSF1x10x120	7.6	4-5	12.5	255	5-6	Φ40	1.5	950	1890x1890x2400

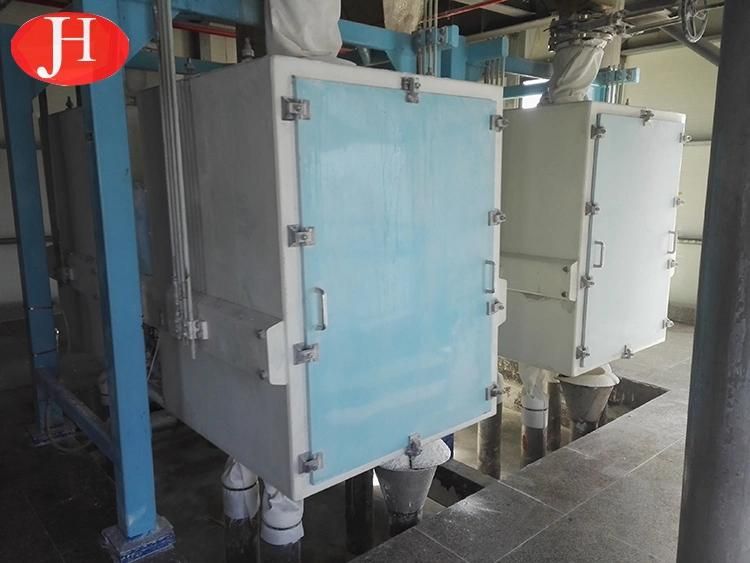

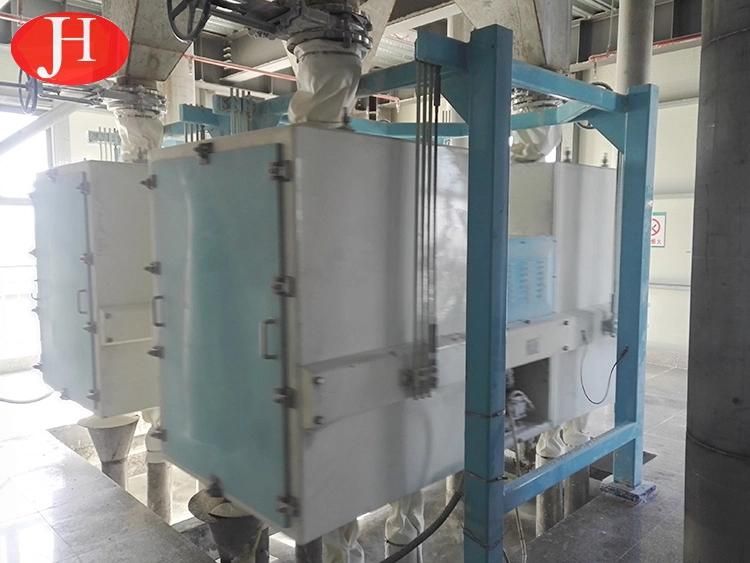

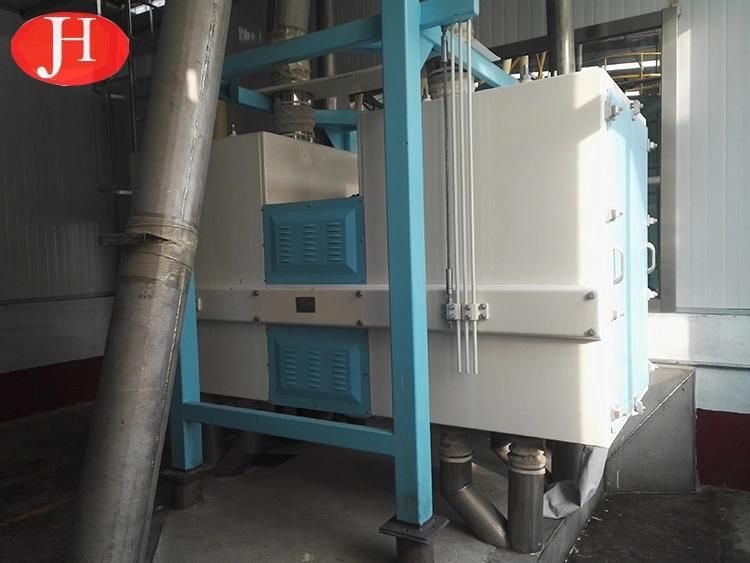

Real application case







2.Company Information
Jinghua company is an engineering and technical company specializing in starch engineering design, equipment manufacturing,engineering installation and debugging, technical personnel training and other work. Has two modern large factory,engineering and technical personnel more than 30 people, can provide installation services overseas .Company for China starch industry association executive director units, executive director of the association of Chinese cassava starch industry unit.
Mr. Wang yanbo, chairman of the board, has published 7 scientific works, 6 national standards and 30 academic papers, across a country: "ten five" to "thirteen, five" national key r&d projects and provincial major research project over 10, with more than 10 national patents, won awards at all levels more than 20. Has participated in more than 80 domestic and foreign starch engineering design work, its advanced processing technology and technology has reached the world's leading level.

Our Factory

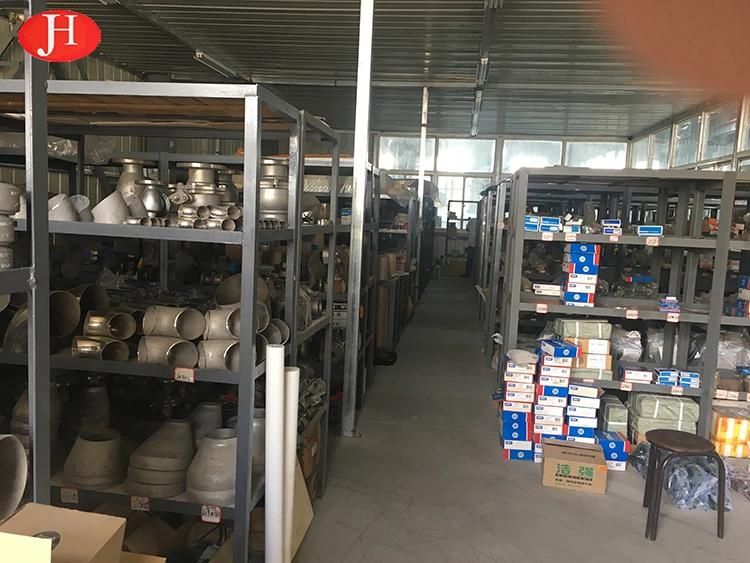

Our Warehouse

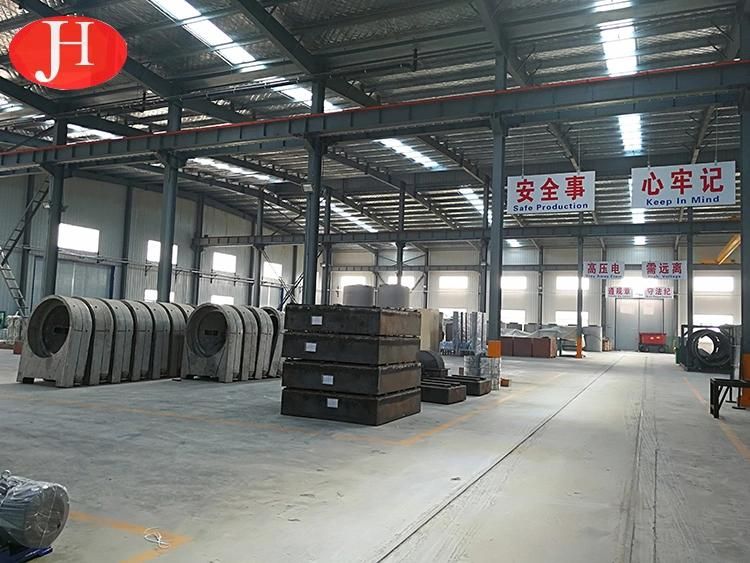

Our Workshop


Our Workers


3.Our Service
Pre-sale service
1.Accept customer consultation and customize products according to customer requirements.
2.Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.

Sale service
1.The company sent technical personnel to the scen of the on-the -spot guidance equipment installation,debugging and training operators.
2.If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.

After-sale service
1.Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty and lifelong maintenance service.

4.Packing & Shipping
Packing : Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).


5.Our Certificate
Awarded the title of Advanced & High Technology Enterprise by Henan Science & Technology Department. Jinghua is the Vice president member of Sweet Potato Starch Professional Committee of China Starch Industry Association Units, the member of Potato Starch Professional Committee and the vice president member of China Food and Packaging Machinery Industry Association and Potato Food Processing Machinery Professional Committee Unit. Awarded the "ten years brilliant" honorary certificate issued by China international potato fair.


6.FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.

Q2.What is your main business?
A: ZZJH is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line.

Q3.Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements

Q4:Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5:If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installatison of whole process line based on your real situation;

Q6:If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.

Zhengzhou Jinghua Industry Co.,Ltd.
Add:Guanggu Road, Xingyang City,Henan Province,China
