• Model NO.：KLG12 KLG20 KLG24
• Line：Cassava Flour Processing Line
• Energy：Electric
• Condition：New
• Voltage：220V or 380V
• Warranty：12 Months
• Service：Overseas Installation
• Training：Ye
• Advantage：Large Capacity
• Working Type：Continuous Work
• Product Name：Vacuum Filter
• Capacity：10 T,H
• Power：4 Kw
• Dimension：5060*3150*3010 mm
• Useful Life：20 Years
• Transport Package：Wooden Case
• Specification：Stainless Steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. KLG12 KLG20 KLG24 Line Cassava Flour Processing Line Energy Electric Condition New Voltage 220V or 380V Warranty 12 Months Service Overseas Installation Training Ye Advantage Large Capacity Working Type Continuous Work Product Name Vacuum Filter Capacity 10 T/H Power 4 Kw Dimension 5060*3150*3010 mm Useful Life 20 Years Transport Package Wooden Case Specification Stainless Steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/Month

Product Description

china factory cassava flour grinder making machine cassava milling grinding production line

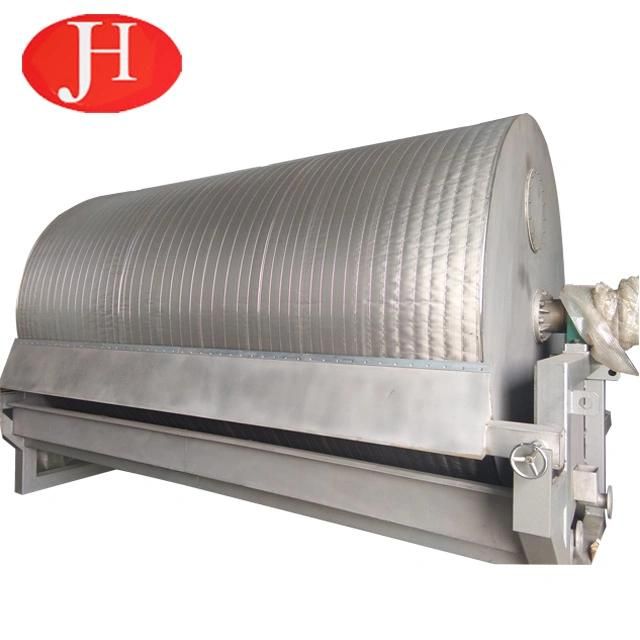

1.Introduction of vacuum filter
Zhengzhou Jinghua Industry Vacuum filter combines the latest technology and years experience into a whole, which is widely used for starch milk dewatering in .potato starch,wheat starch,cassava starch and sweet potato sago starch project.

Features of vacuum filter
1. Fully stainless steel with no corrosion to the raw material;
2. Compact structure and nice design;
3. Speed of rotating drum can be adjusted according to actual site;
4. Material uploaded through blade, which is made of high rigid alloy and can be adjusted;
5. Lower energy consumption, smaller area.Than centrifuge;
6. Stable operation.

The working principle of vacuum filter
Rotary drum vacuum filter machine adopts vacuum suction method to achieve solid particles and liquid separation. Work, driven by speed regulating motor rotating the drum in the slurry tank, vacuum pump to produce vacuum inside the drum, under the action of pressure difference, material suspended solution over the surface of the drum forming uniform coating, when reaching a certain thickness from pneumatic scraper to starch, filtrate into the steam separator, so as to achieve the aim of starch, water, gas separation.

Main technical parameters

Model	KLG12	KLG20	KLG24	KLG34
Vacuum degree(Mpa)	0.04~0.07	0.04~0.07	0.04~0.07	0.04~0.07
Content of solid(%)	≥60	≥60	≥60	≥60
Feeding density(Be°)	16-17	16-17	16-17	16-17
Capacity(t/h)	4	6	8	10
Power	3	4	4	4
Drum rotary speed(r/min)	0-7.9	0-7.9	0-7.9	0-7.9
Weight(kg)	3000	4000	5200	6000
Dimension(mm)	3425x2312x2213	4775x2312x2213	4785x2630x2600	5060x3150x3010

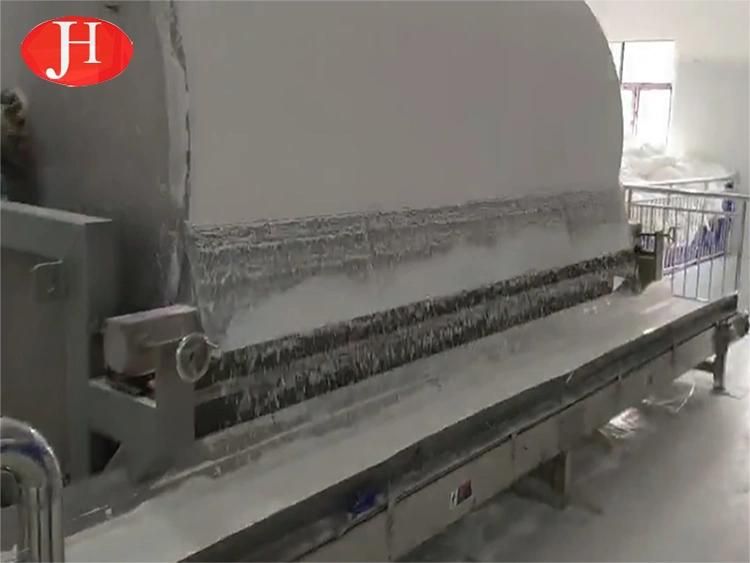

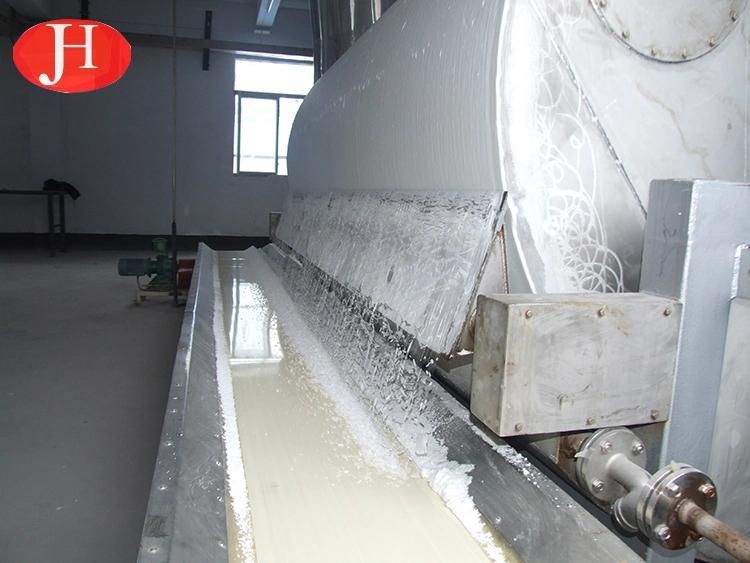

Real applciation case





2.Packing & Shipping
Packing : Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).

3.Our Service
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .

Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.

After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.


4.Company Information
Jinghua company is an engineering and technical company specializing in starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas .Company for China starch industry association executive director units, executive director of the association of Chinese cassava starch industry unit.
Mr. Wang yanbo, chairman of the board, has published 7 scientific works, 6 national standards and 30 academic papers, across a country: "ten five" to "thirteen, five" national key r&d projects and provincial major research project over 10, with more than 10 national patents, won awards at all levels more than 20. Has participated in more than 80 domestic and foreign starch engineering design work, its advanced processing technology and technology has reached the world's leading level.

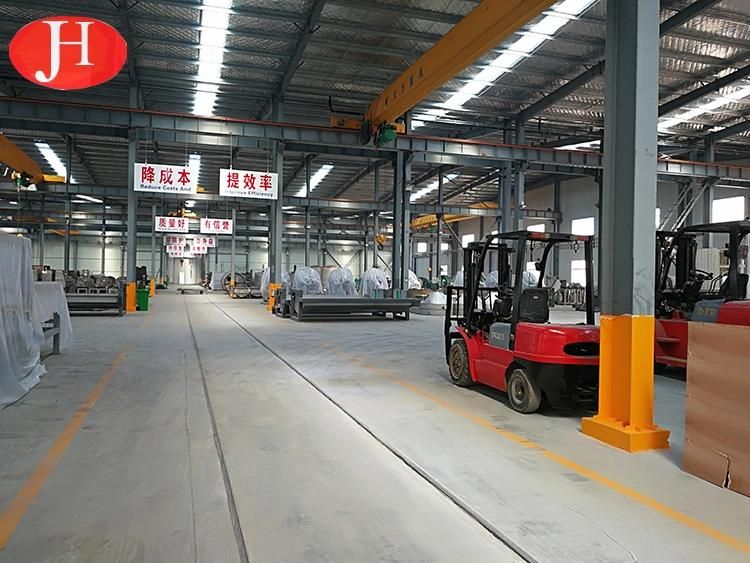

Our Factory


Our Workshop


Our Workers


Our Certificate


5.Our Customer


6.FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.

Q2.What is your main business?
A: ZZJH is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line

Q3. Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.

Zhengzhou Jinghua Industry Co.,Ltd.
Add:Guanggu Road, Xingyang City,Henan Province,China
