• Model NO.：DCM8435 DCM8450 DCM1070 DCM8465
• Condition：New
• Customized：Customized
• Capacity：10-50 T,H
• Power：250 Kw
• Useful Life：20 Years
• Energy：Electric
• Warranty：12 Months
• Service：Overseas Installation
• Training：Yes
• Maintain：Yes
• Working Type：Continuous Work
• Operation：Automatic
• Product Name：Potato Mill Making Machine
• Advantage：Large Capacity
• Transport Package：Wooden Case
• Specification：Stainless Steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DCM8435 DCM8450 DCM1070 DCM8465 Condition New Customized Customized Capacity 10-50 T/H Power 250 Kw Useful Life 20 Years Energy Electric Warranty 12 Months Service Overseas Installation Training Yes Maintain Yes Working Type Continuous Work Operation Automatic Product Name Potato Mill Making Machine Advantage Large Capacity Transport Package Wooden Case Specification Stainless Steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/Month

Product Description

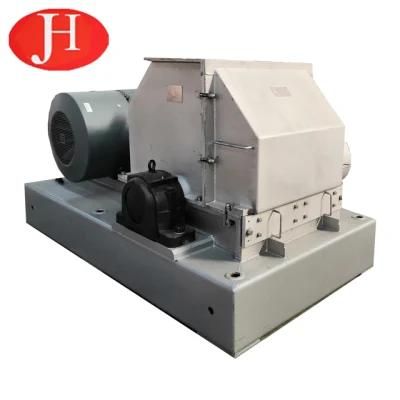

Description of rasper
Potato starch is mainly stored in the fleshy part of root tuber, the raw material particles are relatively large, the internal tissue is not easy to destroy, the use of repeated file grinding, fully destroy the structure of potato block, can make the small starch particles can be successfully free from the root tuber, improve the rate of starch extraction.

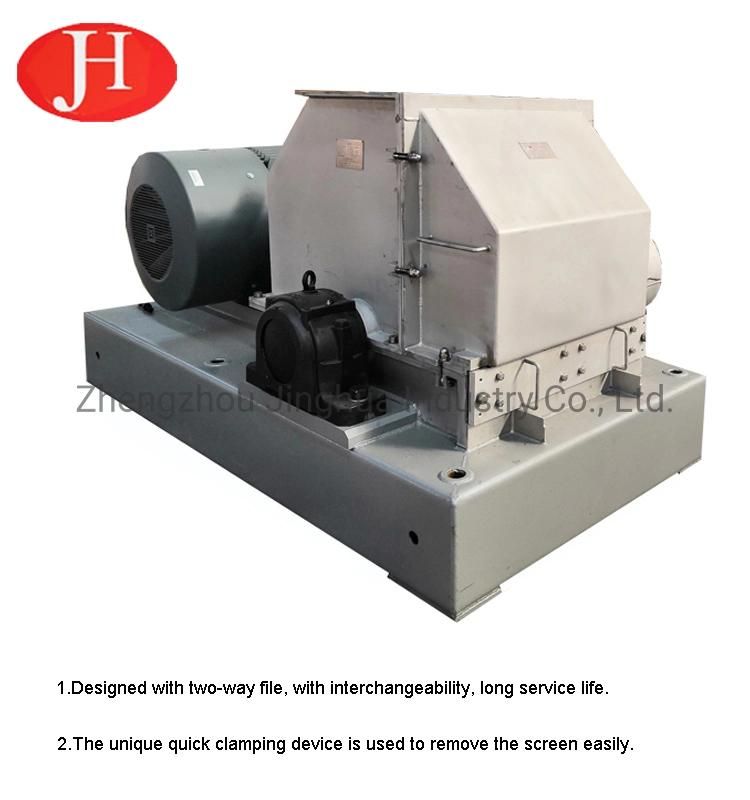

Main features of rasper
1. Engine base props up all components, which rotor and bearings are all fixed on.

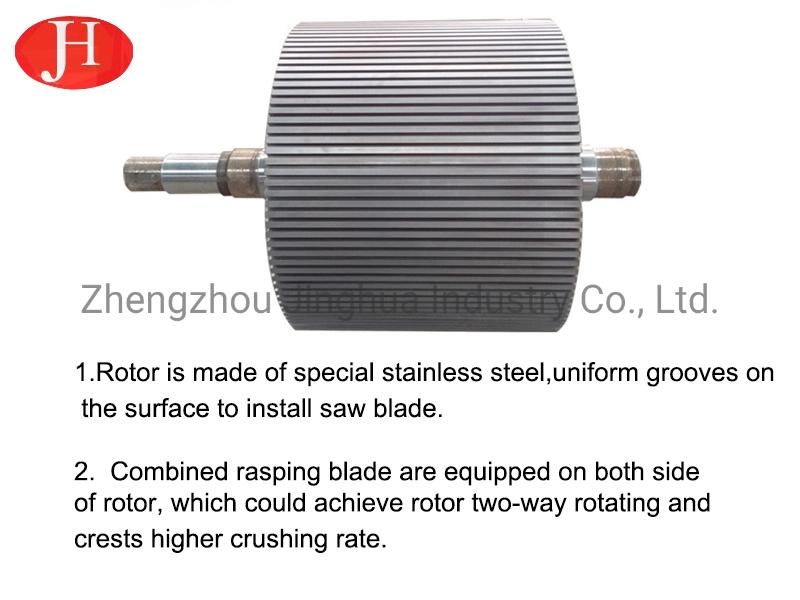

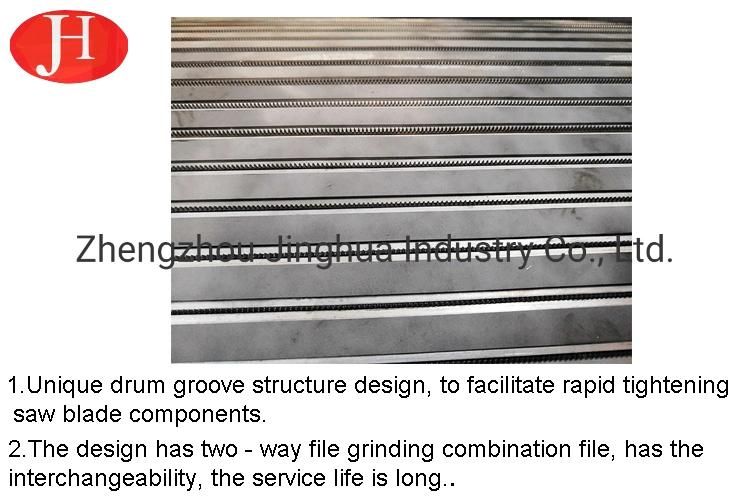

2. Rotor is made of special stainless steel, uniform grooves on the surface to install saw blade.
3. Saw blade is comprised of 2 stainless-steel layer with locating pin and a saw blade.
4. Combined rasping blade are equipped on both side of rotor, which could achieve rotor two-way rotating and crests higher crushing rate.
5. A sieve is equipped between rasping blades, which is tensioned by two sets tensioning instruments.
6. For easy operation, upper shell divides into two parts, upper cover and side cover.
7. Use Sweden SKF Bearings and German opittle belt.
8. Motor drives rotor by belt, which is protected by sealed protective cover.

The working principle of rasper
The material enters into the body of the file mill shell through the upper entrance, and is broken by the impact, shear and grinding effect of the saw blade moving at high speed. The lower part of the rotor is equipped with a screen screen. The material smaller than the size of the screen hole is discharged through the screen plate, and the particles larger than the size of the screen hole are blocked and remain on the screen plate to continue to be hit and grinder by the saw blade.

Main technical parameters

Model	DCM8435	DCM8450	DCM8465	DCM1070
Main shaft rotating speed(r/min)	2100	2100	2100	1470
Drum diameter(mm)	Φ840	Φ840	Φ840	Φ1100
Drum width(mm)	350	500	650	700
Power (Kw)	110	160	200	250
Capacity(t/h)	20-23	30-33	35-40	40-45
Dimension(mm)	2170x1260x1220	2170x1385x1250	2170x1650x1380	3000x1590x1500

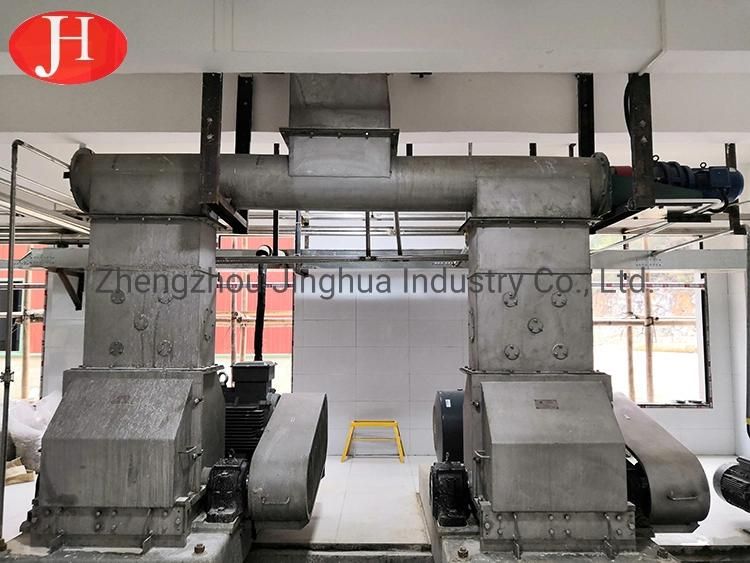

Real application case

2.Company Information
Jinghua company is an engineering and technical company specializing in starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas .Company for China starch industry association executive director units, executive director of the association of Chinese cassava starch industry unit.
Mr. Wang yanbo, chairman of the board, has published 7 scientific works, 6 national standards and 30 academic papers, across a country: "ten five" to "thirteen, five" national key r&d projects and provincial major research project over 10, with more than 10 national patents, won awards at all levels more than 20. Has participated in more than 80 domestic and foreign starch engineering design work, its advanced processing technology and technology has reached the world's leading level.

Our Factory


Our Workshop


Our Workers


Our Certificate


3.Our Service
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .

Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.

After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.


4.Packing & Shipping
Packing : Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).




5.FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.

Q2.What is your main business?

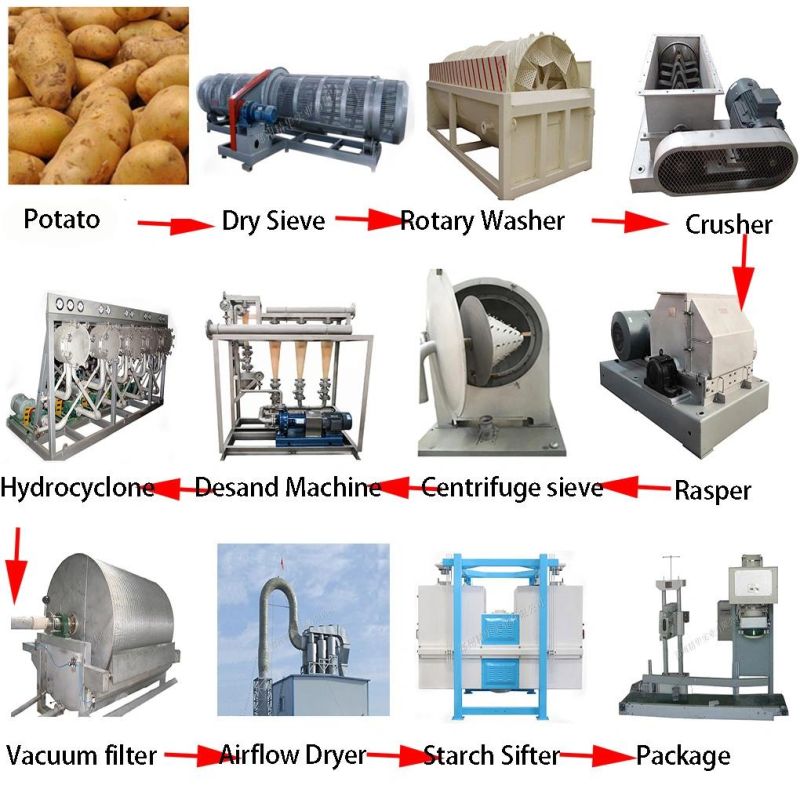

A: ZZJH is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line.

Q3.Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements

Q4:Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5:If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6:If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.

Zhengzhou Jinghua Industry Co.,Ltd.
Add:Guanggu Road, Xingyang City,Henan Province,China
