• Model NO.：DG-3.2 DG-4.0 DG-6.0 DG-10.0
• Product Name：Airflow Dryer
• Keywords：Wheat Flour Drying Machine
• Machine：Wheat Flour Dryer Machine
• Useful Life：20 Years
• Voltage：220V or 380V
• Condition：New
• Advantage：Long Working Time
• Service：Overseas Installation
• Material：Stainless Steel
• Power：269 Kw
• Capacity：5-30 T,H
• Training：Yes
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DG-3.2 DG-4.0 DG-6.0 DG-10.0 Product Name Airflow Dryer Keywords Wheat Flour Drying Machine Machine Wheat Flour Dryer Machine Useful Life 20 Years Voltage 220V or 380V Condition New Advantage Long Working Time Service Overseas Installation Material Stainless Steel Power 269 Kw Capacity 5-30 T/H Training Yes Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/Month

Product Description

long working time wheat flour drying machine hot air starch dryer equipment
1.Introduction of wheat flour drying machine
When designed air flow drying system, we fully considered each factor of turbulent flow,cyclone separating and heat exchange etc., so that each collocation and parameter have definite theory basis, such as heat exchange's collocation , temperature control of inlet air and outlet air,diameter change of cyclone pipe etc. Through measuring on feeding material moisture,or temperature difference between inlet and outlet, the feeding quantity and inlet steam volume can be automatic adjusted, thus the water content of product could of product could reach the technology requirement.This kind airflow dryer is not only suitable to all kinds potato kinds starch to be dried,but also adaptable to the drying of corn starch and wheat starch.

Main technical parameters

Model	DG-3.2	DG-4.0	DG-6.0	DG-10.0
Output(t/h)	3.2	4.0	6.0	10.0
Power capacity(Kw)	97	139	166	269
Moisture of wet starch(%)	≤40	≤40	≤40	≤40
Moisture of dry starch(%)	12-14	12-14	12-14	12-14

The working principle of airflow dryer
The cold air enters the radiator plate through the air filter, and the hot air flow after heating enters the dry air pipe. Meanwhile, the wet material enters the hopper of the feeding unit from the wet starch inlet, and is transported into the hoist by the feeding winch.The hoist rotates at high speed to drop the wet material into the dry duct, so that the wet material is suspended in the high speed hot air stream and heat is exchanged.After the material is dried, it enters the cyclone separator with the airflow, and the separated dry material is discharged by wind winding, and the finished product is screened and packed into the warehouse. And the separated exhaust gas, by the exhaust fan into the exhaust gas duct, into the atmosphere.

Real application case

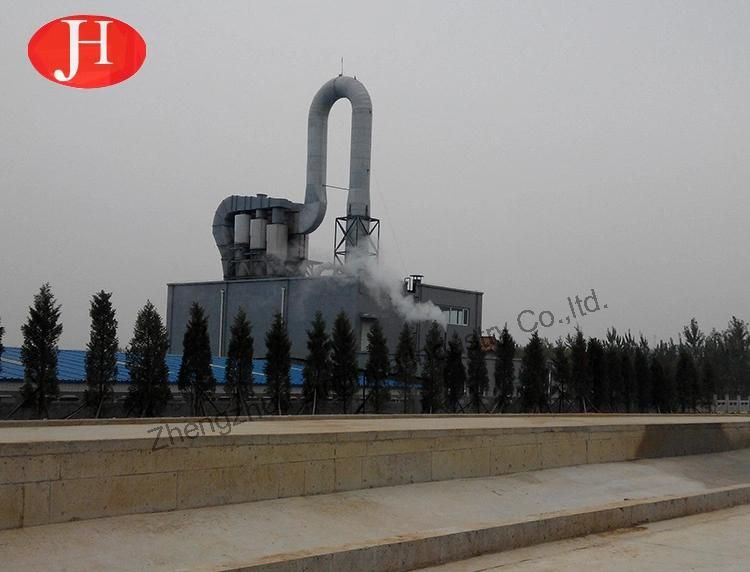

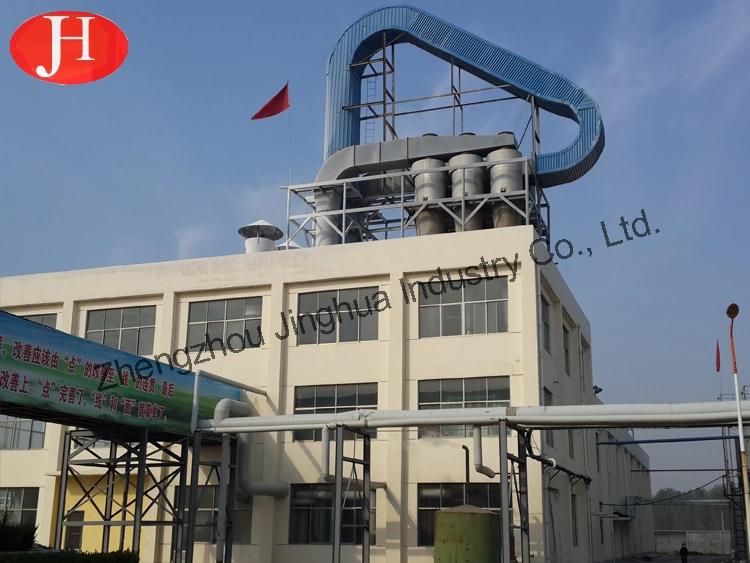

Outdoor part

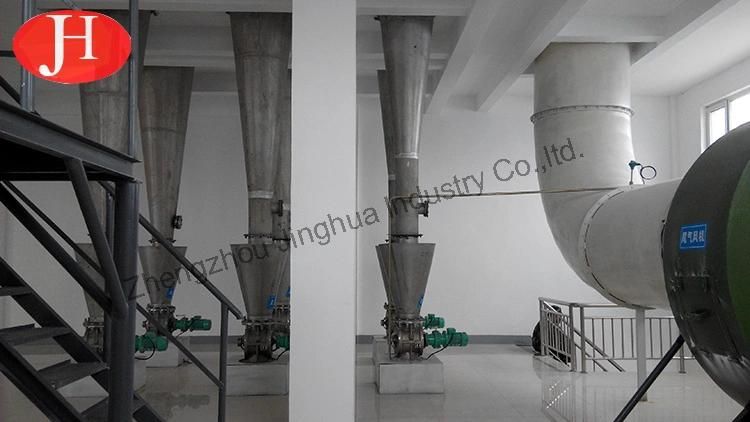

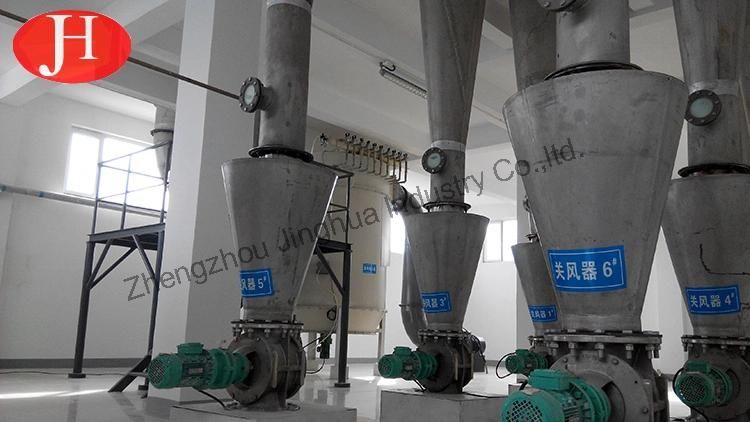

Indoor part




2.Company Information

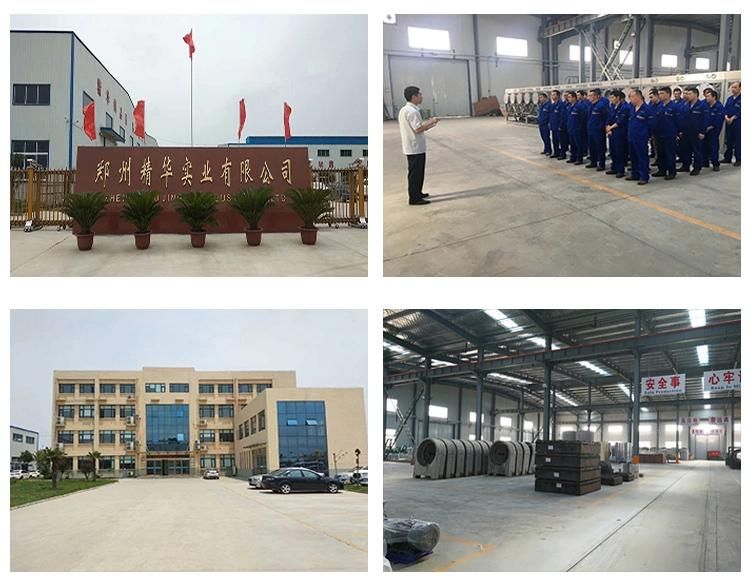

Jinghua company is an engineering and technical company specializing in starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas .Company for China starch industry association executive director units, executive director of the association of Chinese cassava starch industry unit.Mr. Wang yanbo, chairman of the board, has published 7 scientific works, 6 national standards and 30 academic papers, across a country: "ten five" to "thirteen, five" national key r&d projects and provincial major research project over 10, with more than 10 national patents, won awards at all levels more than 20. Has participated in more than 80 domestic and foreign starch engineering design work, its advanced processing technology and technology has reached the world's leading level.

On the afternoon of June 6th, One Belt And One Road Cambodian delegation came to visit zhengzhou jinghua industrial co., LTD. Professor wang yanbo, chairman of zhengzhou jinghua company and other relevant personnel introduced to the delegation the achievements made by jinghua company over the years, the production technology of products and the production process of starch. The delegation visited the company's office building, production workshop and finished product warehouse, showing the delegation the company's production and research capabilities.


3.Our Service
Pre-sale service
1.Accept customer consultation and customize products according to customer requirements.
2.Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.

Sale service
1.The company sent technical personnel to the scene of the on-the -spot guidance equipment installation,debugging and training operators.
2.If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.

After-sale service
1.Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty and lifelong maintenance service.

4.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).

5.FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.

Q2.What is your main business?
A: Zhengzhou Jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line

Q3. Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
