• Model NO.：XL325 XL438 XL516
• Product Name：Cassava Starch Milk Dehydrator
• Energy：Electric
• Condition：New
• Keywords：Starch Milk Water Filter Machine
• Line：Cassava Starch Production Line
• Useful Life：20 Years
• Service：Overseas Installation
• Machine：Cassava Starch Milk Dehydrator machine
• Capacity：4-10 T,H
• Power：4 Kw
• Advantage：Easy Opearte
• Dimension：5060*3150*3010 mm
• Weight：6000 Kg
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. XL325 XL438 XL516 Product Name Cassava Starch Milk Dehydrator Energy Electric Condition New Keywords Starch Milk Water Filter Machine Line Cassava Starch Production Line Useful Life 20 Years Service Overseas Installation Machine Cassava Starch Milk Dehydrator machine Capacity 4-10 T/H Power 4 Kw Advantage Easy Opearte Dimension 5060*3150*3010 mm Weight 6000 Kg Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 10 Sets/Month

Product Description

electric cassava starch milk dehydrator making machine vacuum filter 1.Introduction of cassava starch milk water filter
Zhengzhou Jinghua Industry Vacuum filter combines the latest technology and years experience into a whole, which is widely used for starch milk dewatering in .potato starch,wheat starch,cassava starch and sweet potato sago starch project.

Main technical parameters

Model	KLG12	KLG20	KLG24	KLG34
Vacuum degree(Mpa)	0.04~0.07	0.04~0.07	0.04~0.07	0.04~0.07
Content of solid(%)	≥60	≥60	≥60	≥60
Feeding density(Be°)	16-17	16-17	16-17	16-17
Capacity(t/h)	4	6	8	10
Power	3	4	4	4
Drum rotary speed(r/min)	0-7.9	0-7.9	0-7.9	0-7.9
Weight(kg)	3000	4000	5200	6000
Dimension(mm)	3425x2312x2213	4775x2312x2213	4785x2630x2600	5060x3150x3010

Advantages of vacuum filter
1.Combining the latest technologoy and years experience into a whole.
2.Fully stainless steel for parts contacting with material,compact structure and nice design
3.Speed of rotating drum can be adjusted according to actual site.
4.Material unloaded through blade, which is made of high rigid aly and can be adjusted.
5.Stimer's rumning frequency can be adjusted.
6.Continuous adjusting for fhuid-level control.
7.Low energy consumption,small area,friendly operation and stable running.
8.Widely used for dewatering of suspension in starch processing.

Working principle

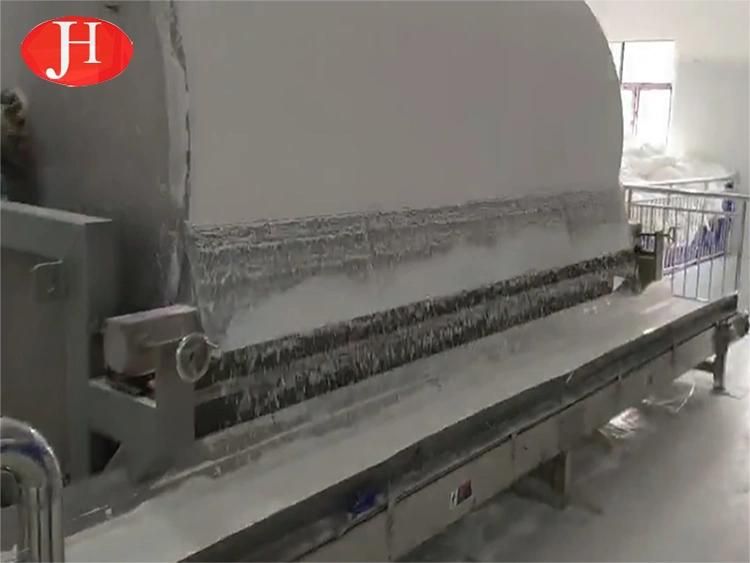

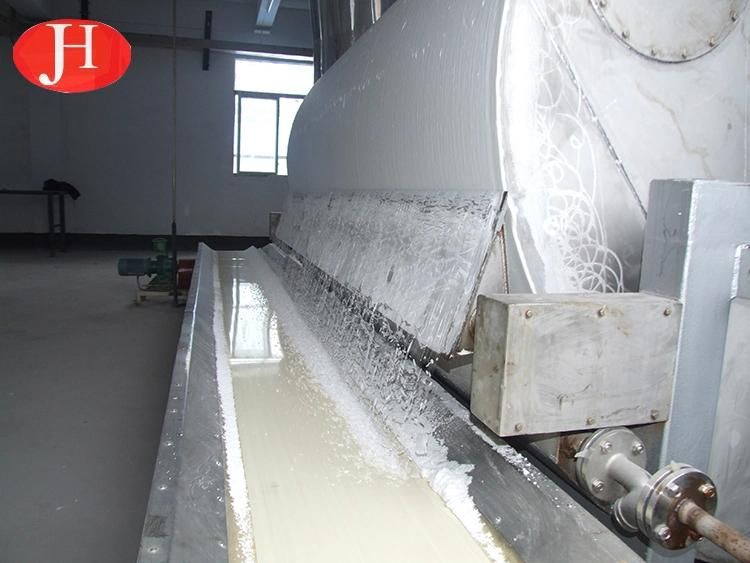

Rotary drum vacuum filter machine adopts vacuum suction method to achieve solid particles and liquid separation. Work, driven by speed regulating motor rotating the drum in the slurry tank, vacuum pump to produce vacuum inside the drum, under the action of pressure difference, material suspended solution over the surface of the drum forming uniform coating, when reaching a certain thickness from pneumatic scraper to starch, filtrate into the steam separator, so as to achieve the aim of starch, water, gas separation.

Real application case

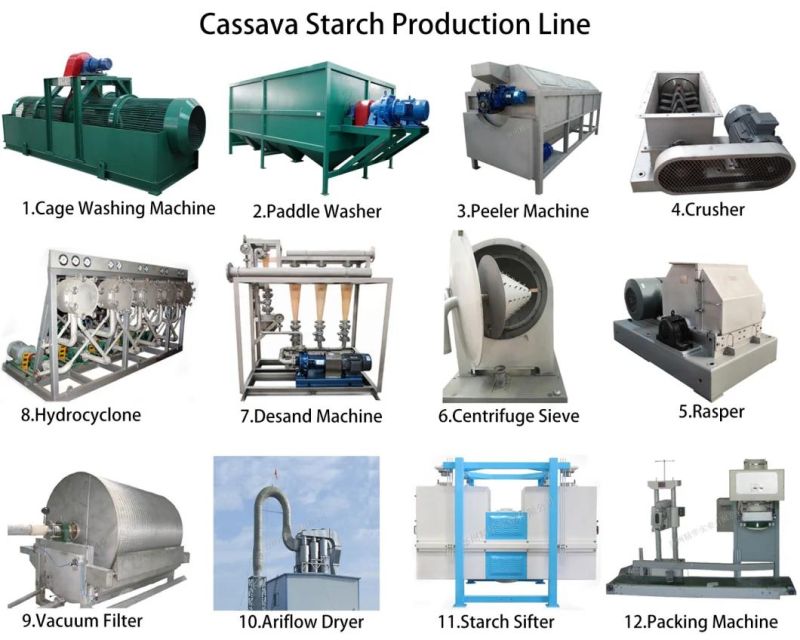

There are four steps to making starch
1.Cleaning:To remove the stone sand and from the raw material.
2.Crushing :To destroys the fiber structure and makes the starch particles free.
3.Separator:To removing sand ,mud from starch slurry, degreasing, microslag separation, protein separation, washing and concentration of all kinds of starch and modified starch emulsion.
4.Drying and Packing:To dehydrator the wet starch, sifter and packaged.

2.Our Service
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .

Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.

After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.

3.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).

4.Why Choose Us

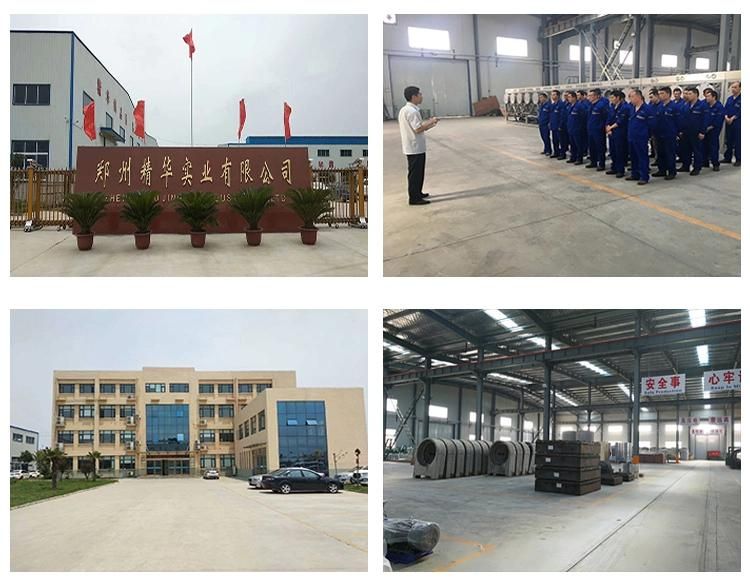

Zhengzhou Jinghua Industry Co.,Ltd. is a professional starch engineering corporation in China. Depending on the unique advantage and strong strength of Henan University of Technology, Jinghua combines scientific research, industry and trade as a whole, which mainly engaged in the working of factory layout, technology design,complete equipment manufacturing and commissioning, new product developing etc. to all kinds starch processing. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.The chairman of the board is professor wang yanbo, who is mainly engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research and engineering design of starch and its deep processing direction, and research and development of modern equipment. He has published 7 scientific works, 6 national standards and 30 academic papers.

On the afternoon of June 6th, One Belt And One Road Cambodian delegation came to visit zhengzhou jinghua industrial co., LTD. Professor wang yanbo, chairman of zhengzhou jinghua company and other relevant personnel introduced to the delegation the achievements made by jinghua company over the years, the production technology of products and the production process of starch. The delegation visited the company's office building, production workshop and finished product warehouse, showing the delegation the company's production and research capabilities.


5.FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.

Q2.What is your main business?
A: Zhengzhou Jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line

Q3. Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.

Zhengzhou Jinghua Industry Co.,Ltd.
Add:Guanggu Road, Xingyang City,Henan Province,China
