Stainless Steel Pressure Arc Sieve Corn Starch Slurry Dehydrator Making Machine
Zhengzhou Jinghua Industry Co., Ltd.- Processing Material:Special Agricultural Products, Corn
- Application:Flour
- Customized:Customized
- Certification:CE
- Power Source:Electric
- Automatic Grade:Automatic
Base Info
- Model NO.:QS-585 QS-710
- Product Name:Pressure Arc Sieve
- Keywords:Corn Starch Slurry Dehydration
- Machine:Corn Starch Making Machine
- Useful Life:20 Years
- Voltage:220V or 380V
- Condition:New
- Advantage:High Effective
- Service:Overseas Installation
- Line:Corn Starch Production Line
- Material:Stainless Steel
- Transport Package:Wooden Case
- Specification:stainless steel
- Trademark:JINGHUA
- Origin:Zhengzhou City, China
- Production Capacity:20 Sets,Month
Description
Basic Info.
Model NO. QS-585 QS-710 Product Name Pressure Arc Sieve Keywords Corn Starch Slurry Dehydration Machine Corn Starch Making Machine Useful Life 20 Years Voltage 220V or 380V Condition New Advantage High Effective Service Overseas Installation Line Corn Starch Production Line Material Stainless Steel Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/MonthProduct Description

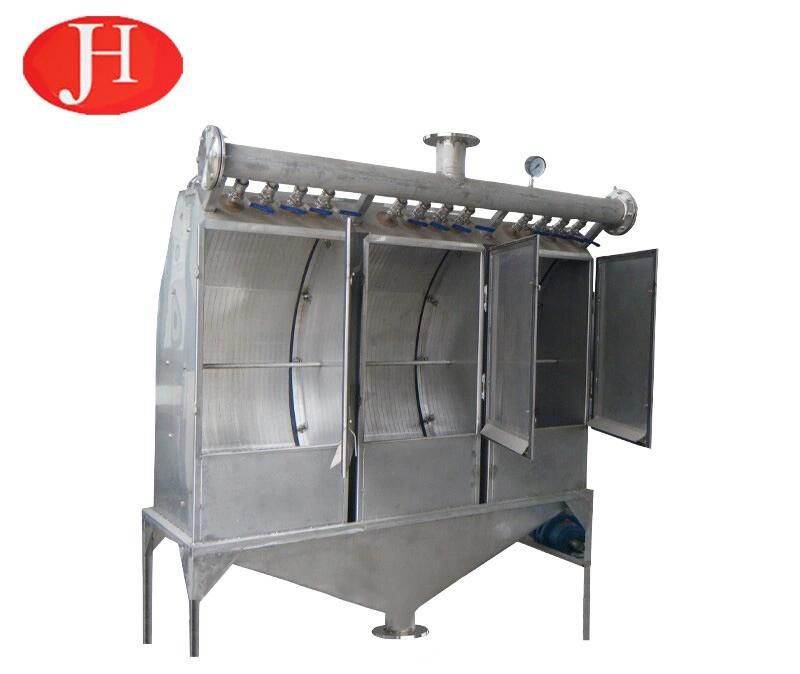

stainless steel pressure arc sieve corn starch slurry dehydrator making machine1.Introduction of pressure arc sieve
The pressure curved screen is mainly used in the starch processing process , adopt the multi-stage counter-current washing method to screening, dehydration and extraction, solid and impurity removal from the starch.
Main technical parameters
Model | Sieve radian | Width of sieve seam(micron) | Capacity(m3/h) | Feed pressure(Mpa) | Sieve width(mm) |
QS-585 | 1200 | 50,75,100,120 | 34-46 | 0.2-0.4 | 585 |
QS-585×2 | 1200 | 50,75,100,120 | 70-100 | 0.2-0.4 | 585×2 |
QS-585×3 | 1200 | 50,75,100,120 | 110-140 | 0.2-0.4 | 585×2 |
QS-710 | 1200 | 50,75,100,120 | 60-80 | 0.2-0.4 | 710 |
QS-710×2 | 1200 | 50,75,100,120 | 120-150 | 0.2-0.4 | 710×2 |
QS-710×3 | 1200 | 50,75,100,120 | 180-220 | 0.2-0.4 | 710×2 |
Working principle
Slurry from the nozzle to a certain speed (15 to 25 m/S) by the sieve surface tangent into the concave surface, the high feed speed make the material on the screen by centrifugal force, gravity and screen the role of resistance for the material, material by one screen to another screen of process, the bar is a sharp blade material cutting action, the starch in the material and a lot of water through a sieve seam become undersize, while fiber fine slag flowed from the sieve surface end and be on the screen.

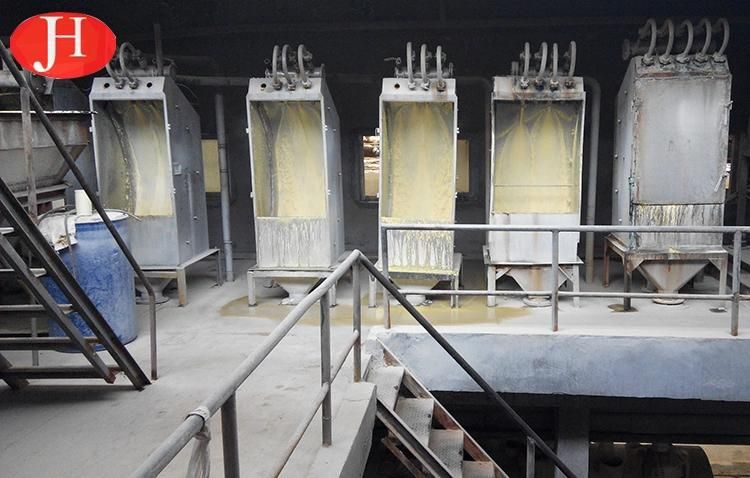

Real application case
2.Our Service
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .
Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.
After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.
3.Company Information
Jinghua company is an engineering and technical company specializing in starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas .Company for China starch industry association executive director units, executive director of the association of Chinese cassava starch industry unit.Mr. Wang yanbo, chairman of the board, has published 7 scientific works, 6 national standards and 30 academic papers, across a country: "ten five" to "thirteen, five" national key r&d projects and provincial major research project over 10, with more than 10 national patents, won awards at all levels more than 20. Has participated in more than 80 domestic and foreign starch engineering design work, its advanced processing technology and technology has reached the world's leading level.
Awarded the title of Advanced & High Technology Enterprise by Henan Science & Technology Department. Jinghua is the Vice president member of Sweet Potato Starch Professional Committee of China Starch Industry Association Units, the member of Potato Starch Professional Committee and the vice president member of China Food and Packaging Machinery Industry Association and Potato Food Processing Machinery Professional Committee Unit. Awarded the "ten years brilliant" honorary certificate issued by China international potato fair.
4.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).
5.FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.
Q2.What is your main business?
A: Zhengzhou Jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line
Q3. Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements
Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.
Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;
Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
Zhengzhou Jinghua Industry Co.,Ltd.
Add:Guanggu Road, Xingyang City,Henan Province,China
