• Model NO.：GDSF2*10*100 GDSF1*10*100 GDSF2*10*83,GDSF1*10*83
• Product Name：High Effective Flour Sifter
• Keywords：Wheat Flour Sifter
• Machine：Wheat Flour Making Machine
• Useful Life：20 Years
• Voltage：220V or 380V
• Condition：New
• Advantage：High Effective
• Dimension：2530*1717*2270 mm
• Weight：1500 Kg
• Power：2.2 Kw
• Service：Overseas Installation
• Line：Wheat Flour Production Line
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. GDSF2*10*100 GDSF1*10*100 GDSF2*10*83/GDSF1*10*83 Product Name High Effective Flour Sifter Keywords Wheat Flour Sifter Machine Wheat Flour Making Machine Useful Life 20 Years Voltage 220V or 380V Condition New Advantage High Effective Dimension 2530*1717*2270 mm Weight 1500 Kg Power 2.2 Kw Service Overseas Installation Line Wheat Flour Production Line Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/Month

Product Description

new condition high quality full closed wheat starch fiber separator flour sifter machine

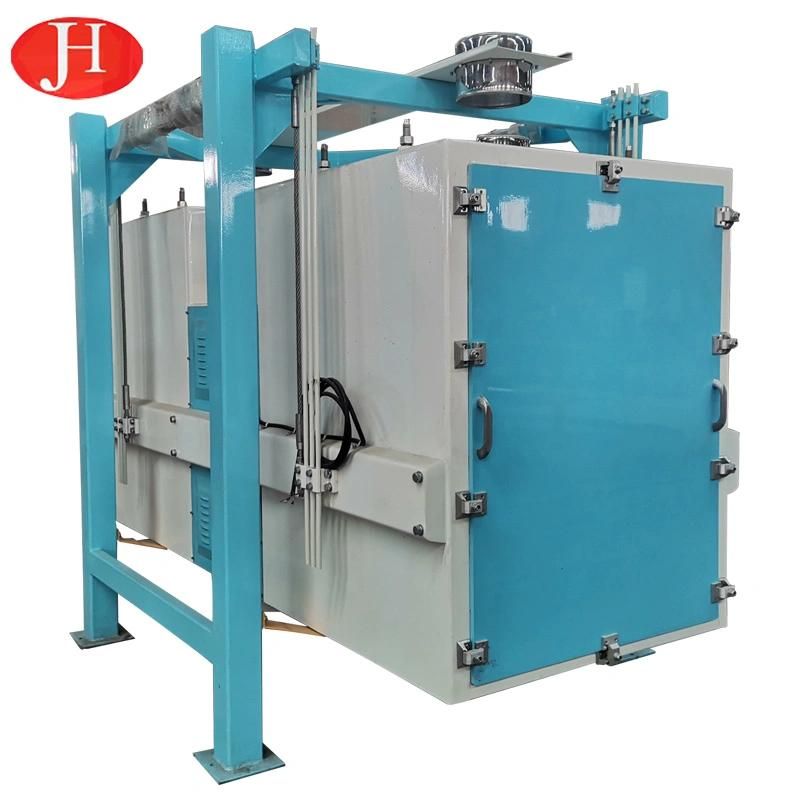

1.Introduction of wheat flour sifter
MFSC and MBSC twin sifter utilized as a final check (security) sifter before flour is sent to flour storage or packing machine to ensure bran particles or particles bigger that flour particles are removed.

Main technical parameters

Model	Bin (Piece)	Number of sieves (piece)	Capacity (t/h)	Diameter (mm)	Power (Kw)	Weight (kg)	Dimension (mm)
GDSF2*10*100	2	10-12	8-10	Φ45-55	2.2	1200-1500	2530x1717x2270
GDSF2*10*83	2	8-12	5-7	Φ45-55	1.5	730-815	2120x1440x2120
GDSF1*10*83	4.5	2-3	3-4	Φ40	0.75	600	1380x1280x1910
GDSF1*10*100	6.4	3-4	4-5	Φ40	1.5	750	1620x1620x1995
GDSF1*10*120	7.6	4-5	5-6	Φ40	1.5	950	1890x1890x2400

Advantages of wheat flour sifter
1. Enclosed mild steel box cabinet for great flexibility of flow due to additional outer (4) channels.
2. Machine can be supplied with a range of sieve stacks from 8-12 frames.
3. Simple design allows easy maintenance.

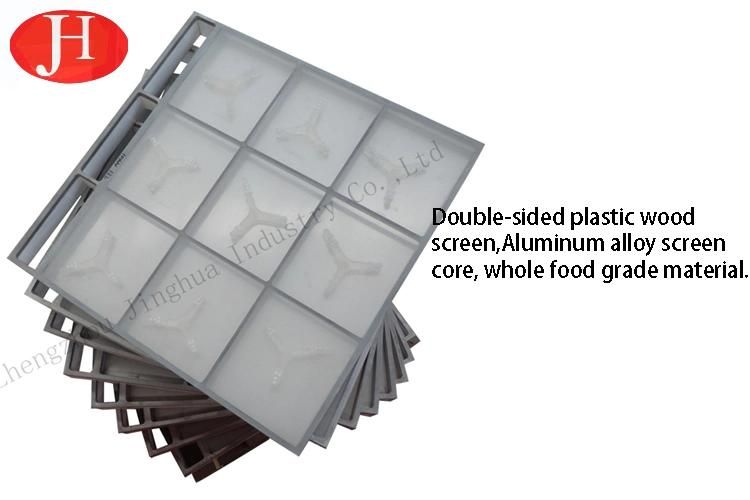

4. Alum (aluminium) style sieve inner frames, mesh cloth glued with frame fast and activator.
5. Outer sieves coated inside and outside with plastic melamine lamination and supplied with stainless steel trays.
6. Plan sifter doors made of fiberglass with a bright and smooth finish, with insulation to prevent condensation.
7. Supplied with outlets for discharge, including inlet and outlet socks and black plastic caps.


Working principle
The machine is composed of two main parts: the mild steel frame mounted with clamps for the flexible suspension rods, floor plates for mounting and the mild steel box section for the sieve frames with upper clamping by means of a metal frame and clamping pressure micrometric screws.
The drive unit with counter balance weight, with motor, pulleys, v-belt is mounted under the cabinet box section, adjustable to suit different applications. Material is fed into the top and by the machines circular motion, the fine material moves through the sieve mesh and is discharged out each sieve side to outlets, while the course material over tails and sent to separate outlets.

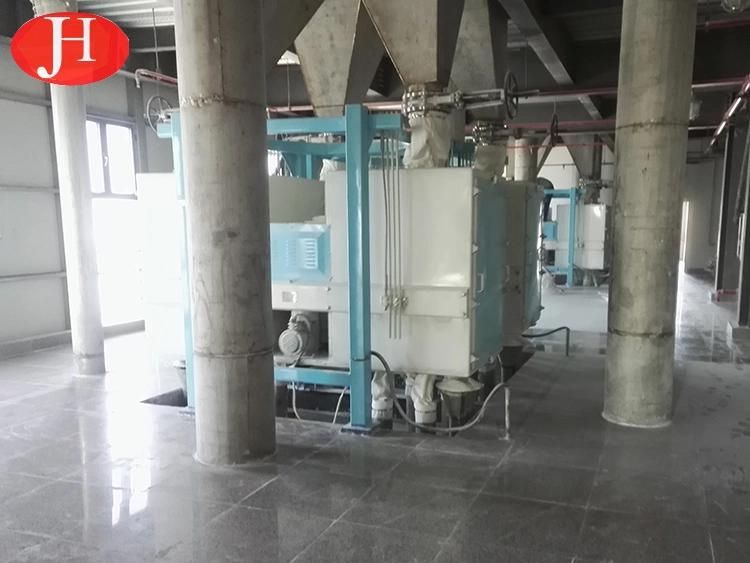

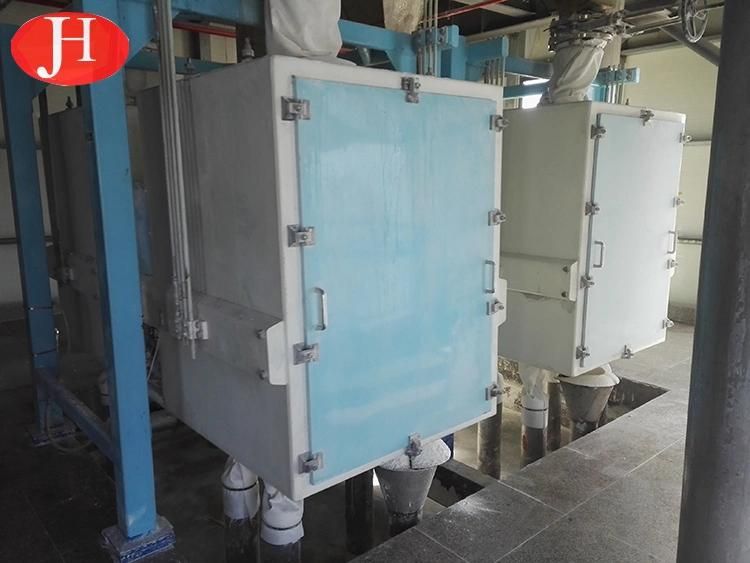

Real application case




2.Our Service
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .

Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.

After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.

3.Company Information
Jinghua company is an engineering and technical company specializing in starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas .Company for China starch industry association executive director units, executive director of the association of Chinese cassava starch industry unit.Mr. Wang yanbo, chairman of the board, has published 7 scientific works, 6 national standards and 30 academic papers, across a country: "ten five" to "thirteen, five" national key r&d projects and provincial major research project over 10, with more than 10 national patents, won awards at all levels more than 20. Has participated in more than 80 domestic and foreign starch engineering design work, its advanced processing technology and technology has reached the world's leading level.

Awarded the title of Advanced & High Technology Enterprise by Henan Science & Technology Department. Jinghua is the Vice president member of Sweet Potato Starch Professional Committee of China Starch Industry Association Units, the member of Potato Starch Professional Committee and the vice president member of China Food and Packaging Machinery Industry Association and Potato Food Processing Machinery Professional Committee Unit. Awarded the "ten years brilliant" honorary certificate issued by China international potato fair.


4.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).

5.FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.

Q2.What is your main business?
A: Zhengzhou Jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line

Q3. Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
