Machinery FOR Food Beverage Cereal

Automatic Two Stage 3 Piston Dairy Prcessing Homogenizer

Shanghai Kaiquan Machine Valve Co., Ltd.
  • Process:Mild Processing
  • Power Source:Electric
  • Certification:CE, ISO9001
  • Automatic Grade:Automatic
  • Application:Milk, Dairy, Milk, Juice, Beverage
  • Customized:Accept

Base Info

  • Model NO.:GJB Series
  • Name:Automatic Two Stage 3 Piston Dairy Prcessing Homog
  • Material:Stainless Steel 304 ,316
  • Capacity:500L,H--10000L,H
  • Pressure:250bar to 700bar
  • Certificate:Ce
  • Appication:Milk , Juice, Beverage, Butter, Honey, Cream
  • Motor:Customized Electricity Motor
  • Voltage:Make to Your Order
  • Homogenizersize:Depending The Capacity
  • Delivery:Within 10 Days
  • Working Life:10 Years
  • Packing:Wooden Box
  • Stage:Two Stage
  • Piston:Four Stage
  • Spare Parts:Available
  • Transport Package:Standard Wooden Box
  • Specification:CE
  • Trademark:KAIQUAN
  • Origin:Shanghai, China
  • HS Code:8479820090
  • Production Capacity:100 Units,Month

Description

Basic Info.

Model NO. GJB Series Name Automatic Two Stage 3 Piston Dairy Prcessing Homog Material Stainless Steel 304 /316 Capacity 500L/H--10000L/H Pressure 250bar to 700bar Certificate Ce Appication Milk , Juice, Beverage, Butter, Honey, Cream Motor Customized Electricity Motor Voltage Make to Your Order Homogenizersize Depending The Capacity Delivery Within 10 Days Working Life 10 Years Packing Wooden Box Stage Two Stage Piston Four Stage Spare Parts Available Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

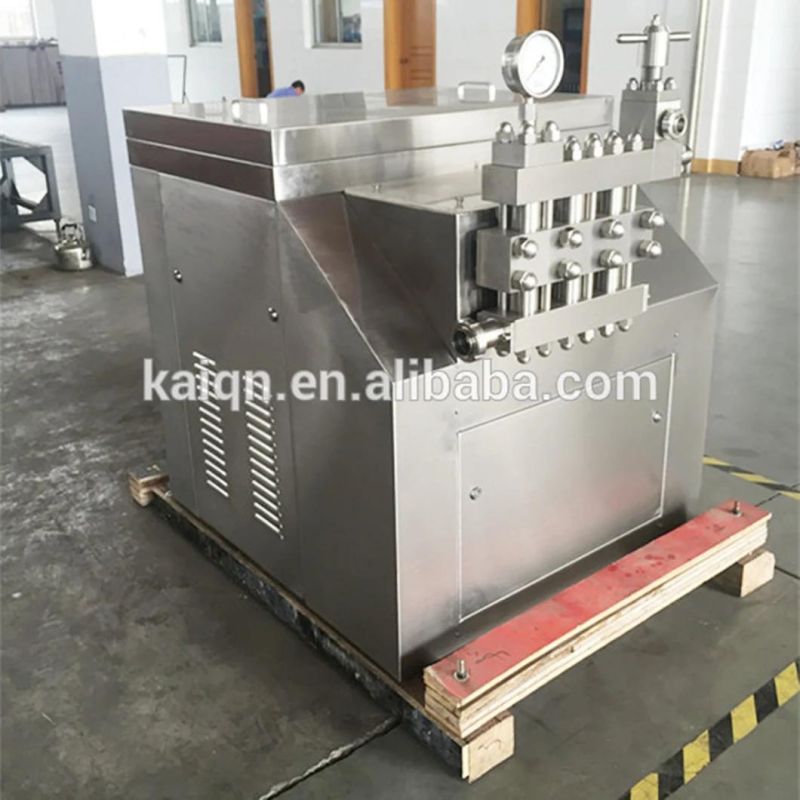

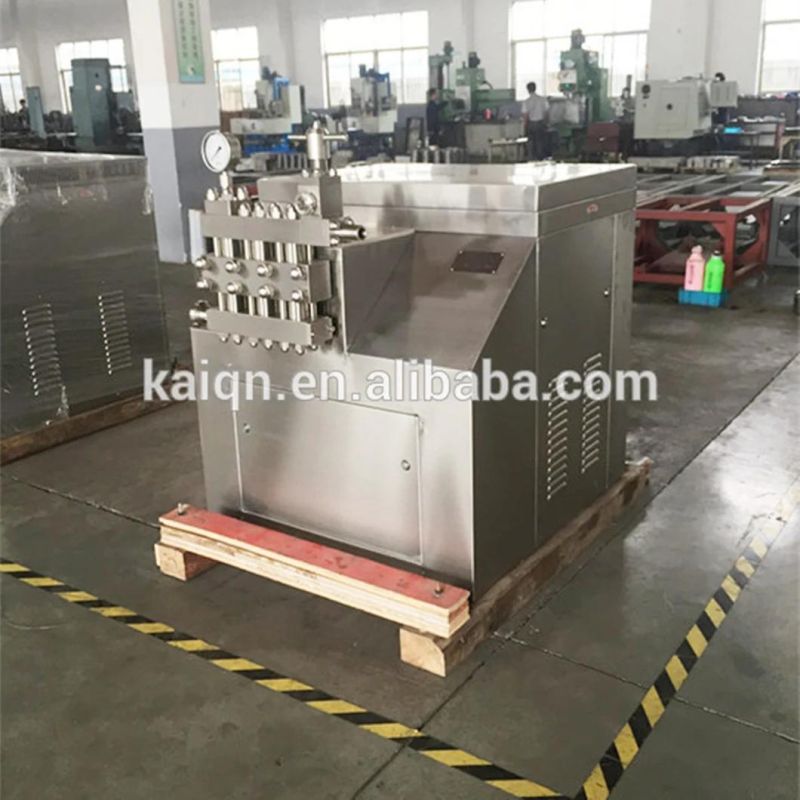

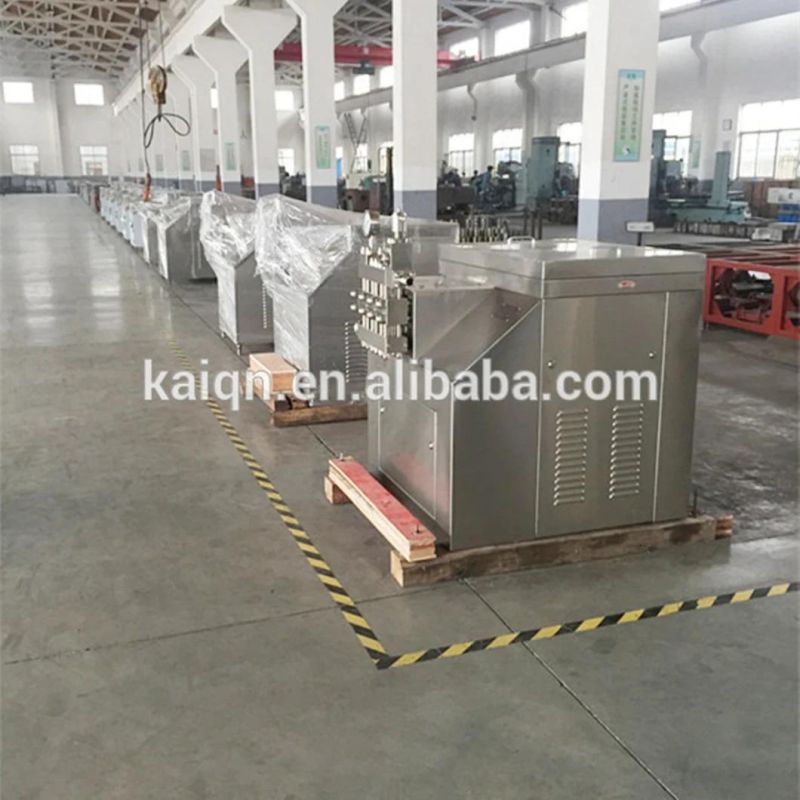

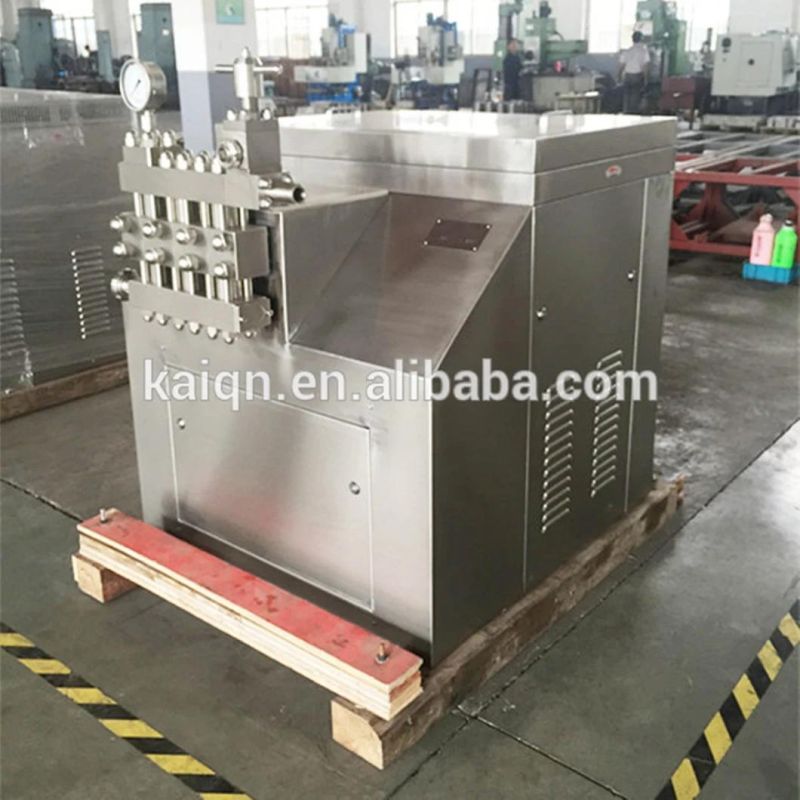

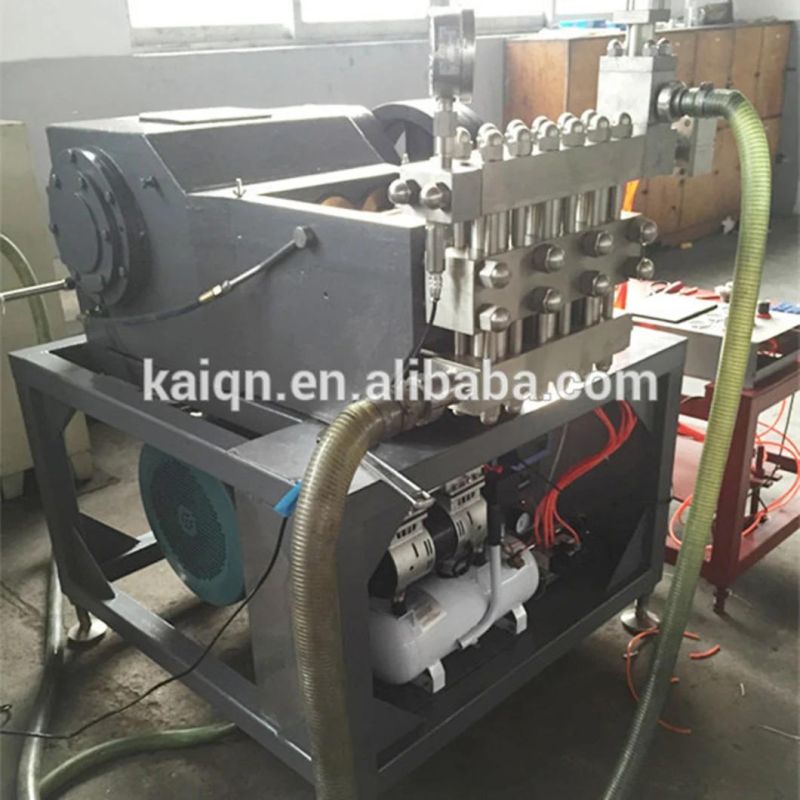

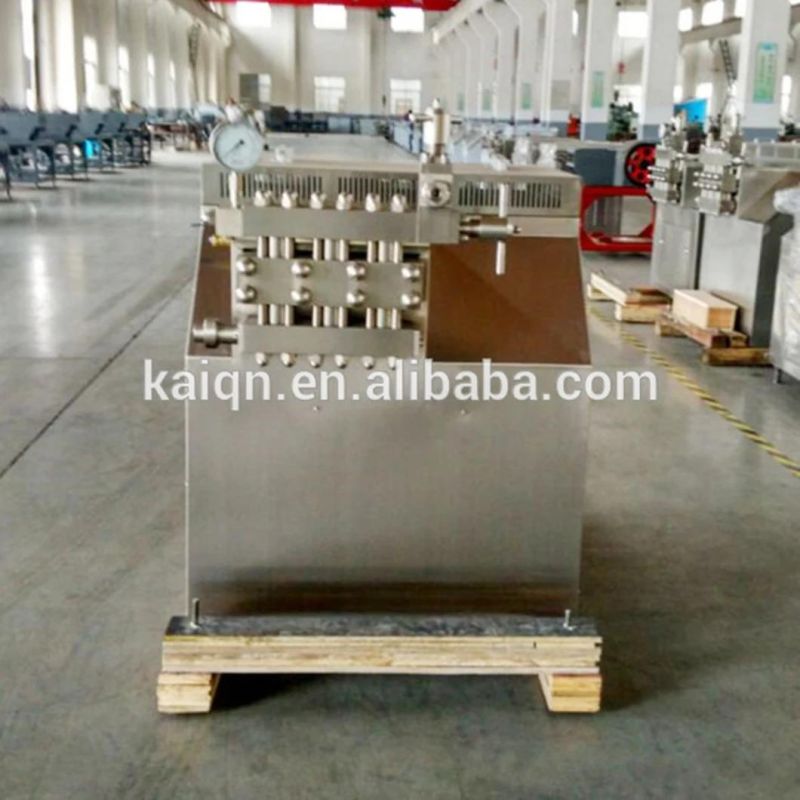

Automatic Two Stage 3 Piston Dairy Prcessing Homogenizer
Automatic Two Stage 3 Piston Dairy Prcessing Homogenizer
Automatic Two Stage 3 Piston Dairy Prcessing HomogenizerAutomatic Two Stage 3 Piston Dairy Prcessing Homogenizer
             Model No.
Technical
parameter

KQ0.5-25

KQ1-25

KQ1.5-25

KQ2-25

KQ2.5-25
GJB3000-25
KQ3-25

KQ5-25
Rated pressure(MPa)25252525252525
Rated flow ( Liters/H )500100015002000250030005000
Medium temperature(C)≤85≤85≤85≤85≤85≤85≤85
Feeding pipe diameter(mm)25252525253240
Discharge pipe diameter(mm)15152020202025
Power of motor(Kw)5.57.5111518.52245

Volt and Electricity Flow220V,60HZ,3PH380V,50HZ380V,50HZ380V,50HZ220V,60HZ,3PH380V,50HZ380V,50HZ
Outline dimension (m)
Length * width * height
1.16×0.9×1.241.16×0.9×1.24

1.16×0.9×1.24

1.4×1.1×1.421.4×1.1×1.421.4×1.1×1.422.2×1.45×1.1

Weight(Tons)0.40.51.251.251.251.251.7
Automatic Two Stage 3 Piston Dairy Prcessing Homogenizer
Automatic Two Stage 3 Piston Dairy Prcessing Homogenizer
Automatic Two Stage 3 Piston Dairy Prcessing Homogenizer
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
Automatic Two Stage 3 Piston Dairy Prcessing Homogenizer .
