• Model NO.：KQ
• Name：Stainless Steel Ice Cream Juice Yogurt Tomato Mil
• Type：Jacketed, Double Wall
• Usage：Milk ,Yogurt ,Fruit Juice Pasteurization Processin
• Material：Stainless Steel 304 ,304L ,316,316L
• Surface Treatment：Inside Mirror and Outside Polished
• Heating：Steam , Water , Electric ,Gas
• Accessory：CIP , Air Vent , Thermometer , Pressure Guage
• Motor Brand：ABB, Siemens ,China Brand
• Speed of Mixer：36rpm,48rpm ,1400rpm
• Insulation Wall：50mm Polyurethane Foam
• Working Life：10 Years or More
• Packing：Wooden Box
• Warranty：One Year
• MOQ：1set
• Spare Parts：Available
• Transport Package：Wooden Box
• Specification：ISO
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：1000 PC,Month

Basic Info.

Model NO. KQ Name Stainless Steel Ice Cream Juice Yogurt Tomato Mil Type Jacketed/ Double Wall Usage Milk ,Yogurt ,Fruit Juice Pasteurization Processin Material Stainless Steel 304 /304L /316/316L Surface Treatment Inside Mirror and Outside Polished Heating Steam / Water / Electric /Gas Accessory CIP , Air Vent , Thermometer , Pressure Guage Motor Brand ABB/ Siemens /China Brand Speed of Mixer 36rpm/48rpm /1400rpm Insulation Wall 50mm Polyurethane Foam Working Life 10 Years or More Packing Wooden Box Warranty One Year MOQ 1set Spare Parts Available Transport Package Wooden Box Specification ISO Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 1000 PC/Month

Product Description

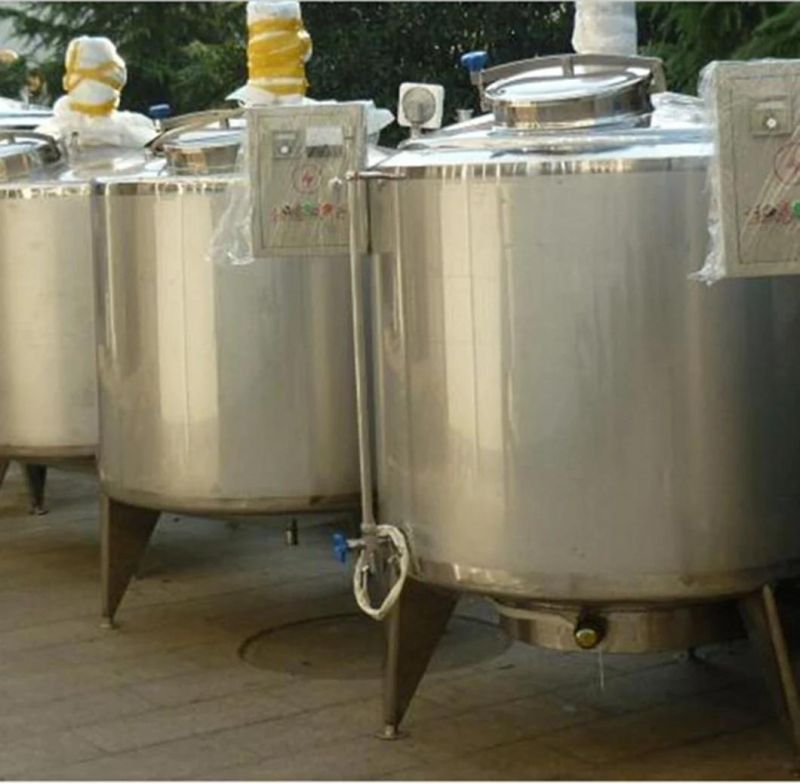

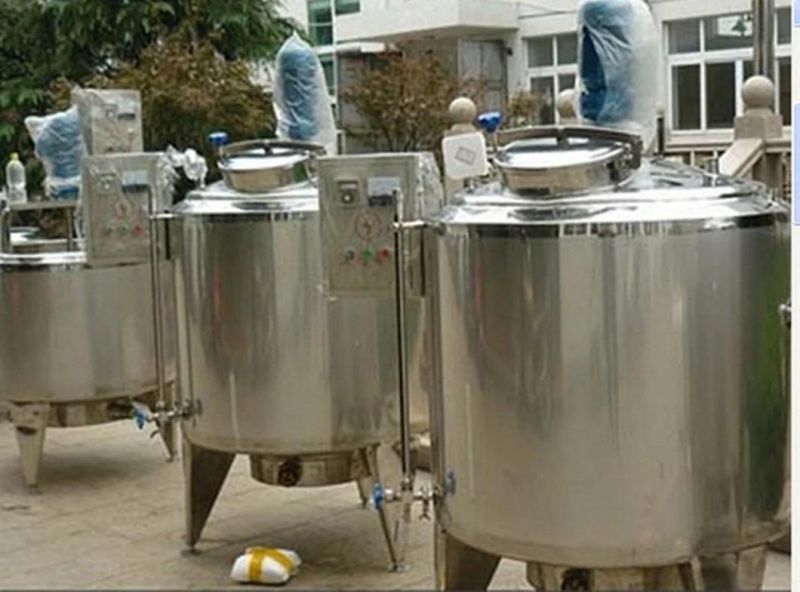

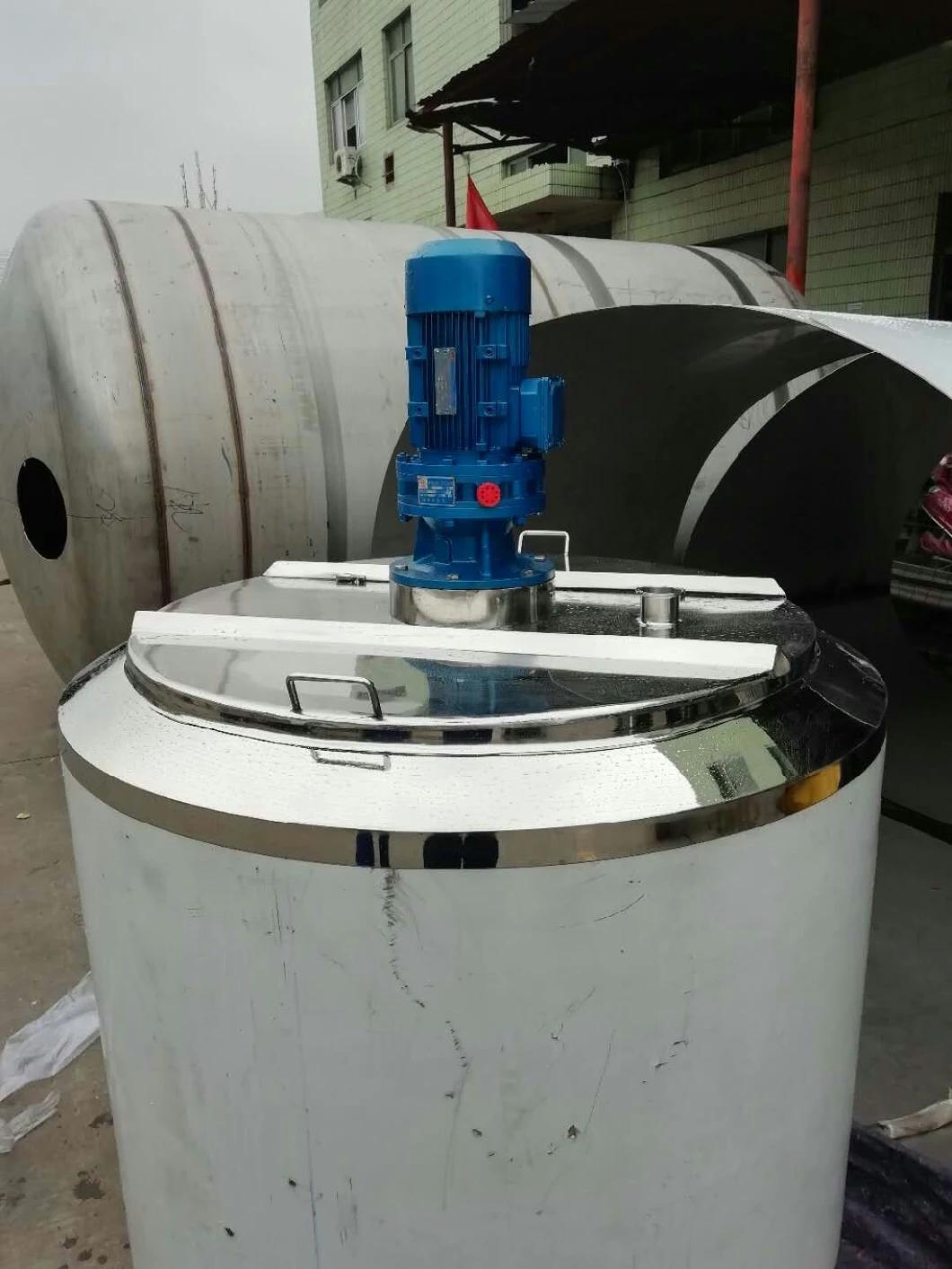

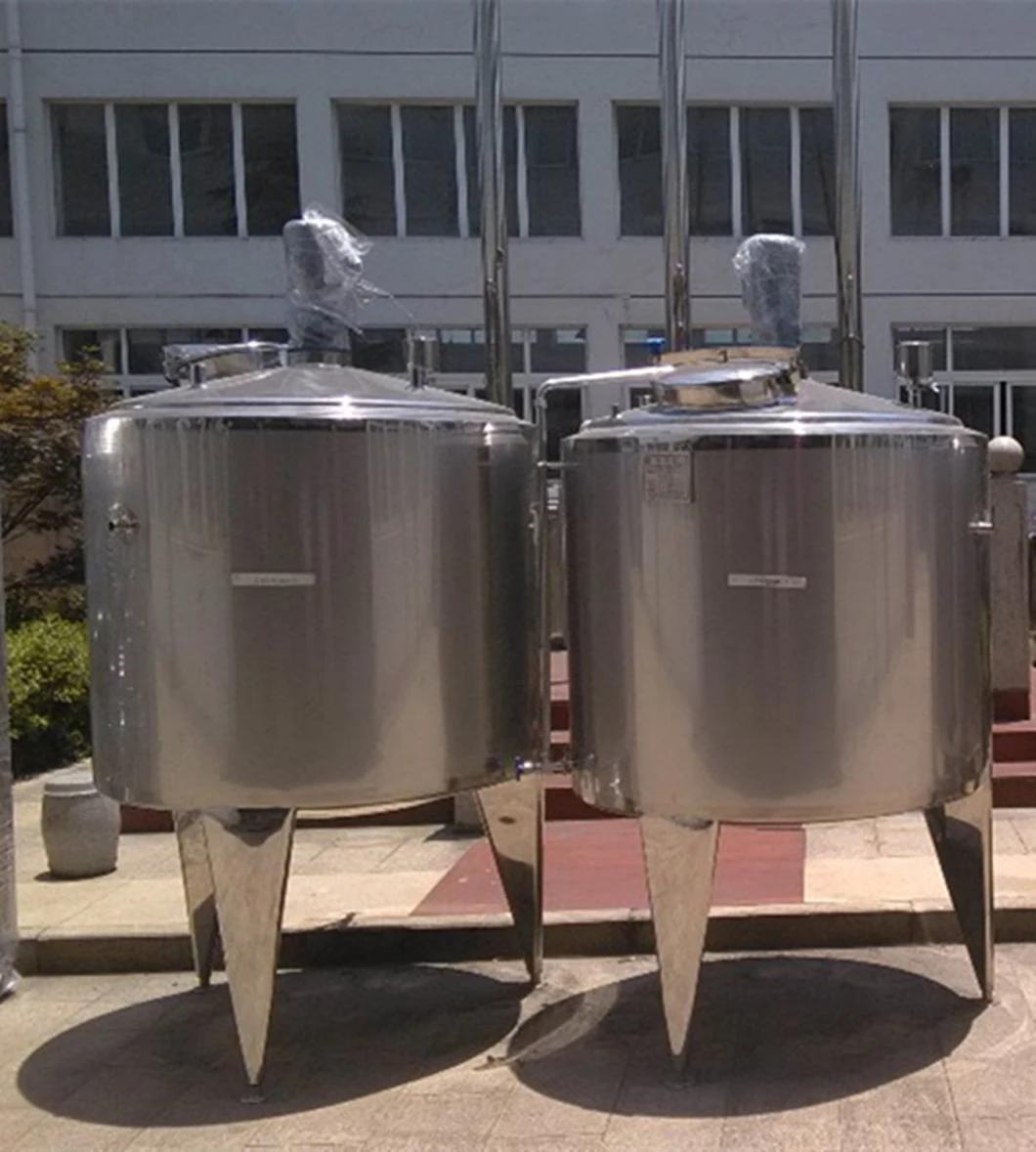

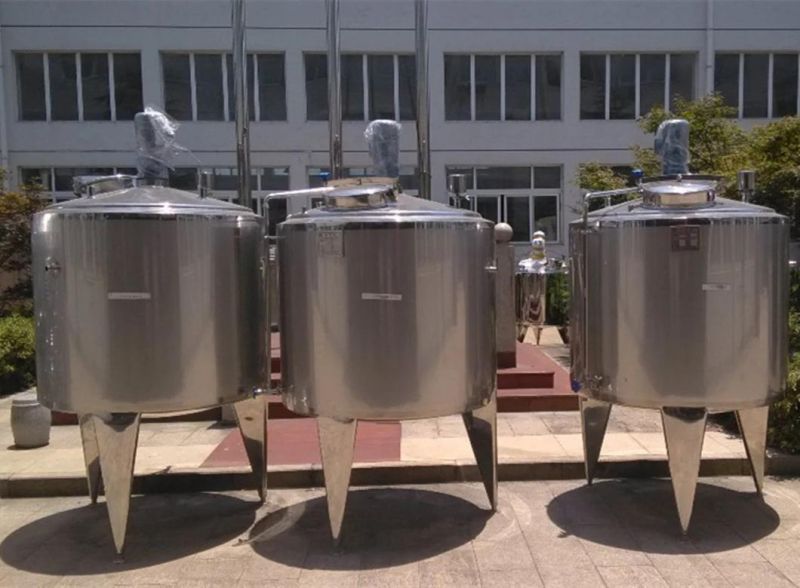

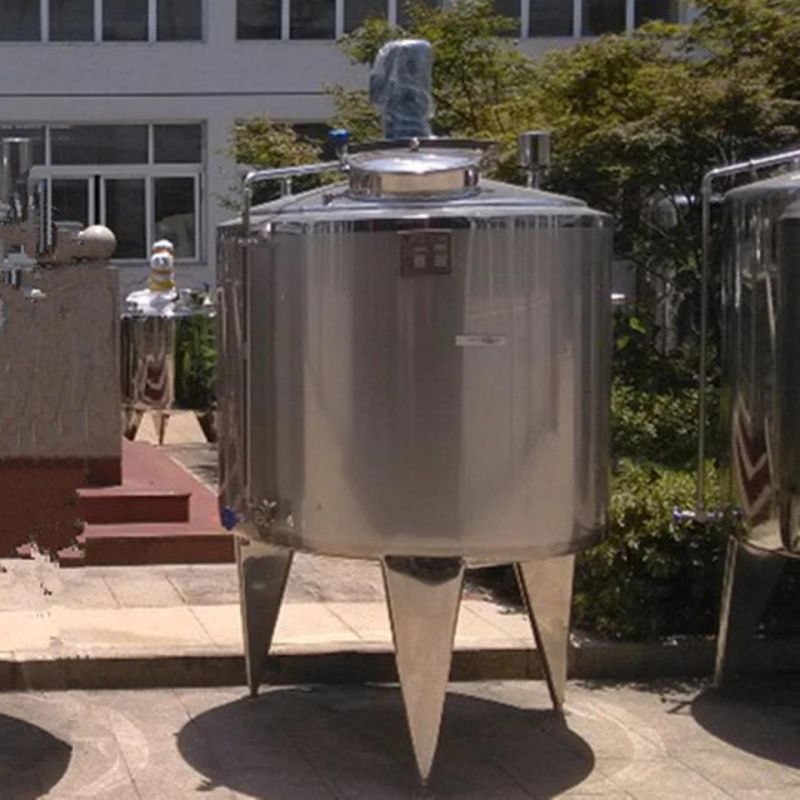

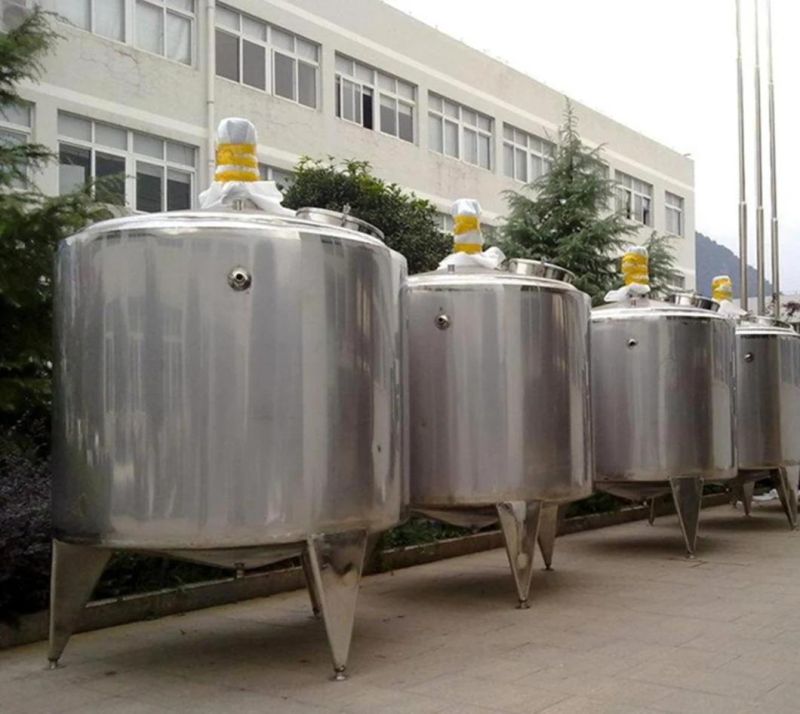

Stainless Steel Ice Cream Juice Yogurt Tomato Milk Batch Pasteurizer


Mainly used for heating, mixing, pasteurizing, fermenting, preserving and storing fresh milk or other fresh liquid. It's the ideal HEATING, mixing pasteurizing and storage equipment for pasture, milk station, milk, and food and beverage factory and pharmacy industry.
TANK FEATURES
Heating by Electricity
* Type: with Jacket and insulation
* Internal shell thickness: 2 mm
* Jacket thickness: 3 mm
*PU insulation wall:50mm
* Outer shell thickness: 1.5 mm
* Appearance: Ellipsoidal head top and down

TankCapacity(L)	200, SS304	300, SS304	500, SS304	1000,SS304
REV	36r/min	36r/min	36r/min	36r/min
Electric motor of the agitator	0.55KW,380v,50hz	0.75KW,380v,50hz	0.75KW,380v,50hz	1.1KW,380v,50hz
Electric heating tube power	15KW,380v,50hz	18KW,380v,50hz	24KW,380v,50hz	45KW,380v,50hz
Heating Area(M2)	0.9	1.1	1.9	4.5
Material Input/output(DN MM)	38	38	38	50
OUTSIDE DEMENSION(L*W*H)MM	900*900*1600	1000*1000*1500	1100*1100*1700	1400*1400*1750
GROSS WEIGHT(KGS)	150	200	300	450

500L 1000L Electricity Heating Steam Heating Batch Juice Milk Pasteurizer
1) SUS316L or SUS304
2) Can mix the liquid, fluid
3) Capaciy: 200L~10000L
Application:
The liquid mixing and blending tank is applied to reaction agitating of liquid scrubbing, textile assistant, medicine chemistry, food, beverage, perfume, perfumery compound, etc
Also applied to the products of homogenization, emulsifying, particle dispersion, etc
Feature:

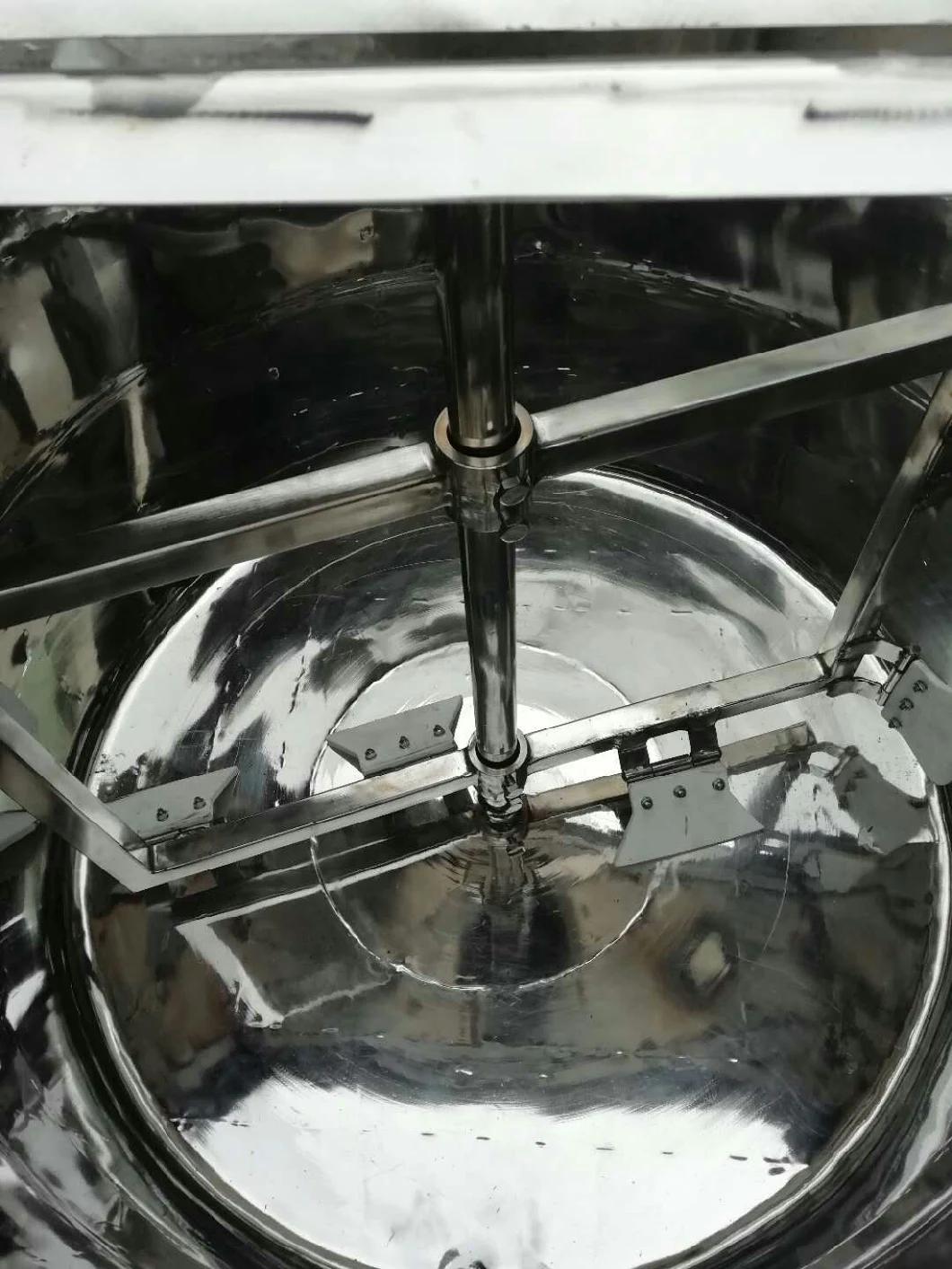

1: Blending system adopts single-direction or double-direction wall scraping blending to satisfy different technological requirement
2: Frequency conversion speed adjustment.
3: Material can be heated or cooled according to tech stand mixer nological requirements
4: Electric heating or steam heating
5: Various forms of blending vanes are suitable for production of different types of products.
6: Made of imported SUS304 or SUS316L stainless steel. The tank body and pipe are subjected to mirror polishing
7: Bottom installation type dispersing head and FLUKO pipeline type emulsifying head are optional to speed up dissolution and emulsification of materials.
8: The stainless steel electric control cabinet can completely supervise the operation of equipment, and display such data as temperature and blending rotation speed, etc
9: High-speed disperse (homogenizer) strongly mixed decentralized thick, solid, liquid.
Cosmetic producing machine; Cosmetic producing machine; Cosmetic producing tank; Daily chemical stirring vessel; Detergent agitator boiler; Detergent agitator pot; Stainless steel blending pot; Stainless steel blending machine; Stainless steel blending tank; Stand mixer; Static mixer


Stainless Steel Ice Cream Juice Yogurt Tomato Milk Batch Pasteurizer
