• Model NO.：GJB Series
• Name：500L 1000L 1500L Food Grade Stainless Steel Homog
• Usages：Food Industry
• Product Material：Stainless Steel 304,316
• Capacity：500L,H--10000L,H
• Certificated：Ce Certificate
• Pressure：250bar to 700bar
• Working Life：More Than 10years
• Motor Power：5.5-110kw.
• Warranty：One Year
• Homogenizer Spare Parts：Provided
• Homogenizer Electricity：220V,380V,415V,440V
• Motor Brand：ABB ,Siemens ,China Brand
• Delivery：10 Days After Reach Your Side .
• Packing：Wooden Box
• Stage：Two Stages
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. GJB Series Name 500L 1000L 1500L Food Grade Stainless Steel Homog Usages Food Industry Product Material Stainless Steel 304/316 Capacity 500L/H--10000L/H Certificated Ce Certificate Pressure 250bar to 700bar Working Life More Than 10years Motor Power 5.5-110kw. Warranty One Year Homogenizer Spare Parts Provided Homogenizer Electricity 220V,380V,415V,440V Motor Brand ABB /Siemens /China Brand Delivery 10 Days After Reach Your Side . Packing Wooden Box Stage Two Stages Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

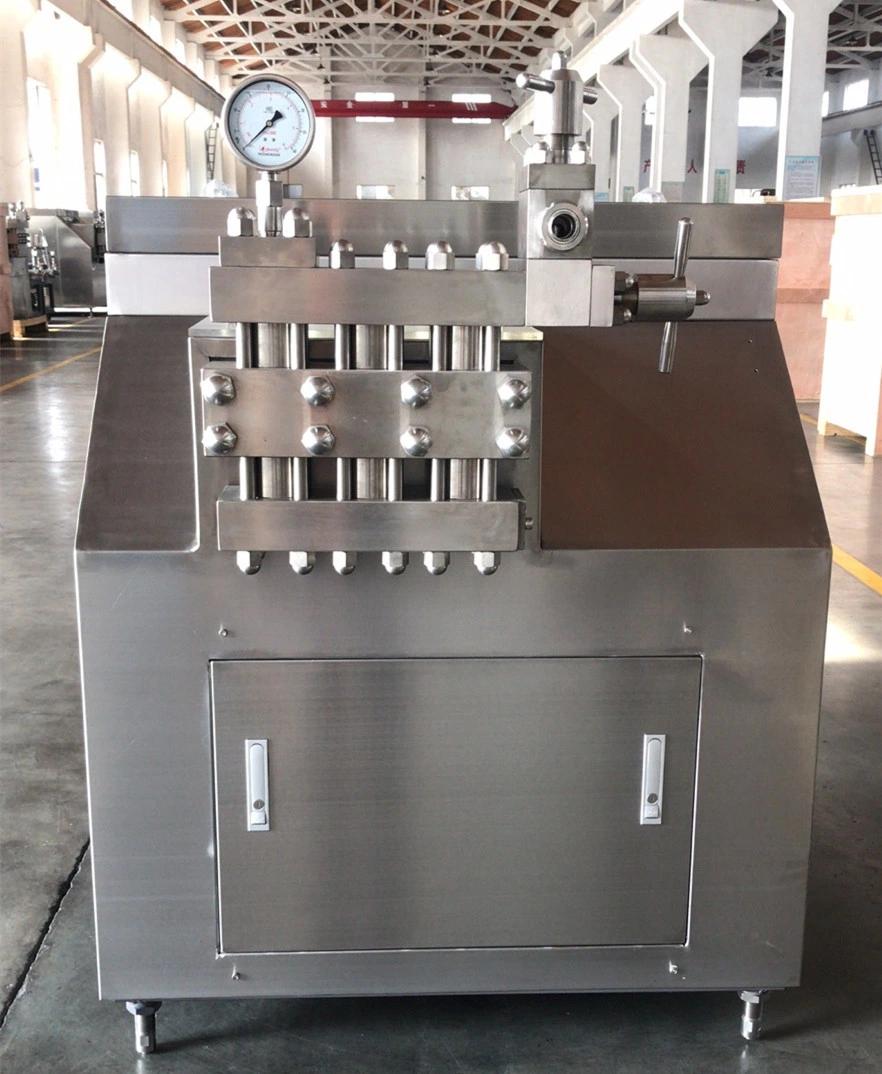

500L 1000L 1500L Food Grade Stainless Steel Homogenizer Price





Liquid Homogeneous Machine Milk Homogenizer Homogenizer Equipment
Milk High Pressure Homogenizer, You Can Buy Various High QualityMilk High Pressure Homogenizer Products from us, the 250bar milk homogenizer FROM US
CE CERTIFICATED HOMOGENIZER FOR MILK, JUICE, DAIRY, ICECREAM, SOYBEAN MILK, HONEY
Soybean milk homogenizer, 40MPA homogenizer
Tea drinks homogenizer, juice homogenizer
Homogenizer pumps
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
Series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
Juice Homogenizer High Pressure Homogenizer Yogurt Milk Homogenizer

Fruit Dairy Yogurt Cream Fruit Juice Homogenizer For Beverage Industry

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

500L 1000L 1500L Food Grade Stainless Steel Homogenizer Price .
