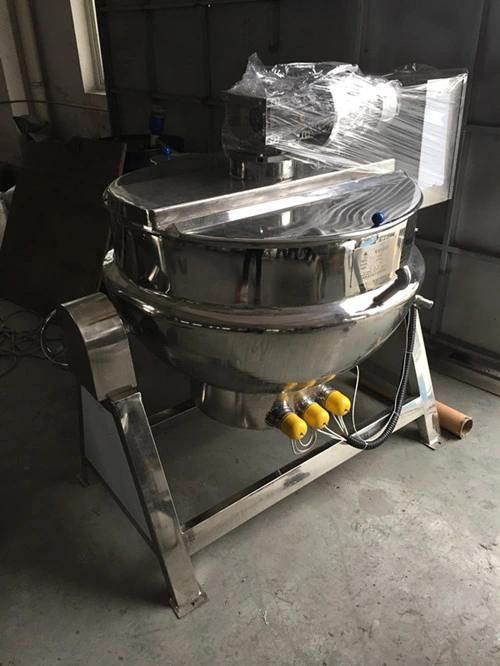

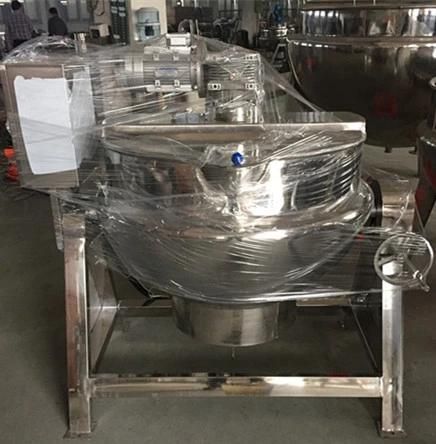

Jacketed Steam Heating Meat Jam Paste Cooking Pot Supplier

Shanghai Kaiquan Machine Valve Co., Ltd.
  • Usage：Biscuit, Cake, Pizza, Bread, Food Industry
  • Power Source：Electric
  • Timing Device：With Timing Device
  • Type：Cooking Kettle
  • Voltage：220V,380V,440V
  • Customized：Customized

Base Info

  • Model NO.：KQ Series
  • Name and Description：Jacketed Steam Heating Meat Jam Paste Cooking Pot
  • Double Jacketed Kettle：Heating and Mixing
  • Jacketed Kettle：50L to 1000L
  • Jam Cooking Kettle：Kettle with Scrapper Agitator
  • Industry Jacket Kettle：Cooking , Pasteurizing and Mixing Liquid
  • Material of Kettle：Ss 304,316
  • Heating Source：Electric Heating Kettle, Steam Heating Kett
  • Mixer：Scrapper Mixer, Customized
  • Kettle Heating Source：by Steam,Electricity,Gas
  • Kettle Type：Tilting, Vertical ,Fixed
  • Packing：Wooden Box
  • Warranty：One Year
  • MOQ：1set
  • OEM：Yes
  • Voltage ,Hz,Phase：Make It to Your Order
  • Transport Package：Standard Export Wooden Box
  • Specification：ISO
  • Trademark：KQ
  • Origin：Shanghai, China
  • HS Code：8479820090
  • Production Capacity：2000set ,Year

Description


Product Name:Stainless steel jacket kettleDescription:Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics and pharmaceutical industriesConstruction: vertical jacketed kettle,tilting jacketed kettleHeating mothedBy electricity (oils or water), by steam, by gasMaterial:SS304/SS316L/1.4301/1.4404Capacity:50L-1000LAgitator Type:With PTFE scraperMechanical seal:SIC/SiC/EPDM(Standard)Motor power:0.55kw, 1.1kw, 1.5kw, 2.2kw, 3kw, 7.5KWSealing option:Sanitary single mechanical seal/Double mechanical seal with cooling systemVoltage:220V, 380V,415VMotor:ABB, LOCAL,50hz/ 60hzSurface treatment:Inner polished and outside polishedAvailably connection:Clamp, Thread Butt weld, FlangeAvailably standard:DIN, SMS, 3A, RJT, ISO/IDFOperated:ElecticApplication scope: Dairy, food, beverage, pharmacy, cosmetic, etcPackaging Details:Plywood case or customerized. Or as per the request of customersDelivery details:Usually within 20 days after receiving T/T down payment Jacketed Steam Heating Meat Jam Paste Cooking Pot Supplier

KQ100
KQ150
KQ200
KQ300
KQ400
YT500
Capacity L

100
150
200
300
400
500
Jacketed pressure
 Mpa
                            < 0.2
Evaporation capacity
kg/h

40
50
65
75
100
150
Heat area
 m 2

0.45
0.76
1.0
1.15
1.44
1.90
Energy consumption
 kg/h

44
55
72
90
110
165
N.W.
 kg

190
210
230
320
360
485
LxWxH
 mm

800X650X830
1350X650X1100
1400X700X1100
1450X800X1110
1500X850X1140
1600X900X1150Jacketed Steam Heating Meat Jam Paste Cooking Pot SupplierJacketed Steam Heating Meat Jam Paste Cooking Pot Supplier
