• Model NO.：GTS12
• Condition：New
• Customized：Customized
• Line：Wheat Flour Processing Line
• Energy：Electric
• Operation：Automatic
• Useful Life：20 Years
• Training：Yes
• Maintain：Yes
• Warranty：1 Year
• Power：3 Kw
• Capacity：20 T,H
• Service：Overseas Installation
• Certificate：Ce
• Quality：Food Grade
• Dimension：5100*1620*2400 mm
• Machine：Gluten Washing Machine
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. GTS12 Condition New Customized Customized Line Wheat Flour Processing Line Energy Electric Operation Automatic Useful Life 20 Years Training Yes Maintain Yes Warranty 1 Year Power 3 Kw Capacity 20 T/H Service Overseas Installation Certificate Ce Quality Food Grade Dimension 5100*1620*2400 mm Machine Gluten Washing Machine Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/Month

Product Description

wheat flour processing line stainless steel gluten washing drum sieve machine 1.Description of gluten washing machine
In wheat starch production line, B starch and active protein separated in 3-phase horizontal screw centrifuge is sent to wash in gluten washing drum sieve. In general, washed gluten after 2 or 3 tandem washing is sent to dehydration then.

Features of gluten washing drum sieve
1. All parts in contact with raw material are made of food-grade stainless steel, which protects materials from outer pollution and increases service life of machine.
2. Large capacity, excellent screening performance, easily installed.
3. Low revolving speed, low energy consumption and great operation safety.
4. This is an perfect machine for large scale wheat starch production line.

Main technical parameters

Item	Parameters
Model of Main Engine	GTS12
Main Power	3 kW
Diameter of Rotary Drum	1200 mm
Length of Rotary Drum	4200 mm
Revolving Speed of Rotary Speed	6 rpm
Flash Water Pressure	0.3-0.5 MPa
Capacity	20 ton/hr
Boundary Dimension(mm)	5100*1620*2400

Working principle of gluten washing drum sieve
Wheat flour paste kneaded by dough mixer or other method is sent into rotary drum by feeding device, rolling forward in the drum and completely washed by spray system. There doesn't exists mesh at the early stage of the drum, while little-size gluten wouldn't leak and would be rolled to mass.

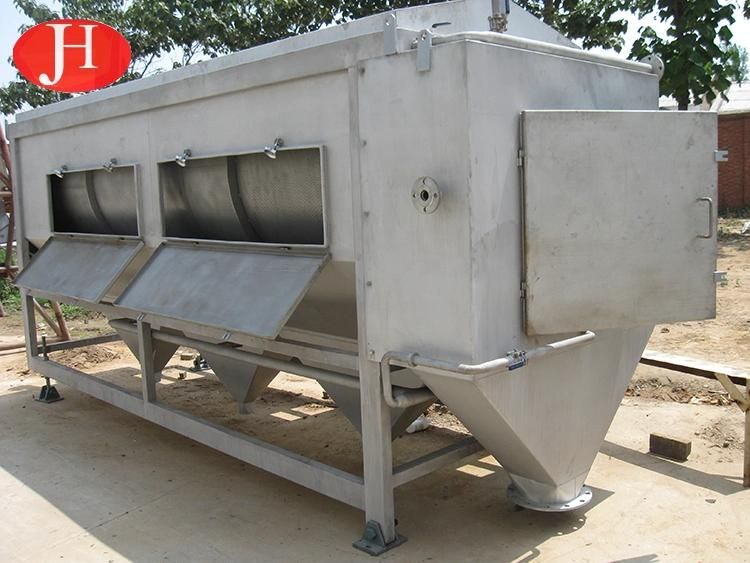

Product show




2.Company Informaiton
Jinghua company is an engineering and technical company specializing in starch engineering design, equipment manufacturing, engineering installation and debugging, techncal personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas .Company for China starch industry association executive director units, executive director of the association of Chinese cassava starch industry unit.
Mr. Wang yanbo, chairman of the board, has published 7 scientific works, 6 national standards and 30 academic papers, across a country: "ten five" to "thirteen, five" national key r&d projects and provincial major research project over 10, with more than 10 national patents, won awards at all levels more than 20. Has participated in more than 80 domestic and foreign starch engineering design work, its advanced processing technology and technology has reached the world's leading level.

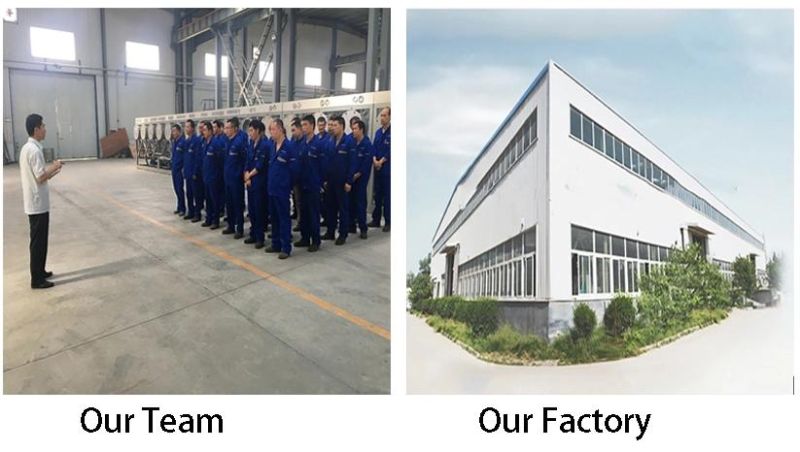

Our Factory

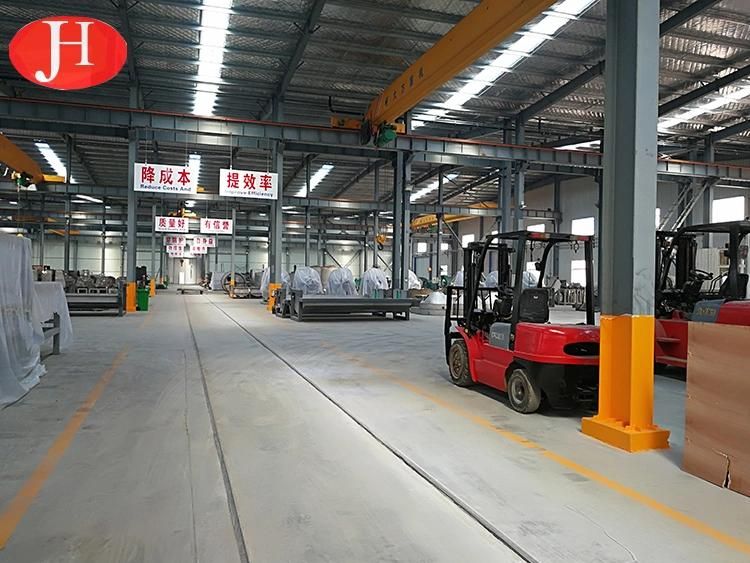

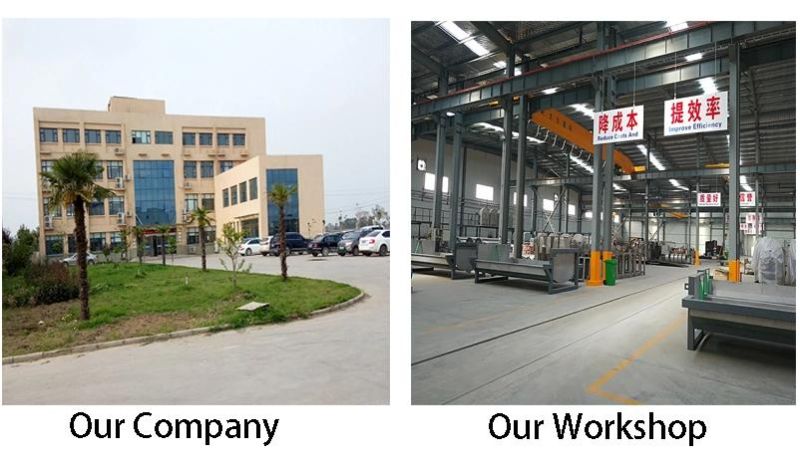

Our Workshop


Our Workshop


Our Ceritificate


3.Our Service
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .

Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.

After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.


4.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).


5.FAQ
Q1: Can you provide detailed parameters and drawings of the equipment?
A: Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.

Q2:How long is the warranty period of the eq uipment?
A:After the successful installation and commissioning of the equipment, there is a one-year warranty period.

Q3:What kind of after-sales service do you provide?
A:Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.

Zhengzhou Jinghua Industry Co.,Ltd.
Add:Guanggu Road, Xingyang City,Henan Province,China
