• Model NO.：DLS85 DLS100 DLS120
• Line：Arrowroot Starch Processing Line
• Useful Life：20 Years
• Condition：New
• Warranty：12 Months
• Service：Overseas Service
• Working Type：Continuous Work
• Certificate：Ce
• Price：Negotiable
• Advantage：Large Capacity
• Training：Yes
• Transport Package：Wooden Case
• Specification：Stainless Steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DLS85 DLS100 DLS120 Line Arrowroot Starch Processing Line Useful Life 20 Years Condition New Warranty 12 Months Service Overseas Service Working Type Continuous Work Certificate Ce Price Negotiable Advantage Large Capacity Training Yes Transport Package Wooden Case Specification Stainless Steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/Month

Product Description

1.Introduction of centrifuge sieve
Centrifugal Sieve is used to separate the fine fiber from the starch slurry, which is widely used in the processing of potato, cassava, sweet potato, wheat, rice, sago and other grain starch extraction.

Features of centrifuge sieve
1. Combining the latest technology and years' experience into a whole.
2. Key components introduced abroad, lone service life, low maintenance cost.
3. All parts contact with material are stainless steel, no material contamination.
4. Sieve basket is calibrated through dynamic equilibrium by domestic authority body.
5. Sieve made from laser perforating on titanium alloy plate.
6. To facilitate the automatic design for centrifugal sieve group, CIP system and chain automatic control can be easily realized.
7. Advanced surface treatment technology ensuring the good appearance and resistance of oil and dirt.
8. Nozzles tested by strict examination in pressure and flow rate.
9. Big capacity, low power consumption, stable operation, high starch extraction rate and easy installation.
10. Widely used for starch extraction in starch processing factory.

Working Principle of centrifuge sieve
First, run the machine, let the starch slurry enters the bottom of the sieve basket. Then, under the effect of centrifugal force and gravity, the slurry goes a complex curve movement toward the bigger size direction, even rolling. In the process, the bigger impurities arrive the outer edge of the sieve basket, collecting in the slag collection chamber, whist the starch particle which size is smaller than the mesh fall into the starch powder collection chamber.

Main technical parameters

Model	Basket diameter(mm)	Main shaft speed(r/min)	Working model	Power (Kw)	Dimension (mm)	Weight (t)
DLS85	850	1050	continuous	18.5/22/30	1200x2111x1763	1.5
DLS100	1000	1050	continuous	22/30/37	1440x2260x1983	1.8
DLS120	1200	960	continuous	30/37/45	1640x2490x2222	2.2

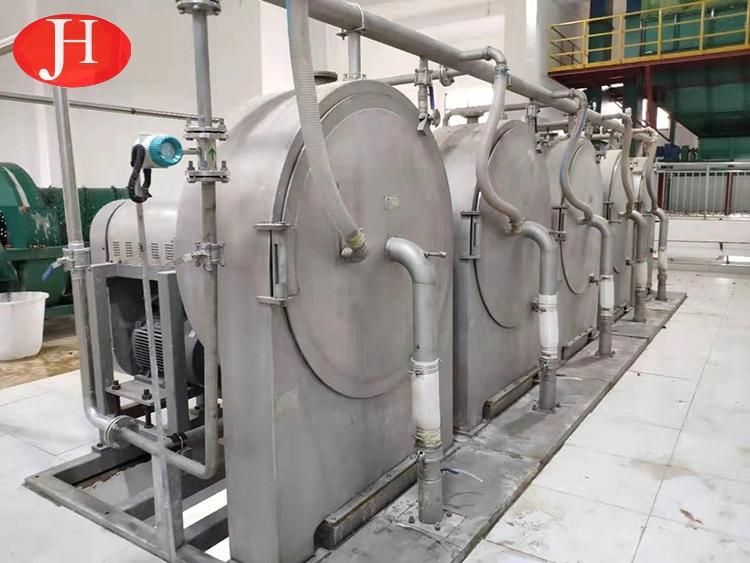

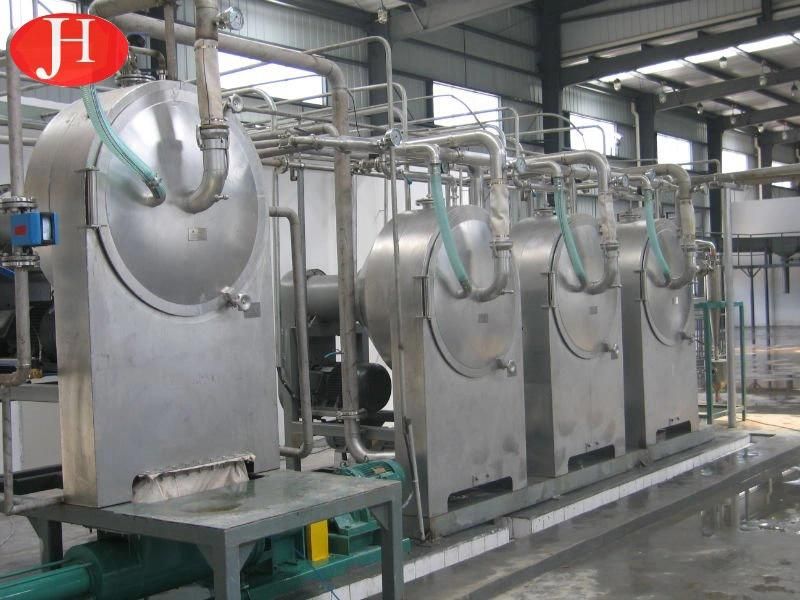

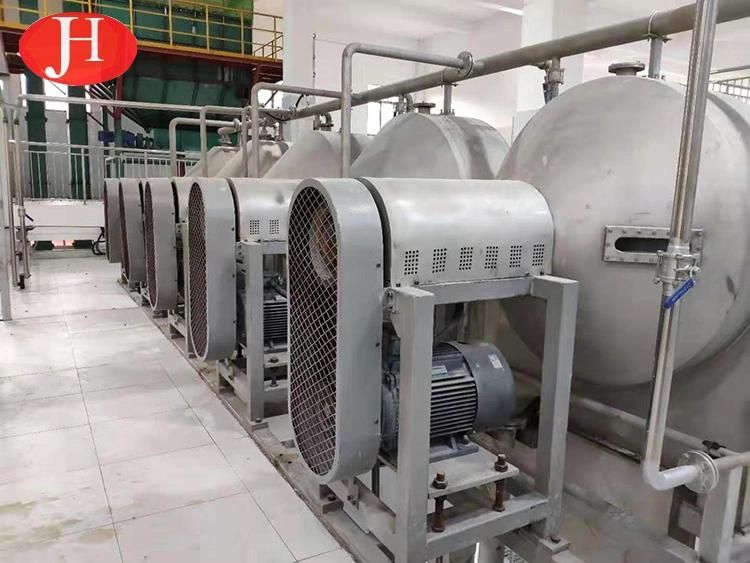

Real application case






2.Packing & Shipping
Packing : Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).




3.Our Service
Pre-sale service
1.Introducing detail features and application of the products to customer.
2.Selecting economical and practical machines for customer.
3.Providing operation data of the related machine.
4.Providing means of trial performance for customer.
5.Flow chart and factory designing layout .

Sale service
1.Recommending engineering conditions required for installation of the machine.
2.Communicating the manufacturing progress of machines with customer in time.
3.Project planning and design services.

After-sale service
1.Training of equipment maintenance and operating personally.
2.Installation and commissioning of equipment until everything is functional.
3.One year warranty and providing long-term maintenance service and spare parts.
4.Giving technical support to customer for developing new product.
5.Engineers available to serve machinery overseas.


4.Why Choose Us
Jinghua company is a specialized engineering technology company specializing in various starch engineering design, equipment manufacturing, engineering installation and debugging, technical personnel training and other work. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.The chairman of the board is professor wang yanbo, who is mainly engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research and engineering design of starch and its deep processing direction, and research and development of modern equipment. He has published 7 scientific works, 6 national standards and 30 academic papers.

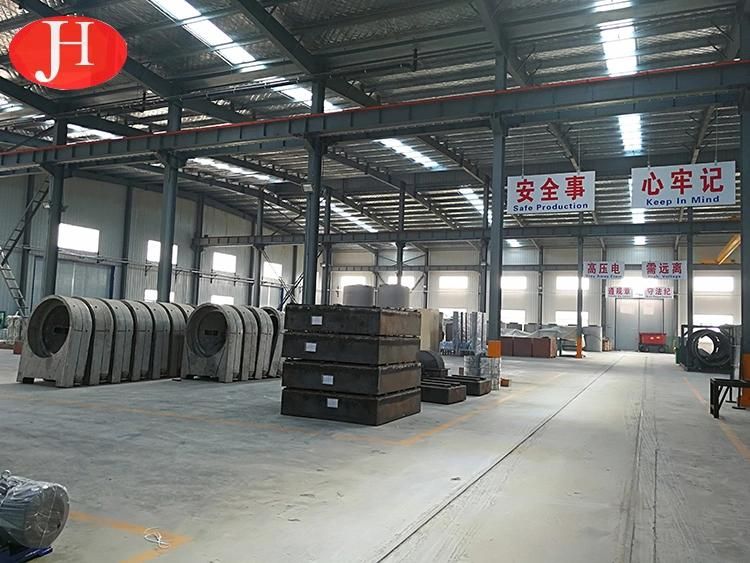

Our Factory


Our Workshop


Our Workshop


Our Workers



5.Our Certificate
Awarded the title of Advanced & High Technology Enterprise by Henan Science & Technology Department. Jinghua is the Vice president member of Sweet Potato Starch Professional Committee of China Starch Industry Association Units, the member of Potato Starch Professional Committee and the vice president member of China Food and Packaging Machinery Industry Association and Potato Food Processing Machinery Professional Committee Unit. Awarded the "ten years brilliant" honorary certificate issued by China international potato fair.


6.FAQ
Q1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.

Q2.What is your main business?
A: ZZJH is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line

Q3. Can you customize the products according to our requirements
A: Yes, we have a professional technical department that can customize the products according to your requirements

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
