• Model NO.：KQ-100L to KQ10000L
• Name：Milk Cooler Juice Cooler Yogurt Cooler Plate Cool
• Application：Used for Heating or Cooling Milk
• Capacity：500lph to 50000lph
• Function：Heat and Cool The Liquid
• Heating Transfer Area：Customized
• Functions：Heat and Pasteurize Milk, Cool Down Milk
• Sizes：Customized
• Plate Heat Exchanger Material：Ss 304,316
• Gasket：Silicon, PTFE
• Industry：Food, Pharmacy, Beverage, Juice, Milk
• Transport Package：Standard Wooden Box
• Specification：ISO
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：841950009
• Production Capacity：50 PCS,Month

Basic Info.

Model NO. KQ-100L to KQ10000L Name Milk Cooler Juice Cooler Yogurt Cooler Plate Cool Application Used for Heating or Cooling Milk Capacity 500lph to 50000lph Function Heat and Cool The Liquid Heating Transfer Area Customized Functions Heat and Pasteurize Milk, Cool Down Milk Sizes Customized Plate Heat Exchanger Material Ss 304/316 Gasket Silicon, PTFE Industry Food, Pharmacy, Beverage, Juice, Milk Transport Package Standard Wooden Box Specification ISO Trademark KAIQUAN Origin Shanghai, China HS Code 841950009 Production Capacity 50 PCS/Month

Product Description

Milk Cooler Juice Cooler Yogurt Cooler Plate Cooler Heat Cooler
Stainless Steel Plate Heat Exchanger for Sterilization & Cooling

plate heat exchanger Usage:
Plate heat exchanger is being used in various fields,such as metallurgy,mining,petroleum,chemical engineering,electricity,pharmacy,food,synthetic fiber,textile,papermaking,shipbuilding,concentrated heating,machinary,and it can deal with many kinds of materials,including ordinary industrial water,liquid of high viscosity,healthful edibile liquid,clinical materials,corrosive acid and alkali,liquid with granule,floating liquid with fabric fibre, etc;
Plate heat exchanger can be used to heat,cool,evaporate,condense,sterilize,recover waste heat,etc

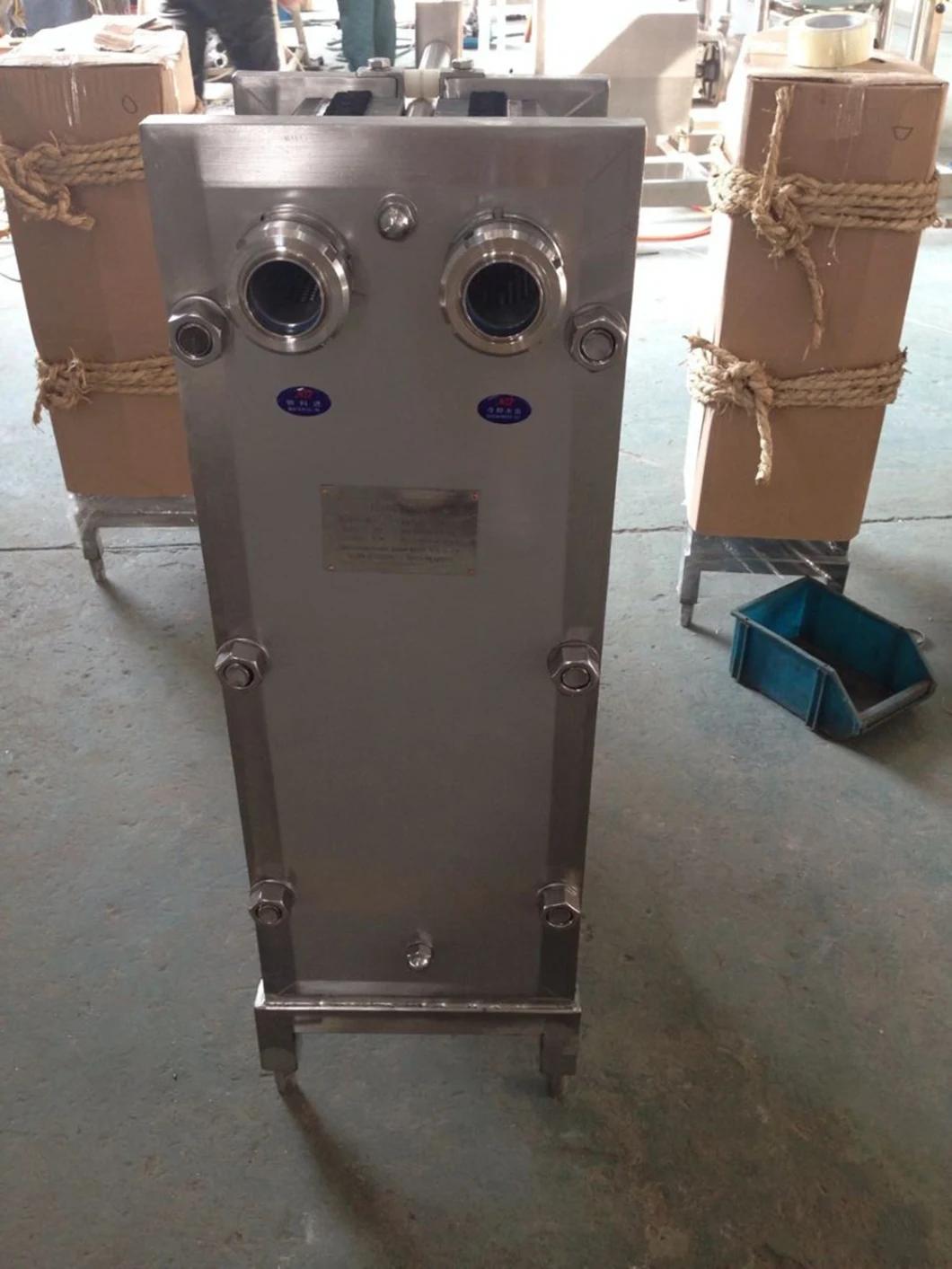

Sanitary Milk Plate Pasteurizer Plate Heat Exchanger Cooler

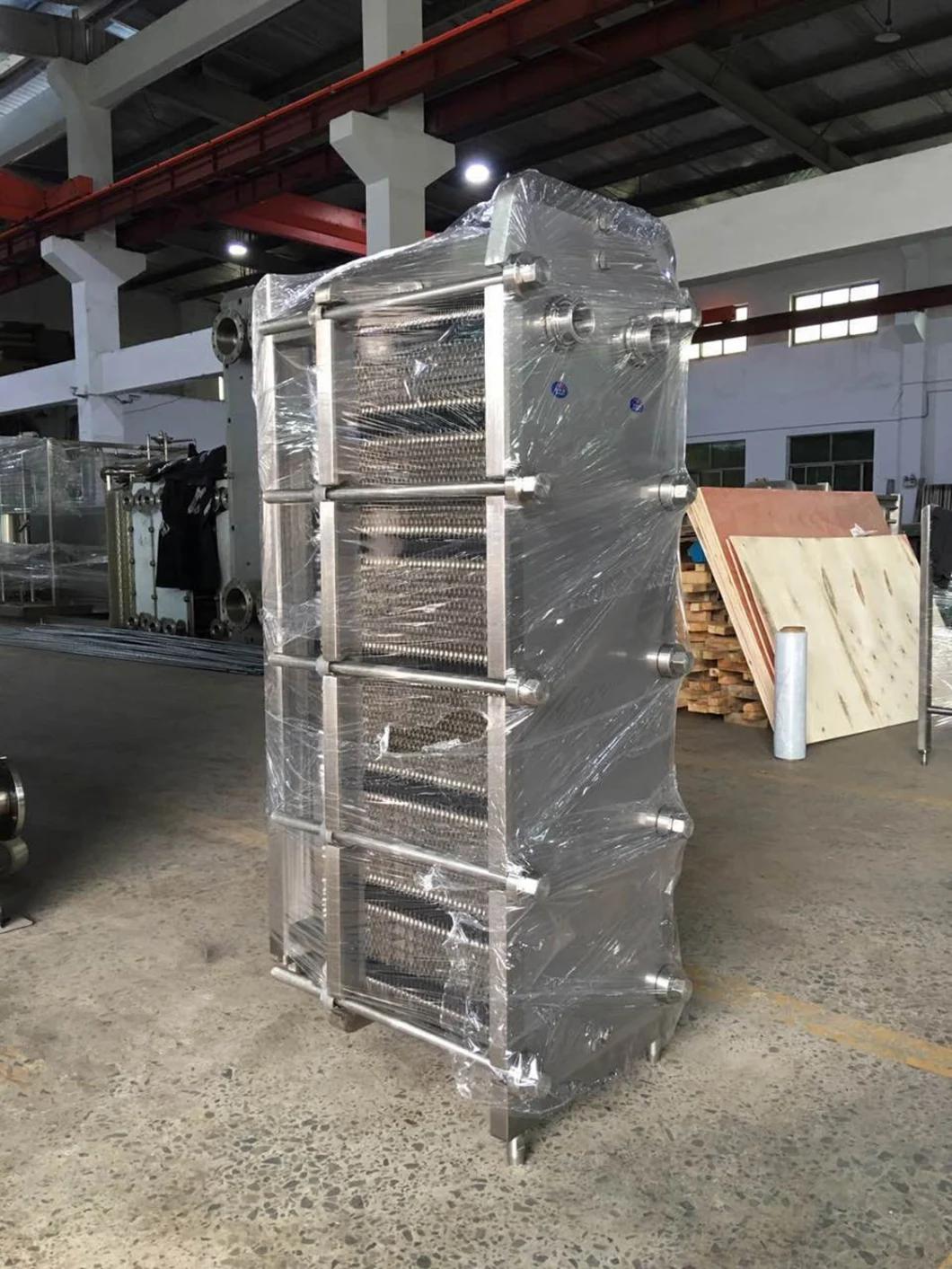

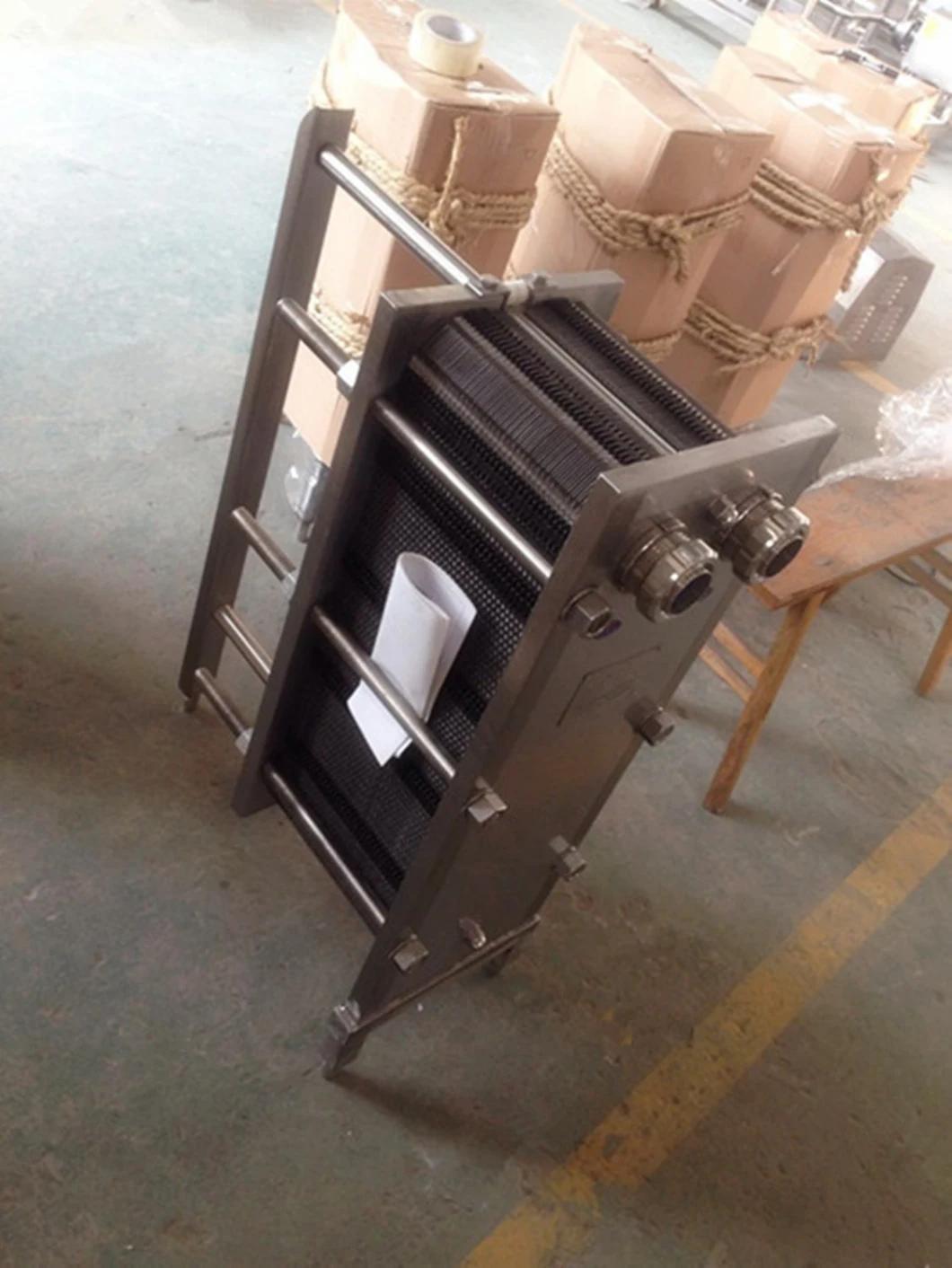

Plate and Frame heat exchangers consist of a number of specially corrugated stainless steel plates assembled in a frame and bolted between two pressure plates, one of which is fixed and the other adjustable.



Turbulence is created in the liquid flow channels, giving very high heat transfer coefficients and resulting in a compact, efficient heat exchanger.
 Plate and Frame heat exchangers provide highly efficient thermal performance.
Corrugated plates induce extremely turbulent flow, resulting in maximum rates of heat transfer and minimized fouling. Multiple corrugation patterns allow optimization to meet specific thermal and hydraulic requirements.
Plate and Frame heat exchangers are also extremely space-efficient, easy to maintain, and can be inspected and cleaned without removing the plates from the frame.

model	BR 0.05	BR 0.1	BR 0.2
single plate heat exchange area (m²)	0.05	0.1	0.2
plate size (mm)	500×168	660×250	970×330
plate thickness (mm)	0.8	0.8	0.8
aperture diameter (mm)	38	60	75
adapter tube diameter (mm)	28	38	46
corrugation shape	herringbone	herringbone	herringbone
corrugation distance (mm)	10	12	12
average plate distance (mm)	3.8	4.2	4.2
combinatorial heat exchange area (m²)	0.5~5	4~10	10~38
maximum pressure (Mpa)	0.4~2	0.4~2	0.4~2
maximum temperature (°C)	120~160,250(special-required)	120~160,250(special-required)	120~160,250(special-required)
heat transfer coefficient (W/m²°C)	2000~6000	2000~6000	2000~6000
