• Model NO.：KQ
• Name：Plate Heat Exchanger Heat Exchanger Cooling Plate
• Ss316 Plate Heat Exchanger：Used for Heating or Cooling Milk
• Plate Heat Exchanger：Heat and Cool The Liquid
• Heating Transfer Area：Customized
• Function：Heat and Pasteurize Milk, Cool Down Milk
• Plate Heat Exchanger Processing Capacity：500lph to 50000lph
• Sizes：Customized
• Plate Heat Exchanger Material：Ss 304,316
• Gasket：Silicon, PTFE
• Industry：Food, Pharmacy, Beverage, Juice, Milk
• Transport Package：Standard Wooden Box
• Specification：ISO
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：841950009
• Production Capacity：50 PCS,Month

Basic Info.

Model NO. KQ Name Plate Heat Exchanger Heat Exchanger Cooling Plate Ss316 Plate Heat Exchanger Used for Heating or Cooling Milk Plate Heat Exchanger Heat and Cool The Liquid Heating Transfer Area Customized Function Heat and Pasteurize Milk, Cool Down Milk Plate Heat Exchanger Processing Capacity 500lph to 50000lph Sizes Customized Plate Heat Exchanger Material Ss 304/316 Gasket Silicon, PTFE Industry Food, Pharmacy, Beverage, Juice, Milk Transport Package Standard Wooden Box Specification ISO Trademark KAIQUAN Origin Shanghai, China HS Code 841950009 Production Capacity 50 PCS/Month

Product Description

Plate Heat Exchanger Heat Exchanger Cooling Plate Milk Cooler
Plate Heat Exchanger for Steam & Water



Plate heat exchanger is being used in various fields,such as metallurgy,mining,petroleum,chemical engineering,electricity,pharmacy,food,synthetic fiber,textile,papermaking,shipbuilding,concentrated heating,machinary,and it can deal with many kinds of materials,including ordinary industrial water,liquid of high viscosity,healthful edibile liquid,clinical materials,corrosive acid and alkali,liquid with granule,floating liquid with fabric fibre, etc.


Plate heat exchanger can be used to heat,cool,evaporate,condense,sterilize,recover waste heat,etc
Sanitary Milk Plate Pasteurizer Plate Heat Exchanger Cooler

Material	Model
304	B3-012
304	B3-014
304	B3-022
304	B3-027
304	B3-028
304	B3-030
304	B3-052
304	B3-055
304	B3-060
304	B3-095
304	B3-110
316L	B3-014
316L	B3-022
316L	B3-027
316L	B3-028
316L	B3-030
316L	B3-052
316L	B3-055
316L	B3-060
316L	B3-095
316L	B3-110
316L	B3-117
316L	B3-136

model	BR 0.05	BR 0.1	BR 0.2
single plate heat exchange area (m²)	0.05	0.1	0.2
plate size (mm)	500×168	660×250	970×330
plate thickness (mm)	0.8	0.8	0.8
aperture diameter (mm)	38	60	75
adapter tube diameter (mm)	28	38	46
corrugation shape	herringbone	herringbone	herringbone
corrugation distance (mm)	10	12	12
average plate distance (mm)	3.8	4.2	4.2
combinatorial heat exchange area (m²)	0.5~5	4~10	10~38
maximum pressure (Mpa)	0.4~2	0.4~2	0.4~2
maximum temperature (°C)	120~160,250(special-required)	120~160,250(special-required)	120~160,250(special-required)
heat transfer coefficient (W/m²°C)	2000~6000	2000~6000	2000~6000

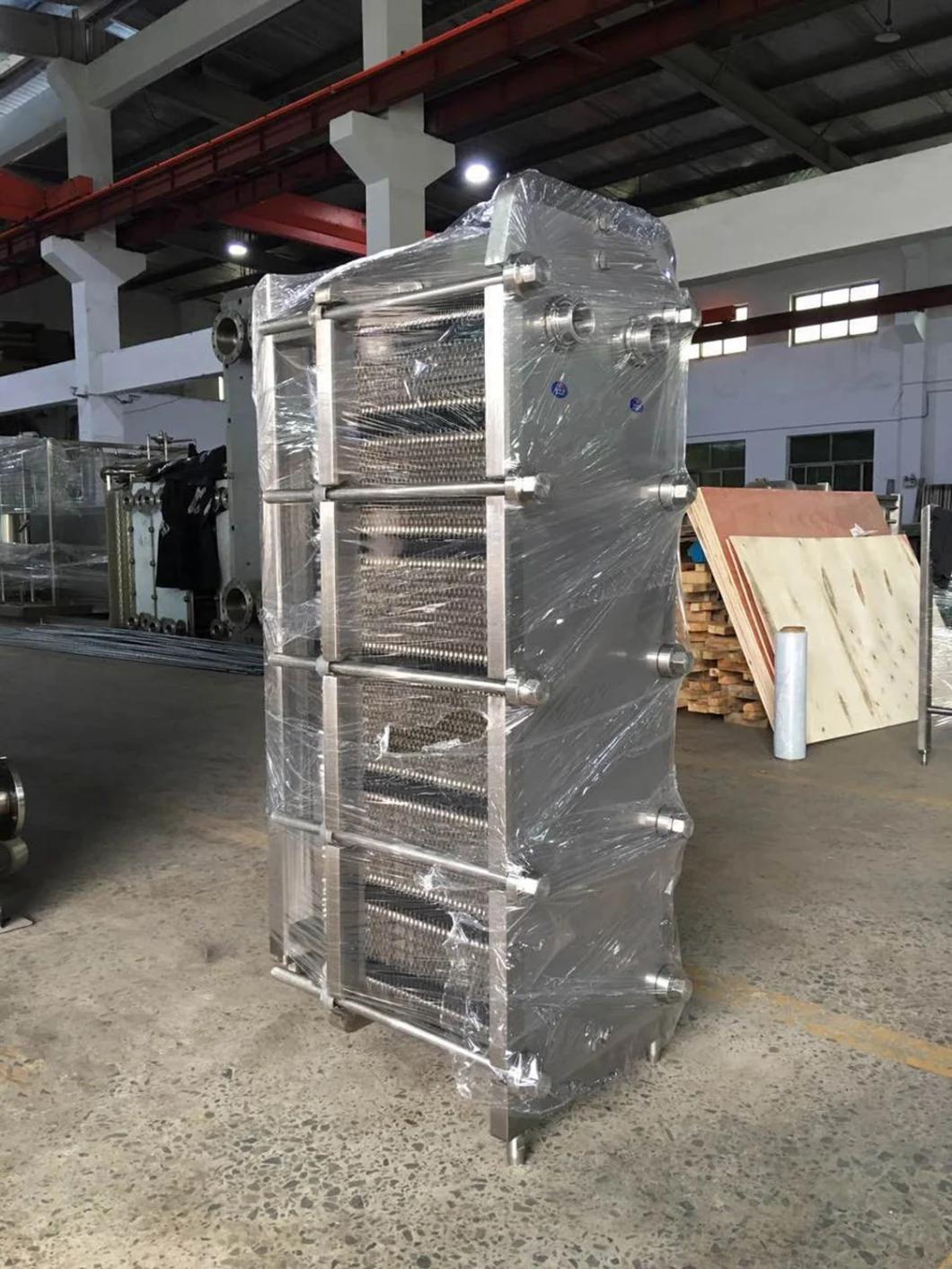

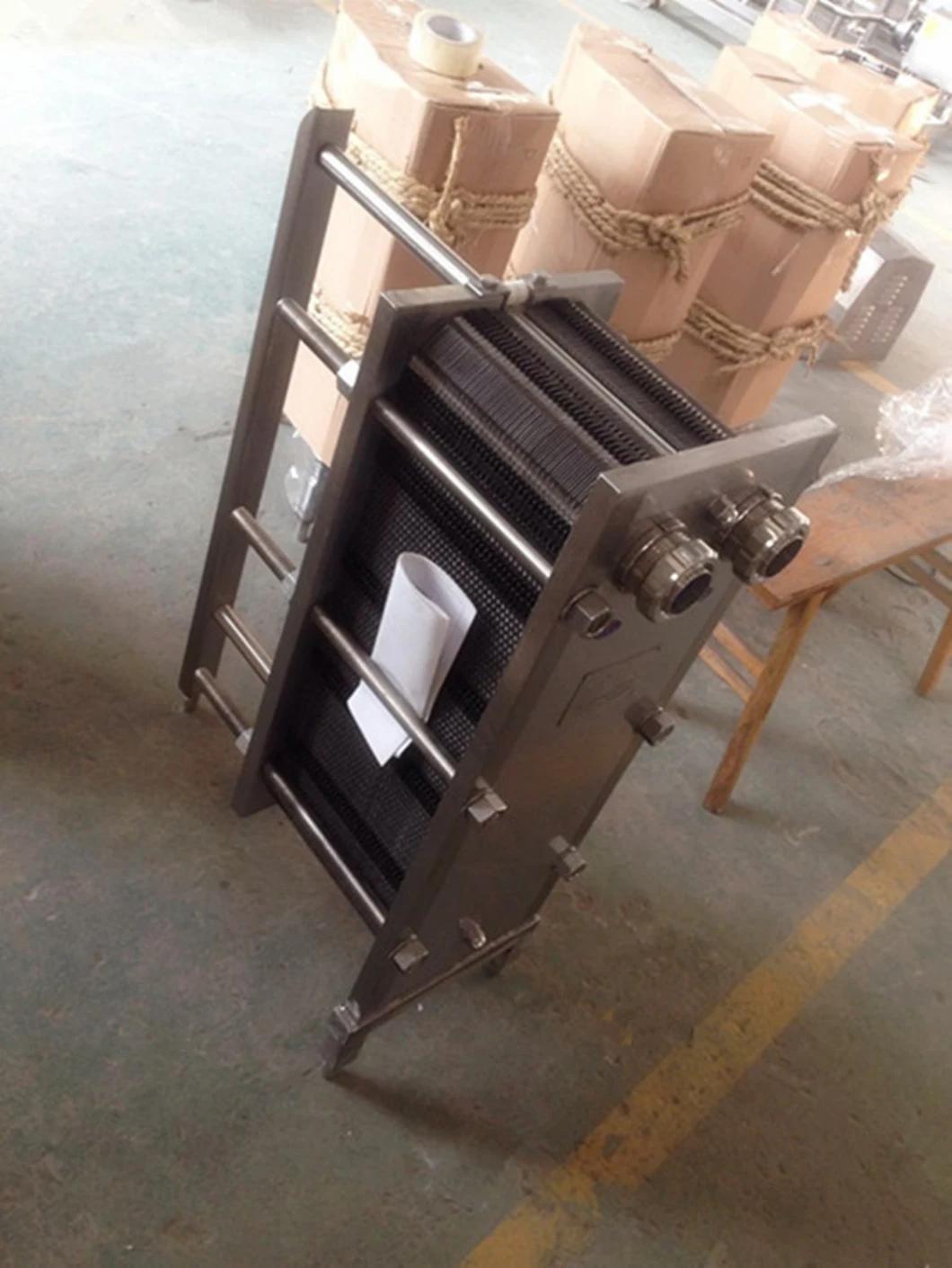

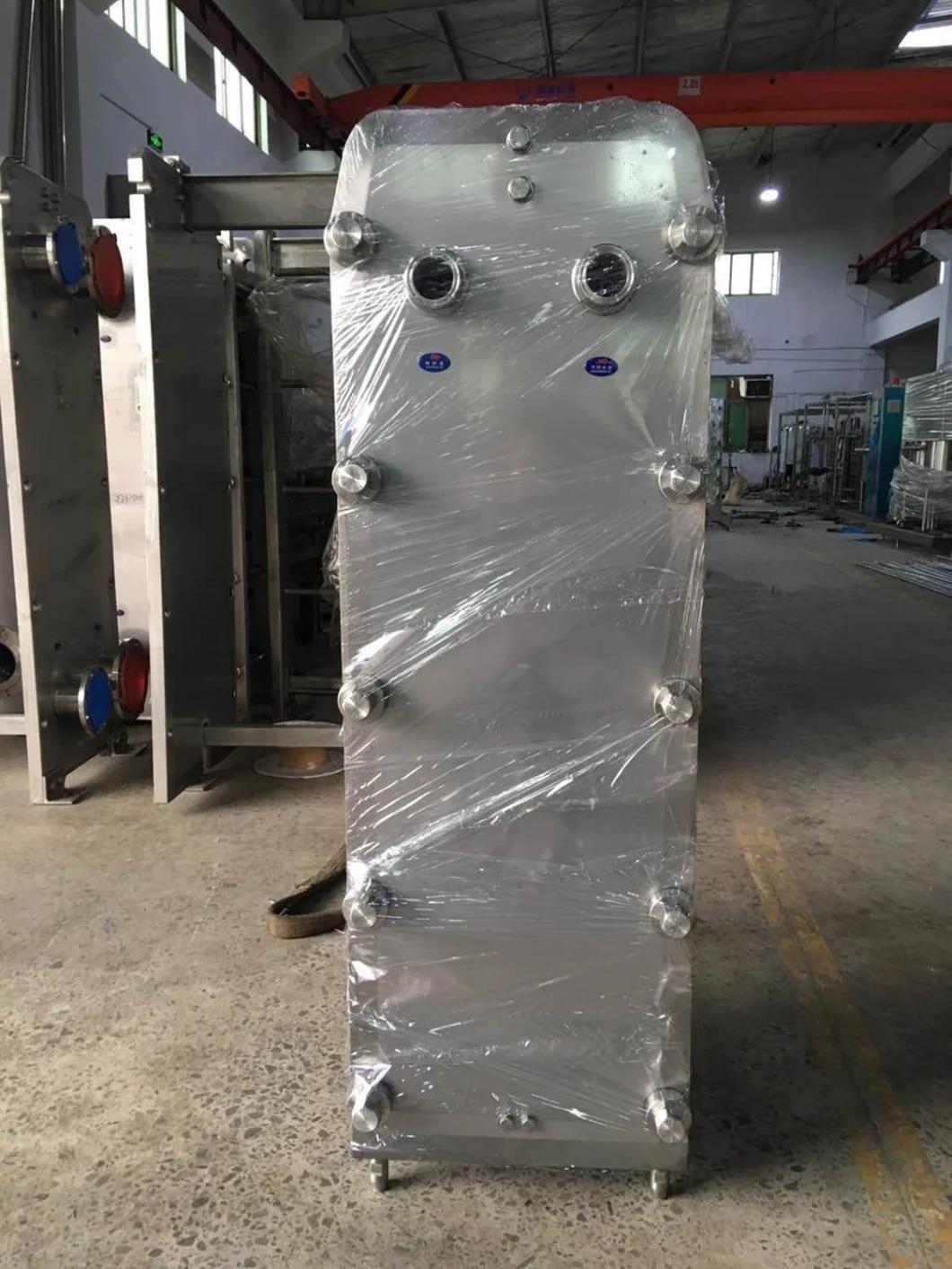

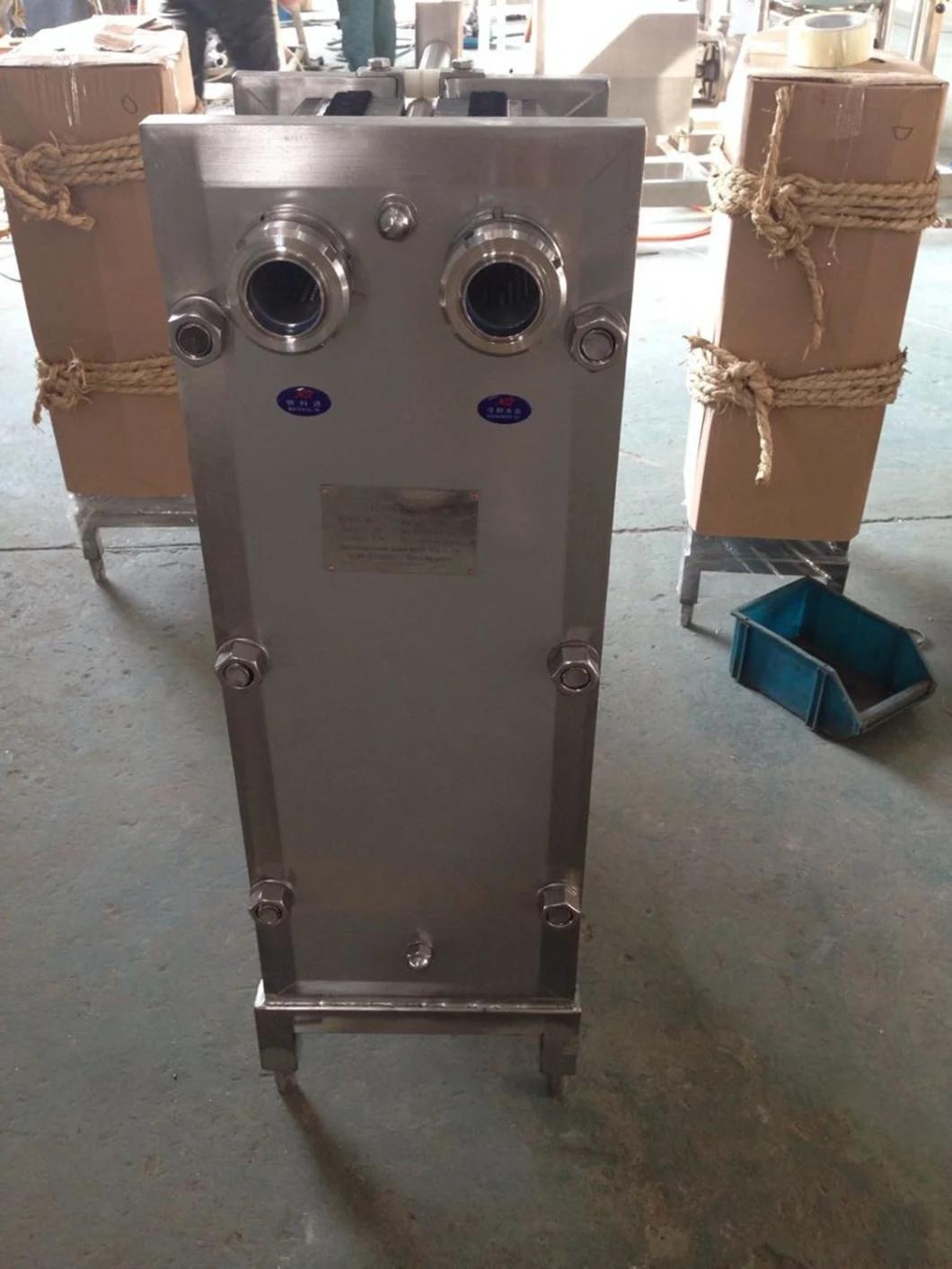

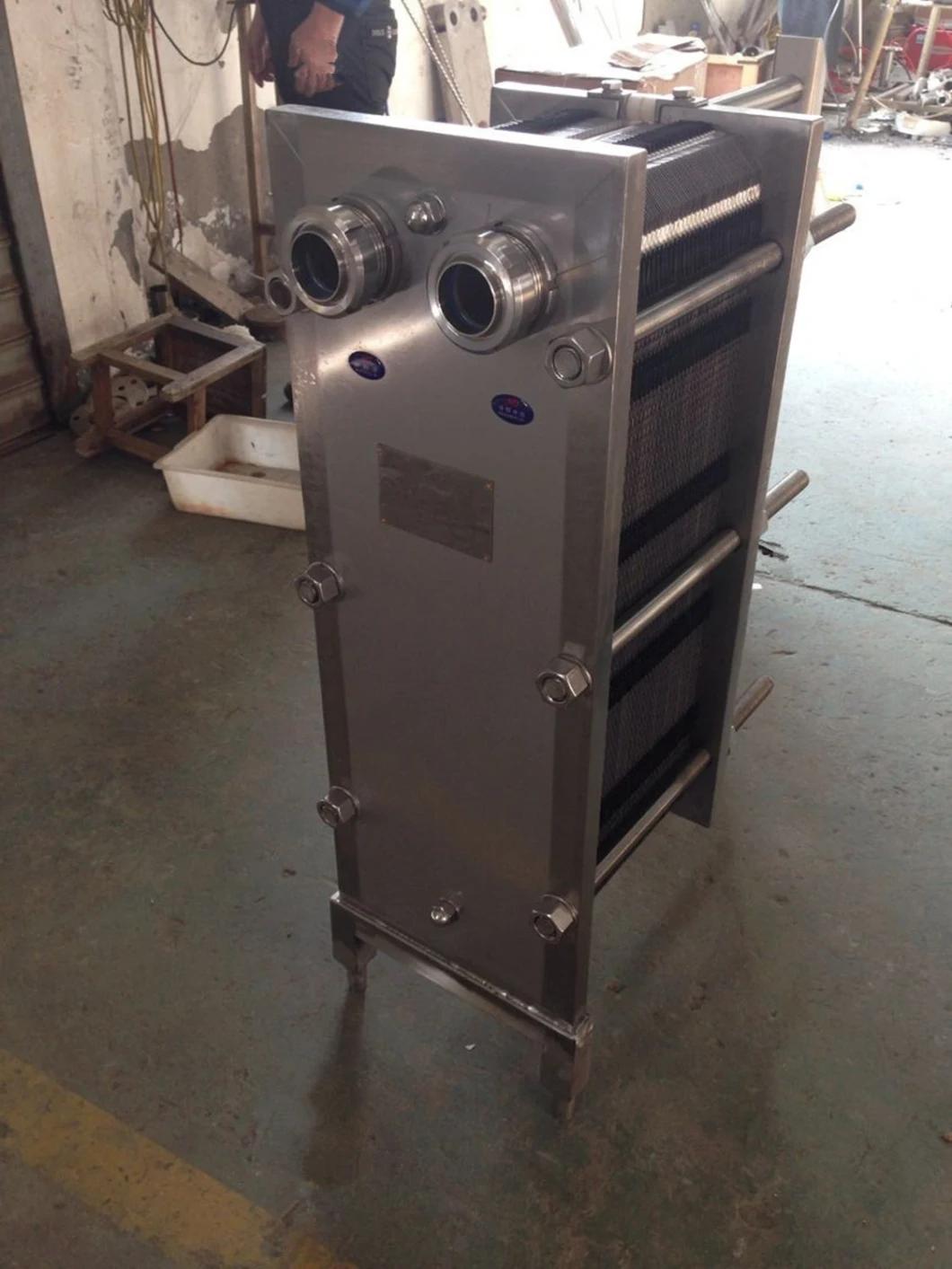

Plate and Frame heat exchangers consist of a number of specially corrugated stainless steel plates assembled in a frame and bolted between two pressure plates, one of which is fixed and the other adjustable.
Turbulence is created in the liquid flow channels, giving very high heat transfer coefficients and resulting in a compact, efficient heat exchanger.
 Plate and Frame heat exchangers provide highly efficient thermal performance.
Corrugated plates induce extremely turbulent flow, resulting in maximum rates of heat transfer and minimized fouling. Multiple corrugation patterns allow optimization to meet specific thermal and hydraulic requirements.
Plate and Frame heat exchangers are also extremely space-efficient, easy to maintain, and can be inspected and cleaned without removing the plates from the frame.
Plate Heat Exchanger Heat Exchanger Cooling Plate Milk Cooler
