• Loading Area：0.12~50.8 Square Meters
• Available Product：Vegetable, Fruit
• Chamber：Vacuum
• Material：Stainless Steel Inside
• Process：Vacuum Freeze Dryer
• Transport Package：Safe Packing
• Specification：Industry Use Size
• Trademark：Huaxian
• Origin：China
• HS Code：8418699090
• Production Capacity：500PCS,Year

Basic Principle:
a. Surface temperature of cold trap lower than -35degees celcius.
b. Product is below freezing point.
c. Vacuum degree 40Pa.
d. Product temperature is controlled between -40~+60 degrees celcius with sublimation potention heat, and products not melt above eutectic point.



Dyring Process:
a. Pre-freezing.
b. Initial drying.
c.Main drying.
d. Reduce drying.
e. Ultimate drying.
 No.ModelWater Catching CapacityTotal Power(kw)Total Weight(kgs)Drying Area(m2)Drying Weight/CycleOverall Dimensions1HXD-0.13-4kgs/24h0.95410.121.2L640*450*370+430(mm)2HXD-0.26kgs/24h1.41050.182.0L640*570*920+460mm3HXD-0.4>6Kg/24h4.54000.44.0L/4~6kgs1100*750*1400mm4HXD-0.7>10Kg/24h5.56000.697.0L1100*770*1400mm5HXD-1⩾15Kg/24h6.57001.0410L1170×830×1665mm6HXD-240kgs/24h13.523002.2522L1200*2100*1700mm7HXD-5>100Kg/24h2535005.250L2500*1250*2200mm8HXD-10-232100101002500*2000*1750mm9HXD-20250kgs/batch63800020200kgsShelf size(L*W*H)1420×1000×15mm
Cylinder Φ1600*180010HXD-30-83800030300kgs3600*2200*1600mm11HXD-50800Kg/batch2301500050.8500kgsDrying Room:8000*2300*2500mm Machine unit: 7000*2100*2400mm

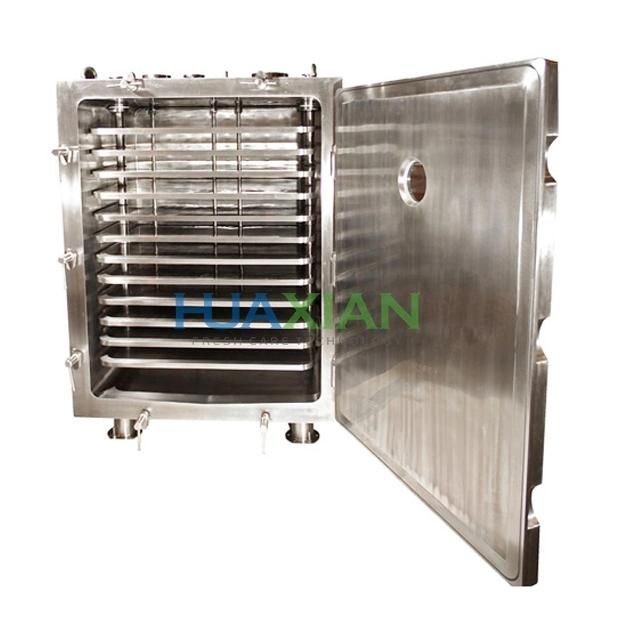

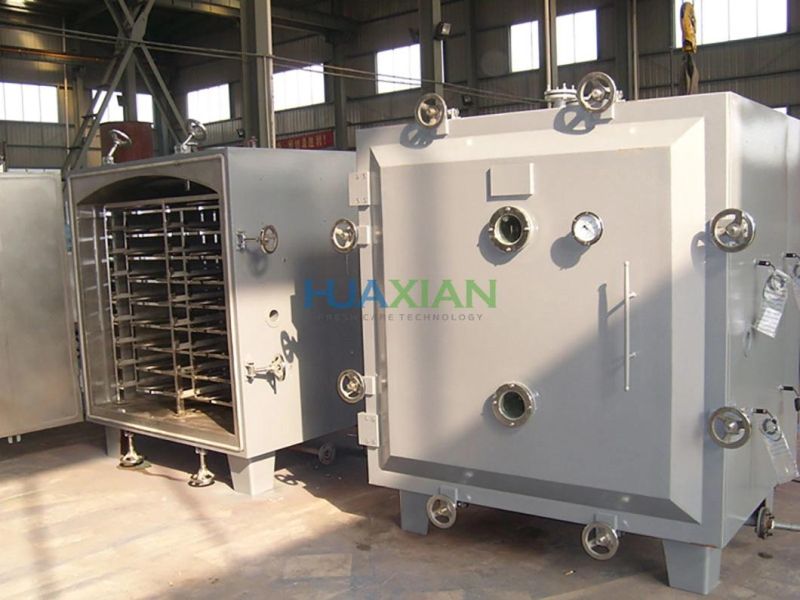

Product Pictures-Vegetable /Fruit Freeze Dryer
China OfficeUSA Office  Guarantee
a. All Huaxian systems delivered to customers are carefully examined and tested, with 72 hours trouble-free trial operation;
b. All Huaxian systems delivered are plug-in ready and well piped;
c. All Huaxian systems enjoy 12 months guarantee ever since B/L date.

 Technical Support
a. Huaxian provides full technical support and after equipment installation;
b. 7*24 hours phone assistance on technical support.  FAQ1.What is the payment term?
TT, 30% deposit before production,70% balance before shipment.

2.What is the delivery time?
1~ 2 month after Huaxian receives payment.

3.What is the package?
Safety wrapping, or wood frame, etc.

4.How to install machines?
We will tell you how to install or send an engineer to install according to customer's requirement (negotiation installation cost).

5.Can customer customize capacity?
Yes, depend on customers' requirement.
6.What kind of equipment that HUAXIAN supplies?

Refrigeration equipment as below:
  A.Pre-cooling Equipments:
    a.Leaf Vegetable Vacuum Cooler: for lettuce, watercress, spinach, dandelion, lamb's lettuce, mustard, cress, rocket, calalou, celtuces, land cress, samphire, vine, sorrel,  radicchio, endive, swiss chard, nettle, Romain lettuce, lollo rossa, Iceberg lettuce, rucola, Boston lettuce, Baby Mizuna, Baby Komatsuna, etc.
     b.Fruit Vacuum Cooler: for strawberry, blueberry, blackberry, cranberry, blackcurrant, pineberry, raspberry, rubus Parvifolius, mock Strawberry, mulberry, dayberry, etc.     c.Cooked Food Vacuum Cooler:for cooked rice, soup, fast food, cooked food, fried food, bread, etc.
    d.Mushroom Vacuum Cooler: for Shiitake, Oyster Mushroom, Button mushroom, enoki mushrooms, Paddy Straw Mushroom, Shaggy Mane, etc.

    e.Hydro Cooler: for Melon, orange, peach, litchi, longan, banana, mango, cherry, apple, etc.

    f.Pressure Difference Cooler: for vegetable and fruit.

  B.Ice Machine/MAKER:
    Flake Ice Machine, Block Ice Machine, Tube Ice Machine, Cube Ice Machine.

  C.Cold Storage:
    Blast Freezer, Freezing Room, Cold Storage Room, Indoor&Outdoor Condenser Unit.

  D.Vacuum Freeze Dryer:
    For meat/fish/vegetable/fruit chips.
