• Model NO.：JHTB-5 JHTB-25 JHTB-50
• Product Name：Automatic Starch Packaging Machine
• Line：Arrowroot Starch Production Line
• Useful Life：20 Years
• Condition：New
• Power：4 Kw
• Capacity：15 T,H
• Service：Overseas Installation
• Training：Yes
• Warranty：1 Year
• Voltage：220V or 380V
• Advantage：High Effective
• Machine：Arrowroot Starch Packaging Machine
• Weight：550 Kg
• Weighing Ranges：5-50 Kg
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. JHTB-5 JHTB-25 JHTB-50 Product Name Automatic Starch Packaging Machine Line Arrowroot Starch Production Line Useful Life 20 Years Condition New Power 4 Kw Capacity 15 T/H Service Overseas Installation Training Yes Warranty 1 Year Voltage 220V or 380V Advantage High Effective Machine Arrowroot Starch Packaging Machine Weight 550 Kg Weighing Ranges 5-50 Kg Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 20 Sets/Month

Product Description

automatic quantitative starch packaging machine dried starch package plant
1.Description of starch packaging machine
The parts contact with materials are made of stainless steel.Automatic starch package machine packing range is 5-50 kg .The main quantitative packing in the powdery material containing gas mixture material (such as waxy rice noodles, corn starch, potato starch, cassava starch, modified starch, gluten flour, dextrin).Easy to operate and maintenance.

Main technical parameters

Specification	JHTB-5	JHTB-25	JHTB-50
Weighing ranges(Kg)	5~10	20~25	20~50
Yield(packets/hour)	150~600	150~500	300~400
Dividing the value(g)	5	10	10
Power(Kw)	4	4	4
Package size(mm)	1750*1000*2200 3100*800*650	1750*1000*2200 3100*800*650	1750*1000*2200 3100*800*650
Total weight(kg)	550	550	550

The working principle of automatic packing machine
The sensor of the packaging machine is subjected to the action of pressure to produce a micro - variable signal, which is processed by the computer. When the computer is activated by the external work signal, the feeder is controlled to feed the material quickly into the packaging bag. When the fast feeding ration is reached, the fast feeding is stopped, and the cylinder of the vibrating bag vibrates the packing material, and then the optimal feeding department is entered. When the set ration of slow feeding is reached (ration _ drop), stop the slow feeding and loosen the bag holder, etc. Such a cycle of work to achieve automatic quantitative packaging. Press the stop switch if you need to stop working.

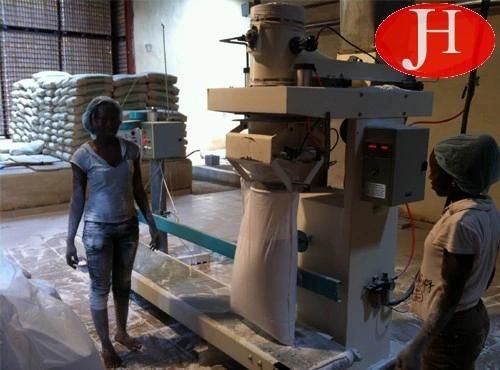

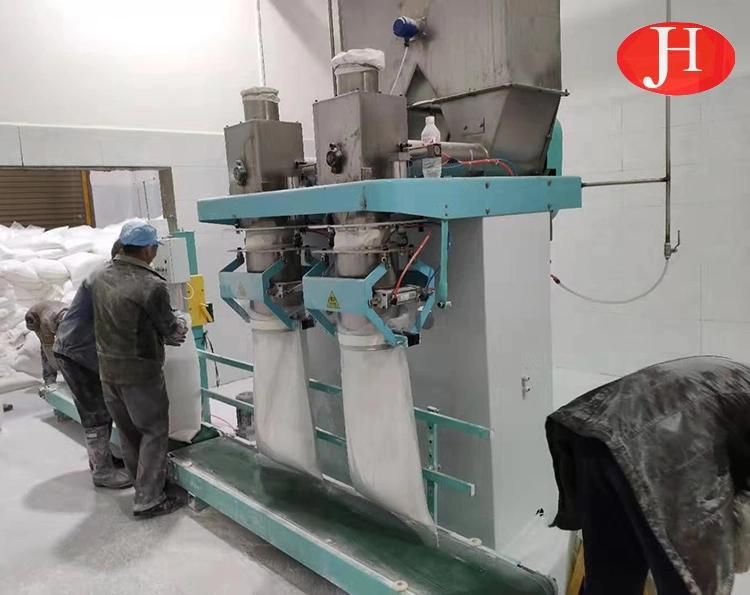

Real application case




Advantages of automatic packaging machine
1.A fast, slow, speed, three speed feeding mode, AD processing technology with high speed, anti-interference technology, automatic error correction and compensation technology, accurate measurement, stable and reliable performance.
2.According to different characters of different materials, the pumping, the gas material of gas extraction, convenient packing and transportation and storage bags. Improve food shelf life.
3.For good fluidity material (such as starch) to take a special way of feeding, fast cutting flow system, to ensure that the measurement is accurate, stable and reliable performance.
4.Lift the bag structure to ensure that the packaging vertical fall into the conveyor, reduce labor intensity and improve the working environment.
  2.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).


3.Our Service
Pre-sale service
1.Accept customer consultation and customize products according to customer requirements.
2.Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.

Sale service
1.The company sent technical personnel to the scene of the on-the -spot guidance equipment installation,debugging and training operators.
2.If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.

After-sale service
1.Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty and lifelong maintenance service.

4.Why Choose Us

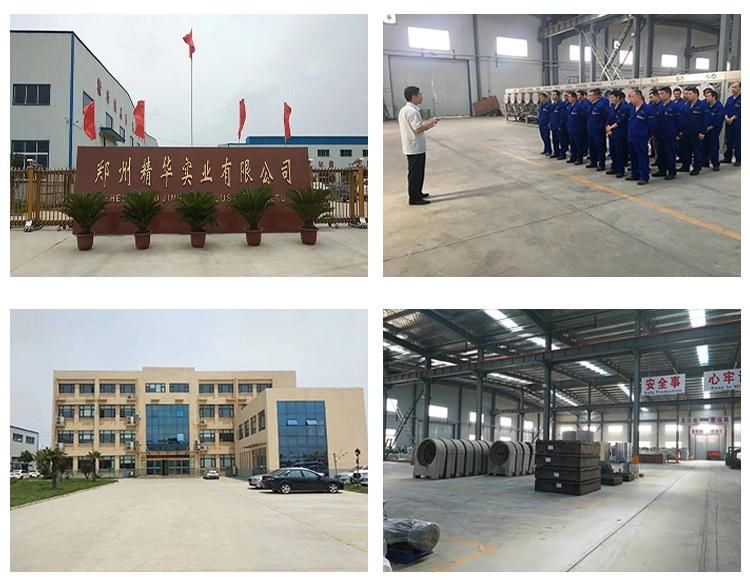

On the afternoon of June 6th, One Belt And One Road Cambodian delegation came to visit zhengzhou jinghua industrial co., LTD. Professor wang yanbo, chairman of zhengzhou jinghua company and other relevant personnel introduced to the delegation the achievements made by jinghua company over the years, the production technology of products and the production process of starch. The delegation visited the company's office building, production workshop and finished product warehouse, showing the delegation the company's production and research capabilities.


Zhengzhou Jinghua Industry Co.,Ltd. is a professional starch engineering corporation in China. Depending on the unique advantage and strong strength of Henan University of Technology, Jinghua combines scientific research, industry and trade as a whole, which mainly engaged in the working of factory layout, technology design,complete equipment manufacturing and commissioning, new product developing etc. to all kinds starch processing. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.

Awarded the title of Advanced & High Technology Enterprise by Henan Science & Technology Department. Jinghua is the Vice president member of Sweet Potato Starch Professional Committee of China Starch Industry Association Units, the member of Potato Starch Professional Committee and the vice president member of China Food and Packaging Machinery Industry Association and Potato Food Processing Machinery Professional Committee Unit. Awarded the "ten years brilliant" honorary certificate issued by China international potato fair.

Our Certificate


5.FAQ
Q1: Can you provide detailed parameters and drawings of the equipment?
A: Yes, you can contact us by email, we will provide you with the detailed parameters and drawings of the equipment.

Q2:How long is the warranty period of the equipment?
A:After the successful installation and commissioning of the equipment, there is a one-year warranty period.

Q3:What kind of after-sales service do you provide?
A:Provide after-sales service for customers through telephone, video guidance, on-site maintenance, etc.

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
