• Model NO.：JHTB-5 JHTB-25 JHTB-50
• Condition：New
• Customized：Customized
• Product Name：Automatic Powder Packaging Machine
• Advantage：Automatic
• Service：Overseas Installation
• Useful Life：20 Years
• Keywords：Wheat Flour Packaging Machine
• Capacity：20 T,H
• Energy：Electric
• Weight：550 Kg
• Material：Stainless Steel
• Warranty：1 Year
• Dimension：3100*800*650 mm
• Power：4 Kw
• Weighing Ranges：5-50 Kg
• Transport Package：Wooden Case
• Specification：stainless steel
• Trademark：JINGHUA
• Origin：Zhengzhou City, China
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. JHTB-5 JHTB-25 JHTB-50 Condition New Customized Customized Product Name Automatic Powder Packaging Machine Advantage Automatic Service Overseas Installation Useful Life 20 Years Keywords Wheat Flour Packaging Machine Capacity 20 T/H Energy Electric Weight 550 Kg Material Stainless Steel Warranty 1 Year Dimension 3100*800*650 mm Power 4 Kw Weighing Ranges 5-50 Kg Transport Package Wooden Case Specification stainless steel Trademark JINGHUA Origin Zhengzhou City, China Production Capacity 10 Sets/Month

Product Description

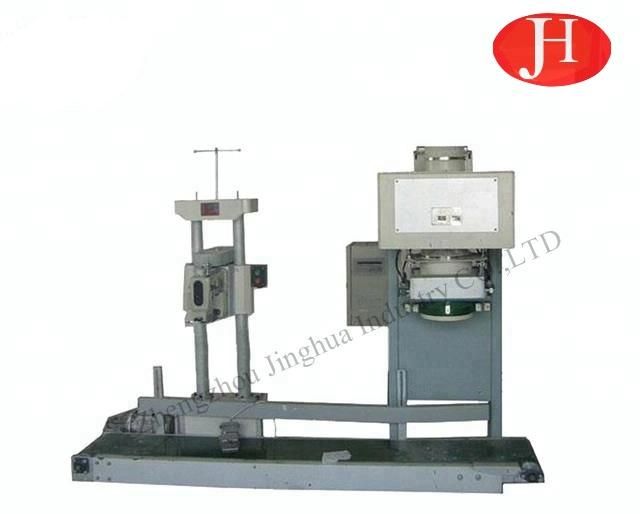

automatic wheat starch packaging equipment electric flour quantitative packing machine
1.Introduction of wheat starch packaging machine
Automatic starch package machine packing range is 5-50 kg . The parts contact with materials are made of stainless steel.The main quantitative packing in the powdery material containing gas mixture material (such as waxy rice noodles, corn starch, potato starch, cassava starch, modified starch, gluten flour, dextrin).Easy to operate and maintenance.

Main technical parameters

Specification	JHTB-5	JHTB-25	JHTB-50
Weighing ranges(Kg)	5~10	20~25	20~50
Yield(packets/hour)	150~600	150~500	300~400
Dividing the value(g)	5	10	10
Power(Kw)	4	4	4
Package size(mm)	1750*1000*2200 3100*800*650	1750*1000*2200 3100*800*650	1750*1000*2200 3100*800*650
Total weight(kg)	550	550	550

The working principle of automatic packing machine
The sensor of the packaging machine is subjected to the action of pressure to produce a micro - variable signal, which is processed by the computer. When the computer is activated by the external work signal, the feeder is controlled to feed the material quickly into the packaging bag. When the fast feeding ration is reached, the fast feeding is stopped, and the cylinder of the vibrating bag vibrates the packing material, and then the optimal feeding department is entered. When the set ration of slow feeding is reached (ration _ drop), stop the slow feeding and loosen the bag holder, etc. Such a cycle of work to achieve automatic quantitative packaging. Press the stop switch if you need to stop working.

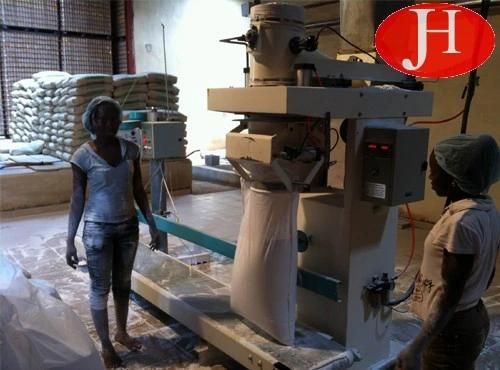

Real application case



 2.Company InformationZhengzhou Jinghua Industry Co.,Ltd. is a professional starch engineering corporation in China. Depending on the unique advantage and strong strength of Henan University of Technology, Jinghua combines scientific research, industry and trade as a whole, which mainly engaged in the working of factory layout, technology design,complete equipment manufacturing and commissioning, new product developing etc. to all kinds starch processing. Has two modern large factory, engineering and technical personnel more than 30 people, can provide installation services overseas. Our company has undertaken national and provincial scientific research projects.,with more than 30 invention patents, various honor certificate more than 20.The chairman of the board is professor wang yanbo, who is mainly engaged in theoretical research on the transformation and utilization of grain resources, teaching, scientific research and engineering design of starch and its deep processing direction, and research and development of modern equipment. He has published 7 scientific works, 6 national standards and 30 academic papers.

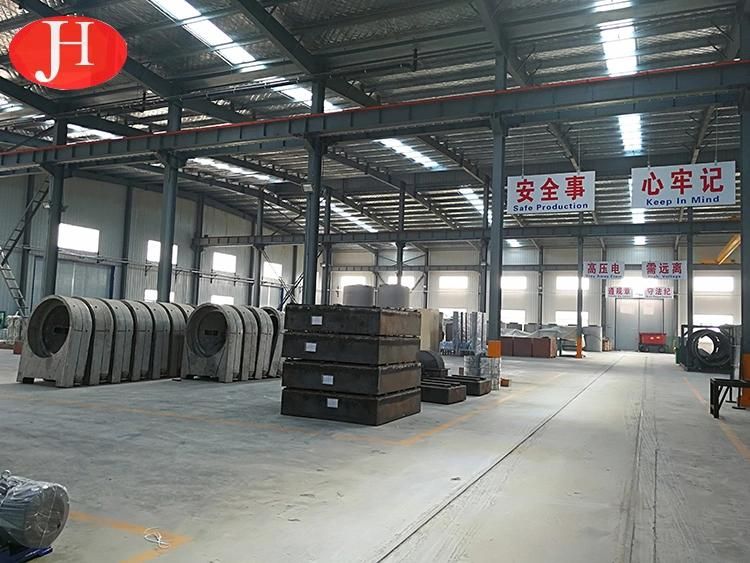

Our Factory


Our Workshop


Our Workshop


Our Certificate

 3.Our ServicePre-sale service
1.Accept customer consultation and customize products according to customer requirements.
2.Provide customers with product process, equipment parameters and processes, and train personnel according to customer requirements.

Sale service
1.The company sent technical personnel to the scene of the on-the -spot guidance equipment installation,debugging and training operators.
2.If there is any problem during the installation, please contact the responsible person in time. We will solve the problem in time to ensure the installation progress.

After-sale service
1.Provide telephone and video support. If the customer has any problems or abnormal devices in use, you can contact us by phone. We will help the customer solve the problems by phone or video.
2.If the phone or video doesn't work, the company will send technicians to the scene to fix the problem.
3.Products purchased in our company, we provide one-year warranty and lifelong maintenance service.

4.Packing & Shipping
Packing & Shipping: Customize the wooden case according to the size of the product.
Delivery: 14 days after receiving pre-payment (on time according to contract strictly).


5.FAQQ1: Is your company a factory or trading company?
A: Our company is a factory in Henan Province ,with export license and we have done export business over 20 years professionally.

Q2.What is your main business?
A: Zhengzhou Jinghua is devoted to starch processing machine. The machine of starch processing line , such as : cassava starch line , cassava flour line , potato starch line , sweet potato line , wheat starch ,sago line and garri line

Q3. Can you customize the products according to our requirements?
A: Yes, we have a professional technical department that can customize the products according to your requirements

Q4: Are your products can be assured ?
A: Our machines are all passed ISO9001:2001 and have CE certificate by SGS, TUV.

Q5: If we show you our layout of factory, can you help us to design the whole process line?
A : Yes, our experienced engineers and technical employees can help you to arrange the layout and installation of whole process line based on your real situation;

Q6: If we have samples of new products, can you help us to analysis and design the machine?
A: Yes, Our technical department can help you to analysis, design and test the new products you offered.
