• Model NO.：BCQ1500
• Production Capacity：6sets,Year

ModelBCQ-250BCQ-480BCQ-600BCQ-800BCQ-1000BCQ-1200BCQ-1500remarkProduction capacity(kg/h)250480600800100012001500Up to (max)Total length(mm)29600645008550092500125000125000150000If No U Turn ConveyerBaking temperature(ºC)190-240ºC190-240ºC190-240ºC190-240ºC190-240ºC190-240ºC190-240ºCDependWhole line power(kW)105190300400500600750If UseElectric OvenWhole line weight(kg)6000120002000028000350004500055000Approx



BISCUIT SAMPLE PICTURE:





PROFILE:

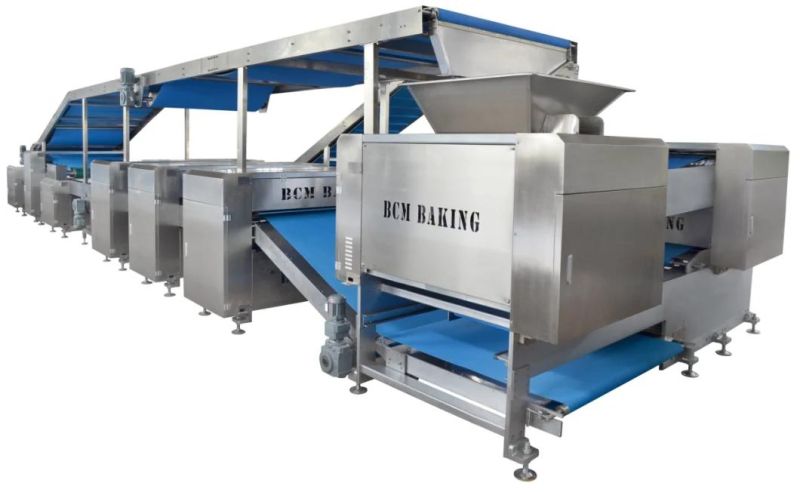

Biscuit can be grouped into hard biscuit and soft biscuit , according to the formula, process, and different forming method, Hard biscuit production line is generally composed of a feeding machine(if producing the soda biscuit or chocolate coated biscuit, another lamination process is needed), a set of dough roller, through the dough rolling and dough sheeting, then through the roller cutting machine, rest material recycling device, inlet oven machine, the entire biscuit forming line. In order to increase the biscuit types and characteristics, customers can allocate the sugar & salt sprinkling machine, egg spraying machine, calico printing machine, etc. The oven is to make the formed biscuit into delicious food. You can choose different types of bakery oven (electric/gas/diesel/thermal oil)for baking different types of products.





PROCESSING PROCEDURE:

Flour mixing----Dough sheeting----Biscuit forming----Baking----Oil spraying----Cooling----Stacking----Packing



LAYOUT:



Company Information
Know about TGMachine Go to TGMachine Choose TGMachine

• Present TGMachine

  Nowadays,TGMachine always stand in the leader position in food machinery innovation and developing.The factory area is more than 6000 square metres,including five modern workshop,over 100 employees and has CNC machine,computer controlled lathe etc..ln 2005,TGMachine has passed ISO9001 internatinal quality management system certification standards and most of the products proved by CE .TGMachine exported its products to East European,South America,Middle East,Southeast Asia etc..since 2000.Rely on high quality products and satisfying service TGMachine gains its good reputation and popularity.



• Service From TGMachine

  TGMachine provides not only good quality production lines for different kinds of confectionery production,but also the whole solution from marketing research,factory design,machinery installation and final production,packing design etc..We are happy to cooperate with the new investor in food industry or experienced manufacturers.For more solution or information, please contact us by visit our website: shinwei.en.made-in-china.com



• TGMachine's Customers Location Worldwide



Our Services

After-Sale Service For Abroad Customers:



1. Free training of machine installation, operation and maintenance will be provided by our engineer.
2. Some spare parts will be sent with the machine for free. It is available to buy the parts from us forever at low price.
3. We will surpport customers after-service forever by call, email and video etc.
4. If necessary, our engineer is available to go to customer's factory for machine installation and adjustment.

Packaging & Shipping

Wooden Packing:



1. Product production is completed, by the quality inspection department to check
2. After inspection qualified, clean for whole machine
3. Packing:

    a. Inside the machine put desiccant

    b. Add 6 cm thick foam plate around the machine,Then, winding stretch film for reinforcement, and combined with bubble wrap

    c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4. Container: according to different products for reinforcement.
