• Model NO.：EXM5600-D
• Production Capacity：15sets,Year

Model

EXM5600

Production capacity    kg/h

150-200

Cutting length of the product     mm

10~160

Steam consumption    kg/h

Steam pressure        MPa

250

0.2~0.6

Electric power needed

35kw/380V

Compressed air consumption

Compressed air pressure

1.5m³/min

0.6-0.8MPa

Conditions needed for

 the cooling system:

1. Room temperature(ºC)

2. Humidity (%)



20~25

45~55

Gross weight            kgs

6500KG

Total length of the line    m

35



Profile:

The processing line is a complete plant for continuously producing various kinds of marshmallow, which comes

in a variety of colors and shapes, and jam center filling.

MAIN EQUIPMENT LIST:



COMMODITY: COMPLETE EXTRUDING MARSHMALLOW PLANT

MODEL: EXM5600

S/N

Name

Spec.

Qty

1

JACKET COOKER WITH SCRAPER MIXER

300L

1pcs

2

GEAR PUMP

1"

1pcs

3

GELATIN MELTING TANK

200L

1pcs

4

COOLING AND MIXING TANK

300L

1pcs

5

JACKET GEAR PUMP

1"

1pcs

6

JACKET HOLDING TANK

300L

1pcs

7

DOSING LOBE PUMP



1pcs

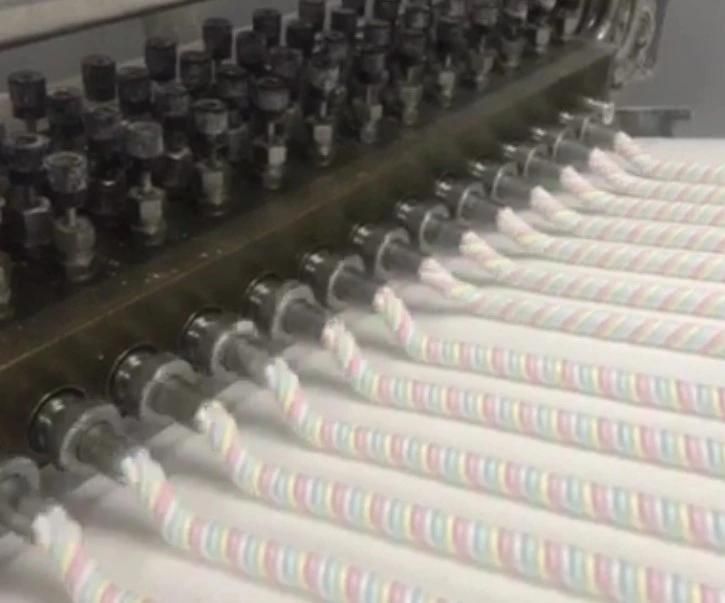

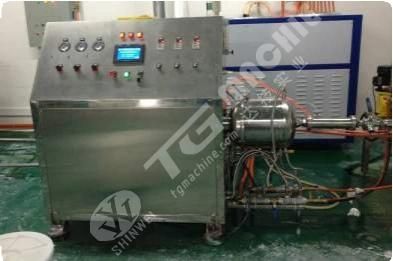

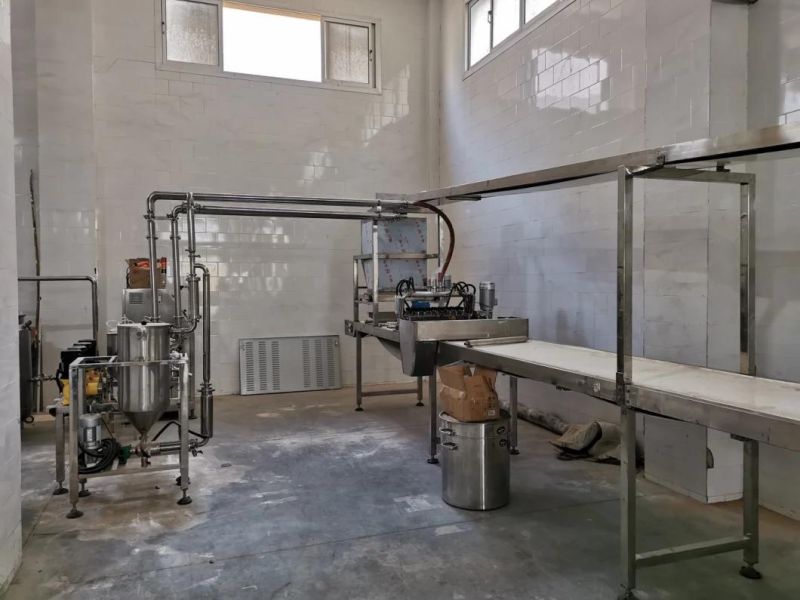

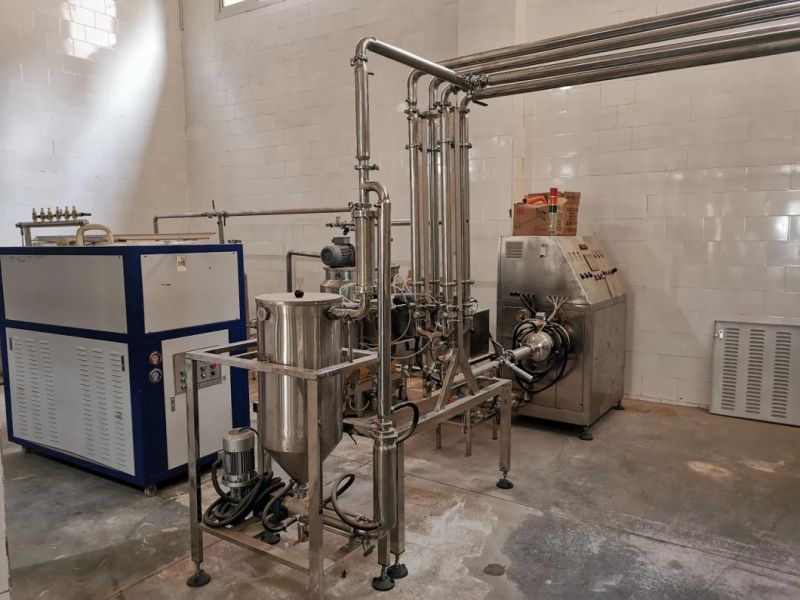

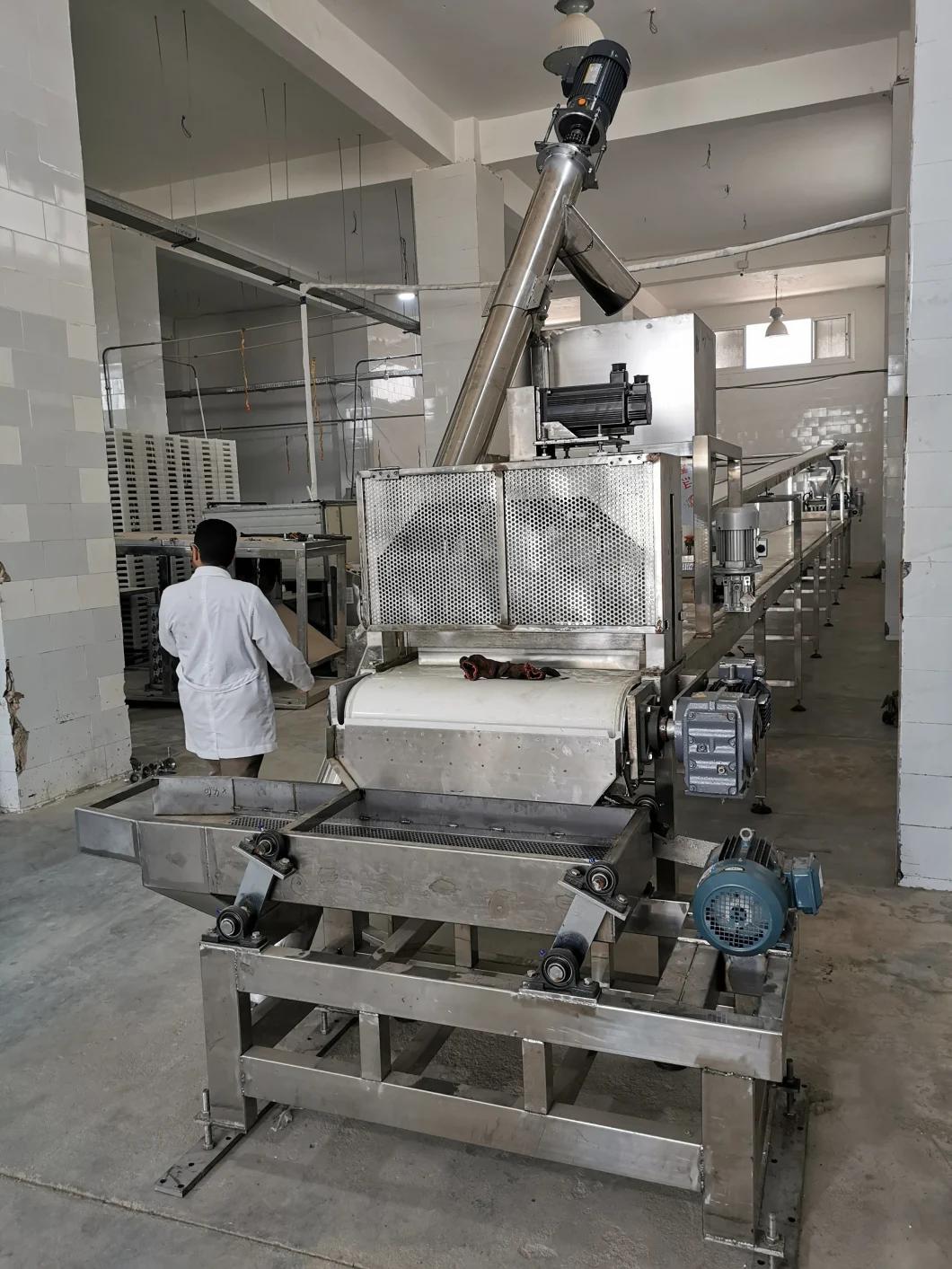

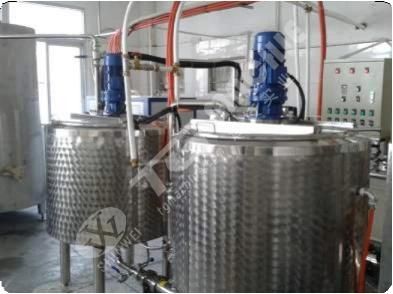

MACHINE PHOTOS:
