• Model NO.：WF-20
• Weight：200kg
• Dimension：650*500*1250mm
• Experience：Over 15 Years Professional Experience
• Certificate：ISO & CE
• Transport Package：Wooden Crate
• Specification：GMP ISO CE
• Trademark：XD
• Origin：Jiangyin, Jiangsu, China(Mainland)
• HS Code：8479820090
• Production Capacity：300 PCS,Year

Basic Info.

Model NO. WF-20 Weight 200kg Dimension 650*500*1250mm Experience Over 15 Years Professional Experience Certificate ISO & CE Transport Package Wooden Crate Specification GMP ISO CE Trademark XD Origin Jiangyin, Jiangsu, China(Mainland) HS Code 8479820090 Production Capacity 300 PCS/Year

Product Description

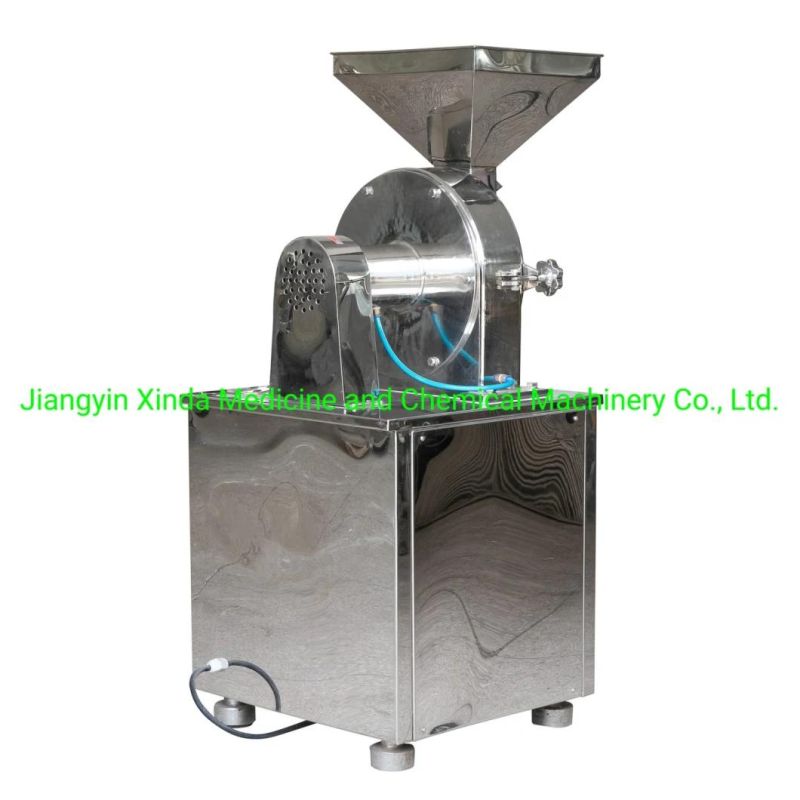

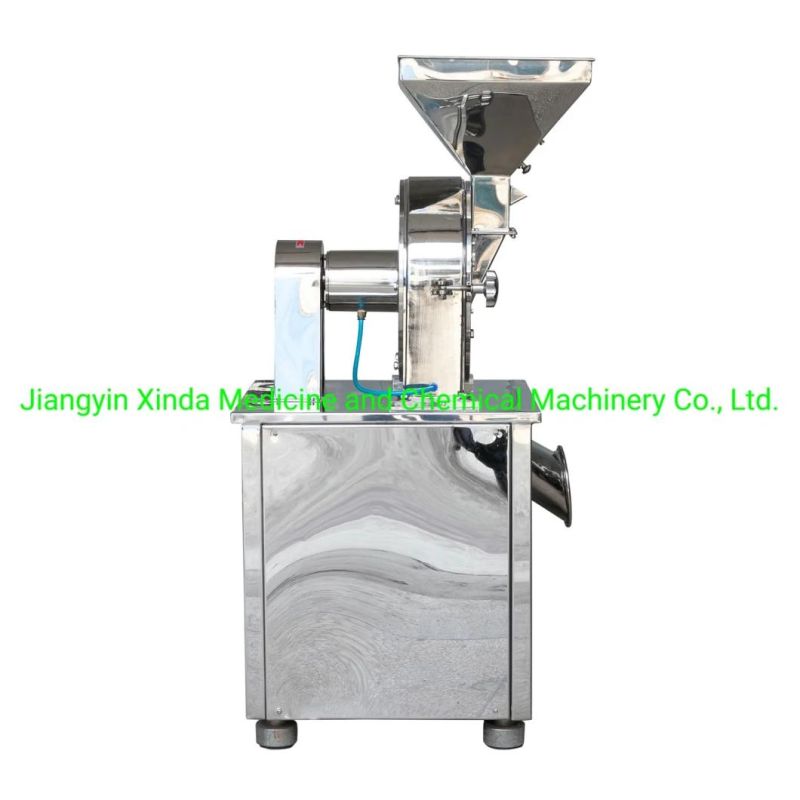

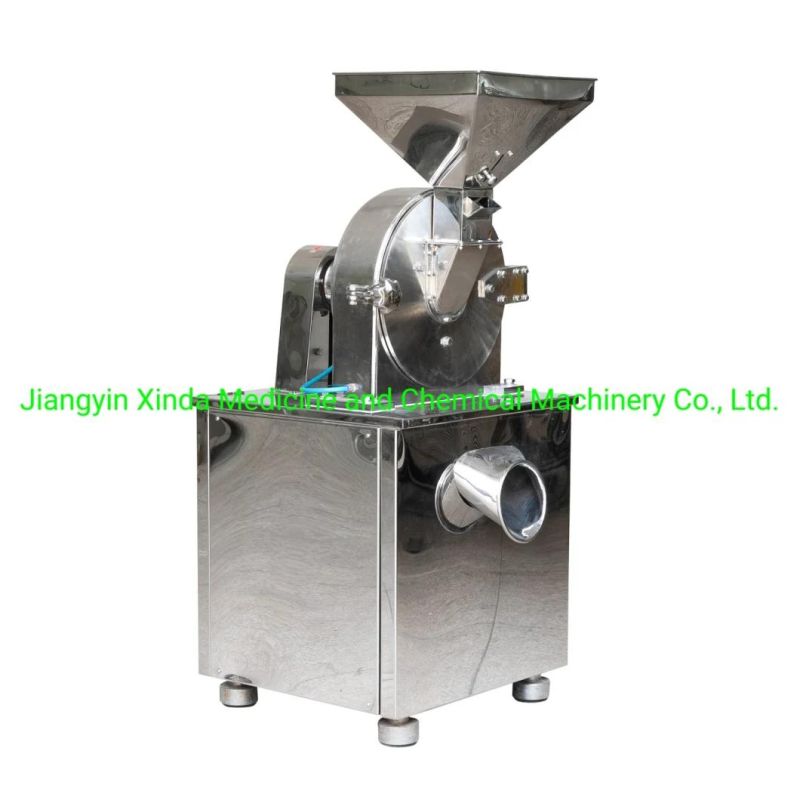

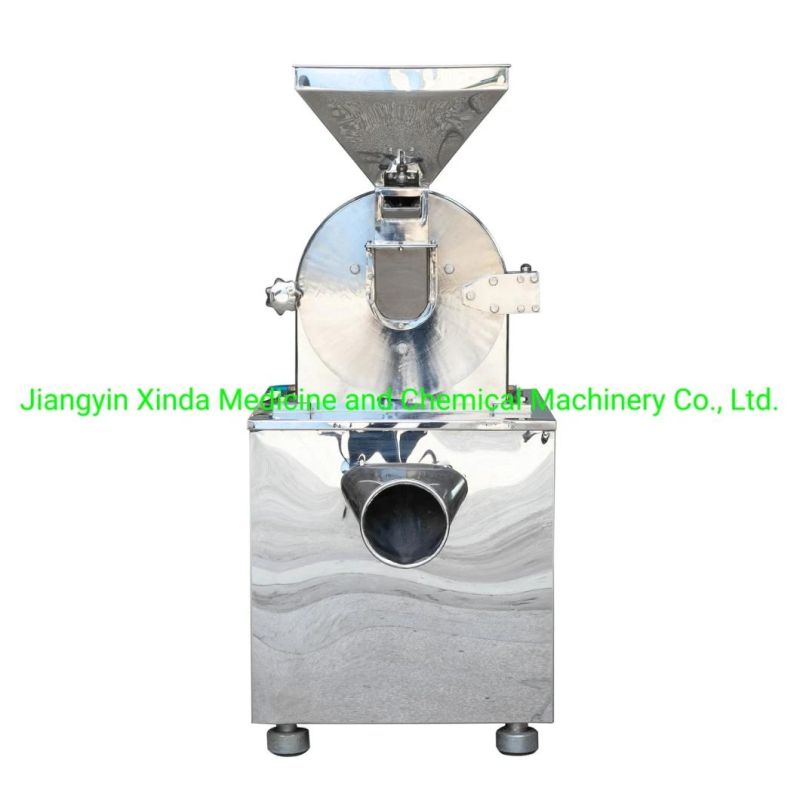

Stainless Steel Universal Spice Powder Pulverizer

Features of spice powder pulverizer:
1.This grinder uses the relatively high-speed operation of activities gear and fixed gear to crush the materials. The crushed materials can be discharged directly by the grinding chamber, the powder size can be changed by replacing different mesh size sieve;
2.This machine's structure is simple but sturdy, it is all made of 304 stainless steel and has smooth operation and low noise, it is easy to be cleaned, the materials can be crushed quickly and uniformly, the effect is good;
3.All alveolus inside the enclosure are processed by precision machines to achieve smooth surfaces, so as to be cleaned easily, the ordinary grinder usually has the rough inner wall, easy to accumulate powder and difficult to be cleaned, this machine can change these bad phenomena, the production of food, pharmaceutical and chemicals can better meet the health requirements.

Applications of spice powder pulverizer:
This grinder machine can be mainly used for grinding various grains, dry spices and herbs, herbal medicines containing roots and branches, chemical materials, and some other hard and brittle materials.
Such as: grains,roasted coffee bean,spices,herbs,salt,sugar,pepper,walnut shells,seed,etc.After grinding, fine powder can be made.

Technicial data

Model	18	20	30	40	60
Capacity(kg/h)	5-30	20-150	30-300	40-800	60-1200
Speed of principal axis(r/min)	5200	4500	3800	3400	2600
Size of input granules(mm)	≤5	≤6	≤10	≤12	≤15
Fineness of products(mesh)	12-120	12-120	12-120	12-120	12-120
Power(kw)	2.2	4	5.5	11	22
Weight(kg)	120	200	320	550	960
Overall size(L×W×H)(mm)	400×400×800	650×500×1250	750×600×1450	900×700×1800	1000×950×1800
