• Model NO.：WSHG series
• Key Wrod 2：Fruit Dryer Machine
• Key Word 3：Sea Food Dryer Machine
• Working Principle：Hot Air Circulation in Drying Oven
• Function：Drying, Dehydrating, Dryer
• Capacity：50kg Per Batch
• Trolley Quantity：1
• Tray Quantity：24
• Application Field：Food Processing Industry, Restaurant, Chemical
• Transport Package：Export Wooden Cases
• Specification：ce co ccc
• Trademark：GMEC
• Origin：Zhengzhou
• HS Code：8474900000
• Production Capacity：50kg,Batch

Basic Info.

Model NO. WSHG series Key Wrod 2 Fruit Dryer Machine Key Word 3 Sea Food Dryer Machine Working Principle Hot Air Circulation in Drying Oven Function Drying, Dehydrating, Dryer Capacity 50kg Per Batch Trolley Quantity 1 Tray Quantity 24 Application Field Food Processing Industry, Restaurant, Chemical Transport Package Export Wooden Cases Specification ce co ccc Trademark GMEC Origin Zhengzhou HS Code 8474900000 Production Capacity 50kg/Batch

Product Description

Food vegetable fruit fish dryer dehydrator drying fish making machine

Brief Introduction:
This equipment is mainly used in drying fish, medicine, sesame, vegetables, fruit, seafood, flowers, such as ginseng, red ginseng, ginseng, angelica, cordylines sinensis, honeysuckle, conventional, schisandra, astragalus and konjac, yam, maize seed, tobacco seeds, pumpkin, onion, spinach, brake, wild, carrots, celery, cowpea, chili, beans, tomatoes, mushrooms, mushrooms, agaric, garlic, ginger, raisins, kiwi fruit, banana, litchi, longan, apple, hawthorn, persimmon, scallops, dried fish, kelp, vinasse, chrysanthemum, rose dry food processing, etc. The productivity is high and with low consume.

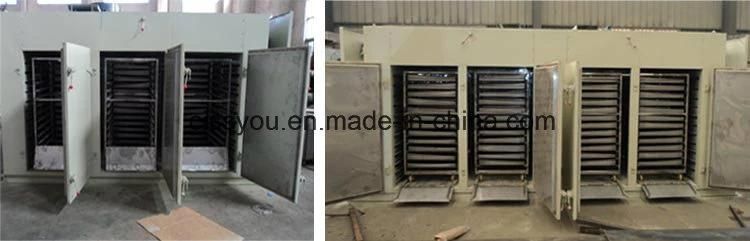

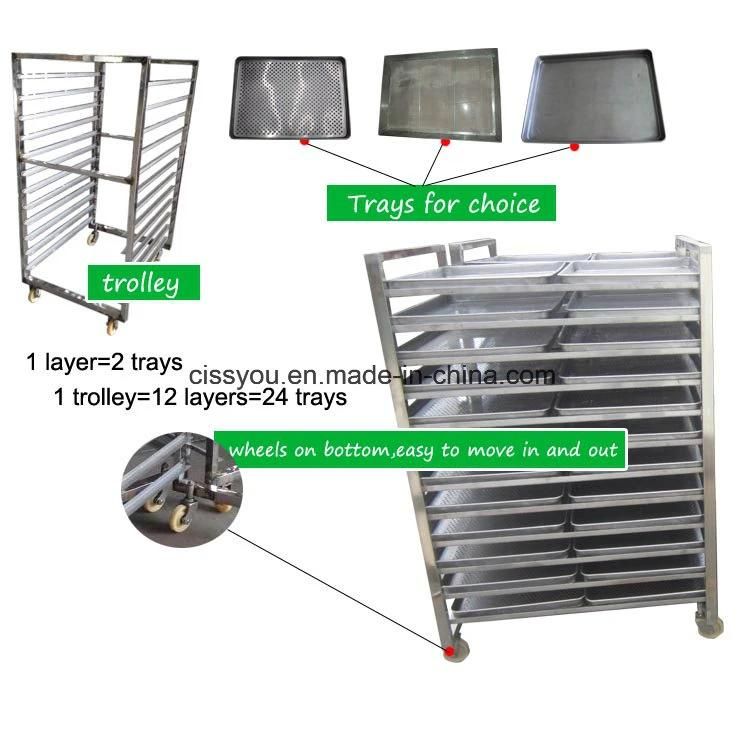

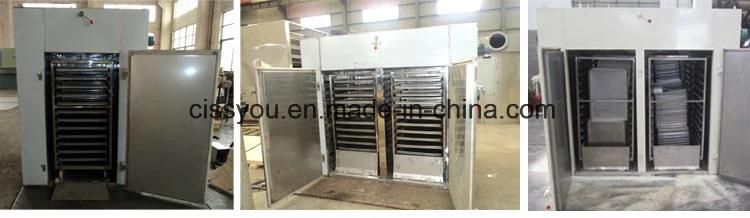

There are trolleys with shelves inside the dryer and many plates on the shelves. You can put your fish in the plates, and then put the plates on the shelves. There are wheels on the trolleys you can push them out of the dryer to put on fish.

This Decktop Digital Display Drying Oven machine is made by a low noise anti-high temperature axial flow fan and an automatic control temperature system. The whole circulation system is fully enclosed to make that the heat efficiency of the drying machine increases from traditional 3%-7% to 35%-45%. The highest heat efficiency can reach 50%. This saves lots of energy for our country and increases the economic benefits.

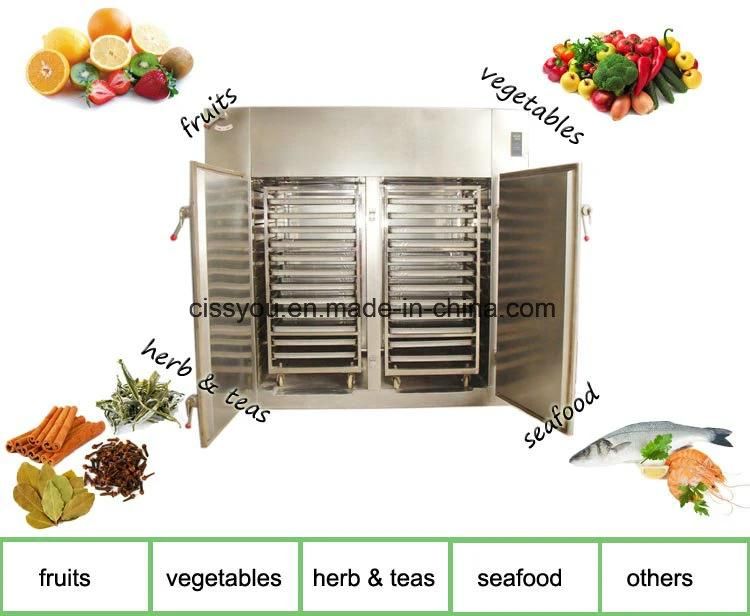

This  Decktop Digital Display Drying Oven is applied to fruit, vegetable, seafood, meat, side product, light industries, heavy dustries and so on.



 1.Outside SECC steel, fine powder coating treatment; Inner SUS#304 stainless steel.

2.Use new high temperature resistant long shaft motor

3.Turbine fan

4.Silicone forced tight

5.Over temperature protection, super load automatic power system.

6.Circulation system: air force level cycle.

7.Heating system: PID+S.SR

8.The thermostat: PID microcomputer control,automatic constant temperature, temperature quickly compensation function

9.Timer: temperature to time,when the power failure alarm indication

10.According to customer demand matching glass window can be customized according to customer specifications specified.

Model	Number of Trolley	Number of  Plate	Motor	Area of the plates	Productivity (fresh)	Dimension (m)
WSHG-1	1	24	9kw	5.76m²	50kg/batch	1.55*0.8*2.2
WSHG-2	2	48	15kw	11.52m²	100kg/batch	2.1*1.1*2.3
WSHG-4	4	96	30kw	23.04m²	200kg/batch	2.1*2*2.3
WSHG-6	6	144	45kw	34.56m²	300kg/batch	2.6*2.1*2.3
WSHG-8	8	192	60kw	46.08m²	400kg/batch	4*2*2.3*2.62
