• Model NO.：MT-10000
• Application：Milk, Cheese
• Customized：Customized
• Name：Milk Tank Milk Cooling Tank Fresh Milk Tank Raw Mi
• Material：Stainless Steel 304 ,316
• Milk Chilled Tank：500L to 10000L
• Refrigerant：R404 , R22
• Milk Tankapplication：Cooling and Storage Fresh Milk
• Milk Transportation Tank：Also Provided
• Milk Cooling Tank Inside and Outside：Mirror Polished
• Filter：Yes
• Mixer Speed：36rpm
• CIP Cleaning Ball：Provided
• Delivery：10 Days
• Spare Parts：Available
• Motor Brand：Siemens ,ABB ,China Brand
• Control Box：Yes
• MOQ：1set
• Transport Package：Wooden Box
• Specification：SANITARY, FOOD GRADE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：1000 to 10000L

Basic Info.

Model NO. MT-10000 Application Milk, Cheese Customized Customized Name Milk Tank Milk Cooling Tank Fresh Milk Tank Raw Mi Material Stainless Steel 304 /316 Milk Chilled Tank 500L to 10000L Refrigerant R404 / R22 Milk Tankapplication Cooling and Storage Fresh Milk Milk Transportation Tank Also Provided Milk Cooling Tank Inside and Outside Mirror Polished Filter Yes Mixer Speed 36rpm CIP Cleaning Ball Provided Delivery 10 Days Spare Parts Available Motor Brand Siemens /ABB /China Brand Control Box Yes MOQ 1set Transport Package Wooden Box Specification SANITARY, FOOD GRADE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 1000 to 10000L

Product Description

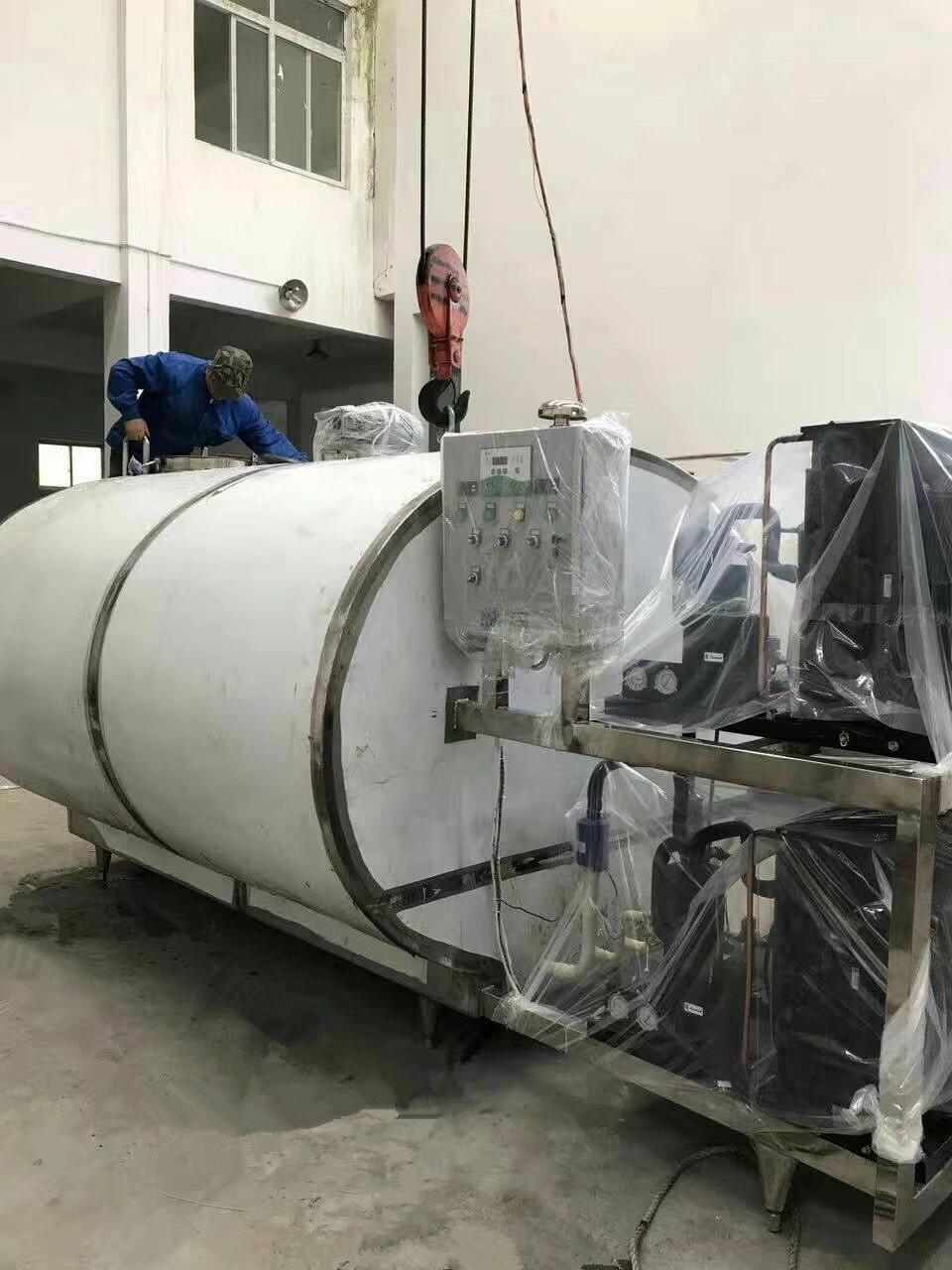

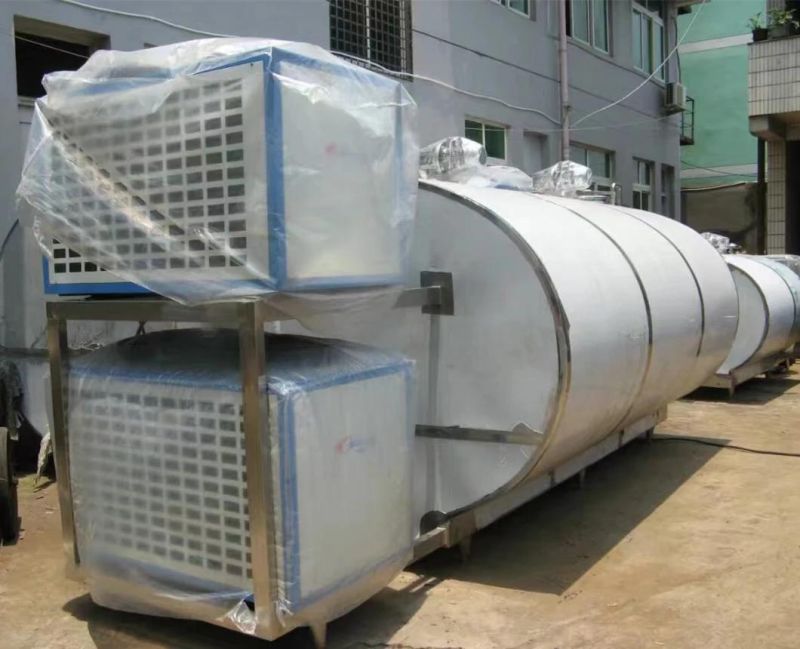

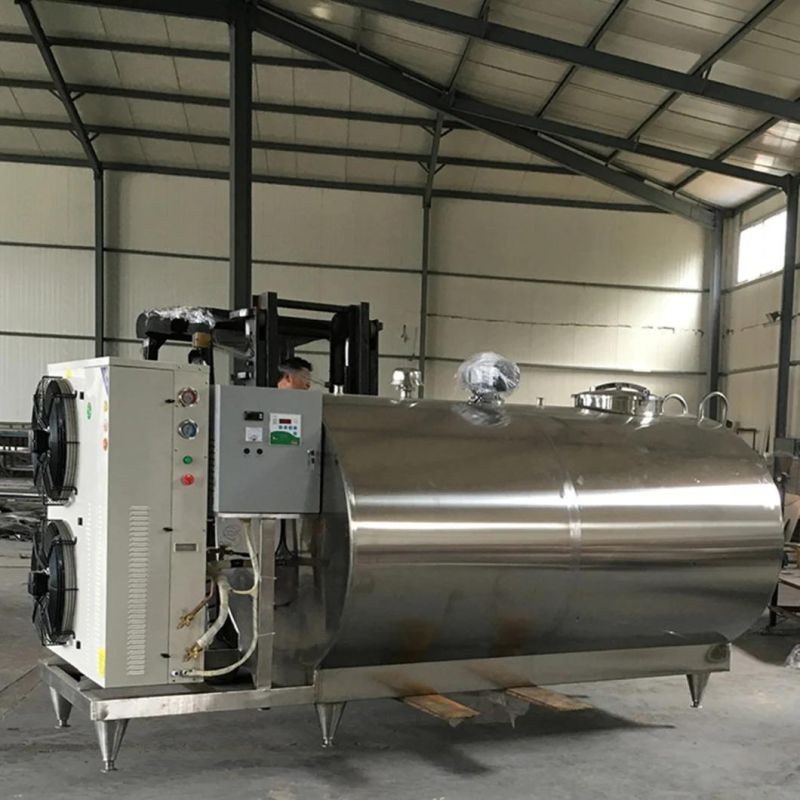

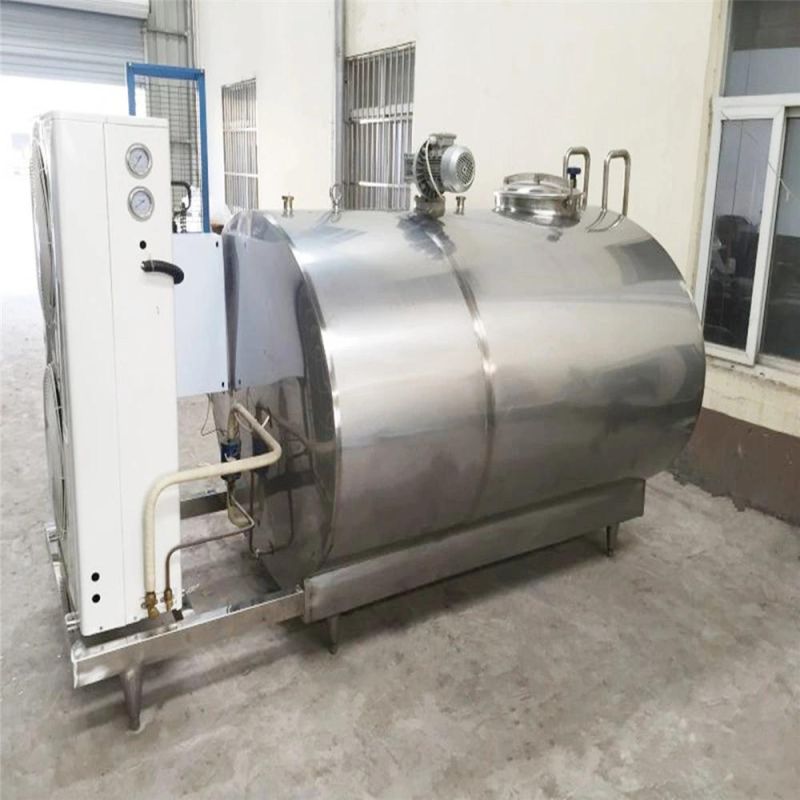

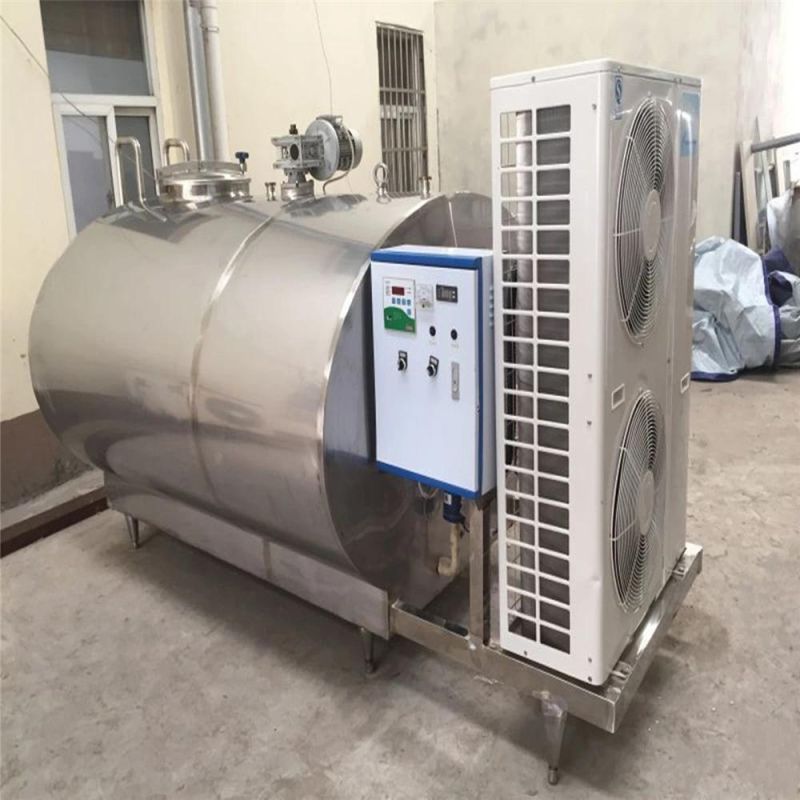

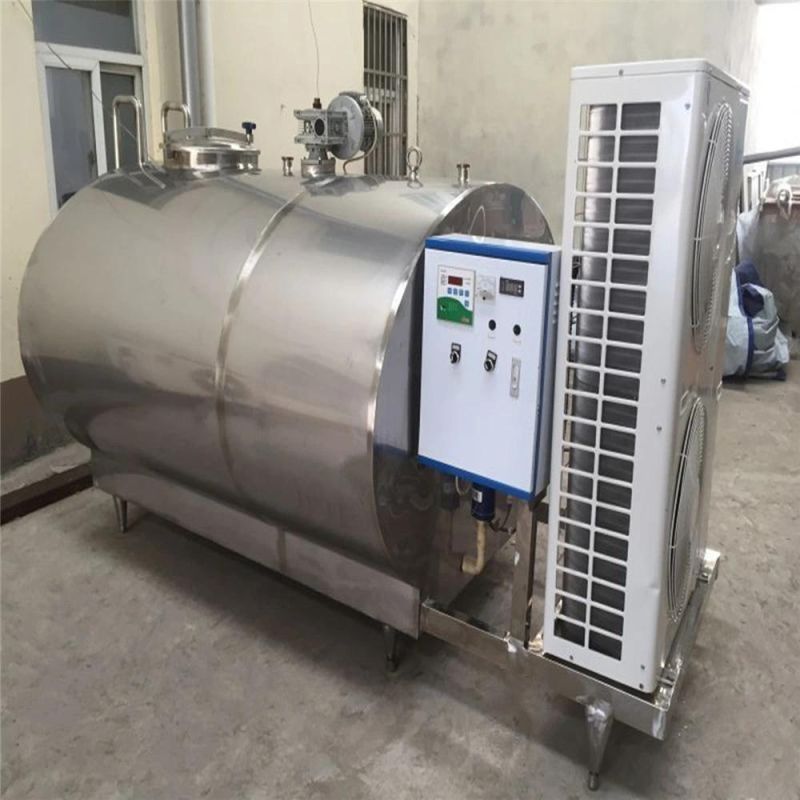

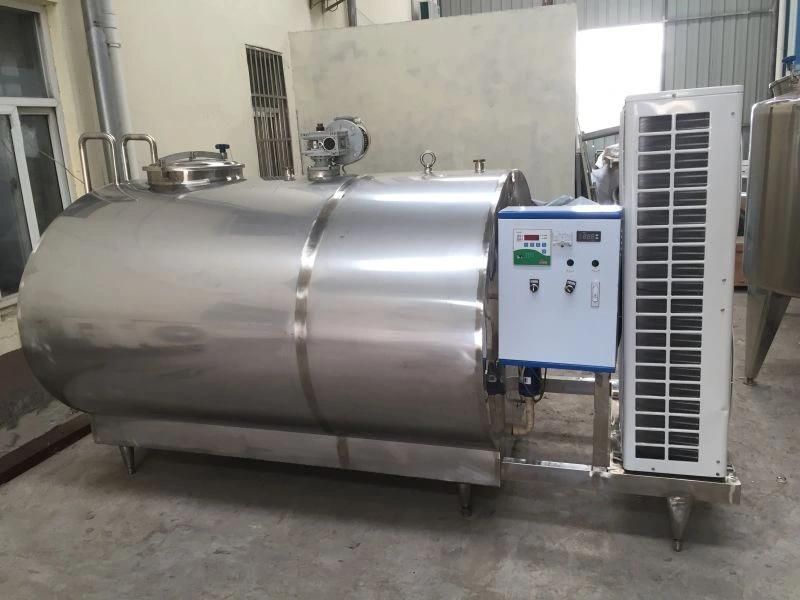

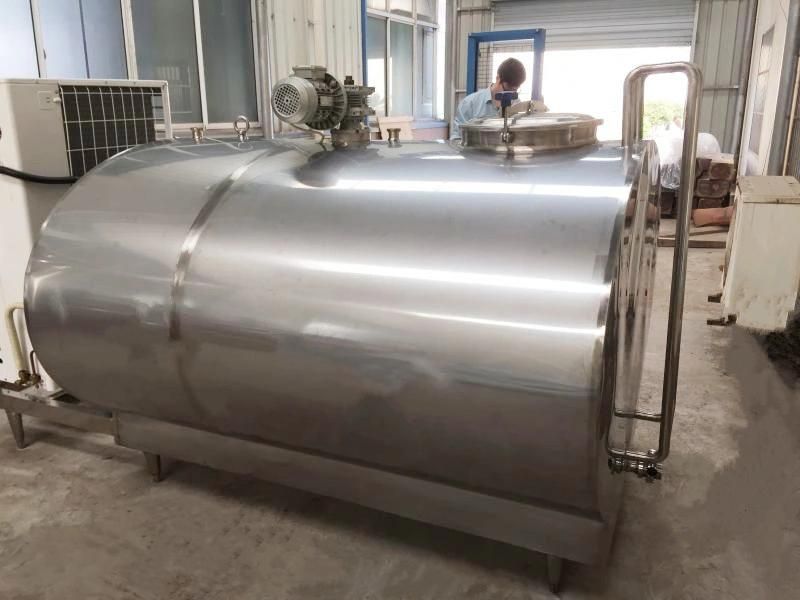

Milk Tank Milk Cooling Tank Fresh Milk Tank Raw Milk Tank Cooling Vat

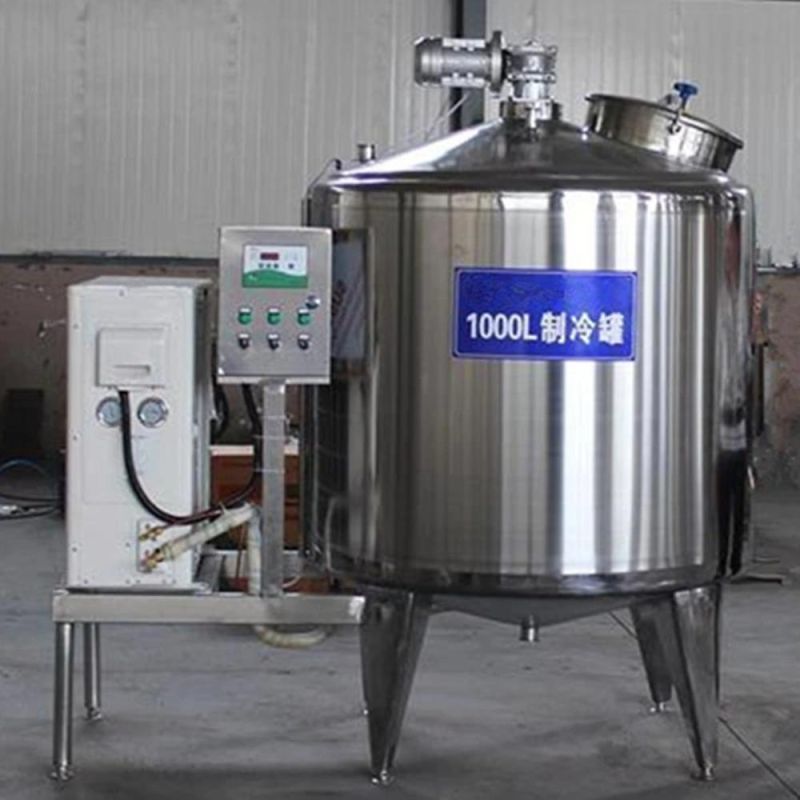

Type	KQ-1T Vertical type	KQ-2T Laying type	KQ-3T Laying type	KQ-5T  Laying type	KQ-6T  Laying type	KQ-8T  Laying type	KQ-10T  Laying type
Capacity( L)	1000	2000	3000	5000	6000	8000	10000L
Refrigerating Output (W)	9000	15000	22000	37000	38000	55000	74000
Refrigerating  Fluid(R)	R404/R22	R404/R22	R404/R22	R404/R22	R404/R22	R404/R22	R404/R22
Insulating Property	≤ 1C/4h	≤1C/4h	≤1 C /5h	≤1 C /5h	≤1 C /5h	≤1 C /5h	≤1 C /6h
Agitator Speed	36r/min	36r/min	36r/min	36r/min	36r/min	36r/min	36r/min
Power (Kw)	3.8	5.9	7.5	10.5	11	13	19.2
Voltage	380V/50Hz,3phases	380V/50Hz,3phases	380V/50Hz,3phases	380V/50Hz, 3phases	380V/50Hz, 3phases	380V/50Hz, 3phases	380V/50Hz, 3phases
Dimension(mm)	1800*1200*1500	3400*1550*1750	3600*1700*1900	3900*2050*2150	4500*2050*2150	6300*2050*2250	8000 * 2100 * 2400
Weight(Approximately)	0.6T	0.75T	0.9T	1.1T	1.3T	1.8T

 Milk Chilling Tank, You Can Buy Various High Quality Milk Chilling TankProducts from  Adopting internationally-advanced technology of the 1900's it cools by circular and vertical wall. The fully automatic control system makes whole process of observation available. The cooled raw milk can reach rapidly needed temperature of 4~5 and keeps constant, which can prevent the generation of bacteria and make raw milk as Agrade cream.


The adopted imported compressor features high performance, energy saving, full seal and protection system that prevents damage due to overload. Also fitted are high / low liquid level control system and automatic cyclespray and agitating device.

Milk Tank Milk Cooling Tank Fresh Milk Tank Raw Milk Tank Cooling Vat
