• Model NO.：6Y-230
• Customized：Customized
• English Manual：Yes
• CE Certificate：Yes
• Capacity：50-80kg,h
• Power：1.5kw
• Max pressure in working：60MPa
• Transport Package：Wooden Fumigated Box
• Specification：CE, ISO
• Trademark：VIC
• Origin：China
• HS Code：84792000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. 6Y-230 Customized Customized English Manual Yes CE Certificate Yes Capacity 50-80kg/h Power 1.5kw Max pressure in working 60MPa Transport Package Wooden Fumigated Box Specification CE, ISO Trademark VIC Origin China HS Code 84792000 Production Capacity 5000PCS/Year

Product Description

Tally Olive Cold Oil Hydraulic Pressing Machine

Application:
The totally olive oil cold pressing machine has been launched after improved by introduced Korean technology and won high praise from users. With lower power consumption and noise, it can be fed with 1-7kg of material every time and completely squeeze in 4-8min. The final oil is good edible oil.
It can be applied for oilseeds such as sesames, walnuts and pine nuts, etc.
This machine also can be used to extract juice from traditional Chinese medicine herbs and remove oil from chemical products.
Advantage
1). Maximum pressing pressure up to 60Mpa
2). Advanced and reliable hydraulic systems power the equipment
3). The maximum capacity can reach 150KH/H
4). Both cold press and hot press are acceptable
5). Continuous intelligent automatic control system is more safe
6). Low-power motors save energy
7). Filtration system make healthier oil .
Main date:

Model	6Y-180	6Y-230	6Y-300
Process capacity	15-30kg/h	50-80kg/h	100-150kg/h
Power	1.5kw(380v/50hz)	1.5kw(380v/50hz)	3kw(380v/50hz)

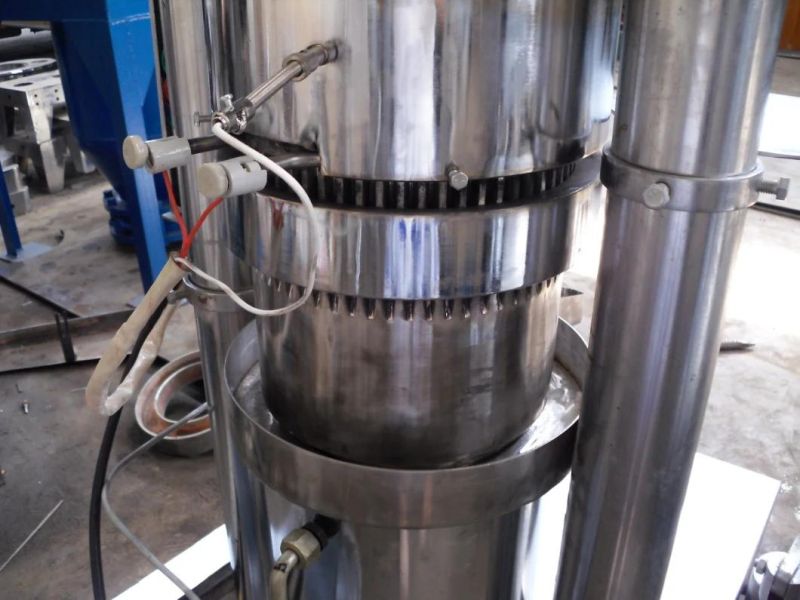

Heating collar power	1kw	1kw	2kw
Heating collar temperature control	70-100 degree	70-100 degree	70-100 degree
Nominal pressure	1600KN	2200KN	3000KN
Max pressure in working	60MPA	60MPA	60MPA
Overall size	800x60x1100mm	900x750x1400mm	2600x1000x2000mm
Weight	530kg	880kg	3200kg

More pictures:

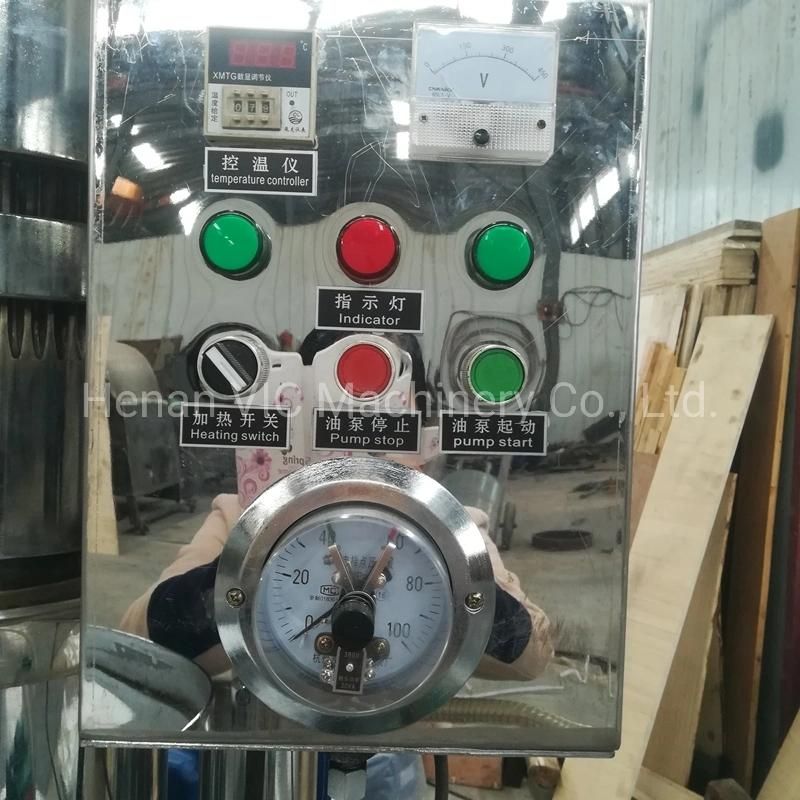

Contral box with double scale pressure

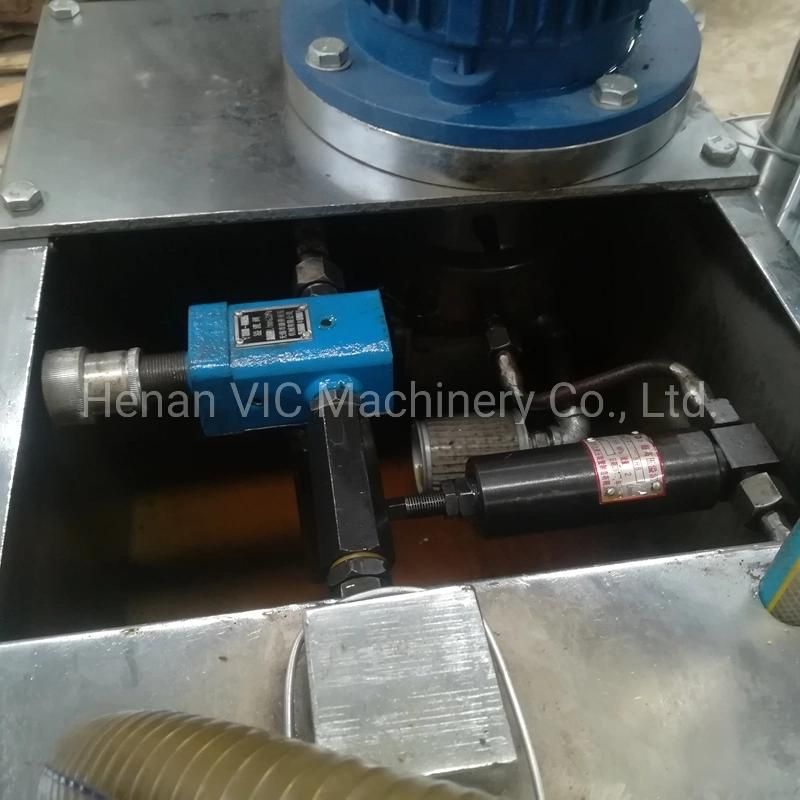

Hydraulic systerm

Parts for free

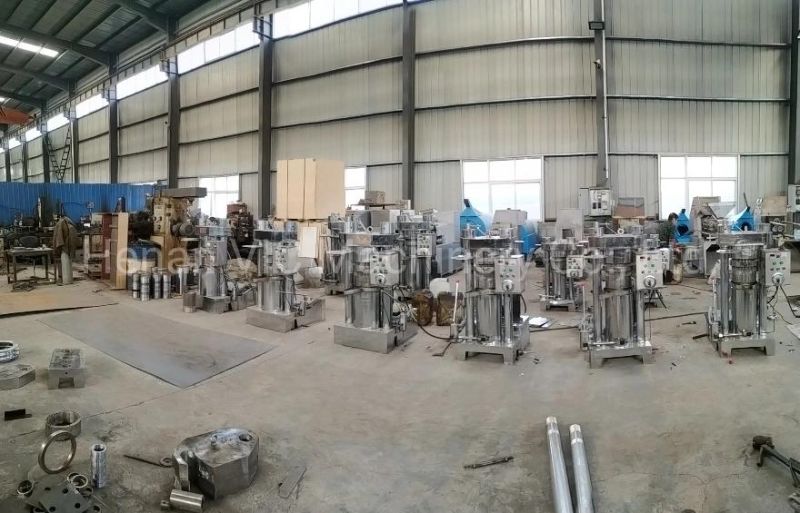

Factory corner

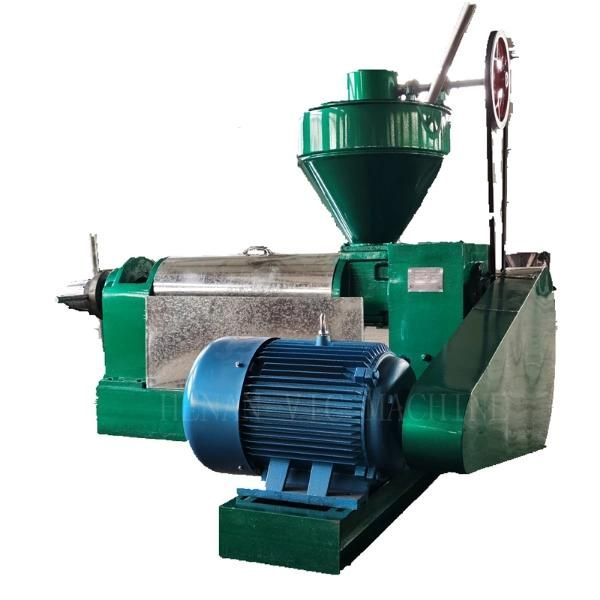

Other screw oil press 6YL series

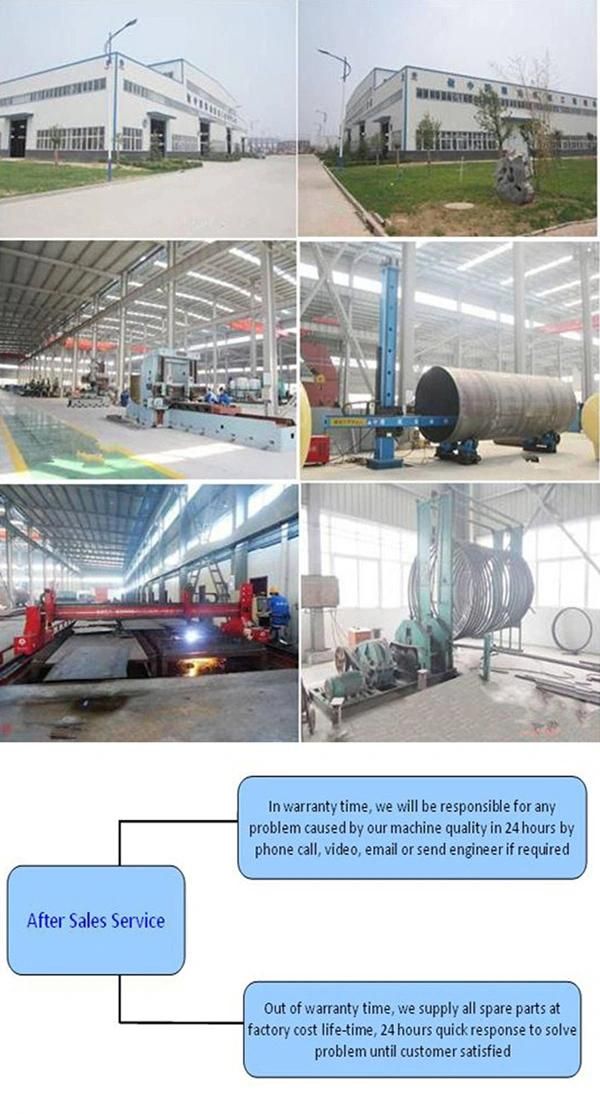

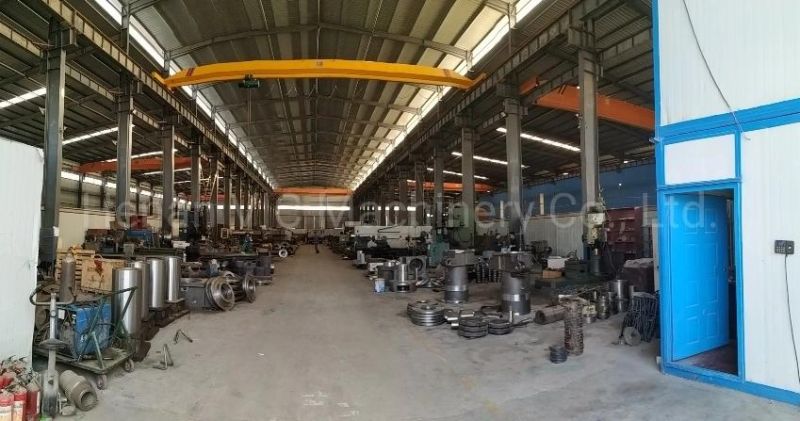

 Our factory
