• Model NO.：JTM-180
• Press Materials：COCOA NUT, SESAME, PEANUT etc.
• Press Series：Second
• Condition：New
• Customized：Customized
• USAGE：TO MILL PEANUT BUTTER
• MODEL：JTM-180
• processing fineness：50-200micron
• hopper volume：10L
• Diameter of hopper：90mm
• capacity：800-1000 kg,h
• Transport Package：Wooden Cased by Sea
• Specification：830*490*1100
• Trademark：VIC
• Origin：Henan
• Production Capacity：2000 Sets, Month

Basic Info.

Model NO. JTM-180 Press Materials COCOA NUT, SESAME, PEANUT etc. Press Series Second Condition New Customized Customized USAGE TO MILL PEANUT BUTTER MODEL JTM-180 processing fineness 50-200micron hopper volume 10L Diameter of hopper 90mm capacity 800-1000 kg/h Transport Package Wooden Cased by Sea Specification 830*490*1100 Trademark VIC Origin Henan Production Capacity 2000 Sets/ Month

Product Description

               Peanut butter grinding machine peanut colloid mill JTM

1.Main application:
This JTM series colloidal mill (butter mill) machine can be applied to mill food,
pharmacy, chemical and other industries, it can crush, emulsify, homogeneity and mix, the main technology is up to international standard.

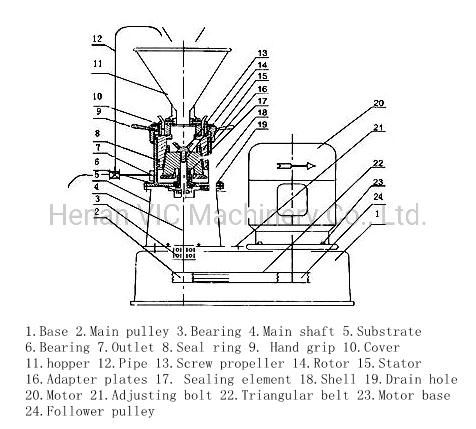

2.Main structure:
Main parts adopt high quality stainless steel, with corrosion resisting and no poison.Main parts stator, rotor adopts specific processing and heating processing technology, with long life and high precision.Stator, rotor and choose different materials, matched with grinding and cutting etc different structure and teeth type for choice, the processing gap can be adjusted and with dial, easy to control and ensure the processing quality. Matched with cooling system to ensure the processing materials' structure. Main shaft and motor separate design and the user can choose different rpm according to demand.

3.Scope of Application:
Food processing industry: juice, jam, beans, peanuts, cream, beverage, malted milk, egg yolk, ice-cream, etc.
Chemical industry concerned with products for daily use: grease,water quality,powder cream high-level cosmetics; shoe polish, tooth paste, soap, cleaning detergent, bath extract.
Chemical industry: lubricating grease, paints, coloring agents, emulsified asphalt, cementing compound, etc.
Other industries: plastic industry, pharmaceutical industry, textile industry, construction industry and coinage.

4.Main data:

Model	JTM-50	JTM-80	JTM-110	JTM-130	JTM-180	JTM-240	JTM-300
Processing fineness(micron)	50-100	50-100	100-200	100-200	100-200	100-200	60-200
Hopper volume	3L	8L	8L	10L	10L	20L	20L
Diameter of the lower hopper	40mm	50mm	50mm	90mm	90mm	120mm	120mm
Capacity(kg/h)	10-15	70	200	400-600	800-1000	1500-2000	3000-4000
Power(kw)	1.1	4	7.5	15	18.5	45	75
Weight(kg)	50	150	175	285	340	1300	1600
Size(mm)	530*260*580	640*410*900	740*430*980	830*440*1100	830*490*1100	1320*600*1280	1500*800*1120

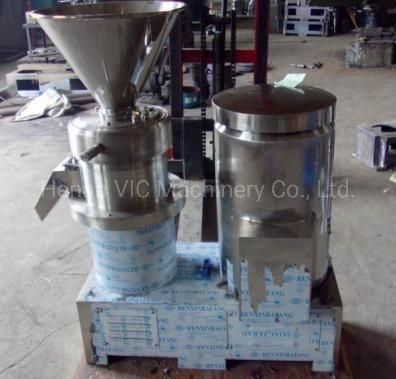

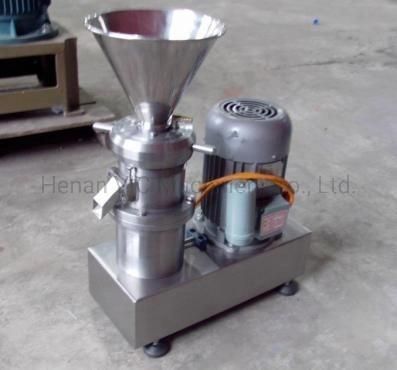

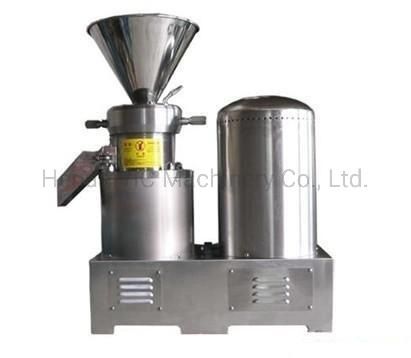

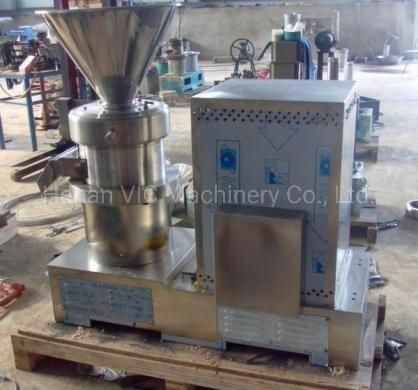

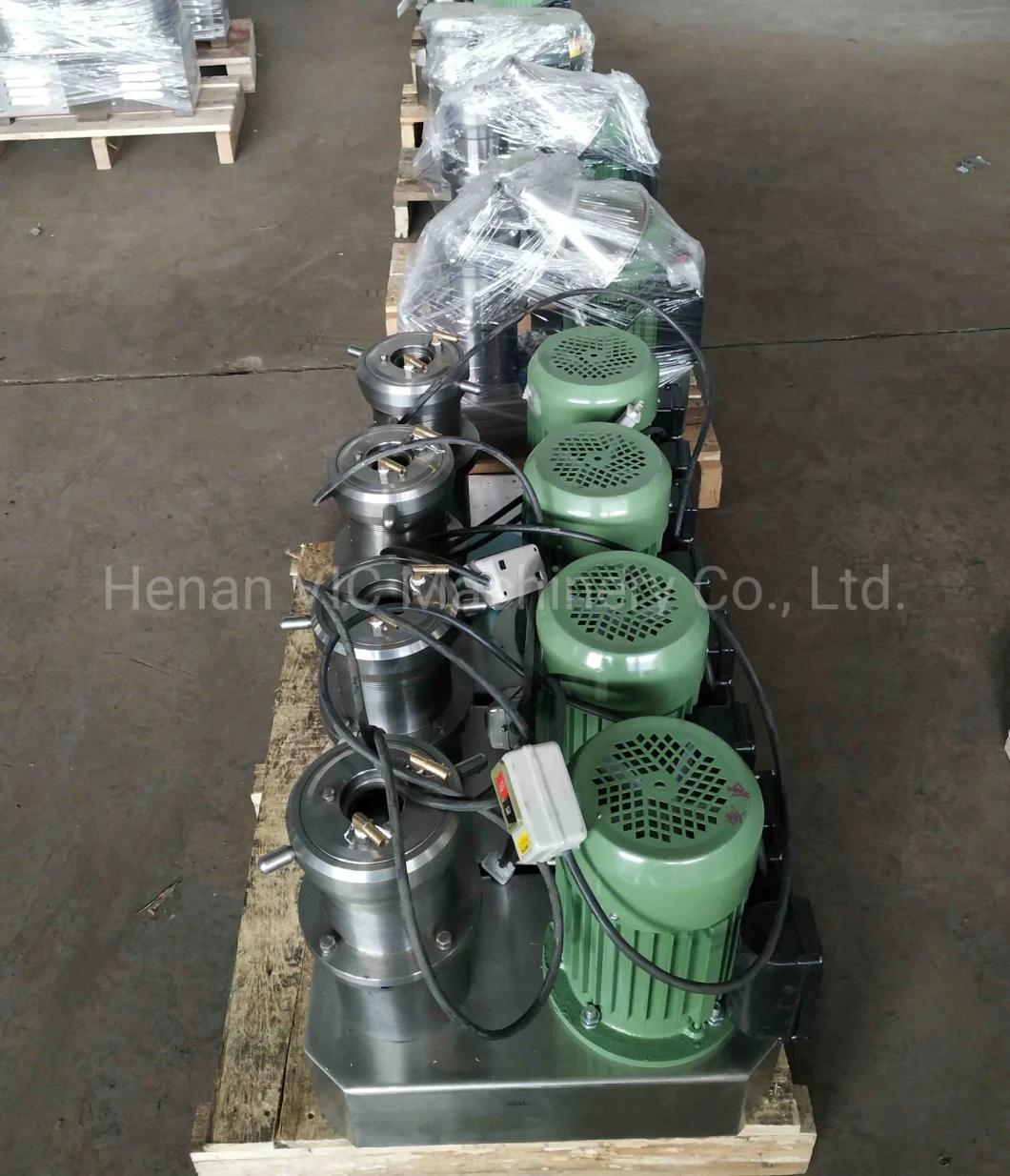

5.Different models:

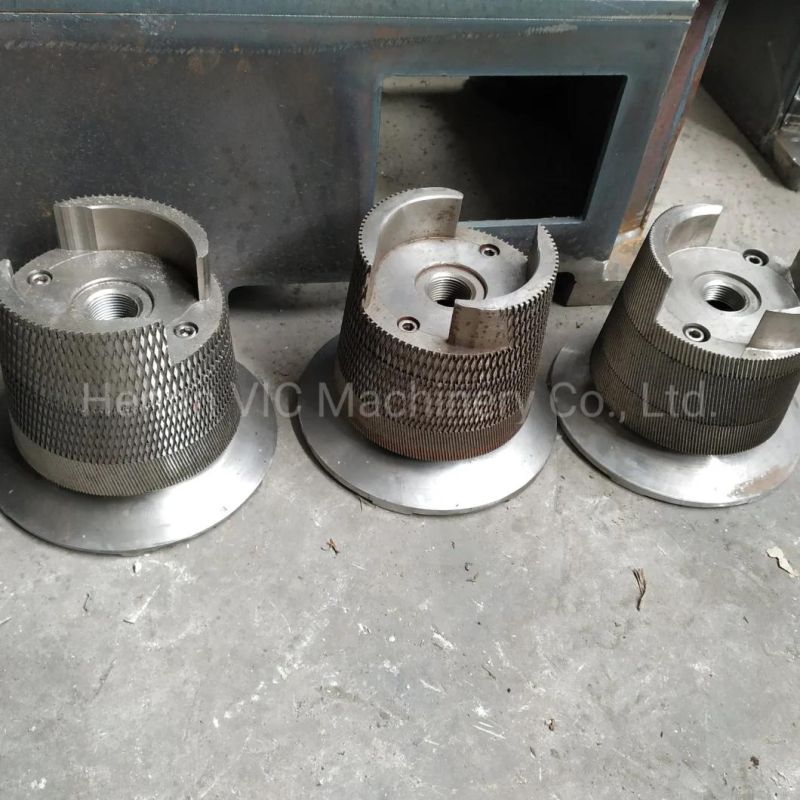

Parts:

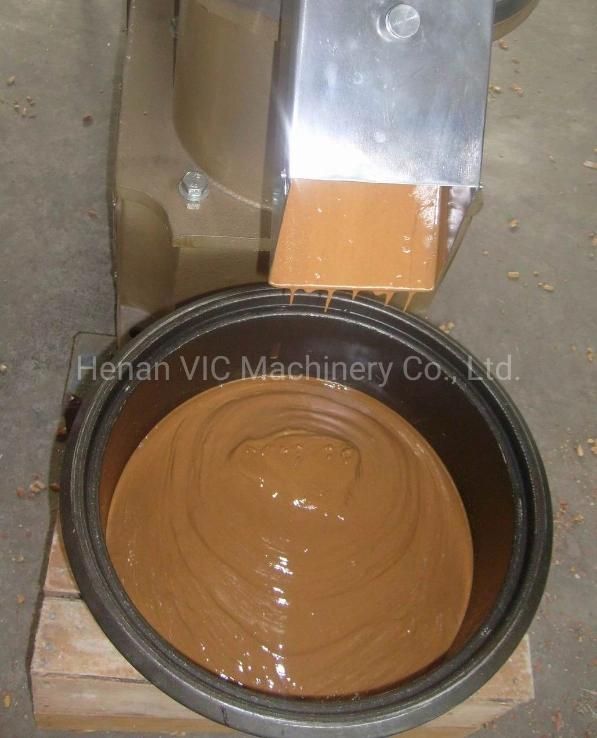

Final product

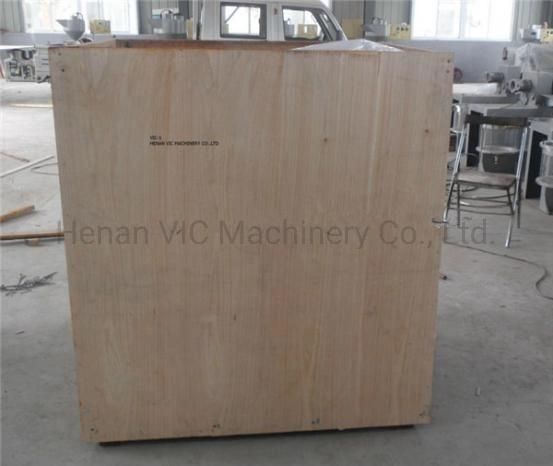

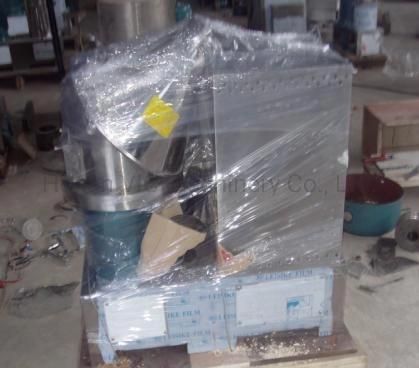

Package:

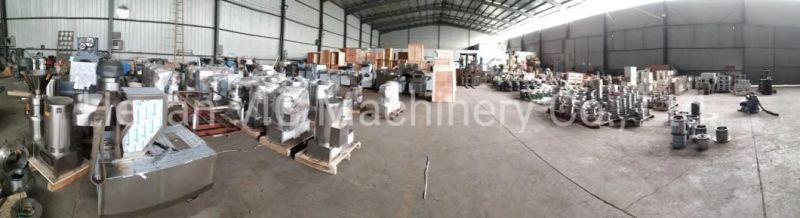

Factory  view:
